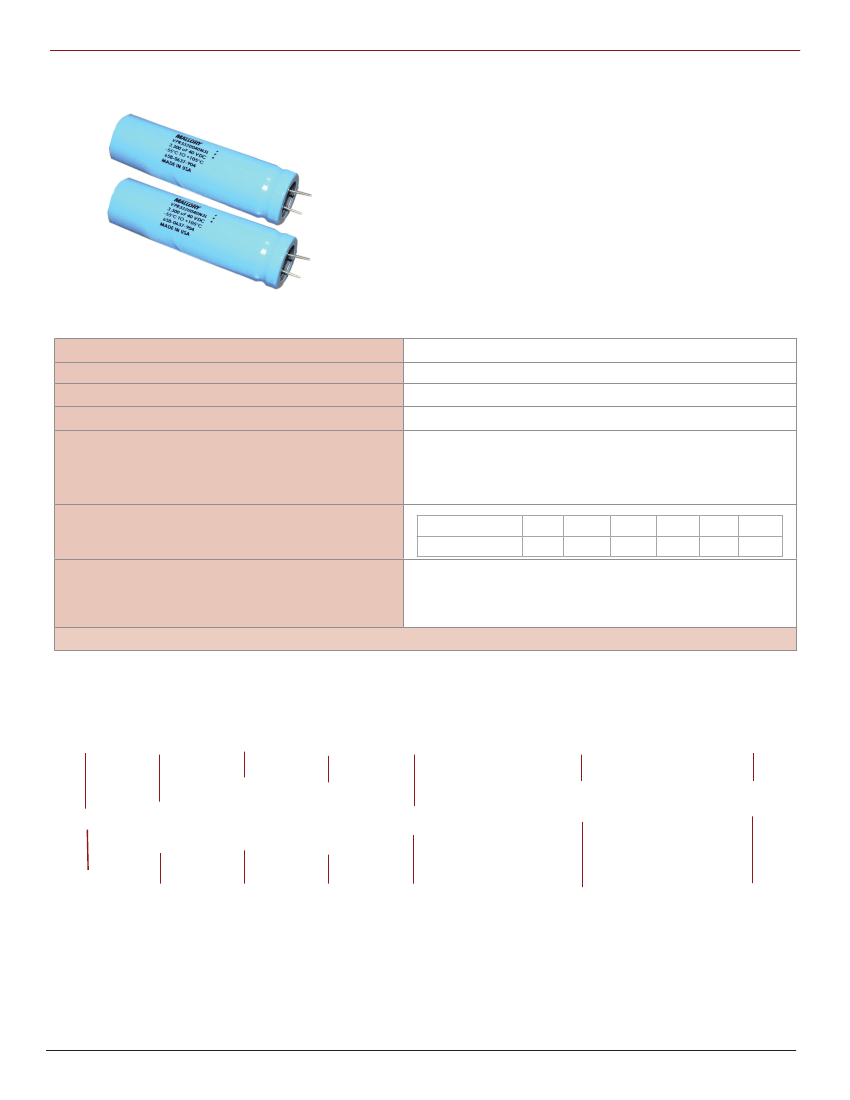

Type VPR –55 to 105 ºC Radial Leaded Aluminum Electrolytic
Low ESR, Optional 3rd Lead Case Styles, Aluminum Electrolytic Capacitors
Type VPR is a radial leaded aluminum electrolytic capacitor with
a 105 ºC, 2000 hours long life ratings. The VPR has 3 optional case
styles with a third lead. The low ESR rating makes it ideal for output
filtering in switching power supplies.
Highlights
- 105 ºC
- Long life
- Low ESR
- High reliability
–55 ºC to +105 ºC
6.3 to 100 Vdc (250 Vdc on special request)
250 to 12,000 µF
–10% +75% (others on special request)
I = .002 CV after 2 minutes @ 25 ºC
C = Capacitance in (µF)
V = Rated voltage
I = Leakage current in µA
Temperature (ºC)
Multiplier
QA Stability Test
45
1.66
55
1.52
65
1.37
75
1.2
85
1
95
0.75
Specifications
Temperature Range
Rated Voltage Range
Capacitance Range
Capacitance Tolerance
Leakage Current
Ripple Current Multipliers
Apply WVDC for 2000 h at 105 ºC
Capacitance change within 15% of initial limits
DC leakage current meets initial limits
ESR ≤ 150% of initial measured value
RoHS Compliant
Part Numbering System
VPR
372
U
016
L2C
3
A
Capacitance
Type
Capacitance
(µF)
Tolerance
(%)
Rated
Voltage
(Vdc)
Case Code
Insulating
Sleeve
Lead
Configuration
VPR
100
= 10
101
= 100
372
= 3700
U
= –10 +75
T
= –10 +50
6R3
= 6.3
016
= 16
100
= 100
See Case
Code Chart
0
= No sleeve
3
= PVC
4
= Plastic sleeve
5
= Plastic sleeve with end seal
A
= Standard

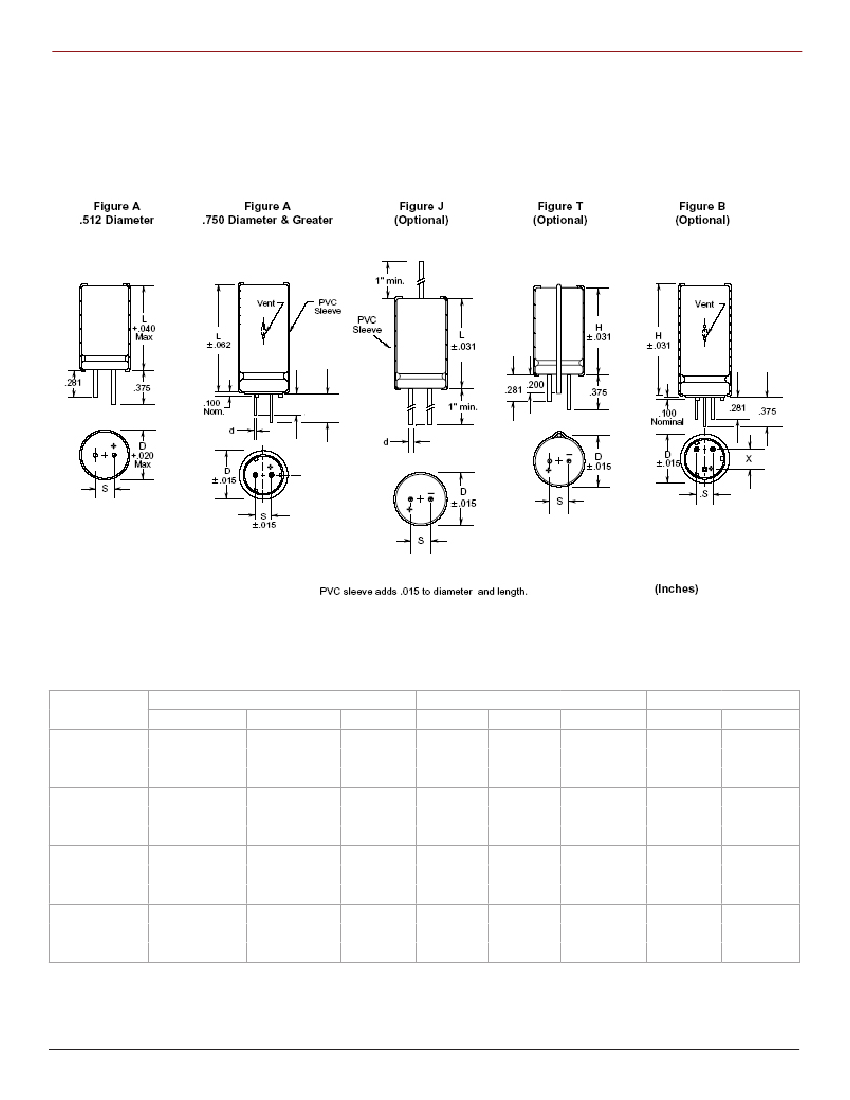

B, J or T
– see
outline dimensions
CDM Cornell Dubilier
•
140 Technology Place
•
Liberty, SC 29657
•
Phone: (864)843-2277
•
Fax: (864)843-3800
