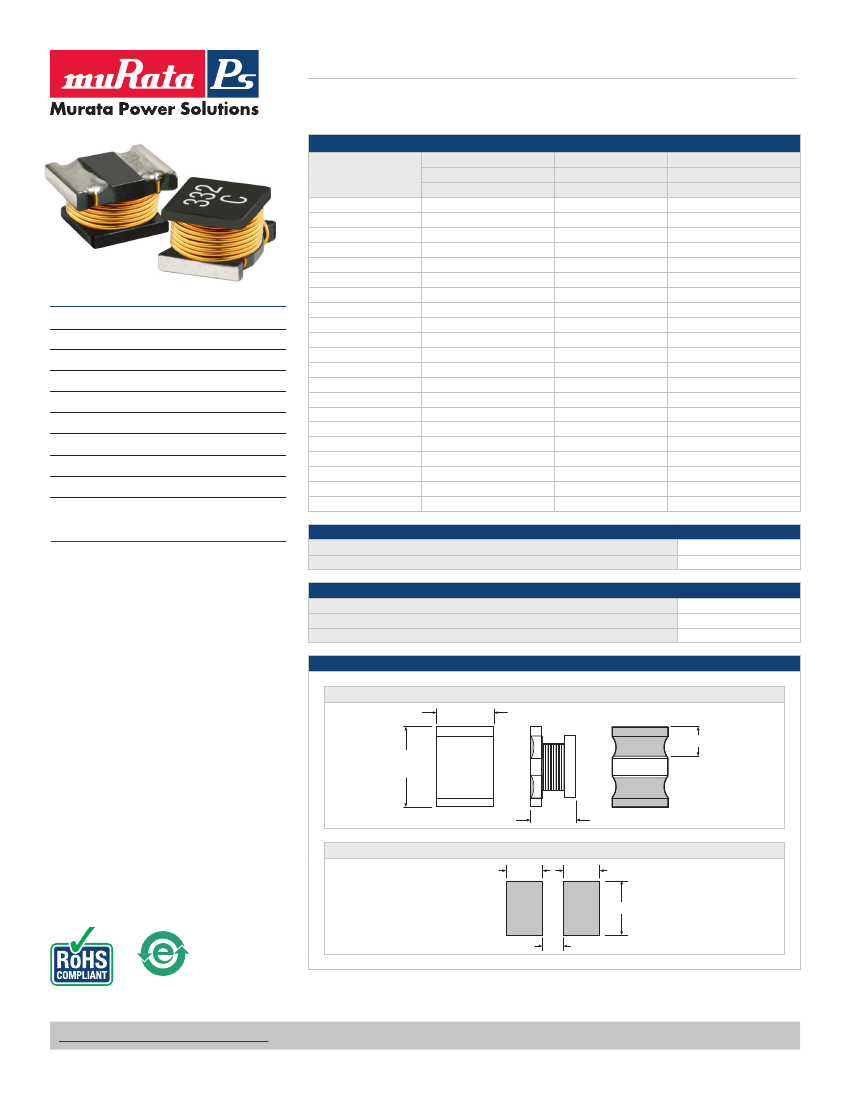

www.murata-ps.com
8400 Series
Miniature Surface Mount Power Inductors
SELECTION GUIDE
Inductance, L
Order Code
84102C
84132C
84222C
84332C
84472C
84682C
84103C
84153C
84223C
84333C
84473C
84683C
84104C
84154C
84224C
84334C
84474C
84684C
84105C
84155C
84225C
±10%
μH
1.0±20%
1.3±20%
2.2±20%
3.3±20%
4.7±20%
6.8±20%
10
15
22
33
47
68
100
150
220
330
470
680
1000
1500
2200
DC Current
2
Max.
A
2.80
2.50
2.00
1.50
1.30
1.05
0.95
0.75
0.60
0.55
0.42
0.38
0.30
0.25
0.20
0.17
0.14
0.12
0.09
0.08
0.05
DC Resistance
Max.
Ω
0.08
0.08
0.09
0.12
0.15
0.20
0.24
0.45
0.60
0.86
1.1
1.6
2.0
3.2
4.6
6.5
8.5
11.5
18.0
27.0
45
FEATURES
n
compliant
RoHS
n
to 2.8A I
DC
Up
n
1.0µH to 2.2mH
n
R
DC
Low
n
Small footprint
n
Ultra-low profile
n
94V-0 packaging materials
UL
n
J-STD-020C reflow
n
Custom inductance values available
PRODUCT OVERVIEW
The 8400 series is a range of miniature, surface-
mount,
I-core
power inductors. They are designed
for use in power applications with restricted
PCB space and height, such as ExpressCard™
technology, handheld devices, DC-DC converters
and notebook computers. The products are
supplied in tape and reel for high-volume,
automated surface-mount assembly.
ABSOLUTE MAXIMUM RATINGS
Operating free air temperature range
Storage temperature range
SOLDERING INFORMATION
1
Peak reflow solder temperature
Pin finish
Moisture sensitivity level
-40°C to 125°C
-40°C to 150°C
250°C
SAC 305
1

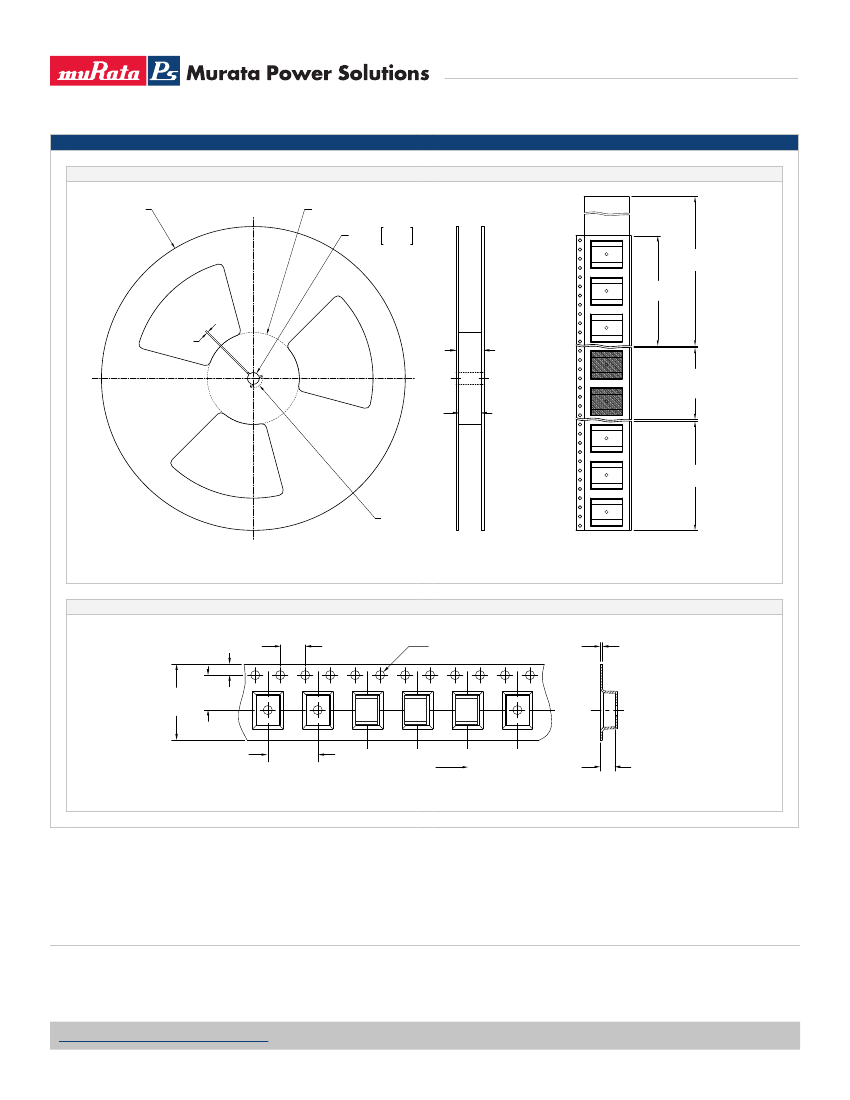

PACKAGE SPECIFICATIONS
Mechanical Dimensions
3.3±0.3 (0.130±0.012)
1.0 (0.039) Min.
4.5±0.3
(0.177±0.012)
332
C
Package weight: 0.15g Typ.
2.6±0.3 (0.102±0.012)
Recommended Footprint Details
2.0 (0.079)
2.0 (0.079)
3.5 (0.138)
1.2 (0.047)
All dimensions in mm (inches)
For full details go to
www.murata-ps.com/rohs
Specifications typical at T
A
= 25°C
1 For further information, please visit www.murata-ps.com/rohs
2 The maximum DC current is the value at which the inductance falls to 75% of its nominal value or when its temperature rise reaches
40°C, whichever is sooner.
www.murata-ps.com/support
KMP_8400C_A05
Page 1 of 3
8400 Series
Miniature Surface Mount Power Inductors
INDUCTANCE Vs CURRENT
10000
8400 Series Inductance Vs Current
2.2mH
1000
220µH
Inductance, L (µH)
100
22µH
10
1µH
1
0.1
0.0
0.001
0.0
0.01
0.1
0.1
1.0
10.0
10.0
Current, I
DC
(A)
TEMPERATURE Vs CURRENT
70
8400 Series Temperature Vs Current
Temperature rise above ambient, t (ºC)
60
50
40
30
20
10
0
0.0
2.2mH
220µH
22µH
1µH
0.5
1.0
1.5
2.0
2.5
3.0
3.5
4.0
4.5
Current, I
DC
(A)
INDUCTANCE Vs FREQUENCY
10000
8400 Series Inductance Vs Frequency
2.2mH
220µH
1000
Inductance, L (µH)
100
22µH
10
1µH
1
0.1
10
100
1000
10000
Frequency, (kHz)
www.murata-ps.com/support
KMP_8400C_A05
Page 2 of 3
8400 Series
Miniature Surface Mount Power Inductors
PACKAGE SPECIFICATIONS
Mechanical Dimensions
Ø331 (13.03) Max.
Ø99.5 (3.92) Min.
Ø13.50 Ø 0.531
12.80 0.504
Leader Section
400 (15.748) Min.
100 (3.937)
Min.
2.3 (0.091)
18.4 (0.724) Max.
Goods
Enclosure
Section
12.4±0.2
(0.488±0.008)
Trailer Section
160 (6.299) Min.
Ø21.5 (0.846)
All dimension in mm [inches]
Tape Outline Dimensions
1.75 (0.069)
4.00 (0.157)
Ø1.50 (0.059)
0.40 (0.016)
5.50
12.00 (0.217)
(0.472)
332
C
332
C
332
C
8.00 (0.315)
Direction of unreeling
Reel quantity: 2000
Unless otherwise stated, all dimensions in mm (inches).
3.0 (0.118)
Murata Power Solutions, Inc.
11 Cabot Boulevard, Mansfield, MA 02048-1151 U.S.A.
ISO 9001 and 14001 REGISTERED
Murata Power Solutions, Inc. makes no representation that the use of its products in the circuits described herein, or the use of other
technical information contained herein, will not infringe upon existing or future patent rights. The descriptions contained herein do not imply
the granting of licenses to make, use, or sell equipment constructed in accordance therewith. Specifications are subject to change without
notice.
© 2012 Murata Power Solutions, Inc.
www.murata-ps.com/support
KMP_8400C_A05
Page 3 of 3
