HCMOS 2.0x1.6mm 3.3V SMD Oscillator
Model: F130 SERIES
Page 1 of 2
RoHS Compliant / Pb Free
Rev. 3/9/2011
http://www.foxonline.com/need_a_sample.htm
FEATURES
• 3.3V Operation
• Standby Function

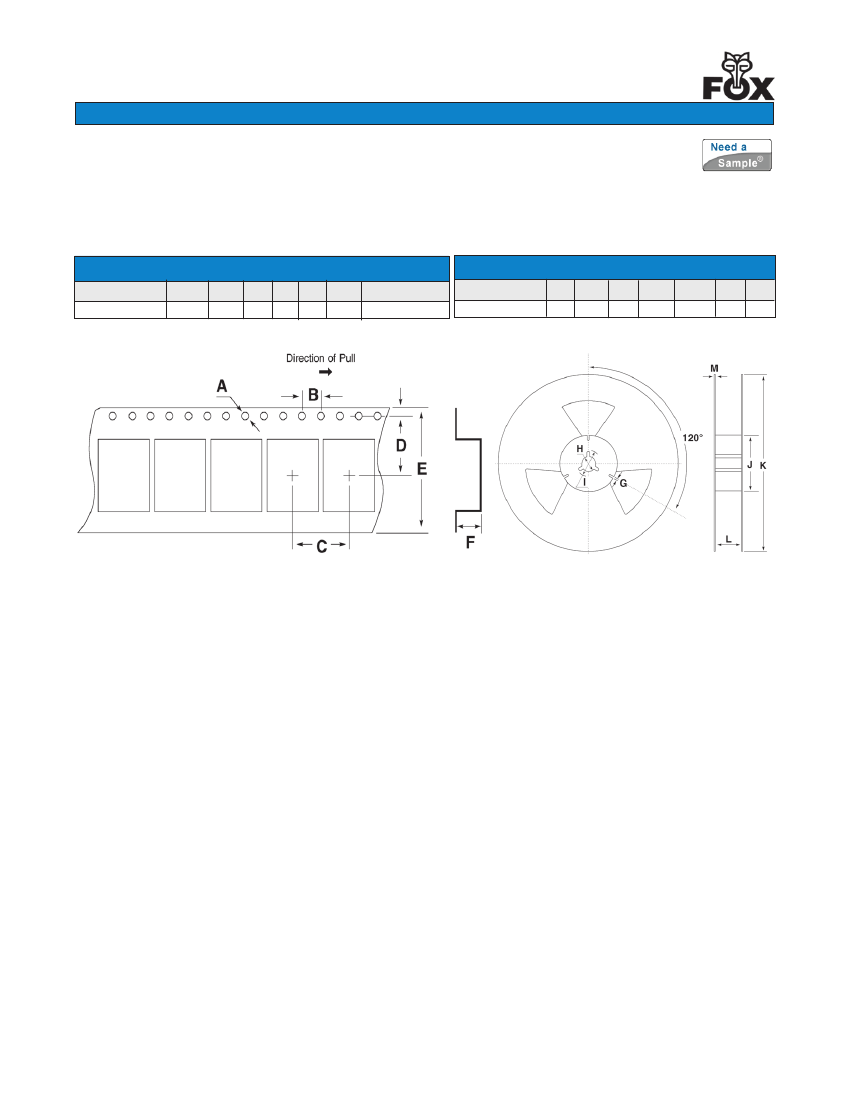

• Tape and Reel
(3,000 pcs. STD)
• PART nUMbER SELECTIOn
Learn More - Internet Required
Part Number
837-Frequency-xxxxx
837A-Frequency-xxxxx
837B-Frequency-xxxxx
837C-Frequency-xxxxx
837D-Frequency-xxxxx
Model Frequency
Operating
Number Stability Temperature (ºC)
±100PPM
1
-20 ~ +70
F130
-40 ~ +85
F130R
±100PPM
1
±50PPM
1
-20 ~ +70
F135
1
-40 ~ +85
F135R
±50PPM
±25PPM
2
-10 ~ +60
F136
Frequency
Range (MHz)
1.000 ~ 80.000
1.000 ~ 80.000
1.000 ~ 80.000
1.000 ~ 80.000
1.000 ~ 80.000
#4
T op V iew
2 .1 M ax
#3
1 .7 M ax
• ELECTRICAL CHARACTERISTICS
PARAMETERS
Frequency Range (F
o
)
Storage Temperature Range (T
stg
)
Supply Voltage
(V
dd
)
Input Current
(I
dd
)
1.000000 ~ 40.000000 MHz
40.000001 ~ 60.000000 MHz
60.000001 ~ 80.000000 MHz
Output Symmetry (50% V
dd
)
Rise Time (10% ~ 90% V
dd
)
Fall Time (90% ~ 10% V
dd
)
Output Voltage
(V
ol
)
(V
oh
)
Output Current
(I
ol
)
(I
oh
)
Output Load
(HCMOS)
Standby Current
Start-up Time
(T
s
)
Output Disable Time
3
Output Enable Time
3
Phase Noise ( 36 MHz @ 1 kHz offset)
Maximum Soldering Temp / Time
Moisture Sensitivity Level (MSL)
Termination Finish
1
D o t de notes
pin1.
#1
#2
0 .8 M ax
MAX
(unless otherwise noted)
1.000~ 80.000 MHz
-40ºC ~ +85ºC
3.3V ± 10%
5mA
10mA
15mA
45% ~ 55%
6nS
6nS
10% V
dd
90% V
dd
Min
4mA Min
-4mA Min
15pF
10µA
2mS
50uS
2mS
-120dBc/Hz Typ.
260ºC ±5ºC / 5 Seconds
1
Au over Ni
0 .5
0 .6
#1
#4
0 .7
#2
0 .5
B ottom
V iew
#3
R e com m ended
S old er P ad La yout
0 .75
0 .65
0 .35
0 .55
All dimensions are in millimeters.
Inclusive of 25ºC tolerance, operating temperature range, input voltage change, load change,
reflow freq. shift and one year aging.
2
Inclusive of 25ºC tolerance and operating temperature range.
3
An internal pullup resistor from pin 1 to pin 4 allows active output if pin 1 is left open.
Notes: A 0.01µF capacitor should be placed between V
dd
(Pin 4) and GND (Pin2) to minimize
power supply noise.
Dimensional drawing is for reference to critical specifications defined by size measurements.
Certain non-critical visual attributes, such as side castellations, reference pin shape, etc. may
vary.
All specifications subject to change without notice.
Pin Connection
#1 E/D
#2 GND
#3 Output
#4 V
dd
• EnAbLE / DISAbLE FUnCTIOn
Pin 1
OUTPUT (Pin 3)
OPEN
3
ACTIVE
'1' Level V
ih
≥
70% V
dd
ACTIVE
'0' Level V
il
≤
30% V
dd
High Z
