(1) CRM2512 2 W loading with total solder pad and trace size of 300 mm
2
.
(2) E = (PxR)
1/2
E: Working Voltage (V); P: Rated Power (W); R: Resistance Value (Ω)
(3) Jumper (0
Ω):
Rated current 6 A maximum with 300 mm
2
pad. Temperature coefficient is not
applicable.
For Standard Values Used in Capacitors, Inductors, and Resistors,
click here.

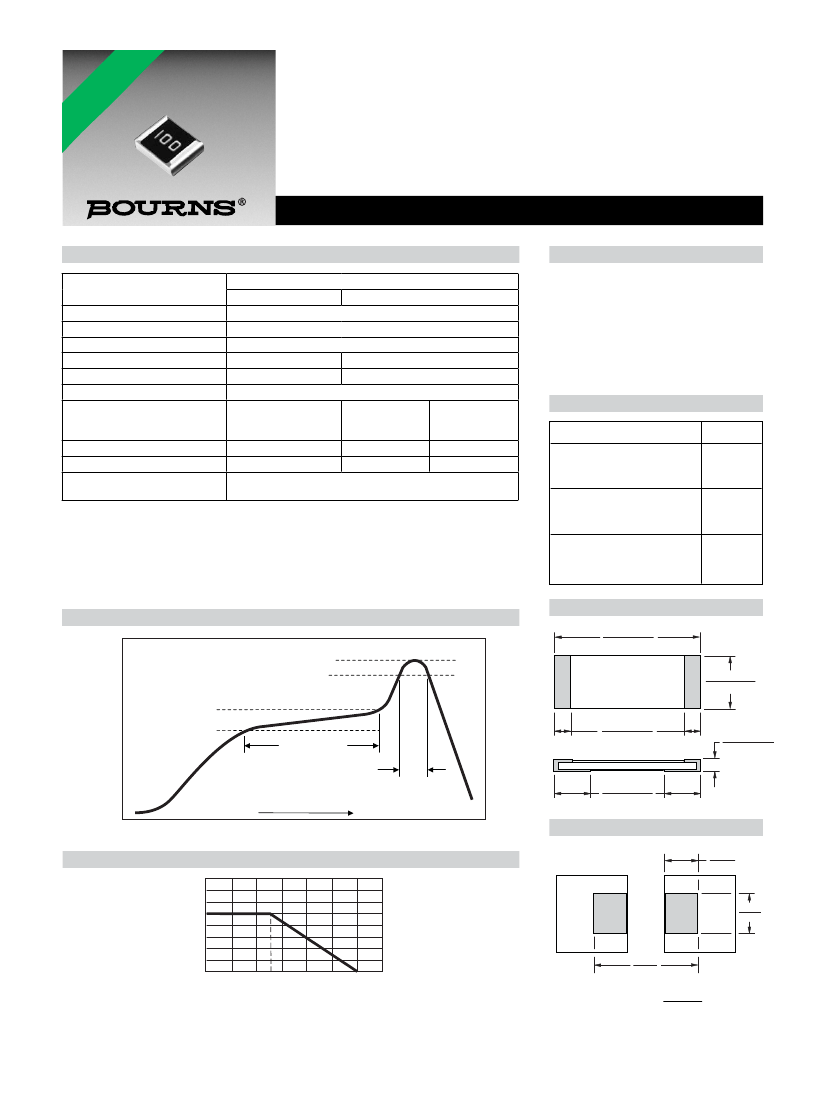

Soldering Profile
Product Dimensions
6.3 ± 0.20
(0.248 ± 0.008)
250
Peak 260 +5/-0 °C
230 °C or higher
TOP SIDE
3.1 ± 0.20
(0.122 ± 0.008)
Temperature (°C)
200
180 °C
150
100
150 °C
Pre-heating Zone
0.6 ± 0.20
(0.024 ± 0.008)
90 ± 30 seconds
30 ± 10 seconds
Soldering Zone
50
Heating Time
1.8 ± 0.20
(0.070 ± 0.008)
0.6 ± 0.20
(0.024 ± 0.008)
Recommended Solder Pad Layout
Derating Curve
2.45
(.096)
Power Ratio (%)
100
3.7
(.146)
7.6
(.299)
-55
70
155
Ambient Temperature (°C)
DIMENSIONS:
MM
(INCHES)
*RoHS Directive 2002/95/EC Jan. 27, 2003 including annex and RoHS Recast 2011/65/EU June 8, 2011.
Specifications are subject to change without notice.
Users should verify actual device performance in their specific applications.
The device characteristics and parameters in this data sheet can and do vary in different applications and actual device performance may vary over time.
CRM2512 - High Power Current Sense Chip Resistors
Pulse Load Characteristics
1000
PEAK POWER (WATTS)
100
10
1
0.1
0.0001
0.001
0.01
0.1
1
PULSE DURATION (SEC.)
How to Order
CRM 2512 - F X - R100 E LF
Model
(CRM = Precision Chip Resistor)
Size
2512 = 2512 Size
Resistance Tolerance
• F = ±1 %.................Use with “X” TCR code
• J = ±5 % .................Use with “W” TCR code for values from 1 ohm through 1 megohm
Use with “X” TCR code for values from 0.047 ohm through 0.91 ohm
Use with “/” TCR code for 0 ohm (Jumper)
TCR (PPM/°C - See Electrical Characteristics chart)
• W = ±200 PPM/°C
• X = ±100 PPM/°C
• / = Jumper
Resistance Value
• 1 % or 5 % Tolerance:
R <1 ohm..............“R” represents decimal point followed by three significant digits
≥10 ohms .............First two digits are significant, third digit represents number of zeros to follow
(example: 474 = 470K ohms)
0 ohm Jumper ......“000”
Packaging
• E = 4000 pieces per 180 mm (7 inch) reel
Termination
• LF = Tin-plated (RoHS Compliant)
Specifications are subject to change without notice.
Users should verify actual device performance in their specific applications.
The device characteristics and parameters in this data sheet can and do vary in different applications and actual device performance may vary over time.
CRM2512 - High Power Current Sense Chip Resistors
Packaging Dimensions (Conforms to EIA RS-481A)
PAPER TAPE
TOP TAPE
1.5 +0.1/-0
DIA.
(0.059 +0.004/-0)
1.5
(0.059)
DIA. MIN.
1.75 ± 0.1
(0.069 ± 0.004)
5.5 ± 0.05
(0.217 ± 0.002)
13.0 ± 1.0
(0.512 ± 0.039)
DIA.
180 +0/-3
(7.09 +0/-0.118)
DIA.
60.0
(2.362)
MIN.
DIA.
12.0 ± 0.2
(0.472 ± 0.008)
RESISTOR
3.60 ± 0.20
(0.142 ± 0.008)
0.85 ± 0.15
(0.033 ± 0.006)
4.0 ± 0.1
(0.157 ± 0.004)
2.0 ± 0.05
(0.079 ± 0.002)
4.0 ± 0.05
(0.157 ± 0.002)
6.9 ± 0.2
(0.272 ± 0.008)
USER DIRECTION OF FEED
15.4 ± 2.0
(0.606 ± 0.079)
13.0 ± 1.0
(0.512 ± 0.039)
DIMENSIONS:
MM
(INCHES)
REV. 05/15
Specifications are subject to change without notice.
Users should verify actual device performance in their specific applications.
The device characteristics and parameters in this data sheet can and do vary in different applications and actual device performance may vary over time.
