SLC1175-151MEC datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> inductor> SLC1175-151MEC

SLC1175-151MEC: DescriptionFixed Inductors SLC1175 High Current 150 nH 20 % 35.5 A; CategoryPassive components inductor; File Size194KB，2 Pages; ManufacturerCOILCRAFT; Websitehttp://www.coilcraft.com/; Environmental Compliance

Download Datasheet Parametric View All

SLC1175-151MEC Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	SLC1175-151MEC	-	-	View	Buy Now

SLC1175-151MEC Overview

Fixed Inductors SLC1175 High Current 150 nH 20 % 35.5 A

SLC1175-151MEC Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	COILCRAFT
package instruction	CHIP
Reach Compliance Code	compliant
ECCN code	EAR99
uppercase and lowercase codes	4330
structure	Rectangular
core material	Ferrite
DC Resistance	0.00024 Ω
Nominal inductance(L)	0.15 µH
Inductor Applications	POWER INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
JESD-609 code	e3
Number of functions	1
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package height	7.2 mm
Package length	10.8 mm
Package form	SMT
Package width	7.5 mm
method of packing	TR, Embossed Plastic, 7 Inch
Maximum rated current	76 A
Guideline	AEC-Q200
self resonant frequency	95 MHz
Shape/Size Description	RECTANGULAR PACKAGE
shield	YES
special characteristics	DCR IS MEASURED AT 5% TOLERANCE
surface mount	YES
Terminal surface	Matte Tin (Sn) - with Nickel (Ni) barrier
Terminal location	DUAL ENDED
Terminal shape	WRAPAROUND
Test frequency	0.1 MHz
Tolerance	20%
Base Number Matches	1

Preview

Download Datasheet

View All

Web

page

Sample

& buy

Tools &

software

Support

& FAQ

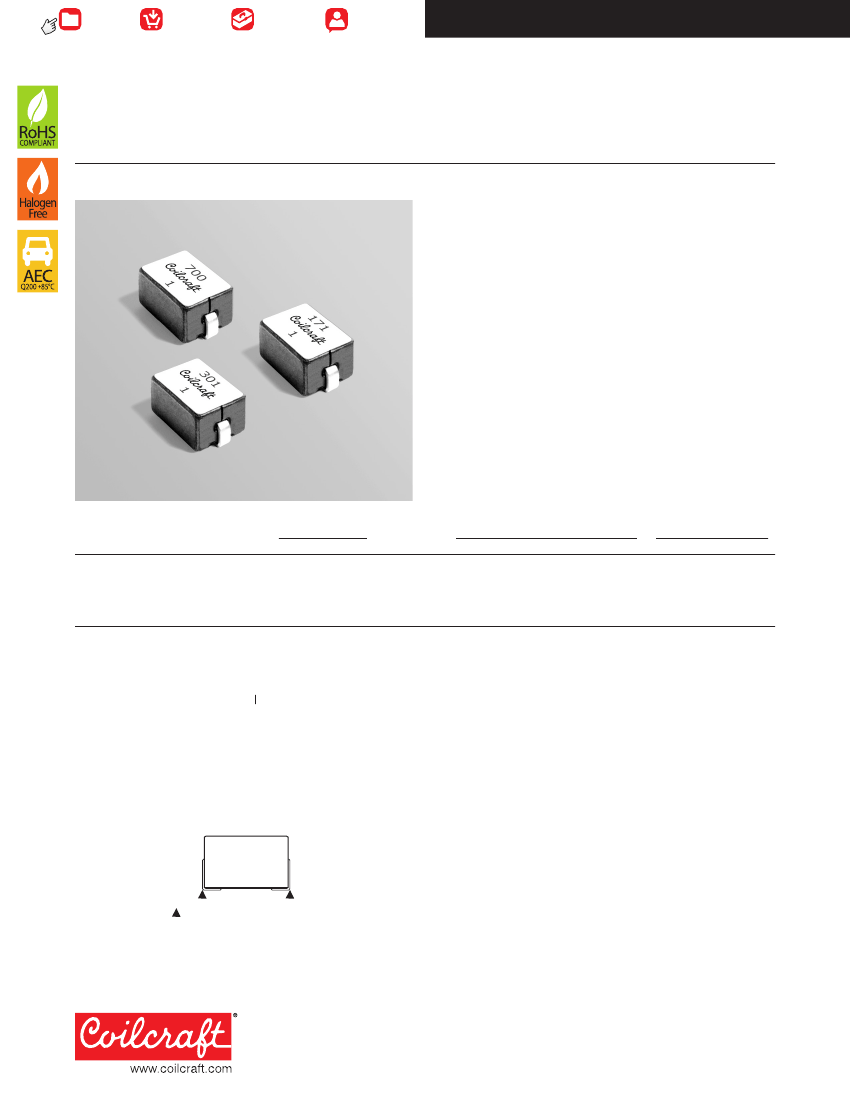

Document 838-1

Shielded Power Inductors – SLC1175

• Ideal for use in multi-phase VRM/VRD regulators and high

current/high frequency DC/DC converters.

• Offers inductance values unavailable in other high current series.

Designer’s Kit C467

contains 3 each of select values.

Core material

Ferrite

Core and winding loss

See

www.coilcraft.com/coreloss

Environment

RoHS compliant, halogen free

Terminations

RoHS compliant matte tin over nickel over copper.

Other terminations available at additional cost.

Weight

2.19 – 2.30 g

Ambient temperature

–40°C to +85°C with (40°C rise)

Irms

current.

Maximum part temperature

+125°C (ambient + temp rise).

Derating.

Storage temperature

Component: –40°C to +125°C.

Tape and reel packaging: –40°C to +80°C

Resistance to soldering heat

Max three 40 second reflows at

+260°C, parts cooled to room temperature between cycles

Moisture Sensitivity Level (MSL)

1 (unlimited floor life at <30°C /

85% relative humidity)

Failures in Time (FIT) / Mean Time Between Failures (MTBF)

38 per billion hours / 26,315,789 hours, calculated per Telcordia SR-332

Packaging

150/7″ reel, 700/13″ reel; Plastic tape: 24 mm wide,

0.4 mm thick, 12 mm pocket spacing, 7.62 mm pocket depth

PCB washing

Tested to MIL-STD-202 Method 215 plus an additional

aqueous wash. See

Doc787_PCB_Washing.pdf.

Part number

SLC1175-700ME_

SLC1175-121ME_

SLC1175-151ME_

SLC1175-171ME_

SLC1175-201ME_

SLC1175-231ME_

SLC1175-271ME_

SLC1175-301ME_

Inductance

±20% (nH)

120

150

170

200

230

270

300

DCR (mOhms)

min

max

0.228

0.252

Isat

(A)

SRF typ

(MHz)

10% drop 20% drop 30% drop

179

144

100

>100

Irms

(A)

20°C rise 40°C rise

25.5

35.5

1. When ordering, please specify

packaging

code:

SLC1175-301MEC

Packaging: C

= 7″ machine-ready reel. EIA-481 embossed plastic

tape (150 per full reel).

= Less than full reel. In tape, but not machine ready.

To have a leader and trailer added ($25 charge), use

code letter C instead.

= 13″ machine-ready reel. EIA-481 embossed plastic

tape. Factory order only, not stocked (700 per full reel).

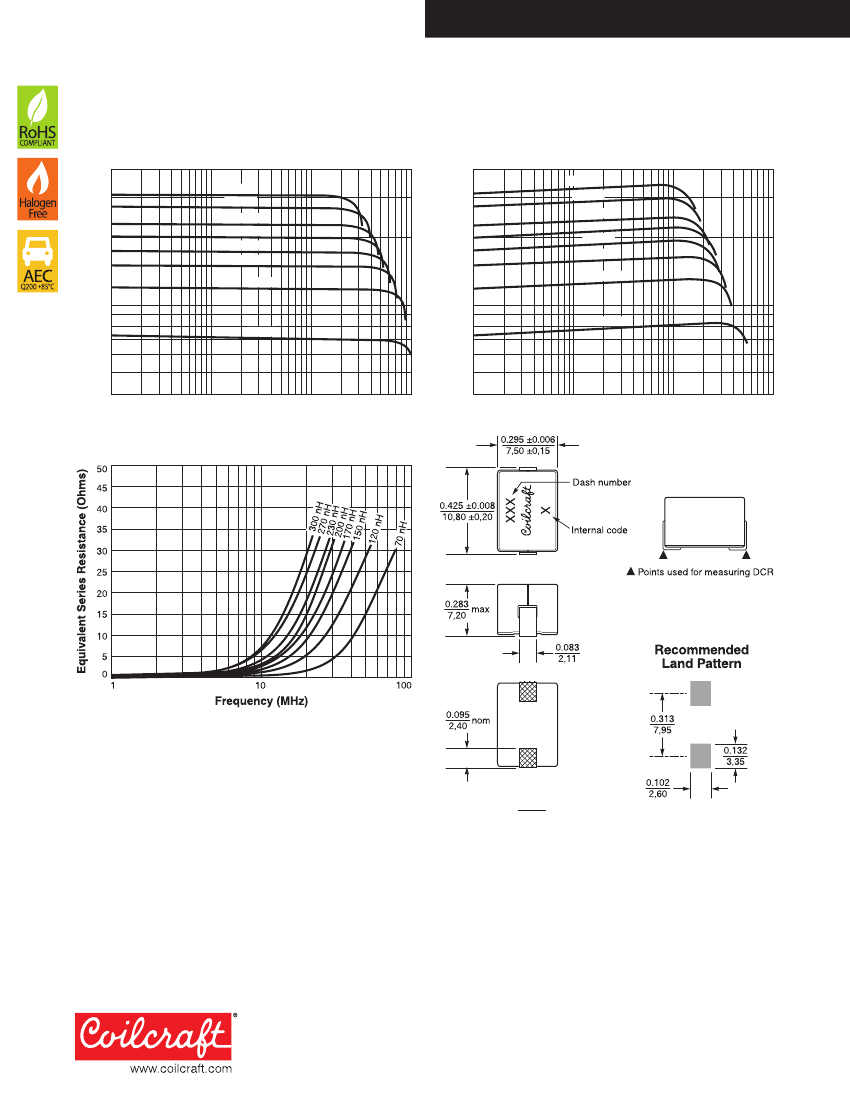

2. Inductance tested at 100 kHz, 0.1 Vrms using an Agilent/HP 4284.

3. DCR is measured between the two points indicated below.

4. SRF measured using an Agilent/HP 8753ES network analyzer or equivalent.

5. DC current at 25°C that causes the specified inductance drop from its

value without current.

Click for temperature derating information.

6. Current that causes the specified temperature rise from 25°C ambient.

This information is for reference only and does not represent absolute

maximum ratings.

Click for temperature derating information.

7. Electrical specifications at 25°C.

Refer to Doc 362 “Soldering Surface Mount Components” before soldering.

Points used for measuring DCR

+1-847-639-6400 sales@coilcraft.com

+44-1236-730595 sales@coilcraft-europe.com

Taiwan

+886-2-2264 3646 sales@coilcraft.com.tw

China

+86-21-6218 8074 sales@coilcraft.com.cn

Singapore

+ 65-6484 8412 sales@coilcraft.com.sg

Document 838-1

Revised 09/15/15

This product may not be used in medical or high

risk applications without prior Coilcraft approval.

Specification subject to change without notice.

Please check web site for latest information.
