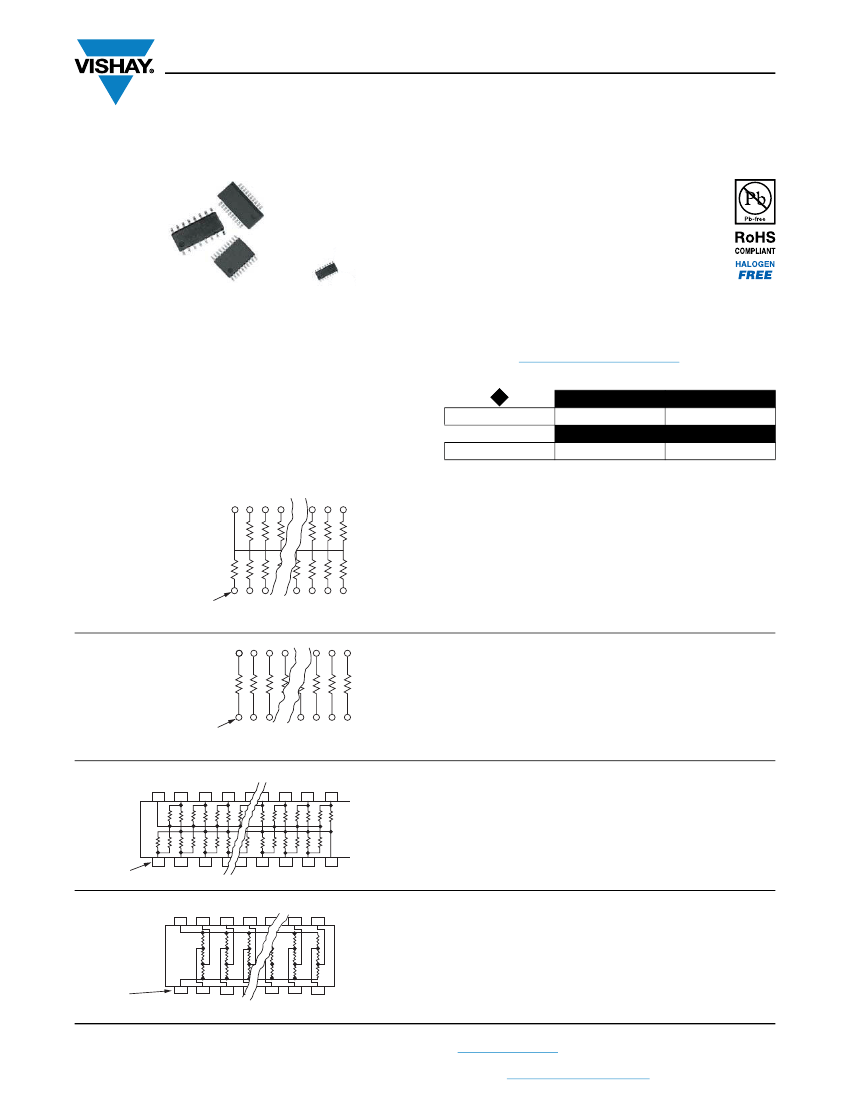

VTSR, VSSR, VSOR
www.vishay.com
Vishay Dale Thin Film
Molded, 25 mil or 50 mil Pitch, Dual-In-Line Thin Film Resistor,
Surface Mount Network
FEATURES
• Reduces total assembly costs
• Compatible with automatic surface mounting
equipment
• UL 94 V-0 flame resistant
• Thin film tantalum nitride on silicon
• Choice of package sizes: VTSR (TSSOP)
JEDEC
®
MO-153, VSSR (SSOP or QSOP)
JEDEC MO-137, VSOR (SOIC narrow) JEDEC MS-012
• Moisture sensitivity level 1 (per IPC/JEDEC STD-20C)
• Isolated/bussed/dual terminator/differential terminator
circuits
• Material categorization: for definitions of compliance
please see
www.vishay.com/doc?99912
Actual Size
Vishay Dale Thin Film resistor networks are designed to be
used in either analog or digital circuits. The use of thin film
resistive elements within the network allows you to achieve
an infinite number of very low noise and high stability circuits
for industrial, medical and scientific instrumentation. Vishay
Dale Thin Film resistor networks are packaged in molded
plastic packages with sizes that are recognized throughout
the world. The rugged packaging offers superior
environmental protection and consistent dimensions for
ease of placement with automatic SMT equipment. Vishay
Dale Thin Film stocks many designs and values for
off-the-shelf convenience. With Vishay Dale Thin Film you
can depend on quality products delivered on time with
service backing the product.
TYPICAL PERFORMANCE
ABSOLUTE
TCR
TOL.
100
ABSOLUTE
5, 2, 1
TRACKING
NA
RATIO
NA
SCHEMATICS
01 SCHEMATIC
RESISTORS WITH ONE PIN COMMON
The 01 circuit provides nominally equal resistors
connected between a common pin and a discrete PC
board pin.
Commonly used in the following applications:
•
MOS/ROM
•
TTL input pull-down
pull-up/-down
•
Digital pulse squaring
•
Open collector pull-up
•
TTL unused gate pull-up
•
“Wired OR” pull-up
•
High speed parallels
pull-up
•
Power driven pull-up
Broad selection of standard values available
ISOLATED RESISTORS
The 03 circuit provides nominally equal resistors isolated
from all others and wired directly across.
Commonly used in the following applications:
•
“Wired OR” pull-up
•
Long-line impedance
balancing
•
Power driven pull-up
•
LED current limiting
•
Powergate pull-up
•
ECL output pull-down
•
Line termination
•
TTL input pull-down
Broad selection of standard values available
DUAL-LINE TERMINATOR; PULSE SQUARING
The 05 circuit contains pairs of resistors connected
between ground and a common line. The junctions of
these resistor pairs are connected to the input leads. The
05 circuits are designed for dual-line termination and pulse
squaring.
Standard values are:
VSSR1605:
VSSR2005:
R
1
= 220
,
R
2
= 330
R
1
= 220
,
R
2
= 330
R
1
= 330
,
R
2
= 470
R
1
= 220
,
R
2
= 1.8 k
R
1
= 1.5 k, R
2
= 3.3 k
DIFFERENTIAL TERMINATOR
The 47 schematic consists of series resistor sections
connected between V
CC
and ground. Each contains 3
resistors of 2 different resistance values.
Standard values are:
VSSR20 and VTSR20:
VSSR16 and VTSR16:
R
1
= 270
,
R
2
= 120
R
1
= 330
,
R
2
= 150
R
1
= 330
, R
2
= 220
Resistance Range:
10
Ω
to 47 kΩ
Lead #1
03 SCHEMATIC
Resistance Range:
10
Ω
to 47 kΩ
Lead #1
05 SCHEMATIC
R
1
R
2
R
2
R
1
R
2
R
1
R
1
R
2
R
2
R
1
R
1
R
2
R
2
R
1
R
2
R
2
R
1
R
1
R
2
R
2
R
1
R
1
R
2
R
2
R
1
R
1
R
2
Pin 1
47 SCHEMATIC
V
CC
R
1
R
2
R
3
Lead #1
GND
Revision: 19-Sep-14
Document Number: 60003
1
For technical questions, contact:
thinfilm@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
VTSR, VSSR, VSOR
www.vishay.com
Vishay Dale Thin Film
SPECIFICATIONS
Tantalum nitride
16, 20, 24
10
to 47 k
± 100 ppm/°C
n/a
± 5 % standard (± 2 % available)
± 1 % standard (check factory)
NA
100 mW max.
16 = 1.0 W, 20 = 1.2 W, 24 = 1.4 W
-
-
5 ppm/V (typical)
50 V
DC
-55 °C to +125 °C
-55 °C to +150 °C
< -35 dB
-
-
-
CONDITIONS
-
-
Per E-24 table
-55 °C to +125 °C
-
Per E-24 table
Per E-96 table
-
At +70 °C
0 °C to +70 °C
-
-
-
-
-
-
-
-
-
-
STANDARD ELECTRICAL SPECIFICATIONS
TEST
Material
Pin/Lead Number
Resistance Range
TCR: Absolute
TCR: Tracking
Tolerance: Absolute
Tolerance: Ratio
Power Rating: Resistor
Power Rating: Package
Stability: Absolute
Stability: Ratio
Voltage Coefficient
Working Voltage
Operating Temperature Range
Storage Temperature Range
Noise
Thermal EMF
Shelf Life Stability: Absolute
Shelf Life Stability: Ratio
DIMENSIONS AND IMPRINTING
in inches (millimeters)
B
C
Part Marking-Model, Pin Count (Optional), Schematic
E
Resistance
Value
Code
Date
Code
Pin #1
A
D
W
xxxx
F
G
J
H
DIMENSION
A - 16 PIN
A - 20 PIN
A - 24 PIN
B (Ref.)
C (Ref.)
D
E (Typ.)
F
G
H
J (Ref.)
W
VTSR-xxxx
0.206 ± 0.003 (5.23 ± 0.08)
0.256 ± 0.003 (6.50 ± 0.08)
0.306 ± 0.003 (7.77 ± 0.08)
0.0256 (0.65)
0.0087 (0.22)
0.004 (0.10)
0.024 (0.61)
0.173 ± 0.003 (4.39 ± 0.08)
0.015 × 45° (0.38)
0.252 ± 0.005 (6.40 ± 0.13)
0.005 (0.13)
0.043 ± 0.005 (1.09 ± 0.13)
VSSR-xxxx
0.193 ± 0.004 (4.90 ± 0.010)
0.341 ± 0.003 (8.66 ± 0.08)
0.341 ± 0.003 (8.66 ± 0.08)
0.025 (0.64)
0.010 (0.25)
0.006 (0.15)
0.025 (0.64)
0.154 ± 0.003 (3.91 ± 0.08)
0.015 × 45° (0.38)
0.236 ± 0.008 (5.99 ± 0.20)
0.010 (0.25)
0.064 ± 0.005 (1.63 ± 0.13)
VSOR-xxxx
0.390 ± 0.010 (9.91 ± 0.25)
NA
NA
0.050 (1.27)
0.016 (0.41)
0.008 (0.20)
0.030 (0.76)
0.152 ± 0.003 (3.86 ± 0.08)
0.015 × 45° (0.38)
0.236 ± 0.005 (5.99 ± 0.13)
0.008 (0.20)
0.064 ± 0.005 (1.63 ± 0.13)
MARKING
MODEL
VXXX
VSOR
VSSR
VTSR
PIN COUNT
(Optional)
XX
16
20
24
SCHEMATIC
XX
01, 03,
05 or 47
RESISTANCE
XXXX
1 % RESISTANCE
e.g.: 43R2
4 digits are used to express
ohmic values only less than
100
.
R is used to designate
the decimal position
OR
RESISTANCE
XXX
1 %, 2 %, 5 % RESISTANCE
e.g.: 103 = 10K
The first 2 digits are significant
figures, the last digit specifies
the number of zeros to follow.
DATE CODE
XXXX
Revision: 19-Sep-14
Document Number: 60003
2
For technical questions, contact:
thinfilm@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
VTSR, VSSR, VSOR
www.vishay.com
Vishay Dale Thin Film
MECHANICAL SPECIFICATIONS
Resistive Element
Substrate Material
Body
Terminals
Plating
Lead Coplanarity
Marking Resistance to Solvents
Tantalum nitride
Silicon
Molded epoxy
Copper alloy
100 %
matte tin
0.0005"
Permanency testing per MIL-STD-202, method 215
PACKAGING INFORMATION
MODEL
LEADS
16
VTSR (TSSOP)
20
24
16
VSSR (QSOP)
20
24
VSOR (SOIC)
16
TAPE AND REEL
2500
2500
2500
2500
2500
2500
2500
TUBES
94
74
62
98
55
55
48
DERATING CURVE
100
Precent of Rated Power
80
60
40
20
0
0
70
125
150
Ambient Temperature °C
GLOBAL PART NUMBER INFORMATION
New Global Part Numbering: VTSR1601103JTF
V
V
T
S
S
O
R
R
1
1
6
6
0
0
1
5
3
3
1
1
0
4
3
7
1
J
G
T
T
F
F
GLOBAL MODEL
VTSR
VSSR
VSOR
Lead (Pb)-free (e3)
date code > 2705
PIN COUNT
20
(not VSOR)
24
(not VSOR)
SCHEMATIC
01
(bussed)
03
(isolated)
RESISTANCE
(3, 4 or 6 digits)
XXX:
100R and all 1 %,
2 % and 5 %
First 2 digits are significant
figures. Last digit specifies
number of zeros to follow.
XXXX: < 100R 1 %
First 3 digits are significant
figures. Last digit specifies
number of zeros to follow.
xxx xxx
First 2 digits are significant
figures. Last digit specifies
number of zeros.
TOLERANCE
F
= 1.0 %
G
= 2.0 %
J
= 5.0 %
PACKAGING
TAPE AND REEL
TF
= Full reel 2500
UF
= Tubed
16
(not VTSR)
20
(not VSOR)
05
(terminator)
47
(terminator)
G
= 2.0 %
J
= 5.0 %
Historical Part Number example: VSSR2001102GT/R (for reference purposes only)
VSSR
MODEL
20
PIN COUNT
01
SCHEMATIC
102
RESISTANCE
G
TOLERANCE
T/R
PACKAGING
Revision: 19-Sep-14
Document Number: 60003
3
For technical questions, contact:
thinfilm@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
