UPS1E222MHH datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Passive components> UPS1E222MHH

Preview

UPS1E222MHH: DescriptionAluminum Electrolytic Capacitors - Leaded 2200uF 25V 105c 16x25 20% 7.5LS; CategoryPassive components; File Size776KB，2 Pages; ManufacturerNichicon; Websitehttp://www.nichicon.co.jp

Download Datasheet Parametric View All

UPS1E222MHH Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	UPS1E222MHH	-	-	View	Buy Now

UPS1E222MHH Overview

Aluminum Electrolytic Capacitors - Leaded 2200uF 25V 105c 16x25 20% 7.5LS

UPS1E222MHH Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	Nichicon
Product Category	Aluminum Electrolytic Capacitors - Leaded
RoHS	N
Product	Low Impedance Electrolytic Capacitors
Termination Style	Radial
Capacitance	2200 uF
Voltage Rating DC	25 VDC
Tolerance	20 %
Minimum Operating Temperature	- 55 C
Maximum Operating Temperature	+ 105 C
Diameter	16 mm
Length	25 mm
Lead Spacing	7.5 mm
Factory Pack Quantity	50

Preview

Download Datasheet

View All

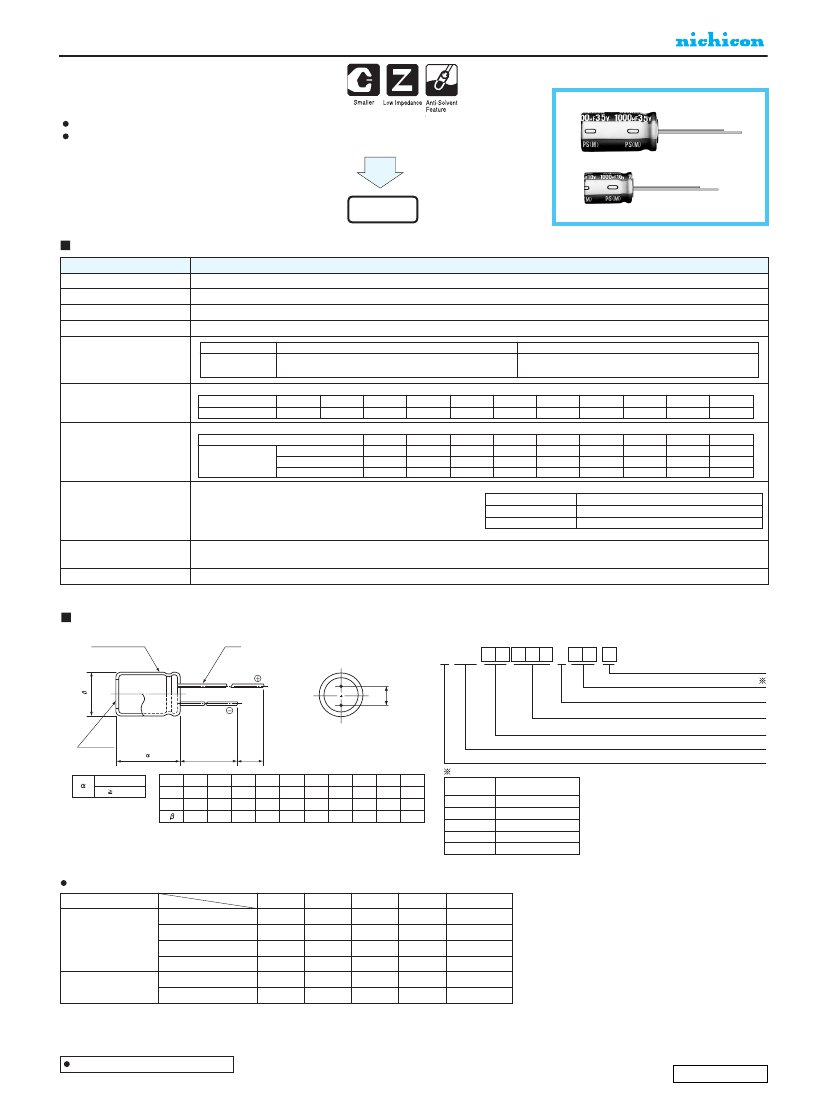

ALUMINUM ELECTROLYTIC CAPACITORS

PS

Miniature Sized, Low Impedance,

For Switching Power Supplies

series

(Through 100V only)

Wide temperature range type, miniature sized.

Compliant to the RoHS directive (2011/65/EU).

PJ

Smaller

PS

Specifications

Item

Category Temperature Range

Rated Voltage Range

Rated Capacitance Range

Capacitance Tolerance

Leakage Current

Performance Characteristics

–55 to +105˚C (6.3 to 100V), –40 to +105˚C (160 to 400V), – 25 to +105˚C (450V)

6.3 to 450V

0.47 to 15000µF

± 20% at 120Hz, 20˚C

Rated voltage (V)

Leakage current

6.3 to 100

After 1 minute's application of rated voltage at 20°C, leakage current

is not more than 0.03CV or 4 (µA) , whichever is greater.

6.3

0.24

10

0.20

16

0.16

6.3 · 10

—

5

25

0.14

16 · 25

—

4

35

0.12

35 · 50

—

3

50

0.10

160 to 450

< 1000 :

I

= 0.1CV+40 (µA)max.

CV =

CV > 1000 :

I

= 0.04CV+100 (µA)max.

Measurement frequency : 120Hz at 20˚C

For capacitance of more than 1000µF, add 0.02 for every increase of 1000µF

Tangent of loss angle (tan

δ

)

Rated voltage (

V)

tan

δ

(

MAX.

)

63

0.09

100

0.08

250

3

6

—

160 to 250 315 · 350 400 · 450

0.15

0.20

0.25

Measurement frequency : 120Hz

Stability at Low Temperature

Rated voltage (V)

Z– 25˚C / Z+20˚C

Impedance ratio

Z– 40˚C / Z+20˚C

(MAX.)

Z– 55˚C / Z+20˚C

63 · 100

160 · 200

2

3

4

—

Capacitance change

tan

δ

Leakage current

315 · 350

4

8

—

400

6

10

—

450

15

—

Endurance

The specifications listed at right shall be met when the

capacitors are restored to 20˚C after D.C. bias plus rated ripple

current is applied for 3000 hours (2000 hours for

φD=

5 to 10) at

105˚C, the peak voltage shall not exceed the rated voltage.

Within ±20% of the initial capacitance value

200% or less than the initial specified value

Less than or equal to the initial specified value

Shelf Life

Marking

After storing the capacitors under no load at 105˚C for 1000 hours and then performing voltage treatment based on JIS C

5101-4 clause 4.1 at 20°C, they shall meet the specified values for the endurance characteristics listed above.

Printed with white color letter on dark brown sleeve.

Radial Lead Type

Sleeve (P.E.T.)

Type numbering system (Example : 25V 470

µ

F)

φ

d

1

2

3

4

5

6

7

8

9 10 11

12

Size code

Configuration

P±

0.5

UP S 1 E 4 7 1 MPD

MAX.

φD

+

Capacitance tolerance (±20%)

Rated capacitance (470µF)

Rated voltage (25V)

Series name

Pressure

relief vent

(φ6.3up)

L+

MAX.

15

MIN

φD

P

φd

5

2.0

0.5

6.3

2.5

0.5

4

MIN

(mm)

Type

Configuration

φ

D

5

6.3

8 · 10

12.5 to 18

20 to 25

Pb-free leadwire

Pb-free PET sleeve

(L < 20) 1.5

(L 20) 2.0

8

3.5

0.6

0.5

10

5.0

0.6

0.5

12.5

5.0

0.6

0.5

16

7.5

0.8

0.5

18

7.5

0.8

0.5

20

10.0

1.0

0.5

22

10.0

1.0

25

12.5

1.0

DD

ED

PD

HD

RD

•

Please refer to page 20 about the end seal configuration.

Frequency coefficient of rated ripple current

V

Cap.(µF)

Frequency

50Hz

—

0.30

0.57

0.75

0.80

0.90

120Hz

0.17

0.50

0.71

0.87

1.00

300Hz

0.40

0.65

0.82

0.96

1.25

1.10

1kHz

0.65

0.80

0.90

0.98

1.40

1.13

10kHz or more

1.00

1.60

1.15

0.47 to 4700

6.3 to 100

100 to 220.

330 to 680.

.1000

to 15000

160 to 450

0.47 to 2200

330 to 470.

Please refer to page 20, 21, 22 about the formed or taped product spec.

Please refer to page 4 for the minimum order quantity.

Dimension table in next pages.

CAT.8100D
