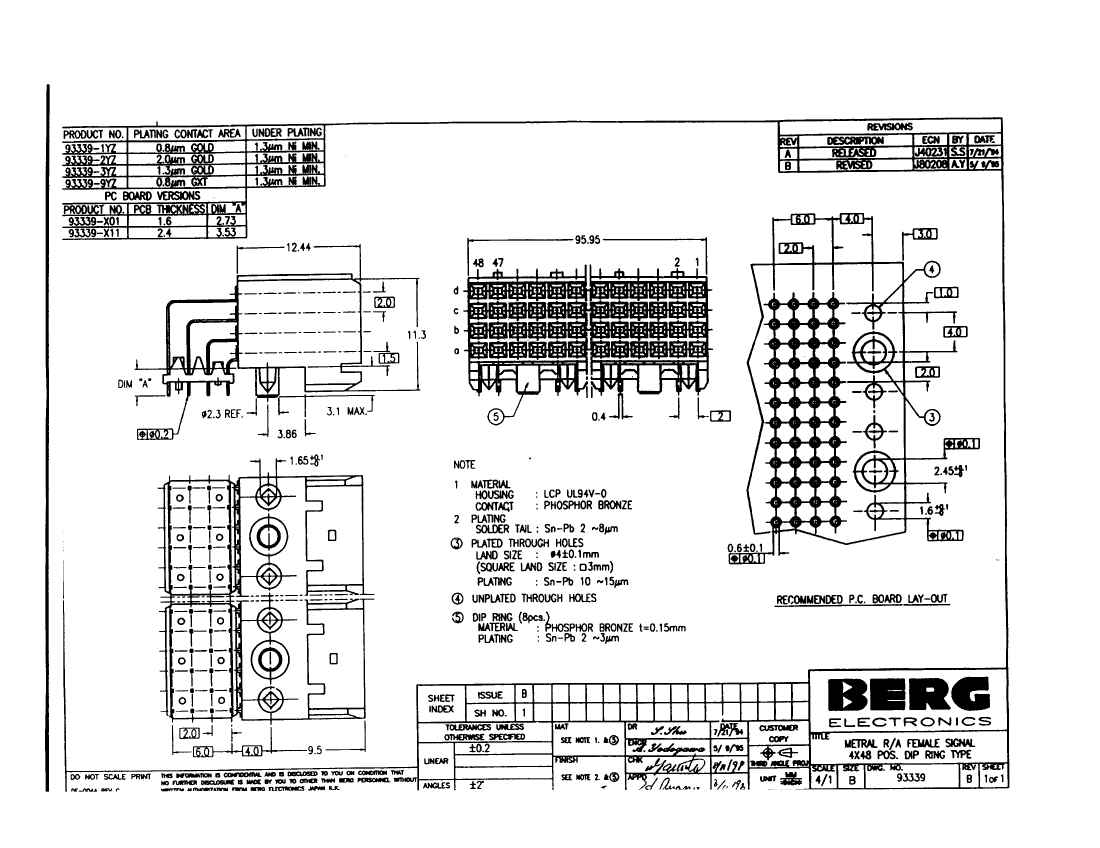

Preview

93339-301: DescriptionBoard Connector, 192 Contact(s), 4 Row(s), Female, Right Angle, Solder Terminal; CategoryThe connector The connector; File Size110KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

93339-301 Overview

Board Connector, 192 Contact(s), 4 Row(s), Female, Right Angle, Solder Terminal

93339-301 Parametric

Parameter Name	Attribute value
Maker	Amphenol
Reach Compliance Code	compliant
Connector type	BOARD CONNECTOR
Contact completed and terminated	TIN LEAD (315)
Contact point gender	FEMALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e0
MIL compliance	NO
Manufacturer's serial number	93339
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of rows loaded	4
Options	GENERAL PURPOSE
Terminal pitch	2 mm
Termination type	SOLDER
Total number of contacts	192
UL Flammability Code	94V-0

Preview

Download Datasheet

View All

PDM: Rev:B

STATUS:

Released

Printed: Sep 10, 2009

.

93339-301 Related Products

	93339-301	93339-311	93339-111	93339-101	93339-201	93339-211	93339-901	93339-911
Description	Board Connector, 192 Contact(s), 4 Row(s), Female, Right Angle, Solder Terminal	Board Connector, 192 Contact(s), 4 Row(s), Female, Right Angle, Solder Terminal	Board Connector, 192 Contact(s), 4 Row(s), Female, Right Angle, Solder Terminal	Board Connector, 192 Contact(s), 4 Row(s), Female, Right Angle, Solder Terminal	Board Connector, 192 Contact(s), 4 Row(s), Female, Right Angle, Solder Terminal	Board Connector, 192 Contact(s), 4 Row(s), Female, Right Angle, Solder Terminal	Board Connector, 192 Contact(s), 4 Row(s), Female, Right Angle, Solder Terminal,	Board Connector, 192 Contact(s), 4 Row(s), Female, Right Angle, Solder Terminal,
Reach Compliance Code	compliant	compliant	compliant	unknown	compliant	compliant	compliant	compliant
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact completed and terminated	TIN LEAD (315)	TIN LEAD (315)	TIN LEAD (315)	TIN LEAD (315)	TIN LEAD (315)	TIN LEAD (315)	TIN LEAD (315)	TIN LEAD (315)
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE
DIN compliance	NO	NO	NO	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO	NO	NO
JESD-609 code	e0	e0	e0	e0	e0	e0	e0	e0
MIL compliance	NO	NO	NO	NO	NO	NO	NO	NO
Manufacturer's serial number	93339	93339	93339	93339	93339	93339	93339	93339
Mixed contacts	NO	NO	NO	NO	NO	NO	NO	NO
Installation method	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Number of rows loaded	4	4	4	4	4	4	4	4
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Terminal pitch	2 mm	2 mm	2 mm	2 mm	2 mm	2 mm	2 mm	2 mm
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	192	192	192	192	192	192	192	192
UL Flammability Code	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0
Maker	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol	-	-
