048 RML
www.vishay.com
Vishay BCcomponents
Aluminum Electrolytic Capacitors
Radial Miniature Long Life
FEATURES
• Very long useful life: 3000 h to 4000 h at
105 °C
• High reliability
• Miniaturized, high CV-product per unit volume
• Charge and discharge proof
• Polarized aluminum electrolytic capacitors, non-solid
electrolyte
• Radial leads, cylindrical aluminum case with pressure
relief, insulated with a blue sleeve
152 RMH
• Material categorization: for definitions of compliance
please see
www.vishay.com/doc?99912
high voltage
116 RLL
lower
CV-values
048 RML
miniaturized
148 RUS
longer life
lower Z
136 RVI
miniaturized
150 RMI
APPLICATIONS
• EDP, telecommunication, industrial, automotive, and
audio-video
• Smoothing, filtering, buffering in SMPS, timing
• Portable and mobile equipment (small size, low mass)
Fig. 1
MARKING
The capacitors are marked (where possible) with the
following information:
VALUE
10 x 12 to 18 x 35
100 μF to 10 000 μF
± 20 %
6.3 to 63 V
-40 °C to +105 °C
2000 h
3000 h
4000 h
200 000 h
260 000 h
1000 h
IEC 60384-4 / EN130300
40 / 105 / 56
QUICK REFERENCE DATA
DESCRIPTION
Nominal case sizes (Ø D x L in mm)
Rated capacitance range, C
R
Tolerance on C
R
Rated voltage range, U
R
Category temperature range
Endurance test at 105 °C
Useful life at 105 °C
Case Ø D = 10 mm and 12.5 mm
Case Ø D = 16 mm and 18 mm
Useful life at 40 °C, 1.6 x I
R
applied
Case Ø D = 10 mm and 12.5 mm
Case Ø D = 16 mm and 18 mm
Shelf life at 0 V, 105 °C
Based on sectional specification
Climatic category IEC 60068
• Rated capacitance (in μF)
• Tolerance on rated capacitance, code letter in accordance
with IEC 60062 (M for ± 20 %)
• Rated voltage (in V)
• Date code, in accordance with IEC 60062
• Code indicating factory of origin
• Name of manufacturer
• Upper category temperature (105 °C)
• Negative terminal identification
• Series number (048)
SELECTION CHART FOR C
R
, U
R
, AND RELEVANT NOMINAL CASE SIZES
(Ø D x L in mm)
C
R
(μF)
100
220
330
470
1000
2200
3300
4700
6800
10 000
U
R
(V)
6.3
-
-
-
-
-
-
-
-
16 x 25
16 x 35
10
-
-
-
-
10 x 16
12.5 x 20
12.5 x 25
16 x 25
16 x 31
18 x 35
16
-
-
-
10 x 12
10 x 20
12.5 x 25
16 x 25
16 x 31
16 x 35
18 x 35
25
-
-
-
10 x 16
12.5 x 20
16 x 25
16 x 31
18 x 35
-
-
35
-
10 x 12
-
10 x 20
12.5 x 25
16 x 31
18 x 35
18 x 35
-
-
40
-
-
-
-
-
16 x 35
18 x 35
-
-
-
50
-
10 x 16
-
12.5 x 20
16 x 25
18 x 35
18 x 35
-
-
-
63
10 x 12
10 x 20
12.5 x 20
12.5 x 25
16 x 31
18 x 35
-
-
-
-
Revision: 28-Feb-17
Document Number: 28318
1
For technical questions, contact:
aluminumcaps1@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
048 RML
www.vishay.com
DIMENSIONS
in millimeters
AND AVAILABLE FORMS
ØD
ØD
Vishay BCcomponents
L
L
F
15 min.
+1
4 0
Ød
Ød
5 min.
F
Fig. 2 -
Form CA:
Longs leads
Fig. 3 -
Form CB:
Cut leads
Fig. 4 - Form TFA: Taped in box (ammopack)
Table 1
DIMENSIONS
in millimeters,
MASS AND PACKAGING QUANTITIES
NOMINAL
CASE SIZE
ØDxL
10 x 12
10 x 16
10 x 20
12.5 x 20
12.5 x 25
16 x 25
16 x 31
16 x 35
18 x 35
CASE
CODE
14
15
16
17
18
19
20
21
22
Ød
0.6
0.6
0.6
0.6
0.6
0.8
0.8
0.8
0.8
Ø D
max.
10.5
10.5
10.5
13.0
13.0
16.5
16.5
16.5
18.5
L
max.
13.5
17.5
22.0
22.0
27.0
27.0
33.5
37.5
37.5
F
5.0 ± 0.5
5.0 ± 0.5
5.0 ± 0.5
5.0 ± 0.5
5.0 ± 0.5
7.5 ± 0.5
7.5 ± 0.5
7.5 ± 0.5
7.5 ± 0.5
MASS
(g)
1.6
1.9
2.2
4.0
5.0
8.0
9.0
11.5
14.5
PACKAGING QUANTITIES
FORM CA
1000
500
500
500
250
250
100
100
100
FORM CB
500
500
500
500
250
250
100
100
100
FORM TFA
800
800
800
500
500
250
250
-
-
Note
• For detailed tape dimensions please refer to packaging information:
www.vishay.com/doc?28360
Revision: 28-Feb-17
Document Number: 28318
2
For technical questions, contact:
aluminumcaps1@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
048 RML
www.vishay.com
Vishay BCcomponents
ORDERING EXAMPLE
Electrolytic capacitor 048 series
2200 μF / 16 V; ± 20 %
Nominal case size: Ø 12.5 mm x 25 mm; Form TFA
Ordering code: MAL204835222E3
Former 12NC: 2222 048 35222
ELECTRICAL DATA
SYMBOL
C
R
I
R
I
L1
tan
Z
DESCRIPTION
Rated capacitance at 100 Hz, tolerance ± 20 %
Rated RMS ripple current at 100 Hz, 105 °C
Max. leakage current after 1 min at U
R
Max. dissipation factor at 100 Hz
Max. impedance at 100 kHz
Note
• Unless otherwise specified, all electrical values in Table 2 apply
at T
amb
= 20 °C, P = 86 kPa to 106 kPa, RH = 45 % to 75 %.
Table 2
ELECTRICAL DATA AND ORDERING INFORMATION
U
R
(V)
C
R
100 Hz
(μF)
6800
10 000
1000
2200
3300
4700
6800
10 000
470
1000
2200
3300
4700
6800
10 000
470
1000
2200
3300
4700
220
470
1000
2200
3300
4700
2200
3300
220
470
1000
2200
3300
100
220
330
470
1000
2200
DIMENSIONS
ØDxL
(mm)
16 x 25
16 x 35
10 x 16
12.5 x 20
12.5 x 25
16 x 25
16 x 31
18 x 35
10 x 12
10 x 20
12.5 x 25
16 x 25
16 x 31
16 x 35
18 x 35
10 x 16
12.5 x 20
16 x 25
16 x 31
18 x 35
10 x 12
10 x 20
12.5 x 25
16 x 31
18 x 35
18 x 35
16 x 35
18 x 35
10 x 16
12.5 x 20
16 x 25
18 x 35
18 x 35
10 x 12
10 x 20
12.5 x 20
12.5 x 25
16 x 31
18 x 35
I
R
100 Hz
105 °C
(mA)
1350
1700
470
800
1000
1270
1550
1870
360
600
1000
1220
1500
1690
1980
440
720
1120
1450
1720
310
500
900
1340
1600
1950
1500
1600
340
620
1030
1500
1900
240
400
550
700
1150
1600
I
L1
1 min
(μA)
430
630
100
220
330
470
680
1000
78
160
360
530
760
1100
1600
120
250
550
830
1200
80
170
350
770
1200
1600
880
1300
110
240
500
1100
1700
66
140
210
300
630
1400
tan
100 Hz
0.32
0.40
0.19
0.21
0.23
0.25
0.29
0.37
0.16
0.16
0.18
0.20
0.22
0.26
0.34
0.14
0.14
0.16
0.18
0.20
0.12
0.12
0.12
0.14
0.16
0.18
0.13
0.15
0.10
0.10
0.10
0.12
0.14
0.09
0.09
0.09
0.09
0.09
0.11
Z
100 kHz
(m)
56
42
180
90
68
56
45
36
250
140
70
56
45
42
34
180
100
56
45
36
280
150
75
45
36
34
45
36
250
110
60
50
40
310
200
120
80
49
45
ORDERING NUMBER MAL2048.......
FREQ.
CODE
(1)
MF1
MF1
MF1
MF1
MF1
MF1
MF1
MF1
MF1
MF1
MF1
MF1
MF1
MF1
MF1
MF1
MF1
MF1
MF1
MF1
MF2
MF2
MF2
MF2
MF2
MF2
MF2
MF2
MF3
MF3
MF3
MF3
MF3
MF3
MF3
MF3
MF3
MF3
MF3
BULK PACKAGING
FORM CA
53682E3
53103E3
54102E3
54222E3
54332E3
54472E3
54682E3
54103E3
55471E3
55102E3
55222E3
55332E3
55472E3
55682E3
55103E3
56471E3
56102E3
56222E3
56332E3
56472E3
50221E3
50471E3
50102E3
50222E3
50332E3
50472E3
57222E3
57332E3
51221E3
51471E3
51102E3
51222E3
51332E3
58101E3
58221E3
58331E3
58471E3
58102E3
58222E3
FORM CB
63682E3
63103E3
64102E3
64222E3
64332E3
64472E3
64682E3
64103E3
65471E3
65102E3
65222E3
65332E3
65472E3
65682E3
65103E3
66471E3
66102E3
66222E3
66332E3
66472E3
60221E3
60471E3
60102E3
60222E3
60332E3
60472E3
67222E3
67332E3
61221E3
61471E3
61102E3
61222E3
61332E3
68101E3
68221E3
68331E3
68471E3
68102E3
68222E3
TAPED
FORM TFA
33682E3
-
34102E3
34222E3
34332E3
34472E3
34682E3
-
35471E3
35102E3
35222E3
35332E3
35472E3
-
-
36471E3
36102E3
36222E3
36332E3
-
30221E3
30471E3
30102E3
30222E3
-
-
-
-
31221E3
31471E3
31102E3
-
-
38101E3
38221E3
38331E3
38471E3
38102E3
-
6.3
10
16
25
35
40
50
63
Note
(1)
Determines the applicable row in the table “Multiplier of Ripple Current (I ) as a Function of Frequency”
R
Revision: 28-Feb-17
Document Number: 28318
3
For technical questions, contact:
aluminumcaps1@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
048 RML
www.vishay.com
Vishay BCcomponents
CONDITIONS
VALUE
U
s
1.15
U
R
U
rev
1
V
After 1 min at U
R
After 5 min at U
R
Case Ø D = 10 mm
Case Ø D
12.5 mm
Calculated from tan
max.
and C
R
(see Table 2)
I
L1
0.01 C
R
x U
R
+ 3 μA
I
L5
0.002 C
R
x U
R
+ 3 μA
Typ. 16 nH
Typ. 18 nH
ESR = tan
/2f
C
R
ADDITIONAL ELECTRICAL DATA
PARAMETER
Voltage
Surge voltage
Reverse voltage
Current
Leakage current
Inductance
Equivalent series inductance (ESL)
Resistance
Equivalent series resistance (ESR)
CAPACITANCE (C)
1.2
C
C
0
1.1
2
0.8
1.0
5
4
3
2
1
Curve 1: 10 V
Curve 2: 16 V
Curve 3: 25 V
Curve 4: 50 V
Curve 5: 63 V
10
3
10
4
10
5
f (Hz)
1.2
C
C
0
1.0
1
0.6
2
0.4
Curve 1: 6.3 V
Curve 2: 63 V
0.9
1
0.8
- 60
- 40
- 20
0
20
40
60
80
100
120
0.2
0
T
amb
(20 °C)
10
10
2
C
0
= Capacitance at 20 °C, 100 Hz
C
0
= Capacitance at 20 °C, 100 Hz

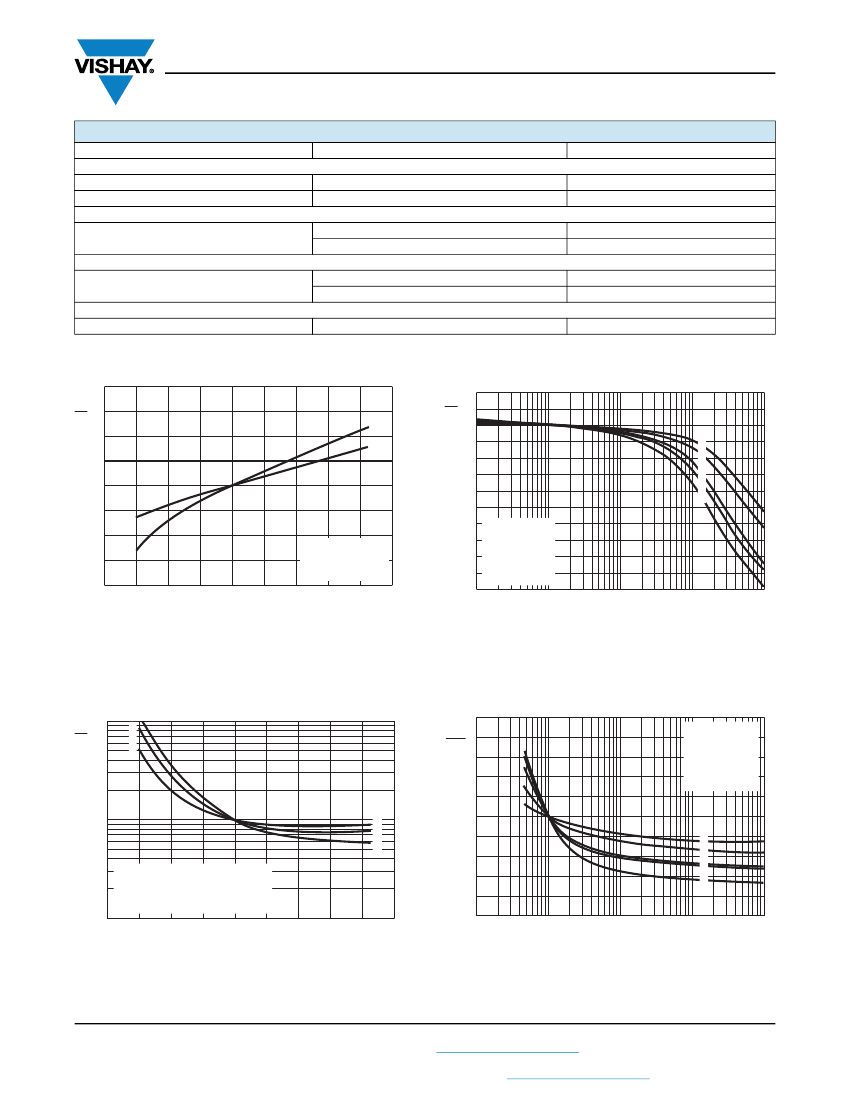

Fig. 5 - Typical multiplier of capacitance
as a function of ambient temperature
Fig. 6 - Typical multiplier of capacitance
as a function of frequency
EQUIVALENT SERIES RESISTANCE (ESR)
1.2
C
C
0
1.0
1
2
3
2.0
ESR
ESR
0
1.6
Curve 1: 6.3 V
Curve 2: 16 V
Curve 3: 35 V
Curve 4: 50 V
Curve 5: 63 V
0.8
1.2
0.6
3
2
1
0.8
0.4
Curve 1: 10 V; case Ø D = 10 mm
Curve 2: 6.3 V; case Ø D = 16 mm
Curve 3: 63 V; case Ø D = 18 mm
0.4
0.2
1
2
3
4
5
0
- 60
- 40
- 20
0
20
40
60
80
100
120
C
0
= Capacitance at 20 °C, 100 Hz
T
amb
(20 °C)
0
10
10
2
10
3
10
4
10
5
f (Hz)
ESR
0
= Typical at 20 °C, 100 Hz
Fig. 7 - Typical multiplier of ESR
as a function of ambient temperature
Fig. 8 - Typical multiplier of ESR
as a function of frequency
Revision: 28-Feb-17
Document Number: 28318
4
For technical questions, contact:
aluminumcaps1@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
048 RML
www.vishay.com

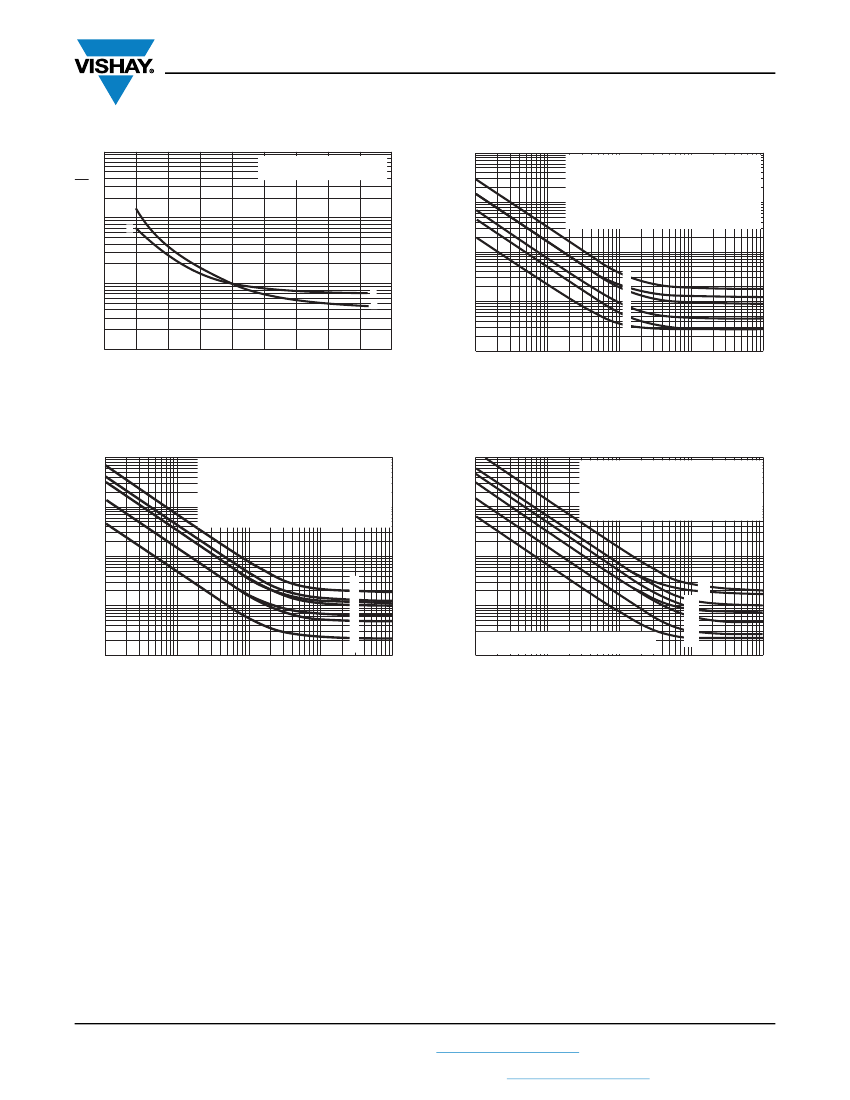

IMPEDANCE (Z)
10
2
Z
Z
0
1
10
2
1
1
1
2
10
-1
Vishay BCcomponents
10
2
Curve 1: Case Ø D = 10 mm
Curve 2: Case Ø D = 16 mm
Z
(
Ω
)
10
Curve 1: 470 μF, 16 V;
Ø D = 10
x 12 mm
Curve 2: 1000 μF, 10 V;
Ø D = 10 x 16 mm
Curve 3: 1000 μF, 16 V;
Ø D = 10 x 20 mm
Curve 4: 2200 μF, 16 V;
Ø D = 12.5 x 25 mm
Curve 5: 3300 μF, 16 V;
Ø D = 16 x 25 mm
Curve 6: 6800 μF, 6.3 V;
Ø D = 16 x 25 mm
1
2
3
4
5
6
10
-1
10
-2
- 40
- 20
0
20
40
60
80
100
120
10
10
2
10
3
10
4
f (Hz)
10
5
T
amb
(20 °C)
T
amb
(20 °C)
- 60
Z
0
= Typical impedance at 20 °C, 10 kHz
Fig. 9 - Typical multiplier of impedance
as a function of ambient temperature
Fig. 10 - Typical impedance as a function of frequency
10
2
Z
(
Ω
)
10
Curve 1: 220 µF, 35 V;
Ø D = 10
x 12 mm
Curve 2: 330 µF, 35 V;
Ø D = 10 x 16 mm
Curve 3: 470 µF, 25 V;
Ø D = 10 x 16 mm
Curve 4: 470 µF, 35 V;
Ø D = 10 x 20 mm
Curve 5: 1000 µF, 25 V;
Ø D = 12.5 x 20 mm
Curve 6: 1000 µF, 35 V;
Ø D = 12.5 x 25 mm
Curve 7: 3300 µF, 25 V;
Ø D = 16 x 31 mm
10
2
Z
(
Ω
)
10
Curve 1: 100 µF, 63 V;
Ø D = 10
x 12 mm
Curve 2: 220 µF, 50 V;
Ø D = 10 x 16 mm
Curve 3: 220 µF, 63 V;
Ø D = 10 x 20 mm
Curve 4: 330 µF, 63 V;
Ø D = 12.5 x 20 mm
Curve 5: 470 µF, 50 V;
Ø D = 12.5 x 20 mm
Curve 6: 470 µF, 63 V;
Ø D = 12.5 x 25 mm
1
1
2
3
4
5
6
7
10
10
2
1
1
2
10
-1
10
-1
10
-2
10
10
3
-2
Curve 7: 1000 µF, 63 V;
Ø D = 16 x 31 mm
Curve 8: 1000 µF, 40 V;
Ø D = 16 x 35 mm
10
10
2
10
3
3
4
5
6
7
8
10
4
10
4
f (Hz)
10
5
f (Hz)
10
5
T
amb
(20 °C)
T
amb
(20 °C)
Fig. 11 - Typical impedance as a function of frequency
Fig. 12 - Typical impedance as a function of frequency
Revision: 28-Feb-17
Document Number: 28318
5
For technical questions, contact:
aluminumcaps1@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
京公网安备 11010802033920号
EEWORLD
