DSS-333
Surface Mount Two-Way Power Divider,
10 - 500 MHz
Features
Fully Hermetic Package
Phase Balance: 0.5
o
Typical
Isolation: 40 dB Typical Midband
VSWR: 1.05:1 Typical Midband
Impedance: 50 Ohms Nominal
Maximum Power Rating or Input Power: 1 Watt Max.
Internal Load Dissipation: 0.05 Watts Max.
MIL-STD-202 Screening Available
Rev. V3
SF-1
Description
A Power Divider is ideally a lossless reciprocal
device which can also perform vector summation of two
or more signals and thus is sometimes called a power
combiner or summer.
Pin Configuration
Pin No.
1
2
Function
Σ IN
Output C
Pin No.
3
4
Function
GND
Output D
Electrical Specifications
1
: T
A
= -55°C to +85°C
Parameter
Insertion Loss
Isolation
Amplitude Balance
Phase Balance
VSWR
Test Conditions
Less Coupling
—
—
—
All Ports
Frequency
10 - 500 MHz
10 - 500 MHz
10 - 500 MHz
10 - 500 MHz
10 - 500 MHz
Units
dB
dB
dB
°
Ratio
Min
—
25
—
—
—
Typ
—
—
—
—
—
Max
0.6
—
0.15
2
1.4:1
1
1. All specifications apply with 50 ohm source and load impedance.
This product contains elements protected by United States Patent Number 3,428,920.
M/A-COM Technology Solutions Inc. (MACOM) and its affiliates reserve the right to make changes to the product(s) or information contained herein without notice.
Visit
www.macom.com
for additional data sheets and product information.
For further information and support please visit:
https://www.macom.com/support
DSS-333
Surface Mount Two-Way Power Divider,
10 - 500 MHz

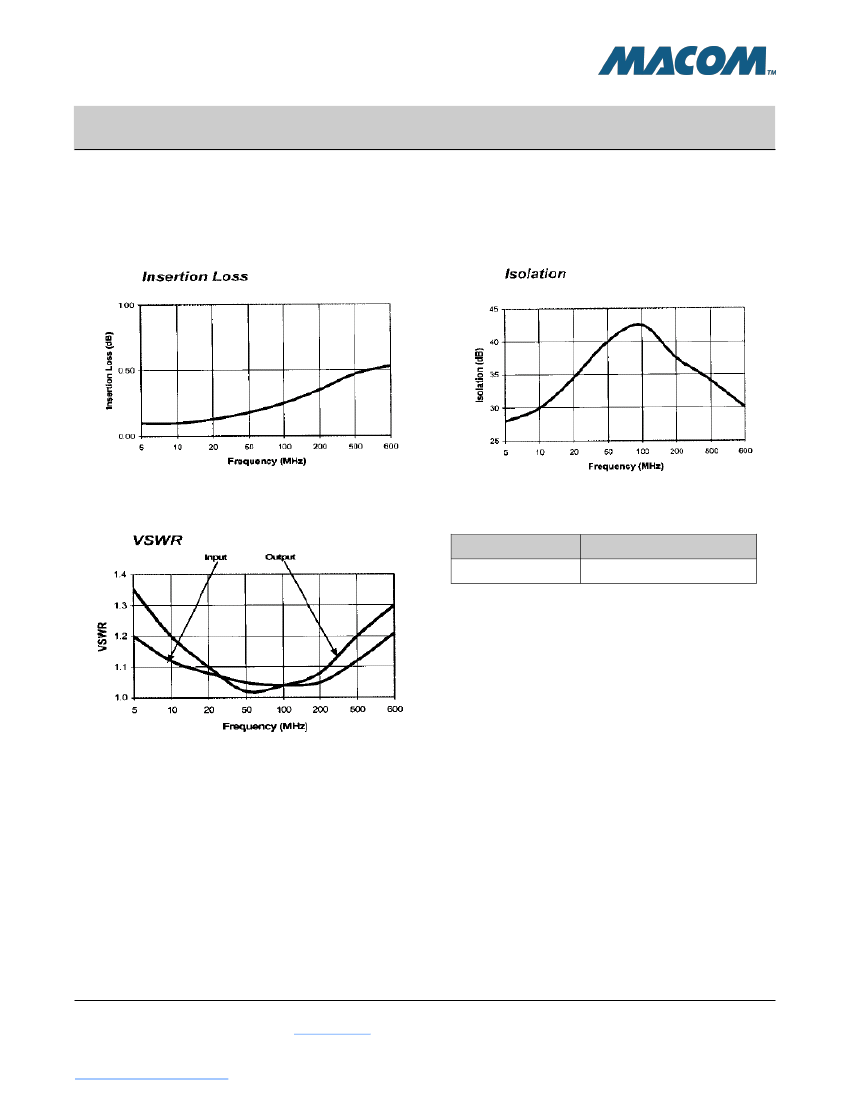

Typical Performance Curves
Rev. V3
Insertion Loss
Isolation
VSWR
Ordering Information
Part Number
DSS-333 PIN
Package
SF-1
2
M/A-COM Technology Solutions Inc. (MACOM) and its affiliates reserve the right to make changes to the product(s) or information contained herein without notice.
Visit
www.macom.com
for additional data sheets and product information.
For further information and support please visit:
https://www.macom.com/support
DSS-333
Surface Mount Two-Way Power Divider,
10 - 500 MHz
Rev. V3
M/A-COM Technology Solutions Inc. All rights reserved.
Information in this document is provided in connection with M/A-COM Technology Solutions Inc ("MACOM")
products. These materials are provided by MACOM as a service to its customers and may be used for
informational purposes only. Except as provided in MACOM's Terms and Conditions of Sale for such products or
in any separate agreement related to this document, MACOM assumes no liability whatsoever. MACOM
assumes no responsibility for errors or omissions in these materials. MACOM may make changes to
specifications and product descriptions at any time, without notice. MACOM makes no commitment to update
the information and shall have no responsibility whatsoever for conflicts or incompatibilities arising from future
changes to its specifications and product descriptions. No license, express or implied, by estoppels or otherwise,
to any intellectual property rights is granted by this document.
THESE MATERIALS ARE PROVIDED "AS IS" WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESS OR
IMPLIED, RELATING TO SALE AND/OR USE OF MACOM PRODUCTS INCLUDING LIABILITY OR
WARRANTIES RELATING TO FITNESS FOR A PARTICULAR PURPOSE, CONSEQUENTIAL OR
INCIDENTAL DAMAGES, MERCHANTABILITY, OR INFRINGEMENT OF ANY PATENT, COPYRIGHT OR
OTHER INTELLECTUAL PROPERTY RIGHT. MACOM FURTHER DOES NOT WARRANT THE ACCURACY
OR COMPLETENESS OF THE INFORMATION, TEXT, GRAPHICS OR OTHER ITEMS CONTAINED WITHIN
THESE MATERIALS. MACOM SHALL NOT BE LIABLE FOR ANY SPECIAL, INDIRECT, INCIDENTAL, OR
CONSEQUENTIAL DAMAGES, INCLUDING WITHOUT LIMITATION, LOST REVENUES OR LOST PROFITS,
WHICH MAY RESULT FROM THE USE OF THESE MATERIALS.
MACOM products are not intended for use in medical, lifesaving or life sustaining applications. MACOM
customers using or selling MACOM products for use in such applications do so at their own risk and agree to
fully indemnify MACOM for any damages resulting from such improper use or sale.
3
M/A-COM Technology Solutions Inc. (MACOM) and its affiliates reserve the right to make changes to the product(s) or information contained herein without notice.
Visit
www.macom.com
for additional data sheets and product information.
For further information and support please visit:
https://www.macom.com/support
