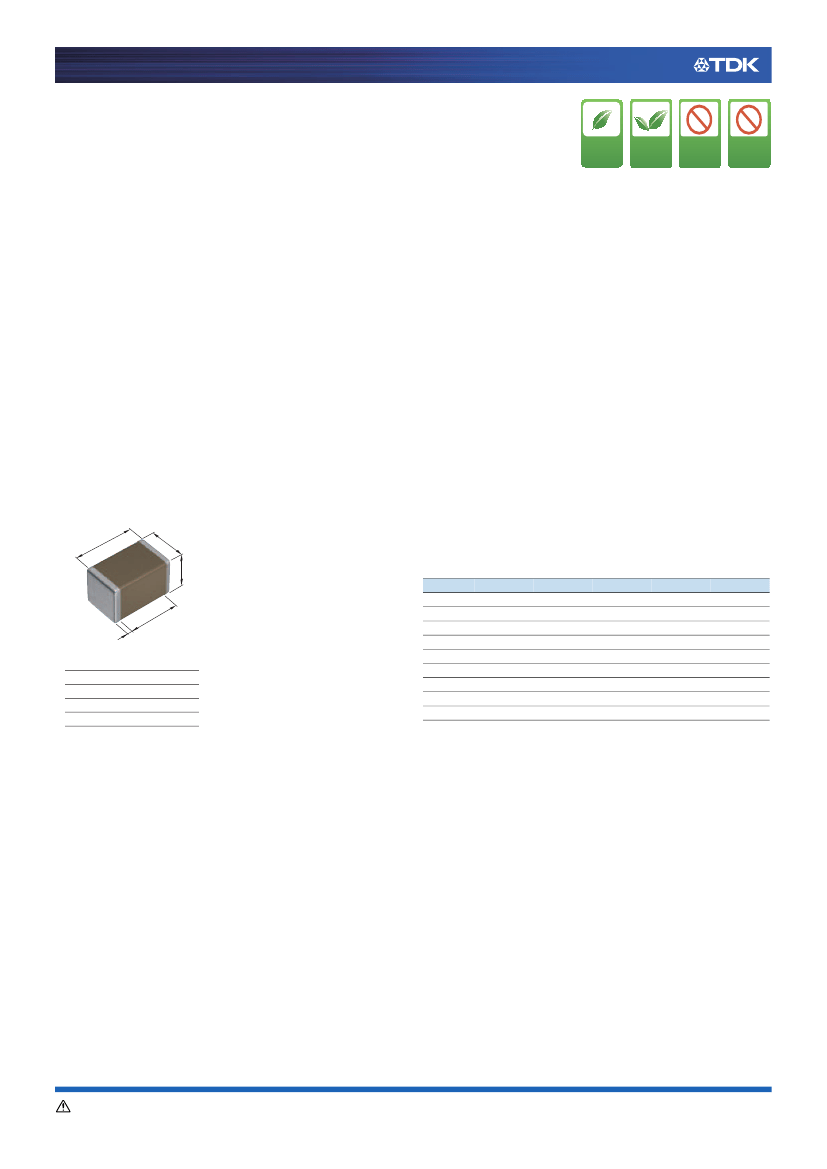

MULTILAYER CERAMIC CHIP CAPACITORS
C series
General (Up to 50V)
RoHS
Cl
Br
REACH Halogen
Free
SVHC-Free
Pb
Lead
Free
Type: C0402 [01005 inch]、
C0603 [0201 inch]、
C1005 [0402 inch]、
C1608 [0603 inch]、
C2012 [0805 inch]、
C3216 [1206 inch]、
C3225 [1210 inch]、
C4532 [1812 inch]、
C5750 [2220 inch]
■
SERIES OVERVIEW
TDK multilayer ceramic chip capacitor C series is a product for surface mount which multiple sheets of dielectric and conductive material are lay-
ered alternately. The monolithic structure ensures superior mechanical strength and reliability.
Also the lower ESR, ESL and better frequency characteristics are offered by the simple structure than other capacitors.
The capacitance range is up to 100uF and the line-up has been expanding to the region of the film capacitor or electrolytic capacitor.
■
FEATURES
• The superior mechanical strength and reliability due to the monolithic
structure.
• Low ESR, ESL and excellent frequency characteristics allow for a cir-
cuit design that closely conforms to theoretical values.
• Low self-heating and high ripple resistance due to low ESR.
• No polarity.
■
APPLICATIONS
•
•
•
•
General electronic equipment
Mobile devices
Servers, PCs, tablets
Power supply circuit
■
SHAPE & DIMENSIONS
L
W
T
G
B
L
W
T
B
G
Body length
Body width
Body height
Terminal width
Terminal
spacing
Type
L
W
T
C0402
0.40±0.02 0.20±0.02 0.20±0.02
C0603
0.60±0.03 0.30±0.03 0.30±0.03
C1005
1.00±0.05 0.50±0.05 0.50±0.05
C1608
1.60±0.10 0.80±0.10 0.80±0.10
C2012
2.00±0.20 1.25±0.20 1.25±0.20
C3216
3.20±0.20 1.60±0.20 1.60±0.20
C3225
3.20±0.40 2.50±0.30 2.50±0.30
C4532
4.50±0.40 3.20±0.40 3.20±0.40
C5750
5.70±0.40 5.00±0.40 2.80±0.30
Dimensional
tolerances are typical values.
Dimensions in mm
B
G
0.07 min.
0.14 min.
0.10 min.
0.20 min.
0.10 min.
0.30 min.
0.20 min.
0.30 min.
0.20 min.
0.50 min.
0.20 min.
1.00 min.
0.20 min.
—
0.20 min.
—
0.20 min.
—
Please be sure to request delivery specifications that provide further details on the features and specifications of the products for proper and safe use.
Please note that the contents may change without any prior notice due to reasons such as upgrading.
20170710 / mlcc_commercial_general_en.fm
(4/56)
MULTILAYER CERAMIC CHIP CAPACITORS
■
CATALOG NUMBER CONSTRUCTION
C
(1)
3216 X5R
(2)
(3)
1A
(4)
107
(5)
M
(6)
160
(7)
A
(8)
C
(9)
(1) Series name
(2) Dimensions L x W (mm)
Code
0402
0603
1005
1608
2012
3216
3225
4532
5750
EIA
CC01005
CC0201
CC0402
CC0603
CC0805
CC1206
CC1210
CC1812
CC2220
Length
0.40
0.60
1.00
1.60
2.00
3.20
3.20
4.50
5.70
Width
0.20
0.30
0.50
0.80
1.25
1.60
2.50
3.20
5.00
Terminal width
0.07
0.10
0.10
0.20
0.20
0.20
0.20
0.20
0.20
(6) Capacitance tolerance
Code
B
C
D
F
G
J
K
M
Tolerance
±0.10pF
±0.25pF
±0.50pF
±1%
±2%
±5%
±10%
±20%
(7) Nominal thickness
Code
020
030
050
060
080
085
115
125
130
160
200
230
250
280
320
Thickness
0.20 mm
0.30 mm
0.50 mm
0.60 mm
0.80 mm
0.85 mm
1.15 mm
1.25 mm
1.30 mm
1.60 mm
2.00 mm
2.30 mm
2.50 mm
2.80 mm
3.20 mm
(3) Temperature characteristics
Temperature
characteristics
CH
C0G
JB
X5R
X6S
X7R
X7S
Temperature coefficient
or capacitance change
0±60 ppm/℃
0±30 ppm/℃
±10%
±15%
±22%
±15%
±22%
Temperature range
-25 to +85℃
-55 to +125℃
-25 to +85℃
-55 to +85℃
-55 to +105℃
-55 to +125℃
-55 to +125℃
(4) Rated voltage (DC)
Code
0G
0J
1A
1C
1E
1V
1H
Voltage (DC)
4V
6.3V
10V
16V
25V
35V
50V
(8) Packaging style
Code
A
B
K
Style
178mm reel, 4mm pitch
178mm reel, 2mm pitch
178mm reel, 8mm pitch
(5) Nominal capacitance (pF)
The capacitance is expressed in three digit codes and in units of
pico Farads (pF). The first and second digits identify the first and
second significant figures of the capacitance. The third digit identi-
fies the multiplier. R designates a decimal point.
(Example)0R5 = 0.5pF
101 = 100pF
225 = 2,200,000pF = 2.2µF
(9) Special reserved code
Code
A、B、C
Description
TDK internal code
