Data Sheet
Features
•
•
•
•
•
•
•
For WiMAX applications
Usable bandwidth 10 MHz
Low loss
Balanced operation
Ceramic Surface Mount Package (SMP)
Hermetic
RoHS
compliant (2002/95/EC),
Pb-free
Pb
Part Number 856652
398 MHz SAW Filter

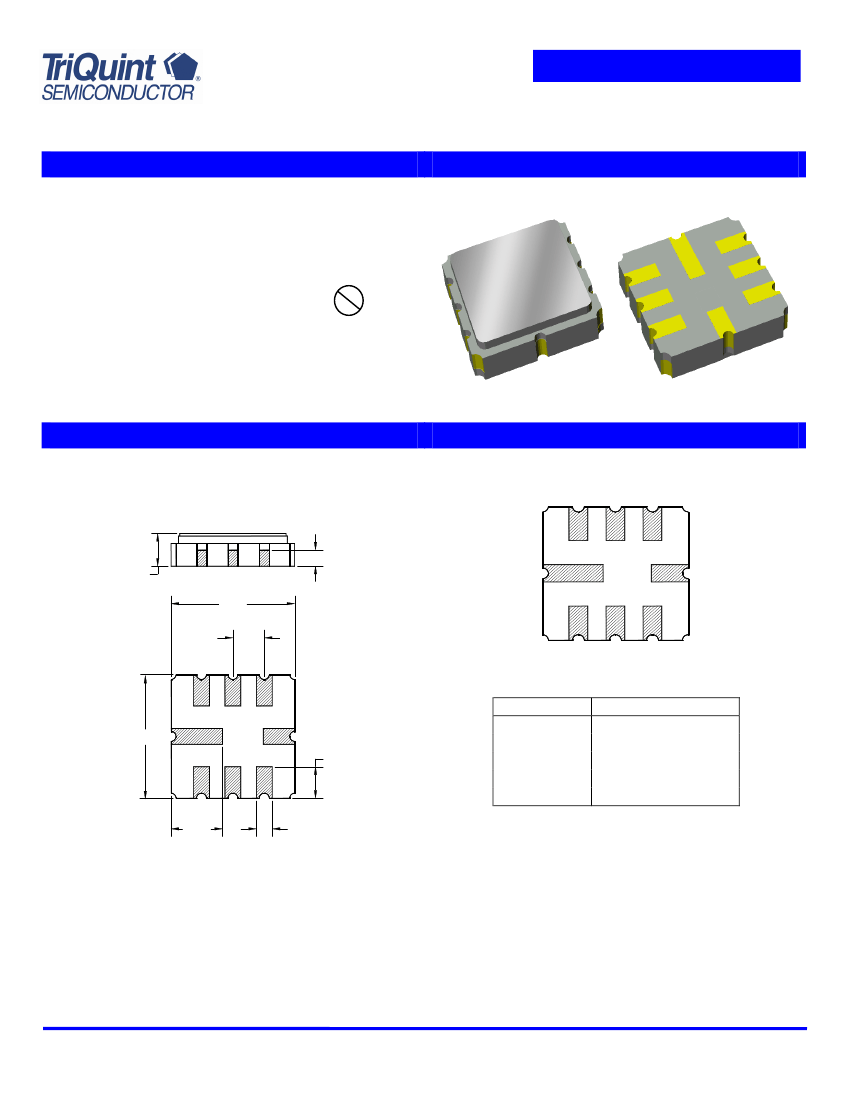

Package
Surface Mount 5.00 x 5.00 x 1.32 mm
SMP-20
Pin Configuration
Bottom View
1
2
3
1.32 NOM.
1.52 MAX.
5.00
1.27
0.66
8
4
7
6
5
5.00
1.27
Pin No.
1
2
5
6
3,4,7,8
Description
Input +
Input -
Output +
Output -
Case Ground
2.08
0.64
Dimensions shown are nominal in millimeters
All tolerances are
±0.15mm
except overall
length and width +0.15/-0.10mm
Body:
Al
2
O
3
ceramic
Lid:
Kovar, Ni
plated
Terminations:
Au
plating 0.5 - 1.0µm,
over a 2 – 6µm
Ni
plating
Subject to change or obsolescence without notice
Rev B
11/08
© TriQuint Semiconductor
Page 1 of 6
Data Sheet
Operating Temperature Range:
(2)
0 to +70
°C
Part Number 856652
398 MHz SAW Filter
Electrical Specifications
(1)
Parameter
(3)
Center Frequency
Insertion Loss at Center Frequency
Lower 1.5 dB Band Edge
(5)
Upper 1.5 dB Band Edge
(5)
Lower 35 dB Band Edge
(5)
Upper 35 dB Band Edge
(5)
Amplitude Ripple
393 – 403 MHz
Group Delay Variation
393 – 403 MHz
Ultimate Rejection
(5)
10 – 348 MHz
348 – 385 MHz
385 – 388 MHz
408 – 411 MHz
411 – 448 MHz
448 – 1000 MHz
Source Impedance (balanced)
(6)
Load Impedance (balanced)
(6)
Notes:
Minimum
-
-
-
403
388
-
-
-
40
35
35
35
35
33
-
-
Typical
(4)
398
8.7
392.4
403.7
388.9
406.9
0.7
44
49
45
46
40
41
35
200
200
Maximum
-
12.5
393
-
-
408
1.2
60
-
-
-
-
-
-
-
-
Unit
MHz
dB
MHz
MHz
MHz
MHz
dB
ns p-p
dB
dB
dB
dB
dB
dB
1. All specifications are based on the TriQuint test circuit shown below
2. In production, devices will be tested at room temperature to a guardbanded specification to ensure electrical compliance over
temperature
3. Electrical margin has been built into the design to account for the variations due to temperature drift and manufacturing tolerances
4. Typical values are based on average measurements at room temperature
5. Relative to insertion loss at center frequency
6. This is the optimum impedance in order to achieve the performance shown
Test Circuit:
Actual matching values may vary due to PCB layout and parasitics
6.8nH
1
5
18nH
2
3,4,7,8
6
8.7nH
200Ω
Ω
8.7nH
200
Ω
Balanced
Input
200Ω
Ω
15nH
6.8nH
200
Ω
Balanced
Output
Subject to change or obsolescence without notice
Rev B
11/08
© TriQuint Semiconductor
Page 2 of 6
Data Sheet
Operating Temperature Range:
(2)
-40 to +85
°C
Part Number 856652
398 MHz SAW Filter
Electrical Specifications
(1)
Parameter
(3)
Center Frequency
Insertion Loss at Center Frequency
Lower 2 dB Band Edge
(5)
Upper 2 dB Band Edge
(5)
Lower 35 dB Band Edge
(5)
Upper 35 dB Band Edge
(5)
Amplitude Ripple
393 – 403 MHz
Group Delay Variation
393 – 403 MHz
Ultimate Rejection
(5)
10 – 348 MHz
348 – 385 MHz
385 – 388 MHz
408 – 411 MHz
411 – 448 MHz
448 – 1000 MHz
Source Impedance (balanced)
(6)
Load Impedance (balanced)
(6)
Notes:
Minimum
-
-
-
403
388
-
-
-
40
35
35
35
35
33
-
-
Typical
(4)
398
8.7
392.4
403.7
388.9
406.9
0.7
44
49
45
46
40
41
35
200
200
Maximum
-
12.5
393
-
-
408
1.6
80
-
-
-
-
-
-
-
-
Unit
MHz
dB
MHz
MHz
MHz
MHz
dB
ns p-p
dB
dB
dB
dB
dB
dB
1. All specifications are based on the TriQuint test circuit shown below
2. In production, devices will be tested at room temperature to a guardbanded specification to ensure electrical compliance over
temperature
3. Electrical margin has been built into the design to account for the variations due to temperature drift and manufacturing tolerances
4. Typical values are based on average measurements at room temperature
5. Relative to insertion loss at center frequency
6. This is the optimum impedance in order to achieve the performance shown
Test Circuit:
Actual matching values may vary due to PCB layout and parasitics
6.8nH
1
5
18nH
2
3,4,7,8
6
8.7nH
200Ω
Ω
8.7nH
200
Ω
Balanced
Input
200Ω
Ω
15nH
6.8nH
200
Ω
Balanced
Output
Subject to change or obsolescence without notice
Rev B
11/08
© TriQuint Semiconductor
Page 3 of 6
Data Sheet
Part Number 856652
398 MHz SAW Filter

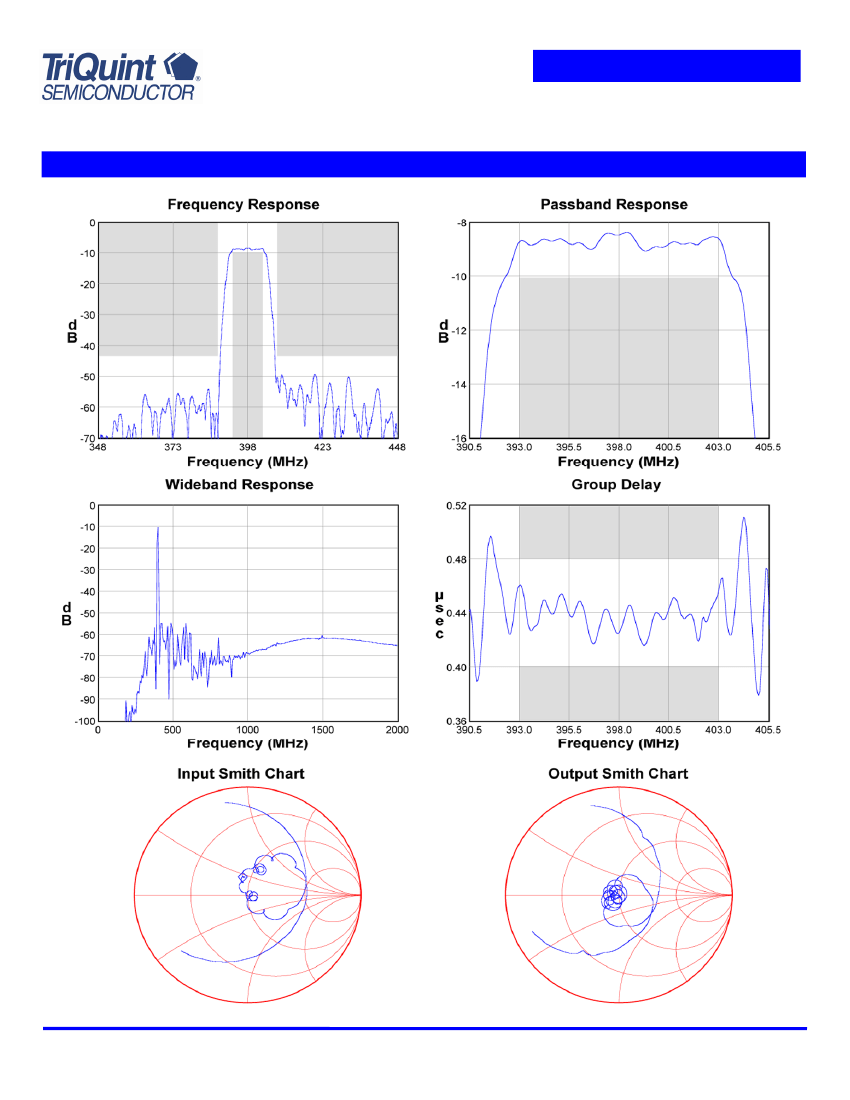

Typical Performance
(at room temperature)
Subject to change or obsolescence without notice
Rev B
11/08
© TriQuint Semiconductor
Page 4 of 6
Data Sheet
Actual matching values may vary due to PCB layout and parasitics
6.8nH
1
5
8.7nH
Part Number 856652
398 MHz SAW Filter

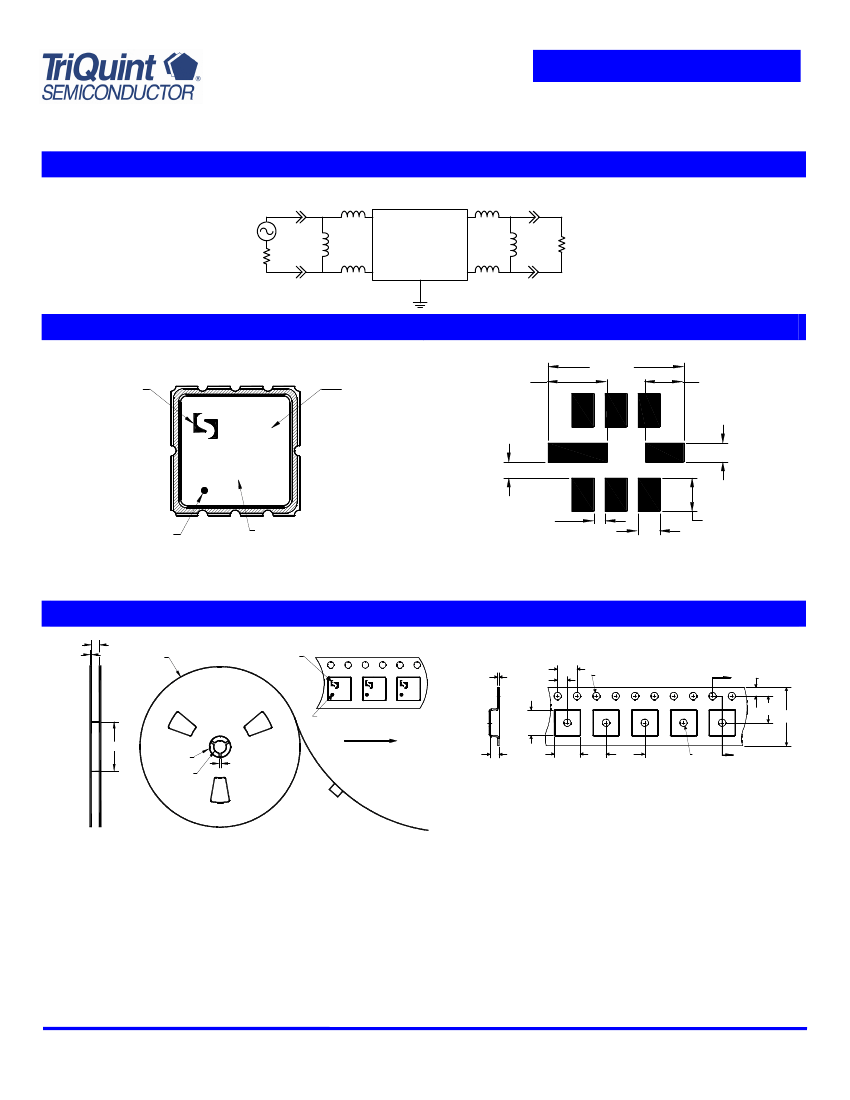

Matching Schematics
200
Ω
Balanced
Input
200Ω
Ω
15nH
6.8nH
2
3,4,7,8
6
8.7nH
18nH
200Ω
Ω
200
Ω
Balanced
Output
Marking
Sawtek
logo
Marking
code
PCB Footprint
5.20
2.28
1.47
BL
JJJYM
.84
.71
ID dot
Date code
.43
.84
1.47
The date code consists of: day of the current year (Julian,
3 digits), Y = last digit of the year and M = manufacturing site code
This footprint represents a recommendation only
Dimensions shown are nominal in millimeters
Tape and Reel
12.8
2.7
Ø330
Sawtek
logo
0.3
2.0
4.0
Ø1.5
A
1.75
5.5
5.25
1.8
Section A-A
5.25
8.0
Ø1.5
A
ID dot
Ø102
Direction of travel
2.0
12.0
Ø20.2
Ø13.0
Dimensions shown are nominal in millimeters
Packaging quantity: 4000 units/reel
Subject to change or obsolescence without notice
Rev B
11/08
© TriQuint Semiconductor
Page 5 of 6
