SMT Power Inductors
Size 12.8 x 12.8 x 8.0 (mm)
Series/Type:
Ordering code:
Date:
B82477G
B82477G4473M003
June 2012
Content of header bars 1 and 2 of data sheet will be automatically entered in headers and footers! Please fill in the
table and then change the color to "white". This ensures that the table disappears (invisible) for the customer PDF.
Don't change formatting when entering or pasting text in the table and don't add any cell or line in and to it!
Identification/Classification 1
(header 1 + top left bar):
Identification/Classification 2
(header 2 + bottom left header bar):
Ordering code: (top right header bar)
Series/Type: (bottom right header bar)
Preliminary data (optional):
(if necessary)
Department:
SMT Power Inductors
Size 12.8 x 12.8 x 8.0 (mm)
B82477G4473M003
B82477G
EPCOS AG 2015. Reproduction, publication and dissemination of this publication, enclosures hereto and the information
Date:
June 2012
contained therein without EPCOS' prior express consent is prohibited.
EPCOS AG is a TDK Group Company.
SMT Power Inductors
Size 12.8 x 12.8 x 8.0 (mm)
B82477G4473M003
B82477G
Rated inductance 47 µH
Construction
■
Ferrite core
■
Magnetically shielded
■
Winding: enamel copper wire
■
Winding: soldered to terminals
Features
■
High mechanical stability
■
Temperature range up to +125 °C
■
Increased current handling capability
compared to standard device
B82477G4473M000 (I
sat
+30%)
■
Low DC resistance
■
Suitable for lead-free reflow soldering
■
RoHS-compatible
Applications
■
Filtering of supply voltages
■
Coupling, decoupling
■
DC/DC converters
Terminals
■
Base material CuSn6P
■
Layer composition Ni, Sn (lead-free)
■
Electro-plated
Marking
■
Marking on component:
Manufacturer, L value (µH, coded),
manufacturing date (YWWD)
■
Minimum data on reel:
Manufacturer, ordering code, L value,
quantity, date of packing
Delivery mode and packing unit
■
24-mm blister tape, wound on 330-mm
reel
■
Packing unit: 400 pcs./reel
June 2012
Please read Cautions and warnings and
Important notes at the end of this document.
Page 2 of 7
SMT Power Inductors
Size 12.8 x 12.8 x 8.0 (mm)
B82477G4473M003
B82477G

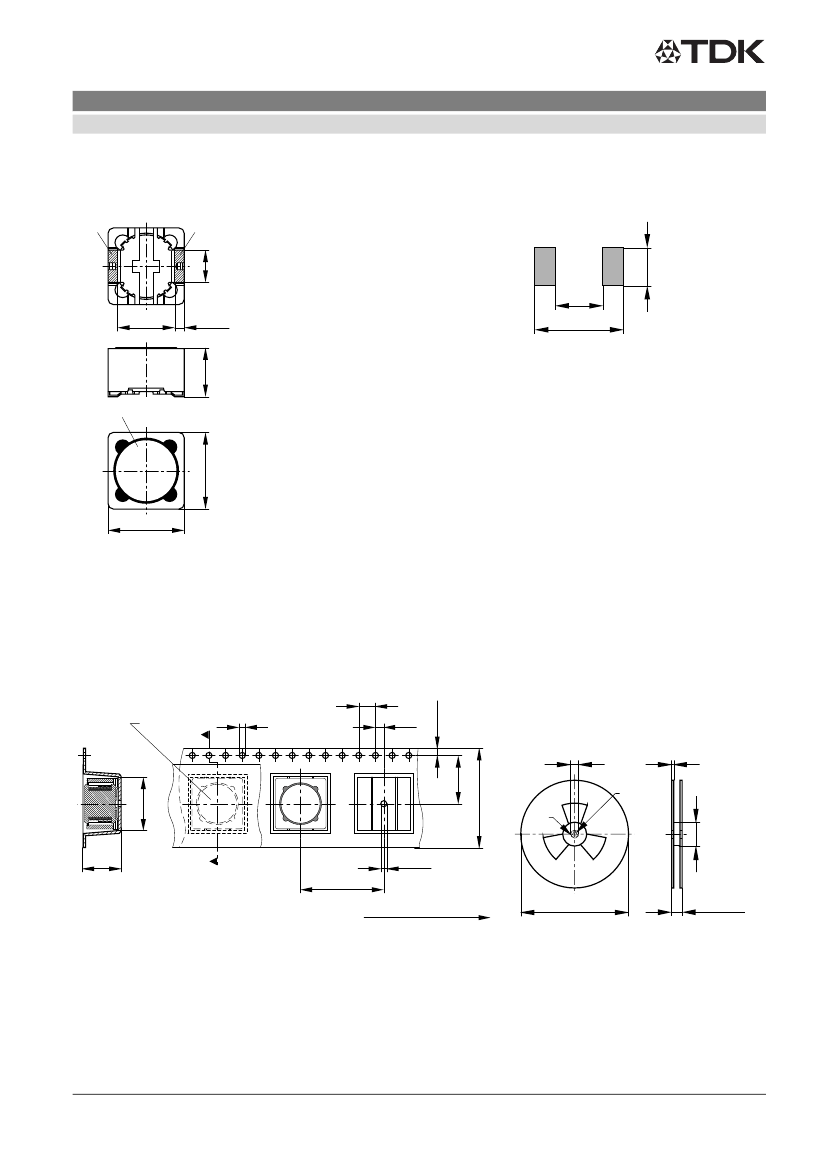

Dimensional Drawing and layout recommendation
1)
1)
5±0.2
7
8.5±0.2
1.5±0.2
8 max.
13.2
IND0493-B
Marking
12.8 max.
12.8 max.
1) Soldering area
IND0492-V-E
Dimensions in mm
Taping and packing
Blister tape and reel
1.75±0.1
4±0.1
Component
1.5+0.1
2±0.1
12.85±0.1
11.5±0.1
21±0.5
24±0.3
5.6
2.5±0.5
13±0.2
1.0
1.5 min.
8.7 max.
20±0.1
Direction of unreeling
IND0342-S-E
330±1
30.4 max.
IND0348-6
Dimensions in mm
Please read Cautions and warnings and
Important notes at the end of this document.
Page 3 of 7
75±1
June 2012
SMT Power Inductors
Size 12.8 x 12.8 x 8.0 (mm)
B82477G4473M003
B82477G
Technical data and measuring conditions
Rated inductance L
R
Rated temperature T
R
Rated current I
R
Saturation current I
Sat
DC resistance R
typ
Solderability (lead-free)
Resistance to soldering heat
Climatic category
Storage conditions
Weight
Measured with LCR meter Agilent 4284A at frequency f
L
,
0.1 V, +20 °C
+85 °C
Max. permissible DC with temperature increase of
≤40
K
at rated temperature
Permissible DC with inductance decrease
∆L/L
0
of approx. 10%
Measured at +20 °C
Dip and look method Sn95.5Ag3.8Cu0.7: +(245
5)
°C, (3
0.3)
s
Wetting of soldering area
90%
(based on IEC 60068-2-58)
+260 °C, 10 s
55/125/56 (to IEC 60068-1)
Mounted: –55 °C … +125 °C
Packaged: –25 °C … +40 °C,
≤75%
RH
Approx. 4 g
Characteristics and ordering codes
L
R
H
47
20% = M
Tolerance
f
L
MHz
0.1
I
R
A
3.00
I
sat
A
5.00
R
typ
0.051
R
max
0.055
B82477G4473M003
Ordering code
June 2012
Please read Cautions and warnings and
Important notes at the end of this document.
Page 4 of 7
SMT Power Inductors
Size 12.8 x 12.8 x 8.0 (mm)
B82477G4473M003
B82477G
Inductance derating versus DC superposition
Current derating I
OP
/I
R
versus ambient temperature T
A
(rated temperature T
R
= +85°C)
1.2
I
op
I
R
IND0508-Z
1.0
0.8
0.6
0.4
0.2
0
0
20
40
60
80 100 120
˚
C 150
T
A
June 2012
Please read Cautions and warnings and
Important notes at the end of this document.
Page 5 of 7
