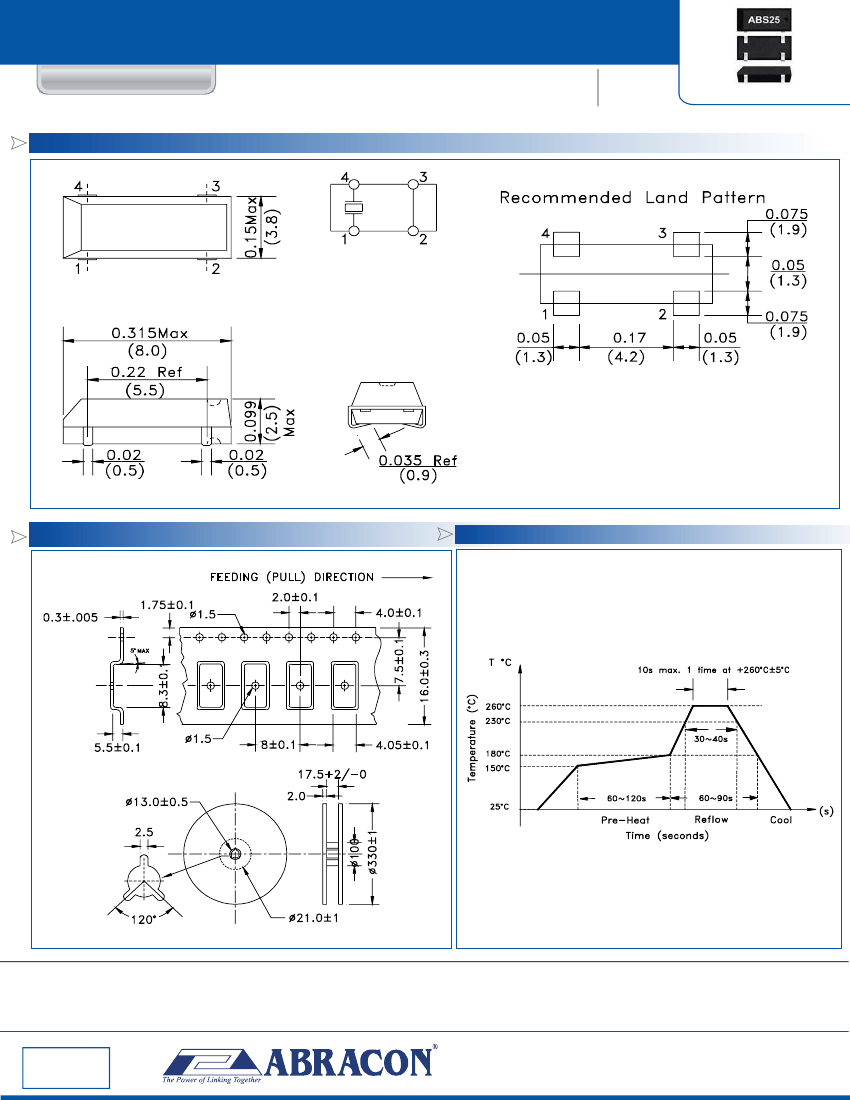

32.768 kHz LOW FREQUENCY SMD CRYSTAL

ABS25

FEATURES:

• Plastic molded SMD

• 2.5mm height ideal for high density circuit boards

• Suitable for RoHS compliant reflow

• Extended temperature -40°C to +85°C for industrial applications

Pb in High Tempe rature Solder

(exempt per RoHS 2002/95/EC Annex (7))

RoHS

Compliant

| | | | | | | | | | | | | |

8.0 x 3.8 x 2.5 mm

APPLICATIONS:

• Wide range in communication & measuring equipment

• Commercial & Industrial applications

• Computer clock

STANDARD SPECIFICATIONS:

Parameters

Nominal Frequency

Frequency Range

Operating Temperature

Turnover Temperature

Storage Temperature

Frequency Tolerance @+25°C

Capacitance Ratio (C0/C1)

Frequency Coefficient (ß)

Equivalent series resistance (R1)

Shunt capacitance (C0)

Load capacitance (CL)

Drive Level

Aging

Insulation Resistance

Minimum

-----

-40

+20

-55

-20

-30

-----

-0.040

-----

Typical

32.768

-----

+25

-----

450

425 to 800

-0.034

-----

1.35

0.8 to 1.7

12.5

-----

Maximum

-----

100

+85

+30

+125

+20

+30

-----

-0.028

-----

Units

kHz

ºC

ppm

32.768kHz

Other frequencies

See options

32.768kHz

Other frequencies

Notes

-----

-3

-5

500

-----

ppm/T

kΩ

µW

ppm

Ω

32.768kHz

Other frequencies

See options

@25°C±3°C

First year

@ 100Vdc ± 15V

(Left blank if standard)

OPTIONS AND PART IDENTIFICATION:

ABS25 -

Frequency in kHz

Please specify the

frequency in kHz.

e.g. 32.768kHz

Load Capacitance (pF)

Blank: 12.5pF

Please specify load cap.

in pF (ex. 6pF) if not

standard

Freq. Tolerance

1: ± 10 ppm

5: ± 15 ppm

2*: ± 20 ppm

3: ± 25 ppm

4**: ± 30 ppm

Packaging

Blank: Bulk

T: Tape and Reel

* STD for 32.768kHz. Please leave this blank if F is 32.768kHz.

** STD for other frequencies. Please leave this blank if F is not 32.768kHz.

ABRACON IS

ISO9001:2008

CE RTIFIED

LLC

2 Faraday, Suite# B

Irvine

CA 92618

Revised: 12.01.15

Ph. 949.546.8000

Fax. 949.546.8001

Visit

www.abracon.com

for Terms and Conditions of Sale
