3,50
±0,50
0,138
±0,020
8,89 0,350
3,05 0,120
21,56 0,849
16,35 0,644
1
8
DATE CODE
DATUMSCODE
PART NO.
IDENT-NR.
6,60 0,260
LED 2
LED 1
16,51 0,650
15,95 0,628

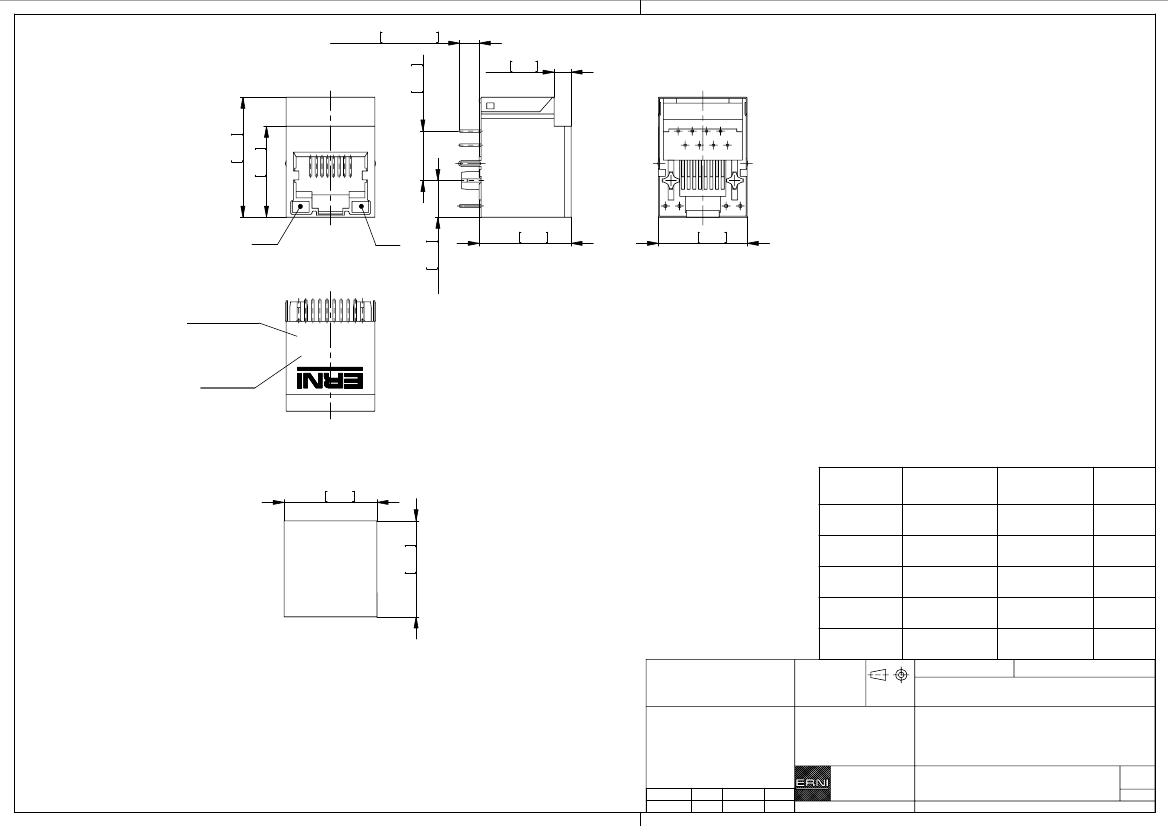

RECOMMENDED PANEL CUTOUT
EMPFOHLENER FRONTPLATTEN AUSSCHNITT
16,66 0,656
17,26 0,680
Copyright by ERNI GmbH
Proprietary notice pursuant to ISO 16016 to be observed.
MATERIALS AND FINISH
HOUSING: GLASS FILLED POLYESTER UL 94 V-0 BLACK
SHIELDING: Cu ALLOY, PLATED WITH Ni
CONTACTS: PHOSPHOR BRONZE
CONTACT FINISH: Au, 0.8
µm
(30
µin)
OVER Ni
TERMINAL FINISH: Sn MATTE
LED LENS: EPOXY
MECHANICAL CHARACTERISTICS
DURABILITY: 1000 MATING CYCLES
ELECTRICAL CHARACTERISTICS
CONTACT RESISTANCE: 30 MILLIOHMS MAX
OPERATING TEMPERATURE: 0°C TO 70°C
XXXXXX
XXXX RC
NOTE 1: RoHS COMPLIANT; PRINT "RC" WITH DATE CODE
NO.
IDENT.-NR.
203323
203324
203325
203326
203327
Information:
SCHEMATIC NUMBER: M3D01
Tolerances
All Dimensions
in mm [in]
LED 2 LEFT
LED 2 LINKS
YELLOW
GREEN
GREEN
GREEN
ORANGE/GREEN
Scale
LED 1 RIGHT
LED 1 RECHTS
GREEN
YELLOW
GREEN
RED
ORANGE/GREEN
LED
CODE
L1
L2
L3
L4
L9
2:1
Designation
All rights reserved.
Subject to modification without
Only for Information.
prior notice.
To insure that this is the latest
Drawing will not be updated.
version of this drawing, please
contact one of the ERNI companies
before using.
MOD - JACK MJIMV
1x1, 8C8T,VERTICAL, INT. MAG., LED
www.ERNI.com
B
Index
30.11.2006
Date
Class
203289
MJIM
I (1/2)
A3

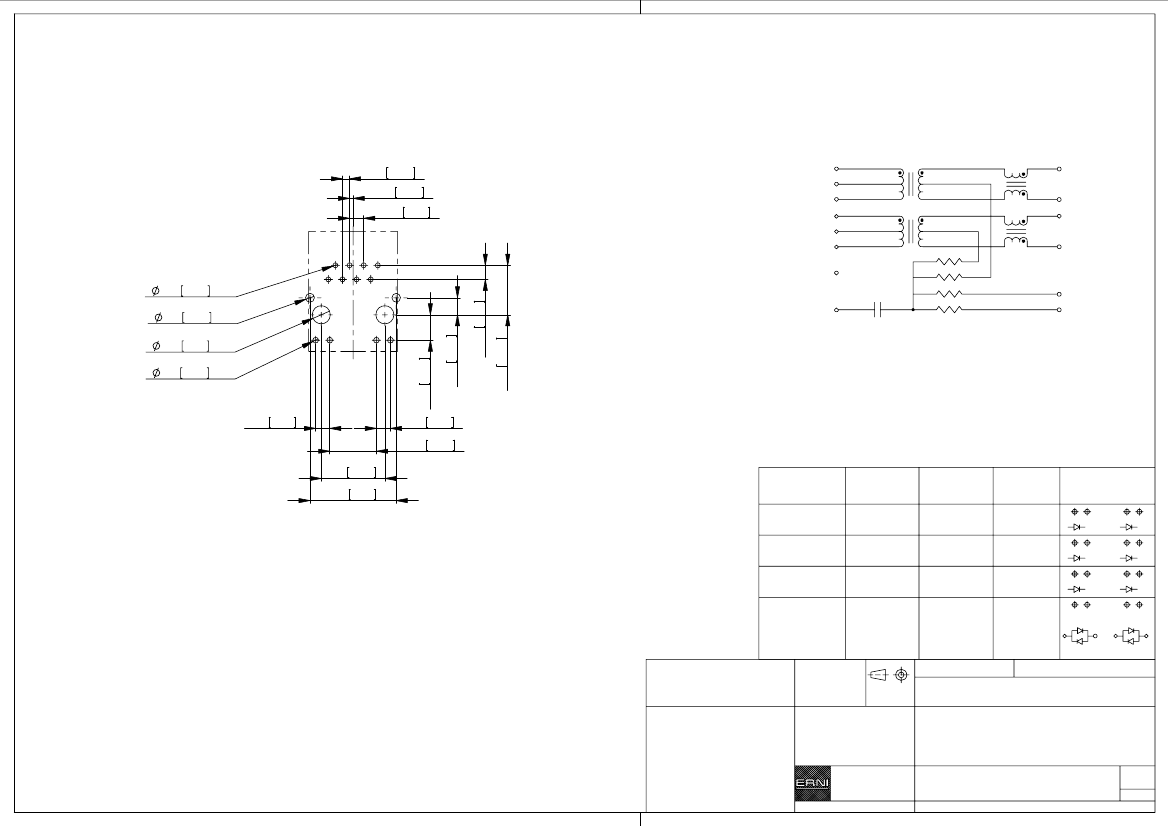

RECOMMENDED PCB LAYOUT (COMPONENT SIDE VIEW)
EMPFOHLENES LEITERPLATTEN-LAYOUT (BESTÜCKUNGSSEITE)
TOL
±0.05
[.002] UNLESS NOTED
1,27 0,050
0,64 0,025
2,54 0,100
CT
2
8
ELECTRICAL SCHEMATIC M3D01
ELEKTRISCHER SCHALTPLAN
PCB
CT
P1
P4
P2
P3
P5
P6
CABLE
J1
J2
J3
J6
N/C P7
0,89 0,035
1,60 0,063
3,25 0,128
1,02 0,040
x8
x2
9
10
11 12
1
7
2,540 0,100
GND P8
1000pF/2KV
8,89 0,350
4x 75
Ω
J4,5
J7,8
x2
x4
4,57 0,180
2,54 0,100
2,54 0,100
8,38 0,330
3,05 0,120
LED SPECIFICATIONS
LED ANWEISUNG
COLOR
FARBE
YELLOW
GREEN
RED
Vf
TYP
2.1
2.2
2.25
Vf
MAX
2.5
2.5
2.5
If
mA
20
20
20
CIRCUIT DIAGRAM
SCHALTPLAN
9 10
11 12
MAGNETICS SPECIFICATIONS @ 25°C
AUTO MDIX COMPATIBLE
TURNS RATIO:
(P1-P2 : J1-J2)
(P3-P6 : J3-J6)
OCL(100 KHz, 0.1 Vrms, 8 mA)
(P1-P2 : P3-P6)
DCR (P1-P2, P3-P6)
INSERTION LOSS:
0.1-100 MHz
RETURN LOSS:
0.5 - 30 MHz:
40 MHz:
50 MHz
60 - 80 MHz
CROSSTALK:
1-100 MHz
CMR:
0.1 - 30 MHz
30 - 60 MHz
60 - 100 MHz
ISOLATION
1CT : 1
±3%
1CT : 1
±3%
350µH MIN
11,43 0,450
15,49 0,610
9 10
11 12
0.9 OHMS MAX
-1.1 dB MAX
-18 dB MIN
-15.5 dB MIN
-13.6 dB MIN
-12 dB MIN
-40 dB TYP
-50 dB TYP
-40 dB TYP
-35 dB TYP
1500 Vrms
9 10
11 12
ORANGE/GREEN
Copyright by ERNI GmbH
Proprietary notice pursuant to ISO 16016 to be observed.
2.05/2.2
2.5
20
2:1
9 10
G
11 12
G
N
Information:
Tolerances
All Dimensions
in mm [in]
N
Scale
Designation
All rights reserved.
Subject to modification without
Only for Information.
prior notice.
To insure that this is the latest
Drawing will not be updated.
version of this drawing, please
contact one of the ERNI companies
before using.
MOD - JACK MJIMV
1x1, 8C8T,VERTICAL,INT.MAG., LED
www.ERNI.com
Class
203289
MJIM
I (2/2)
A3
