20-0625-20 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 20-0625-20

20-0625-20: DescriptionHeaders & Wire Housings PIN LINE HEAD 20 PIN SCREW MACHINE CONT; CategoryThe connector The connector; File Size609KB，1 Pages; ManufacturerAries Electronics; Environmental Compliance

Download Datasheet Parametric View All

20-0625-20 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	20-0625-20	-	-	View	Buy Now

20-0625-20 Overview

Headers & Wire Housings PIN LINE HEAD 20 PIN SCREW MACHINE CONT

20-0625-20 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Aries Electronics
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	STACKABLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	TIN (200) OVER NICKEL (100)
Contact completed and terminated	TIN (200) OVER NICKEL (100)
Contact point gender	MALE
Contact material	BRASS
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e3
MIL compliance	NO
Manufacturer's serial number	0625
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	1
Options	GENERAL PURPOSE
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	20
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

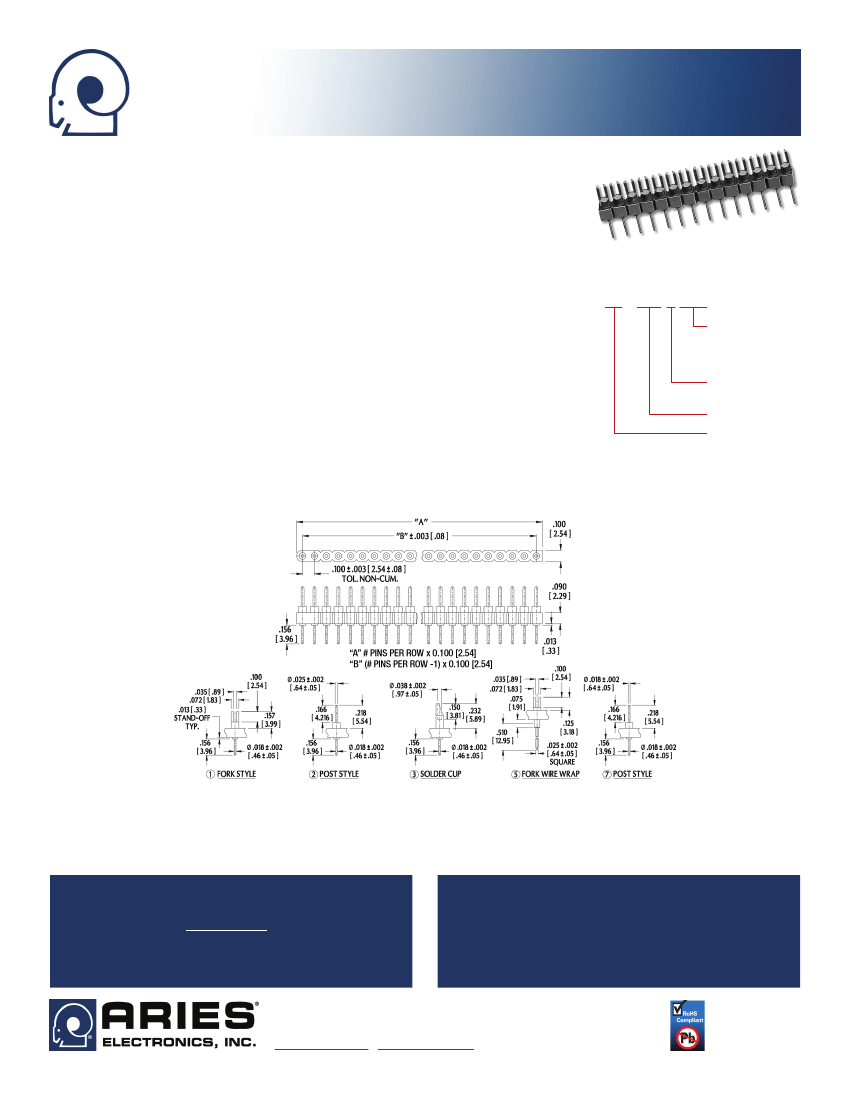

Series 0625 Pin-Line Header

w/Screw Machine Contacts

™

FEATURES

• Available in either Screw Machine or Coined Contacts in a Variety of Styles

• Header can be Cut to the Desired Number of Positions with “break” Feature

• Side-to-side and End-to-end Stackable

GENERAL SPECIFICATIONS

•

BODY MATERIAL: Black UL 94V-0 Glass-filled 4/6 Nylon

•

FORK AND POST CONTACTS: Brass 360 1/2-hard per UNS C36000 ASTM B16/B16M-05

•

SOLDER CUP CONTACTS: Phosphor Bronze per 544 UNS C54400 ASTM B139-01

•

CONTACT PLATING: 10µ [0.25µ] min. Au per MIL-G-45204 –OR– 200µ [5.08µ] min. 93/7 Sn/Pb

per ASTM B545 –OR– 200µ [5.08µ] min. Sn per ASTM B545 Type 1 over 100µ [2.54µ] min. Ni per

SAE AMS-QQ-N-290B

•

CONTACT CURRENT RATING: 2 amps (3 amps for Pin Style 5)

•

OPERATING TEMPERATURE: -67°F to 221°F [-55°C to 105°C] for Sn and Sn/Pb plating; -67°F to

257°F [-55°C to 125°C] for Au plating

•

ACCEPTS LEADS: up to 0.035 [0.89] dia.

ORDERING INFORMATION

XX-0625-X XXX

Plating

0 = Sn

OTL = Sn/Pb

1 = Au

Pin Style

(See Drawing)

Series

No. of Pins

(1 to 25)

MOUNTING CONSIDERATIONS

•

SUGGESTED PCB HOLE SIZE:

0.028 ±0.002 [0.71 ±0.05] dia.

ALL DIMENSIONS: INCHES [MILLIMETERS]

ALL TOLERANCES: ±0.005 [0.13] UNLESS OTHERWISE SPECIFIED

FOR COINED CONTACTS, SEE DATA SHEET 12034

CONSULT FACTORY FOR OTHER SIZES AND CONFIGURATIONS

CUSTOMIZATION: ARIES SPECIALIZES IN CUSTOM DESIGN AND PRODUCTION.

SPECIAL MATERIALS, PLATINGS, SIZES, AND CONFIGURATIONS CAN BE

FURNISHED, DEPENDING ON QUANTITY.

ARIES RESERVES THE RIGHT TO CHANGE PRODUCT GENERAL SPECIFICATIONS

WITHOUT NOTICE

PRINTOUTS OF THIS DOCUMENT MAY BE OUT-OF-DATE AND SHOULD BE

CONSIDERED UNCONTROLLED

2609 Bartram Road

•

Bristol, PA 19007-6810 USA

TEL 215-781-9956

•

FAX 215-781-9845

WWW.ARIESELEC.COM

•

INFO@ARIESELEC.COM

12036

Rev. 5.1

1 of 1
