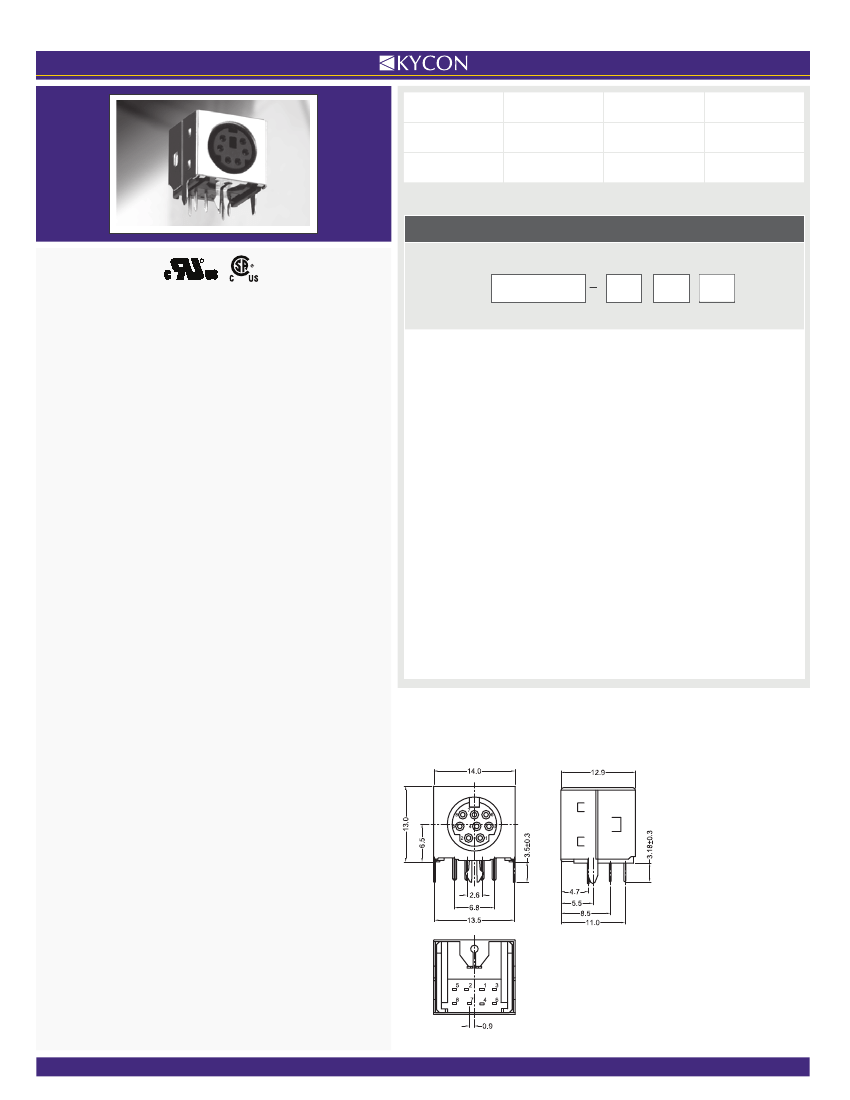

Circular DIN Connector, 7 Contact(s), Female, Board Mount, Solder Terminal, Locking, Plug, ROHS COMPLIANT
| Parameter Name | Attribute value |
| Is it Rohs certified? | conform to |
| Objectid | 1598158381 |
| package instruction | ROHS COMPLIANT |
| Reach Compliance Code | compliant |
| Country Of Origin | Taiwan |
| Samacsys Manufacturer | Kycon |
| Samacsys Modified On | 2022-04-26 20:56:38 |
| YTEOL | 7.5 |
| Other features | ROHS COMPLIANT |
| body width | 0.511 inch |
| subject depth | 0.508 inch |
| body length | 0.551 inch |
| Body/casing type | PLUG |
| Connector type | CIRCULAR DIN CONNECTOR |
| Contact to complete cooperation | GOLD FLASH OVER NICKEL |
| Contact completed and terminated | Tin (Sn) - with Nickel (Ni) barrier |
| Contact point gender | FEMALE |
| Contact material | COPPER ALLOY |
| Contact resistance | 60 mΩ |
| Contact style | RND PIN-SKT |
| DIN compliance | YES |
| Dielectric withstand voltage | 700VAC V |
| Durability | 500 Cycles |
| Electromagnetic interference shielding | YES |
| IEC compliance | NO |
| Insulation resistance | 500000000 Ω |
| JESD-609 code | e3 |
| MIL compliance | NO |
| Installation option 1 | LOCKING |
| Installation method | RIGHT ANGLE |
| Installation type | BOARD |
| Number of ports | 1 |
| Maximum operating temperature | 80 °C |
| Minimum operating temperature | -25 °C |
| Options | GENERAL PURPOSE |
| Plating thickness | FLASH inch |
| polarization key | POLARIZED HOUSING |
| Rated current (signal) | 2 A |
| Guideline | UL |
| Shell surface | NICKEL |
| Shell material | BRASS |
| Terminal length | 0.125 inch |
| Termination type | SOLDER |
| Total number of contacts | 7 |
| KMDGX-7S-AS | KMDGX-7S-BS | KMDGX-3S-N | KMDGX-10S-BS | KMDGX-4S-AS | KMDGX-9S-AS | KMDGX-5S-BS | KMDGX-6S-AS | KMDGX-5S-AS | KMDGX-7S-N | |
|---|---|---|---|---|---|---|---|---|---|---|
| Description | Circular DIN Connector, 7 Contact(s), Female, Board Mount, Solder Terminal, Locking, Plug, ROHS COMPLIANT | Circular DIN Connectors 7P R/A FULL SHIELD GOLD PLATED | Circular DIN Connectors MINI-DIN PANEL MNT 4P SNAP&LOCK 500 W | Circular DIN Connectors 10P R/A FULL SHIELD GOLD PLATED | Circular DIN Connector, 4 Contact(s), Female, Board Mount, Solder Terminal, Locking, Plug, ROHS AND REACH COMPLIANT | Circular DIN Connectors 9P R/A Rcpt PCB Mt. Back/Side Shielded | Circular DIN Connectors 5P R/A FULL SHIELD GOLD PLATED | Circular DIN Connector, 6 Contact(s), Female, Board Mount, Solder Terminal, Locking, Plug, ROHS AND REACH COMPLIANT | Circular DIN Connectors MINI-DIN PANEL MNT 5P SNAP&LOCK 600 W | Circular DIN Connector, 7 Contact(s), Female, Board Mount, Solder Terminal, Locking, Plug, ROHS AND REACH COMPLIANT |
| Is it Rohs certified? | conform to | conform to | conform to | conform to | conform to | conform to | conform to | conform to | conform to | conform to |
| package instruction | ROHS COMPLIANT | ROHS AND REACH COMPLIANT | ROHS COMPLIANT | ROHS AND REACH COMPLIANT | ROHS AND REACH COMPLIANT | ROHS AND REACH COMPLIANT | ROHS AND REACH COMPLIANT | ROHS AND REACH COMPLIANT | ROHS COMPLIANT | ROHS AND REACH COMPLIANT |
| Reach Compliance Code | compliant | compliant | compliant | compliant | compliant | compliant | compliant | compliant | compliant | compliant |
| Body/casing type | PLUG | RECEPTACLE | PLUG | PLUG | PLUG | PLUG | RECEPTACLE | PLUG | PLUG | PLUG |
| Connector type | CIRCULAR DIN CONNECTOR | CIRCULAR DIN CONNECTOR | CIRCULAR DIN CONNECTOR | CIRCULAR DIN CONNECTOR | MINI DIN CONNECTOR | CIRCULAR DIN CONNECTOR | CIRCULAR DIN CONNECTOR | CIRCULAR DIN CONNECTOR | CIRCULAR DIN CONNECTOR | CIRCULAR DIN CONNECTOR |
| Contact to complete cooperation | GOLD FLASH OVER NICKEL | GOLD | GOLD FLASH OVER NICKEL | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | GOLD | NOT SPECIFIED | GOLD FLASH OVER NICKEL | NOT SPECIFIED |
| Contact completed and terminated | Tin (Sn) - with Nickel (Ni) barrier | Gold (Au) | Tin (Sn) - with Nickel (Ni) barrier | Gold (Au) | Gold (Au) | Gold (Au) | Gold (Au) | Gold (Au) | Tin (Sn) - with Nickel (Ni) barrier | Gold (Au) |
| Contact point gender | FEMALE | FEMALE | FEMALE | FEMALE | FEMALE | FEMALE | FEMALE | FEMALE | FEMALE | FEMALE |
| Contact material | COPPER ALLOY | COPPER ALLOY | COPPER ALLOY | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | COPPER ALLOY | NOT SPECIFIED | COPPER ALLOY | NOT SPECIFIED |
| Contact style | RND PIN-SKT | RND PIN-SKT | RND PIN-SKT | RND PIN-SKT | RND PIN-SKT | RND PIN-SKT | RND PIN-SKT | RND PIN-SKT | RND PIN-SKT | RND PIN-SKT |
| DIN compliance | YES | YES | YES | YES | YES | YES | YES | YES | YES | YES |
| Electromagnetic interference shielding | YES | YES | NO | YES | YES | YES | YES | YES | YES | NO |
| IEC compliance | NO | NO | NO | NO | NO | NO | NO | NO | NO | NO |
| MIL compliance | NO | NO | NO | NO | NO | NO | NO | NO | NO | NO |
| Installation option 1 | LOCKING | LOCKING | LOCKING | LOCKING | LOCKING | LOCKING | LOCKING | LOCKING | LOCKING | LOCKING |
| Installation method | RIGHT ANGLE | RIGHT ANGLE | RIGHT ANGLE | RIGHT ANGLE | RIGHT ANGLE | RIGHT ANGLE | RIGHT ANGLE | RIGHT ANGLE | RIGHT ANGLE | RIGHT ANGLE |
| Installation type | BOARD | BOARD | BOARD | BOARD | BOARD | BOARD | BOARD | BOARD | BOARD | BOARD |
| Number of ports | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Options | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE |
| polarization key | POLARIZED HOUSING | POLARIZED HOUSING | POLARIZED HOUSING | POLARIZED HOUSING | POLARIZED HOUSING | POLARIZED HOUSING | POLARIZED HOUSING | POLARIZED HOUSING | POLARIZED HOUSING | POLARIZED HOUSING |
| Shell surface | NICKEL | TIN | NICKEL | NICKEL | NICKEL | NICKEL | TIN | NICKEL | NICKEL | NICKEL |
| Termination type | SOLDER | SOLDER | SOLDER | SOLDER | SOLDER | SOLDER | SOLDER | SOLDER | SOLDER | SOLDER |
| Other features | ROHS COMPLIANT | - | ROHS COMPLIANT | ROHS COMPLIANT | ROHS COMPLIANT | ROHS COMPLIANT | - | ROHS COMPLIANT | ROHS COMPLIANT | ROHS COMPLIANT |
| body width | 0.511 inch | 0.511 inch | 0.511 inch | 0.511 inch | - | 0.511 inch | 0.511 inch | 0.511 inch | 0.511 inch | 0.511 inch |
| subject depth | 0.508 inch | 0.508 inch | 0.508 inch | 0.508 inch | - | 0.508 inch | 0.508 inch | 0.508 inch | 0.508 inch | 0.508 inch |
| body length | 0.551 inch | 0.551 inch | 0.551 inch | 0.551 inch | - | 0.551 inch | 0.551 inch | 0.551 inch | 0.551 inch | 0.551 inch |
| Contact resistance | 60 mΩ | 60 mΩ | 60 mΩ | 60 mΩ | - | 60 mΩ | 60 mΩ | 60 mΩ | 60 mΩ | 60 mΩ |
| Dielectric withstand voltage | 700VAC V | 700VAC V | 700VAC V | 700VAC V | - | 700VAC V | 700VAC V | 700VAC V | 700VAC V | 700VAC V |
| Durability | 500 Cycles | 500 Cycles | 500 Cycles | 500 Cycles | - | 500 Cycles | 500 Cycles | 500 Cycles | 500 Cycles | 500 Cycles |
| Insulation resistance | 500000000 Ω | 500000000 Ω | 500000000 Ω | 500000000 Ω | - | 500000000 Ω | 500000000 Ω | 500000000 Ω | 500000000 Ω | 500000000 Ω |
| JESD-609 code | e3 | e4 | e3 | e4 | - | e4 | e4 | e4 | e3 | e4 |
| Maximum operating temperature | 80 °C | 80 °C | 80 °C | 80 °C | - | 80 °C | 80 °C | 80 °C | 80 °C | 80 °C |
| Minimum operating temperature | -25 °C | -25 °C | -25 °C | -25 °C | - | -25 °C | -25 °C | -25 °C | -25 °C | -25 °C |
| Plating thickness | FLASH inch | FLASH inch | FLASH inch | FLASH inch | - | FLASH inch | FLASH inch | FLASH inch | FLASH inch | FLASH inch |
| Rated current (signal) | 2 A | 2 A | 2 A | 2 A | - | 2 A | 2 A | 2 A | 2 A | 2 A |
| Guideline | UL | UL | UL | UL | - | UL | UL | UL | UL | UL |
| Shell material | BRASS | - | BRASS | BRASS | BRASS | BRASS | - | BRASS | BRASS | BRASS |
| Terminal length | 0.125 inch | 0.125 inch | 0.125 inch | 0.125 inch | - | 0.125 inch | 0.125 inch | 0.125 inch | 0.125 inch | 0.125 inch |
| Total number of contacts | 7 | 7 | 3 | 10 | - | 9 | 5 | 6 | 5 | 7 |
| ECCN code | - | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 |
| reliability | - | COMMERCIAL | COMMERCIAL | COMMERCIAL | - | COMMERCIAL | COMMERCIAL | - | COMMERCIAL | - |
