ROHS COMPLIANT

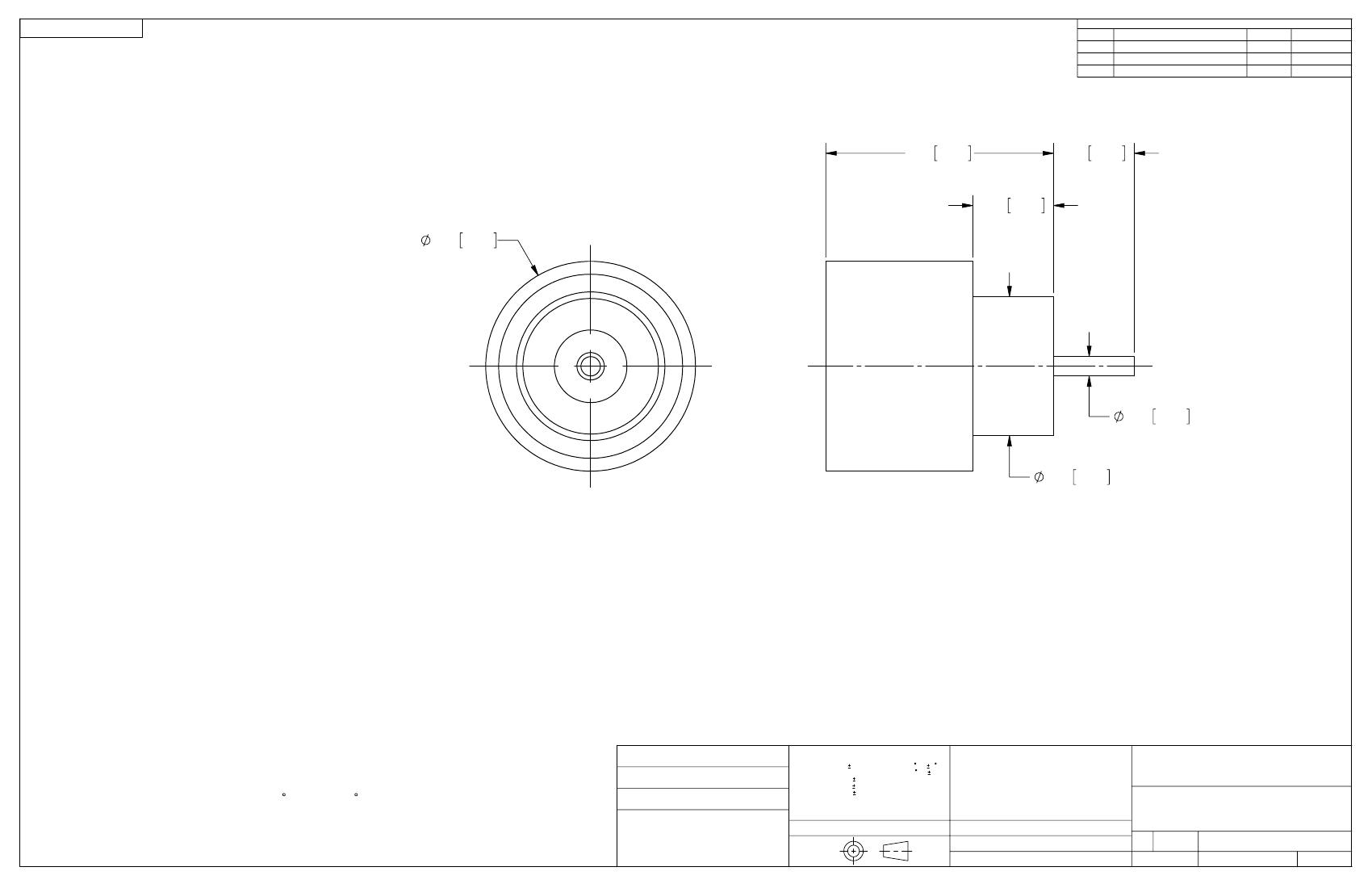

PRODUCT DATA DRAWING
REV
REVISION HISTORY
DESCRIPTION
DATE
APPROVED
-
DCN 38042
02/11
STW
.141 3.58
.050 1.27
.050 1.27
.130 3.30
.012 0.30
.086 2.18
MATERIAL:
BODY & PIN:
GLASS:
KOVAR PER ASTM-F15-78
CORNING #7070
FINISH:
BODY & PIN:
GOLD PER ASTM B488, TYPE II,
CODE C, CLASS 1.27, OVER NICKEL
PER AMS-QQ-N-290, CLASS 1, .00005" MIN.
PERFORMANCE:
IMPEDANCE:
FREQ. RANGE:
VSWR:
INSERTION LOSS:
DWV:
OPERATING TEMP.:
50 OHMS
DC TO 65.0 GHz
1.10:1 DC TO 26.5 GHz
1.30:1 26.5 TO 65.0 GHz
.12 X SQRT(F(F IN GHz))
325 VRMS
-55 C TO +165 C
MATERIAL:
FINISH:
SEE NOTES
SEE NOTES
N/A
PROPRIETARY
DIMENSIONS ARE IN INCHES TOLERANCES:
FRACTIONAL:
DECIMAL: .X
.XX
.XXX
1/64
.030
.010
.005
ANGULAR: X
X X'
1 0'
15'
UNLESS OTHERWISE SPECIFIED
1) ALL DIMENSIONS ARE IN INCHES [MILLIMETERS]
2) ALL DIMENSIONS ARE AFTER PLATING.
3) BREAK CORNERS & EDGES .005 R. MAX.
4) CHAM. 1ST & LAST THREADS.
5) SURFACE ROUGHNESS 63
e
MIL-STD-10.
6) DIA.’S ON COMMON CENTERS TO BE CONCENTRIC
WITHIN .005 T.I.R.
7) REMOVE ALL BURRS
SV Microwave, Inc.
2400 Centrepark West Drive, Suite 100
West Palm Beach, FL 33409
TITLE:
SURFACE AREA:
INTERPRET DIMENSIONS AND TOLERANCES
PER ASME Y14.5M - 1994
THE INFORMATION CONTAINED IN THIS DRAWING
IS THE SOLE PROPERTY OF SV MICROWAVE, INC.
ANY REPRODUCTION IN PART OR AS A WHOLE
WITHOUT THE WRITTEN PERMISSION OF
SV MICROWAVE, INC IS PROHIBITED.
THIRD ANGLE PROJECTION
DRAWN:
CHECKED:
APPROVED:
FED 02/28/11
STW 02/28/11
STW 02/28/11
SMPM SB MALE
HERMETIC SHROUD
95077
SIZE CAGE CODE DWG. NO.
B
3211-60028
SHEET 1 OF 1
SCALE: 20:1
