18-681250-10 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> socket> 18-681250-10

18-681250-10: DescriptionIC & Component Sockets ELEVATOR SOCKETS BIFURCATED 18 PINS; CategoryThe connector socket; File Size284KB，1 Pages; ManufacturerAries Electronics; Environmental Compliance

Download Datasheet Parametric Compare View All

18-681250-10 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	18-681250-10	-	-	View	Buy Now

18-681250-10 Overview

IC & Component Sockets ELEVATOR SOCKETS BIFURCATED 18 PINS

18-681250-10 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	STANDARD: UL 94V-0
body width	0.695 inch
subject depth	1.29 inch
body length	0.95 inch
Contact to complete cooperation	MATTE TIN (130) OVER NICKEL (50)
Contact completed and terminated	Matte Tin (Sn) - with Nickel (Ni) barrier
Contact material	PHOSPHOR BRONZE
Contact style	SQ PIN-SKT
current rating	1 A
Device slot type	IC SOCKET
Type of equipment used	DIP18
Shell material	NYLON46
JESD-609 code	e3
Plug contact pitch	0.1 inch
Installation method	STRAIGHT
Number of contacts	18
Maximum operating temperature	105 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	0.6 mm
Terminal pitch	2.54 mm
Termination type	SOLDER
Base Number Matches	1

Preview

Download Datasheet

View All

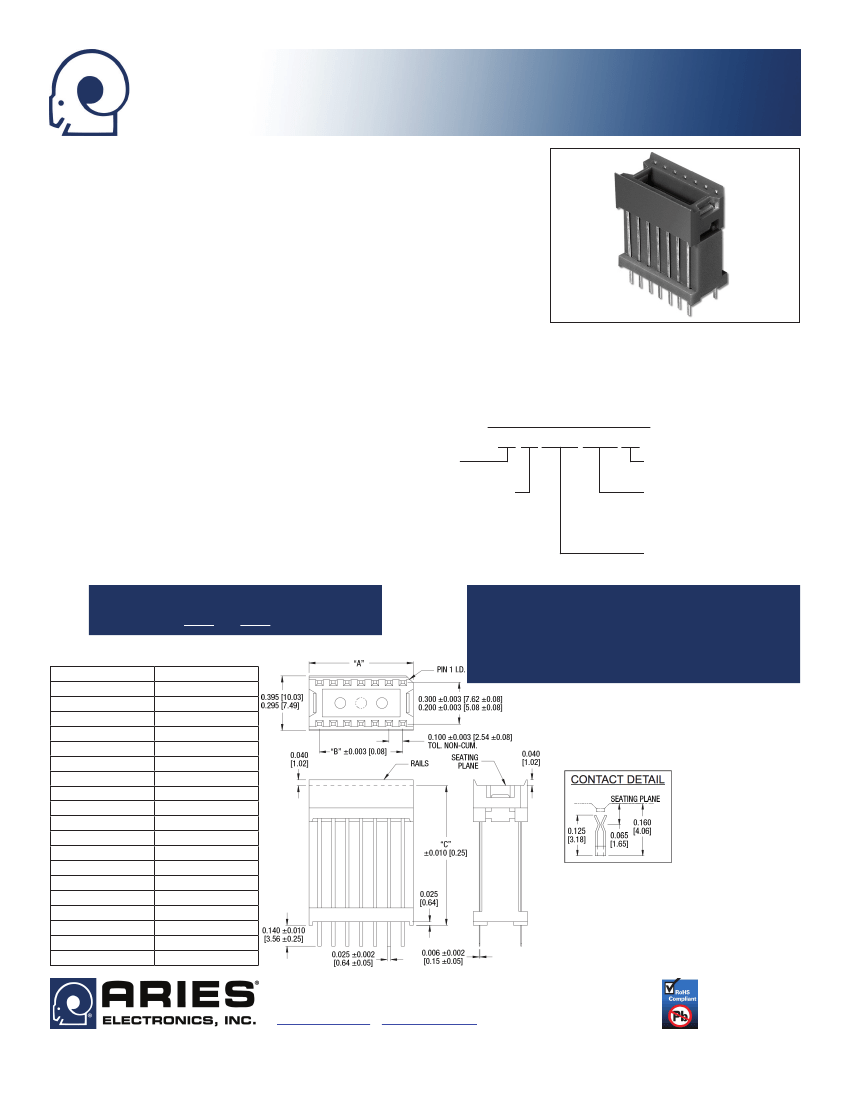

Series 8XXX Elevator Socket

w/Bifurcated Contacts

FEATURES

• Ideal for elevating devices (displays, switches, etc.) to desired level with 0.260 to

1.250 [6.60 to 31.75] height extension.

GENERAL SPECIFICATIONS

• STANDARD SOCKET BODY: black UL 94V-0 glass-filled 4/6 Nylon

• BIFURCATED CONTACTS: Grade A spring-tempered Phosphor Bronze per QQ-B-

750

• CONTACT PLATING: “-10” 50-130µ [1.27-3.30µ] matte Sn per ASTM B545-

97(2004)e1 over 50µ [1.27µ] Ni per SAE AMS-QQ-N-290B; “-10TL” 50-130µ

[1.27-3.30µ] 90/10 Sn/Pb per MIL-T-10727 Type 1 over 50µ [1.27µ] Ni per

SAE AMS-QQ-N-290B; “-11” 10µ [0.25µ] min. Au per MIL-G-45204 over 50µ

CUSTOMIZATION:

In addition to the standard products shown

[1.27µ] Ni per SAE AMS-QQ-N-290B. (consult factory for availability).

on this page, Aries specializes in custom design and production.

• CONTACT CURRENT RATING: 1 amp

Special materials, platings, sizes, and configurations can be

furnished, depending on the quantity.

NOTE:

Aries reserves the

• INSERTION FORCE: 110g/pin average

right to change product general specifications without notice.

• WITHDRAWAL FORCE: 75g/pin average

• OPERATING TEMPERATURE: -67°F to 221°F [-55°C

ORDERING INFORMATION

to 105°C] Sn and Sn/Pb plating; -67°F to 257°F

XX-X8 XXXX-1XXX XX

[-55°C to 125°C] Au plating

• ACCEPTS: flat leads up to 0.014 thick x 0.020 wide

Optional Suffix

No. of Pins

[0.36-0.51], Round Leads up to 0.020 [0.51] dia.

WR = Without Rails

10, 14, 16

Plating

• SOCKET ACCEPTS: lead lengths from seating plane

Row-to-Row Spacing

= Sn

8 = 0.300 [7.62] Centers

0.075-0.160 [1.91-4.06]

MOUNTING CONSIDERATIONS

• SUGGESTED PCB HOLE SIZE: 0.035 ±0.002 [0.89

±0.05] dia.

ELEVATOR SOCKETS WITH COLLET CONTACT AVAILABLE

SEE DATA SHEET 13007 AND 13008

(14- & 16-pin)

28 = 0.200 [5.08] Centers

(10-pin only)

10TL

= Sn/Pb

= Au (Consult Factory)

Seating Plane Height

(see Table, Dim “C”)

Part No.

10-28440-10

14-8260-10

14-8350-10

14-8400-10

14-8435-10

14-8470-10

14-8510-10

14-8620-10

14-8770-10

14-8870-10

14-81000-10

14-81100-10

14-81187-10

14-81250-10

16-8430-10

16-8480-10

16-8700-10

16-8810-10

16-81250-10

Dim. "C"

0.440 [11.18]

0.260 [6.60]

0.350 [8.89]

0.400 [10.16]

0.440 [11.18]

0.470 [11.94]

0.510 [12.95]

0.620 [15.75]

0.770 [19.56]

0.870 [22.10]

1.000 [24.40]

1.100 [27.94]

1.180 [29.97]

1.250 [31.75]

0.430 [10.92]

0.480 [12.19]

0.700 [17.78]

0.810 [20.57]

1.250 [31.75]

ALL DIMENSIONS IN INCHES [MILLIMETERS]

CONSULT FACTORY FOR NON-STANDARD SIZES

ALL TOLERANCES ±0.005 [±0.13] UNLESS OTHERWISE SPECIFIED

“A” (# PINS PER ROW x 0.100 [2.54]) +0.050 [1.27]

“B” (# PINS PER ROW -1) x 0.100 [2.54]

Bristol, PA 19007-6810 USA

TEL (215) 781-9956 • FAX (215) 781-9845

WWW.ARIESELEC.COM • INFO@ARIESELEC.COM

PRINTOUTS OF THIS DOCUMENT MAY BE OUT OF DATE AND SHOULD BE CONSIDERED UNCONTROLLED

13006

1 of 1

Rev. AA

18-681250-10 Related Products

	18-681250-10	18-681250-10WR
Description	IC & Component Sockets ELEVATOR SOCKETS BIFURCATED 18 PINS	IC u0026 Component Sockets ELEVATOR SOCKETS BIFURCATED 18 PINS
Is it lead-free?	Lead free	Lead free
Is it Rohs certified?	conform to	conform to
package instruction	ROHS COMPLIANT	ROHS COMPLIANT
Reach Compliance Code	compliant	compliant
ECCN code	EAR99	EAR99
Other features	STANDARD: UL 94V-0	STANDARD: UL 94V-0
body width	0.695 inch	0.695 inch
subject depth	1.29 inch	1.25 inch
body length	0.95 inch	0.95 inch
Contact to complete cooperation	MATTE TIN (130) OVER NICKEL (50)	MATTE TIN (130) OVER NICKEL (50)
Contact completed and terminated	Matte Tin (Sn) - with Nickel (Ni) barrier	Matte Tin (Sn) - with Nickel (Ni) barrier
Contact material	PHOSPHOR BRONZE	PHOSPHOR BRONZE
Contact style	SQ PIN-SKT	SQ PIN-SKT
current rating	1 A	1 A
Device slot type	IC SOCKET	IC SOCKET
Type of equipment used	DIP18	DIP18
Shell material	NYLON46	NYLON46
JESD-609 code	e3	e3
Plug contact pitch	0.1 inch	0.1 inch
Installation method	STRAIGHT	STRAIGHT
Number of contacts	18	18
Maximum operating temperature	105 °C	105 °C
PCB contact pattern	RECTANGULAR	RECTANGULAR
PCB contact row spacing	0.6 mm	0.6 mm
Terminal pitch	2.54 mm	2.54 mm
Termination type	SOLDER	SOLDER
Base Number Matches	1	1
