PCB terminal block - MKKDSNH 1,5/ 3-5,08 - 1731831
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)

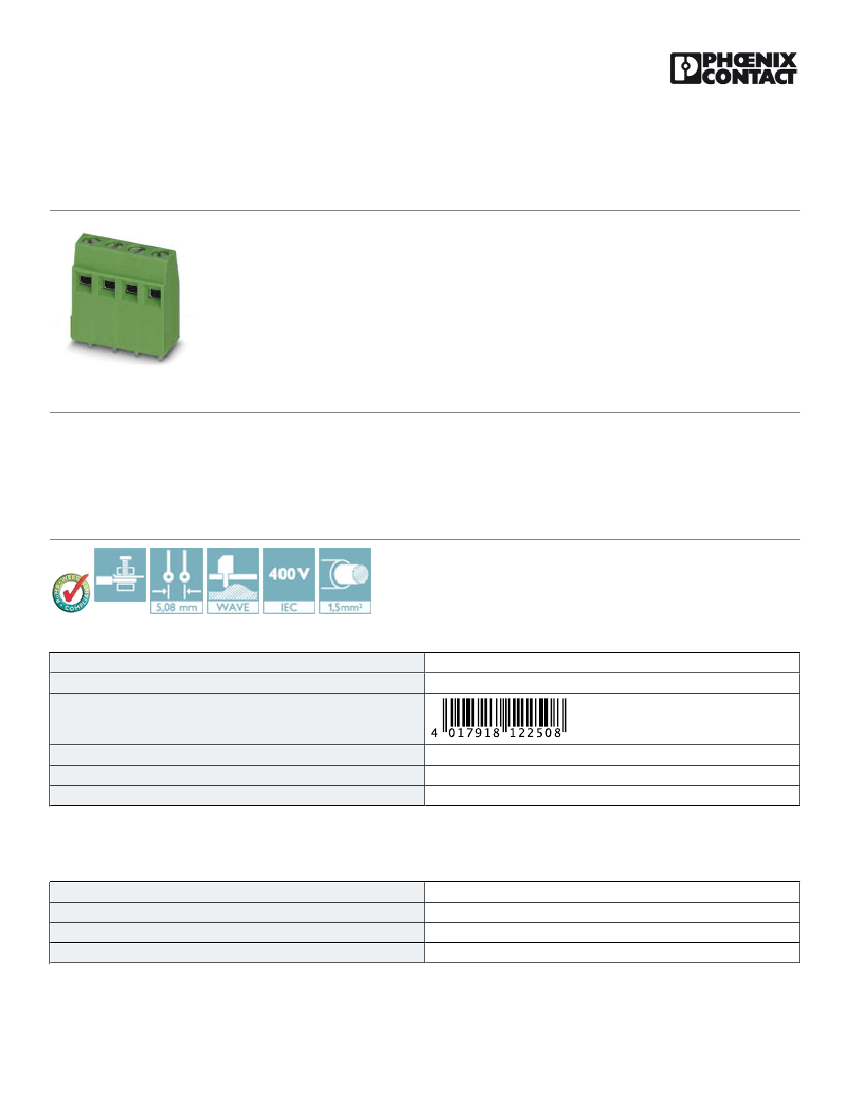

PCB terminal block, Nominal current: 13.5 A, Nom. voltage: 400 V, Pitch: 5.08 mm, Number of positions:
3, Connection method: Screw connection with tension sleeve, Mounting: Wave soldering, Conductor/PCB
connection direction: 0 °, Color: green, The article can be aligned to create different nos. of positions!
The illustration shows a 4-position
version
Product Features
■
■
■
■
Single-row type, back level of the double-level PCB terminal block
Compact housing dimensions and low design height
5.0 or 5.08 mm pitch
Conductor cross sections up to 1.5 mm²
Key Commercial Data
Packing unit
Minimum order quantity
GTIN
Weight per Piece (excluding packing)
Custom tariff number
Country of origin
3.98 g
85369010
Germany
1 pc
50 pc
Technical data
Dimensions
Length
Pitch
Dimension a
Constructional height
8.6 mm
5.08 mm
10.16 mm
20 mm
04/16/2016 Page 1 / 6
https://www.phoenixcontact.com/us/products/1731831
PCB terminal block - MKKDSNH 1,5/ 3-5,08 - 1731831
Technical data
Dimensions
Length of the solder pin
Pin dimensions
Hole diameter
3.5 mm
0,5 x 1 mm
1.3 mm
General
Range of articles
Insulating material group
Rated surge voltage (III/3)
Rated surge voltage (III/2)
Rated surge voltage (II/2)
Rated voltage (III/3)
Rated voltage (III/2)
Rated voltage (II/2)
Connection in acc. with standard
Nominal current I
N
Nominal cross section
Maximum load current
Insulating material
Solder pin surface
Flammability rating according to UL 94
Internal cylindrical gage
Stripping length
Number of positions
Screw thread
Tightening torque, min
Tightening torque max
MKKDSNH 1,5
I
4 kV
4 kV
4 kV
250 V
400 V
630 V
EN-VDE
13.5 A
1.5 mm²
13.5 A
PA
Sn
V0
A1
6 mm
3
M3
0.5 Nm
0.6 Nm
Connection data
Conductor cross section solid min.
Conductor cross section solid max.
Conductor cross section flexible min.
Conductor cross section flexible max.
Conductor cross section flexible, with ferrule without plastic sleeve min.
Conductor cross section flexible, with ferrule without plastic sleeve max.
Conductor cross section flexible, with ferrule with plastic sleeve min.
Conductor cross section flexible, with ferrule with plastic sleeve max.
Conductor cross section AWG min.
Conductor cross section AWG max.
0.14 mm²
1.5 mm²
0.14 mm²
1.5 mm²
0.25 mm²
1.5 mm²
0.25 mm²
1.5 mm²
26
16
04/16/2016 Page 2 / 6
https://www.phoenixcontact.com/us/products/1731831
PCB terminal block - MKKDSNH 1,5/ 3-5,08 - 1731831
Technical data
Connection data
2 conductors with same cross section, solid min.
2 conductors with same cross section, solid max.
2 conductors with same cross section, stranded min.
2 conductors with same cross section, stranded max.
2 conductors with same cross section, stranded, ferrules without plastic
sleeve, min.
2 conductors with same cross section, stranded, ferrules without plastic
sleeve, max.
0.14 mm²
0.75 mm²
0.14 mm²
0.75 mm²
0.25 mm²
0.5 mm²
2 conductors with same cross section, stranded, TWIN ferrules with plastic
0.5 mm²
sleeve, min.
2 conductors with same cross section, stranded, TWIN ferrules with plastic
1 mm² 1st level
sleeve, max.
Standards and Regulations
Connection in acc. with standard
Flammability rating according to UL 94
EN-VDE
CUL
V0
Classifications
eCl@ss
eCl@ss 4.0
eCl@ss 4.1
eCl@ss 5.0
eCl@ss 5.1
eCl@ss 6.0
eCl@ss 7.0
eCl@ss 8.0
eCl@ss 9.0
27141109
27141109
27141190
27141190
27261101
27440401
27440401
27440401
ETIM
ETIM 3.0
ETIM 4.0
ETIM 5.0
EC001121
EC002643
EC002643
UNSPSC
UNSPSC 6.01
UNSPSC 7.0901
UNSPSC 11
UNSPSC 12.01
30211801
39121432
39121432
39121432
04/16/2016 Page 3 / 6
https://www.phoenixcontact.com/us/products/1731831
PCB terminal block - MKKDSNH 1,5/ 3-5,08 - 1731831
Classifications
UNSPSC
UNSPSC 13.2
39121432
Approvals
Approvals
Approvals
EAC / EAC / cULus Recognized / cULus Recognized
Ex Approvals
Approvals submitted
Approval details
EAC
EAC
cULus Recognized
mm²/AWG/kcmil
Nominal current IN
Nominal voltage UN
B
30-14
10 A
300 V
D
30-14
10 A
300 V
cULus Recognized
Accessories
Accessories
Bridge
04/16/2016 Page 4 / 6
https://www.phoenixcontact.com/us/products/1731831
PCB terminal block - MKKDSNH 1,5/ 3-5,08 - 1731831
Accessories

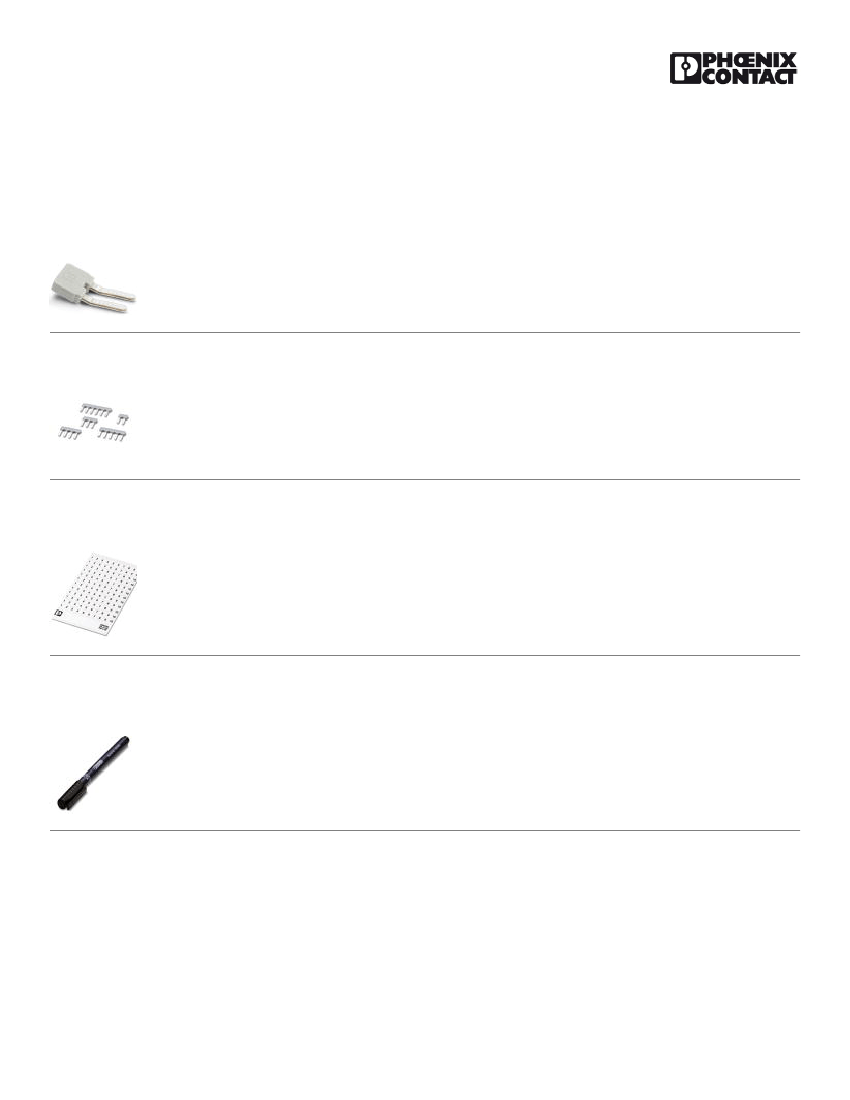

Insertion bridge - EBP 2- 5 - 1733169
Insertion bridge, fully insulated, for connectors with 5.0 or 5.08 mm pitch, no. of positions: 2
Insertion bridge - EBP 3- 5 - 1733172
Insertion bridge, fully insulated, for connectors with 5.0 or 5.08 mm pitch, no. of positions: 3
Labeled terminal marker
Marker card - SK 5,08/3,8:FORTL.ZAHLEN - 0804293
Marker card, Card, white, labeled, Horizontal: Consecutive numbers 1 - 10, 11 - 20, etc. up to 91 - (99)100, Mounting
type: Adhesive, for terminal block width: 5.08 mm, Lettering field: 5.08 x 3.8 mm
Marker pen
Marker pen - B-STIFT - 1051993
Marker pen, for manual labeling of unprinted Zack strips, smear-proof and waterproof, line thickness 0.5 mm
Screwdriver tools
04/16/2016 Page 5 / 6
