M85049/20-9N: DescriptionCircular MIL Spec Strain Reliefs & Adapters BACKSHELL CRIMP RING ADAPTER ST NIC SZ 09; CategoryThe connector Connector bracket; File Size1MB，11 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric View All

M85049/20-9N Overview

Circular MIL Spec Strain Reliefs & Adapters BACKSHELL CRIMP RING ADAPTER ST NIC SZ 09

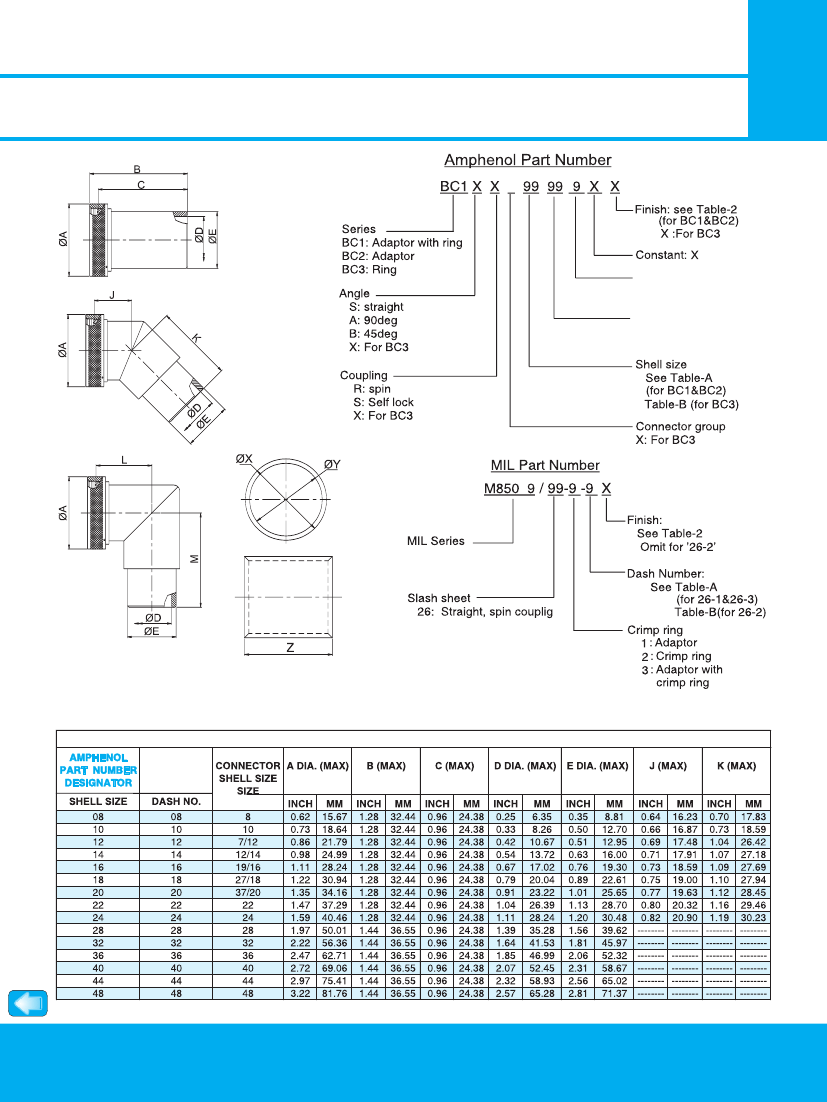

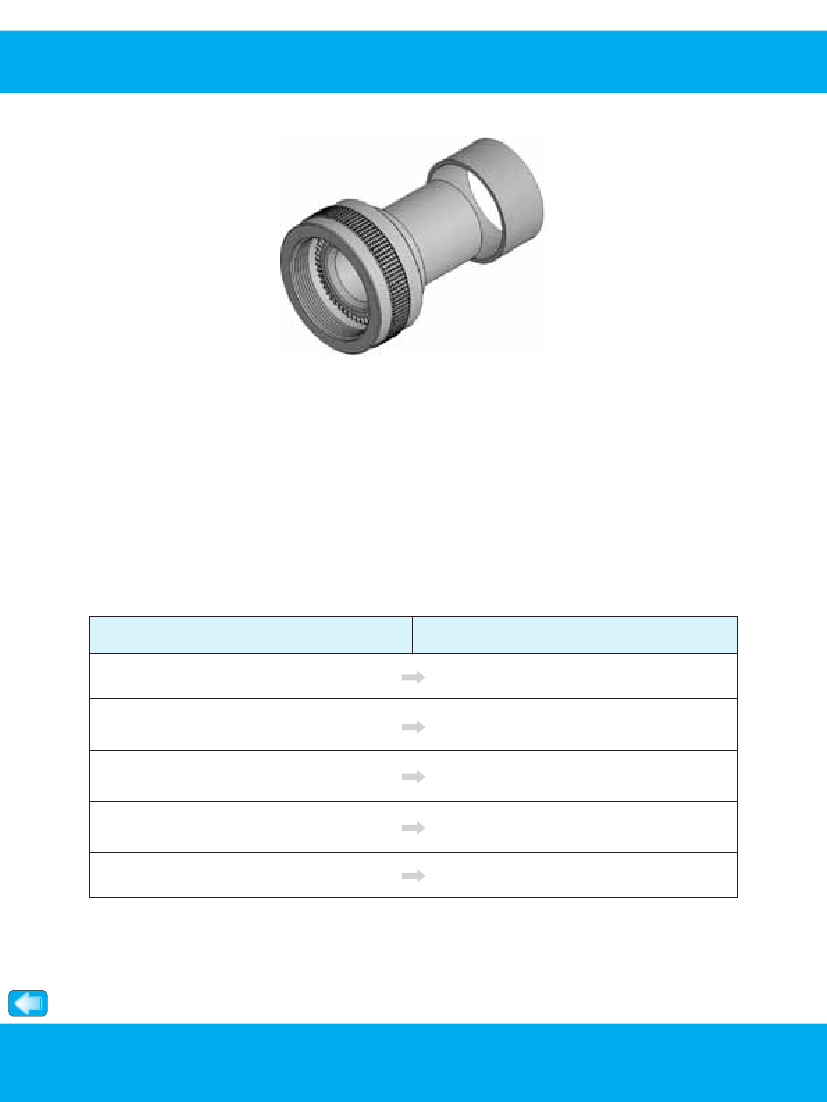

CRIMP RING ADAPTOR

Many cable terminations where heat shrink boots are used will require provision for

terminating the screens too. It is achieved in this type of back shell through a ring,

which can be crimped to the back shell body holding the screens in between.

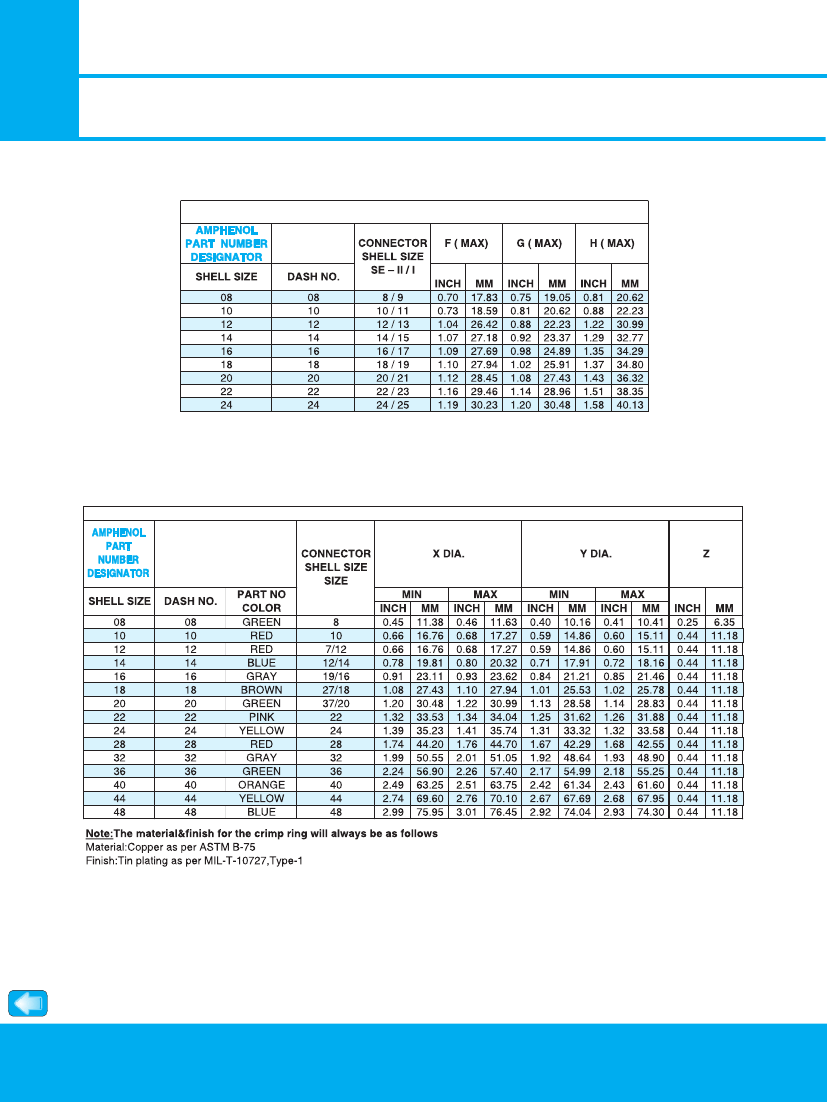

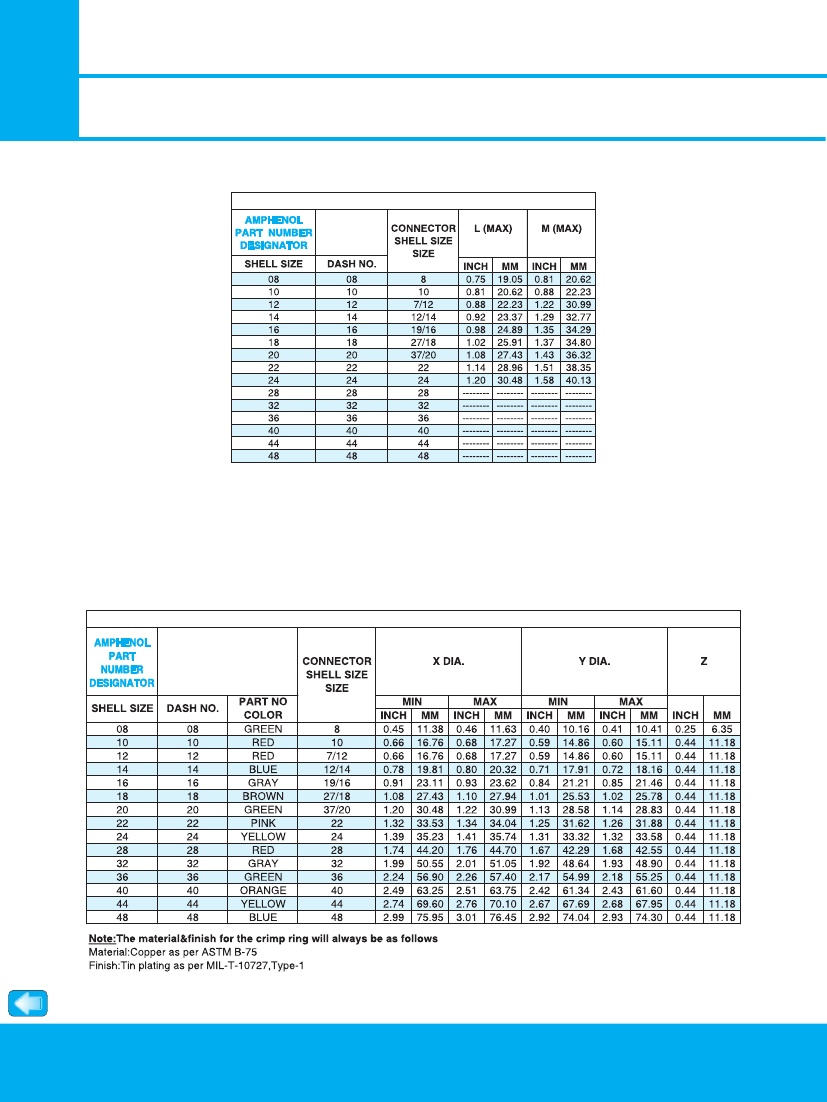

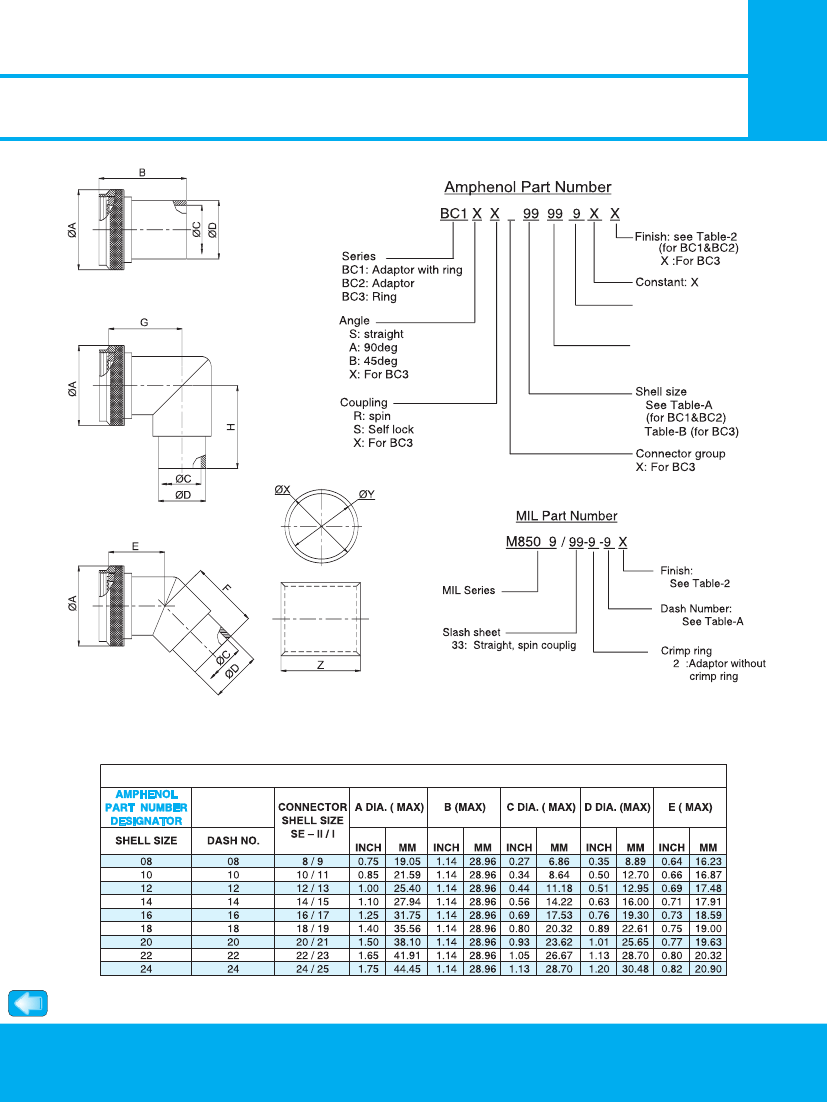

For Connector Group

Page No.

VI-1 - VI-2

VI-3 - VI-4

VI-5 - VI-6

VI-7 - VI-8

VI-9 - VI-10

Note:

For Connector group Identification refer Table 1 - A, B, C, D

(Page 7-11)

and for Material / Plating Finish, Refer Table-2

(Page 12)

Amphenol Backshells

email: sales@backshellworld.com

www.backshellworld.com
