K202HT-E9S-NJ30 datasheet, PDF

Datasheet> All Categories > The connector> K202HT-E9S-NJ30

K202HT-E9S-NJ30: DescriptionD-Sub Standard Connectors 1.75mm 9P RECPT SMT 4-40 J/S 30u GLD HT; CategoryThe connector; File Size28KB，1 Pages; ManufacturerKycon

Download Datasheet Parametric View All

K202HT-E9S-NJ30 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	K202HT-E9S-NJ30	-	-	View	Buy Now

K202HT-E9S-NJ30 Overview

D-Sub Standard Connectors 1.75mm 9P RECPT SMT 4-40 J/S 30u GLD HT

K202HT-E9S-NJ30 Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	Kycon
Product Category	D-Sub Standard Connectors
RoHS	N
Number of Positions	9 Position
Contact Gender	Socket (Female)
Termination Style	SMD
Mounting Angle	Right Angle
Number of Rows	2 Row
Shell Size	1 (E)
Contact Plating	Gold
Current Rating	5 A
Gender	Female
Type	Receptacle
Voltage Rating	300 V
Contact Material	Phosphor Bronze
Shell Plating	Nickel
Insert Arrangement	E09
Maximum Operating Temperature	+ 105 C
Minimum Operating Temperature	- 55 C
Shell Material	Steel
Factory Pack Quantity	15

Preview

Download Datasheet

View All

30.81

24.99

16.33

2.84

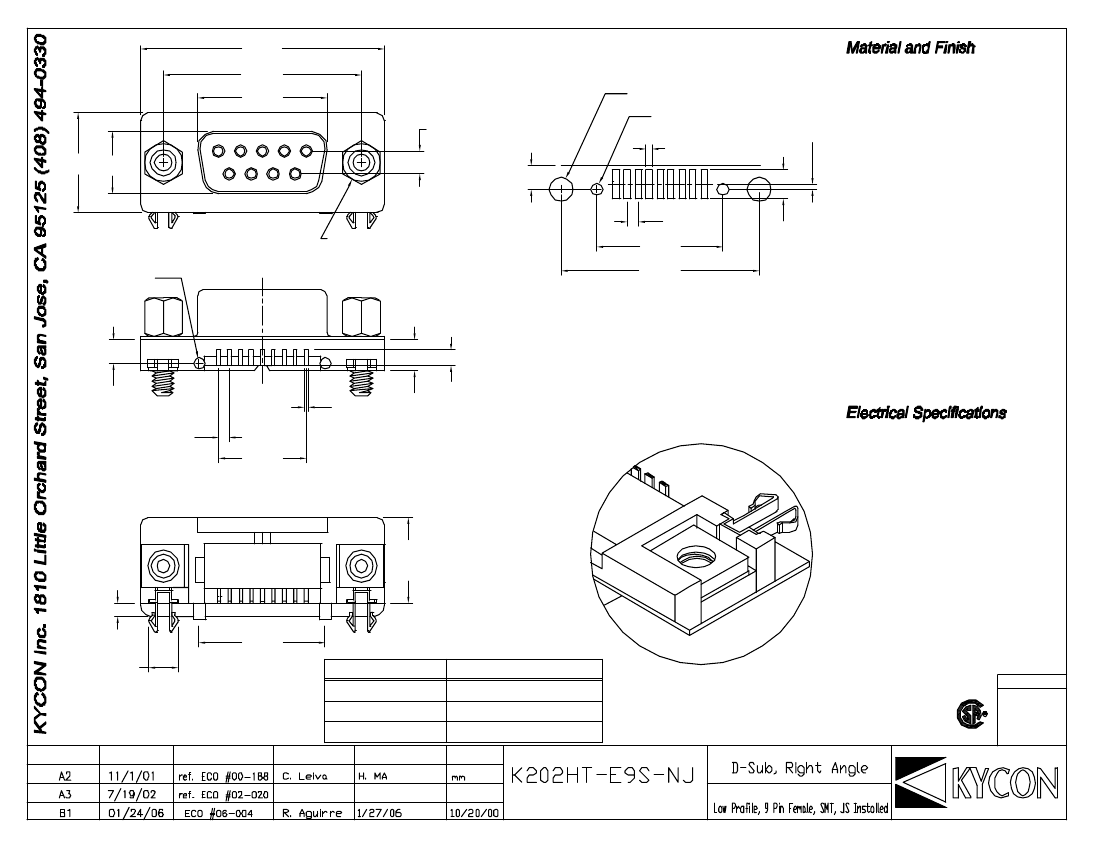

Recommended PCB Layout

(component side)

2-Ø3.05

3.00

0.65

3.70

2-Ø1.50

0.80

Shell: Steel, Nickel plated

Insulator: Nylon 6T

high temp. thermoplastic

UL 94V-0 rated

reflow process compatible

Contact Material:

Socket-Phosphor Bronze

Contact Plating Options:

-30 .000030" [0.00076mm] gold

on mating end,

tin-lead on termination end,

with entire contact nickel

-15 .000015" [0.00038mm] gold

on mating end,

tin-lead on termination end,

with entire contact nickel

(Standard) Gold flash on mating end,

Gold flash or tin-lead on

termination end, with nickel

underplate on entire contact

12.55 7.90

1.385

#4-40 UNC Jackscrews

Installed

2-Ø1.40

15.90

24.99

Pin Number:

162738495

3.00

0.50

1.385

11.08

3.90

2.00

Rated Current: 5A

Rated Voltage: 300V DC

Withstanding Voltage:

500V (rms) AC for 1 min

Insulation Resistance:

more than 1000 Mohm

at 500v DC

Rear View

10.80

1.75

Contact Resistance:

13 mohm Max

Dielectric Strength:

1000V for 1 min

15.90

3.70

Part Number

K202HT-E9S-NJ

K202HT-E9S-NJ15

K202HT-E9S-NJ30

REVISION

DATE

DESCRIPTION

DRAWN BY

CHECKED BY

Contact Plating Option

Gold Flash (standard)

15u" Gold (-15 option)

30u" Gold (-30 option)

UNITS

Temperature Rating:

-55°C to +105°C

Fork Board Lock Type

Max. Reflow Temperature:

230°C for 30 sec.

260°C max

LR78160

Tolerances

X.X ± 0.40

X.XX ± 0.25

Unless Stated

Otherwise

REVISED BY

CHECK DATE

DATE
