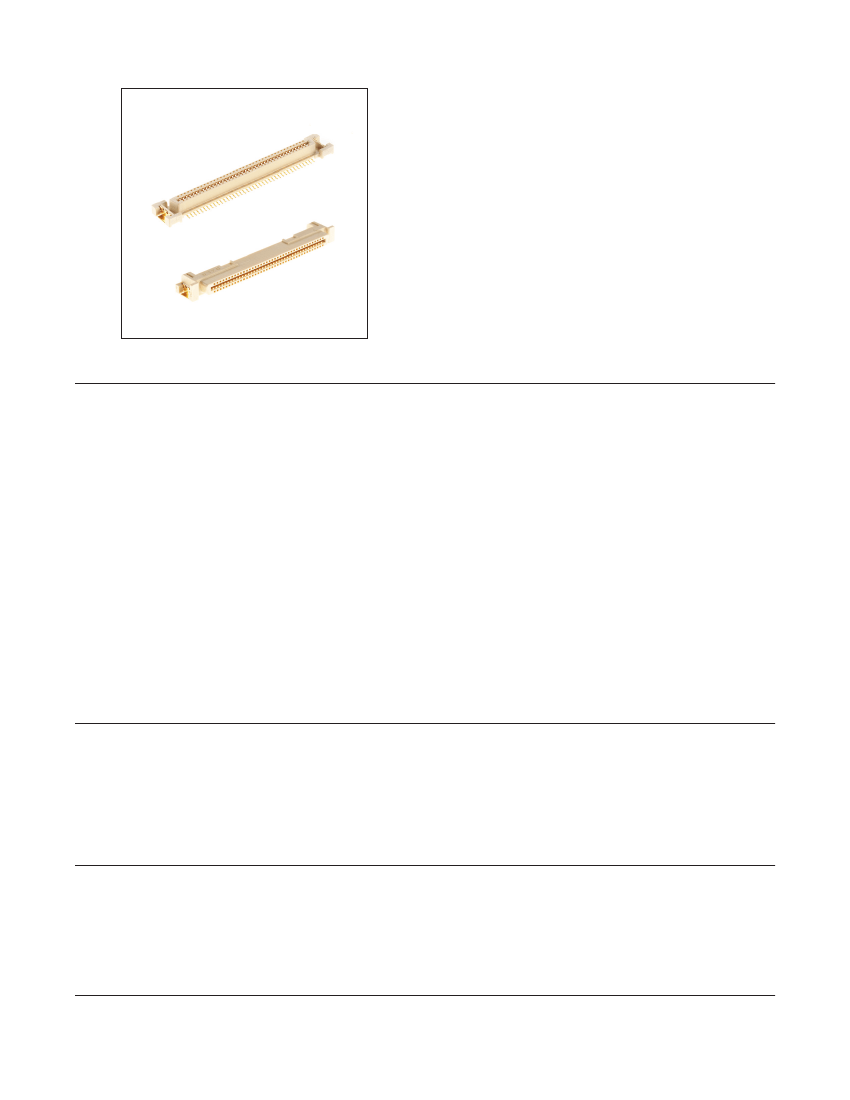

Surface mount retention clips reduce stress on surface
mount leads
Keyed design helps prevent mating misalignment
Hard Tray and Vacuum pickup for automated
assembly placement
RoHS Compliant. See the Regulatory Information
Appendix (RIA) in the “RoHS Compliance” section
of www.3Mconnector.com for compliance
information (RIA E1 and C1 apply)
TS-1077-E
Sheet 1 of 4
Date Modified: August 27, 2010
Physical
Insulation:
Material: Glass Filled LCP
Flammability: UL 94V-0
Color: White
Materials:
Contact: Copper Alloy
Retention Clips: Copper Alloy
Contact Plating:
Underplating: 120 μ” [ 3.0 μm ] Nickel
Wiping Area: 2 μ” [ 0.05 μm ] min. Gold
Solder Tails: Gold Flash
Retention Clip Plating:
Gold Flash over 120 μ” [ 3.0 μm ] Nickel
Marking: Orientation Triangle
Electrical
Current Rating:
Contact Resistance:
Insulation Resistance:
Dielectric withstanding Voltage:
0.5 A
50 mΩ max
1 × 10
3
MΩ min at 500 V
DC
315 V
AC
for 1 minute
Environmental
Temperature Rating:
-55°C to +85°C
Process Rating:
260°C per J-STD-020C
3
Electronic Solutions Division
Interconnect Solutions
http://www.3Mconnector.com
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
3M
™
Pak 10 Socket
1 mm Straight and Right Angle, Surface Mount

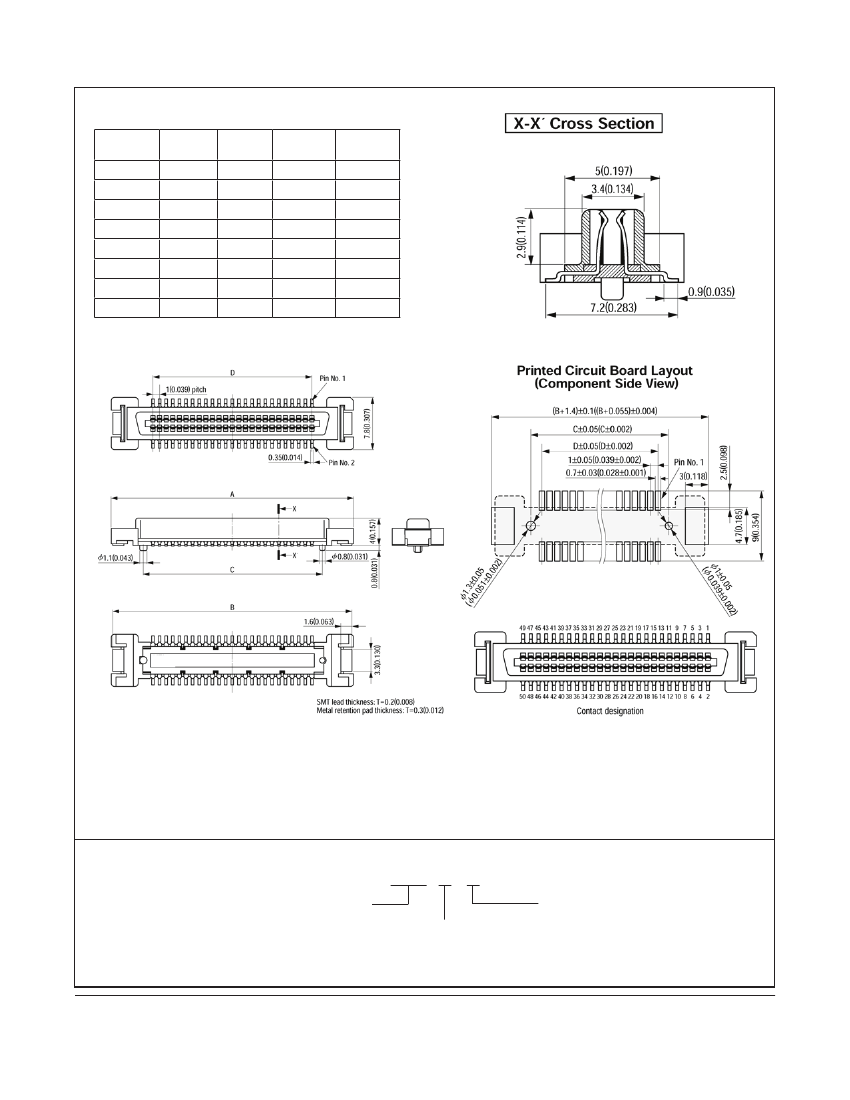

Straight Surface Mount
Contact
Quantity
30
50
80
100
A
26.50
[1.043]
36.50
[1.437]
51.50
[2.028]
61.50
[2.421]
B
26.10
[1.028]
36.10
[1.421]
51.10
[2.012]
61.10
[2.406]
C
17.00
[0.669]
27.00
[1.063]
42.00
[1.654]
52.00
[2.047]
D
14.00
[0.551]
24.00
[0.945]
39.00
[1.535]
49.00
[1.929]
PK10 Series
Automated Assembly:
• Packaged in Hard Trays
• Allows chucking type pick and place
• Molded vacuum suction cover is optional
Ordering Information
PK10 - XXXSX - X - DA
Contact Quantity
See Table
(RIA E1 & C1 apply)
Solder Tail Options:
S = Vertical
R = Right Angle
TS-1077-E
Sheet 2 of 4
Vacuum Suction Cover:
Blank = None
M = Molded Suction Cover
Note: M only available for Solder Tail Option S
3
Electronic Solutions Division
Interconnect Solutions
http://www.3Mconnector.com
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
3M
™
Pak 10 Socket
1 mm Straight and Right Angle, Surface Mount

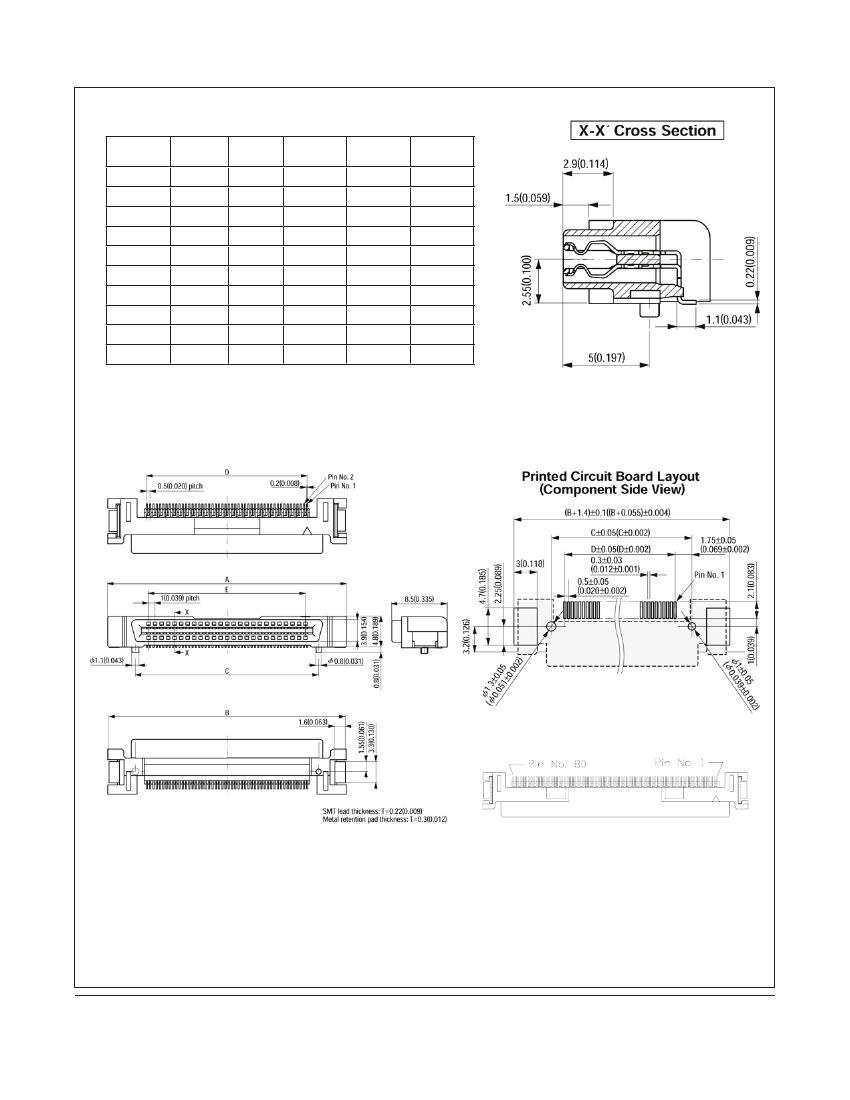

Right Angle Surface Mount mm [inch]
Contact
Quantity
30
50
80
100
120
A
26.50
[1.043]
36.50
[1.437]
51.50
[2.028]
61.50
[2.421]
71.5
[2.815]
B
26.10
[1.028]
36.10
[1.421]
51.10
[2.012]
61.10
[2.406]
71.1
[2.799]
C
17.00
[0.669]
27.00
[1.063]
42.00
[1.654]
52.00
[2.047]
63.0
[2.480]
D
14.50
[0.571]
24.50
[0.965]
39.50
[1.555]
49.50
[1.949]
60.00
[2.362]
E
14.00
[0.551]
24.00
[0.945]
39.00
[1.535]
49.00
[1.929]
59.0
[2.323]
PK10 Series
Pick and place vacuum surface
Contact designation
Automated Assembly:
• Packaged in Hard Trays
• Flat surface allows vacuum pick and place
TS-1077-E
Sheet 3 of 4
3
Electronic Solutions Division
Interconnect Solutions
http://www.3Mconnector.com
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
3M
™
Pak 10 Socket
1 mm Straight and Right Angle, Surface Mount
PK10 Series
Unit: mm [inch]

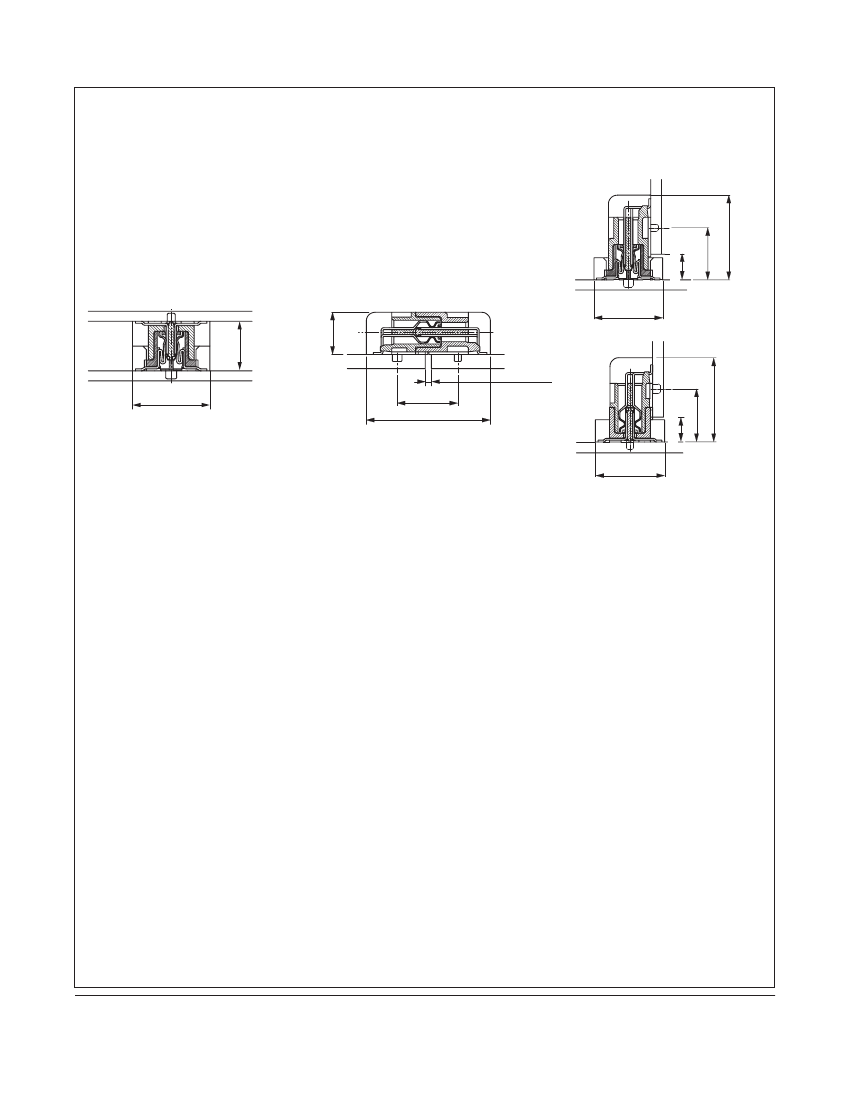

Mating Variations
PK10-XXXP-R-DA
Vertical Mating
5.9(0.232)
6(0.236)
9.5(0.374)
TS-1077-E
Sheet 4 of 4
Stacked Mating
PK10-XXXPX-S-DA
Horizontal Mating
PK10-XXXS-R-DA
PK10-XXXP-R-DA
5(0.197)
4.8(0.189)
7.8(0.307)
0.7(0.028)
7.8(0.307)
PK10-XXXSX-S-DA
6.9(0.272)
2.8(0.110)
14.1(0.555)
7.8(0.307)
3
Electronic Solutions Division
Interconnect Solutions
http://www.3Mconnector.com
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
2.9(0.114)
PK10-XXXSX-S-DA
PK10-XXXS-R-DA
PK10-XXXPX-S-DA
9.6(0.378)
