5722.2 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> 5722.2

5722.2: DescriptionDIN Rail Terminal Blocks Interface Module, FBK16; CategoryThe connector; File Size182KB，1 Pages; ManufacturerAltech; Websitehttp://www.altechcorp.com/

Download Datasheet Parametric Compare View All

5722.2 Overview

DIN Rail Terminal Blocks Interface Module, FBK16

5722.2 Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	Altech
Product Category	DIN Rail Terminal Blocks
Type	Interface Modules
Current Rating	3 A
Voltage Rating	250 VAC
Wire Gauge Range	22 AWG to 12 AWG
Length	68 mm
Factory Pack Quantity	1

Preview

Download Datasheet

View All

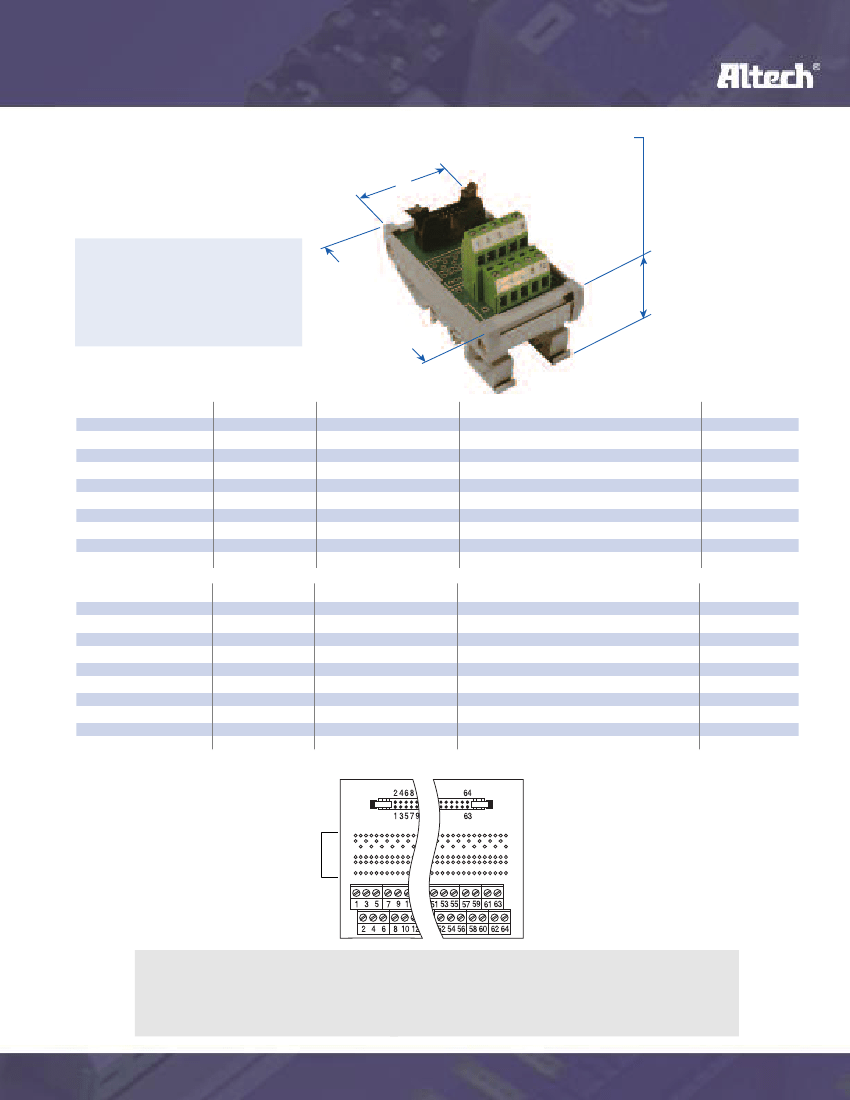

Interface Modules

Connector to terminal block modules

INTERFACES CONNECTOR-TO-WIRE

Ribbon Cable Module

35 or 32mm DIN Rail Mount

FBK

Technical Information

Current ..................3 A

Voltage ..................250V AC

Wire Range ...........0.5-4 mm

/ 22-12 AWG

Torque ...................0.5-4 Nm / 4 lbs-in.

Stripping Length ...8 mm

TS35x7.5 70mm (2.75 in.)

TS32x15 75mm (2.95 in.)

SCREW CLAMP

Part Number

5720.2

5721.2

5722.2

5723.2

5724.2

5725.2

5726.2

5727.2

5728.2

5729.2

Type

FBK10

FBK14

FBK16

FBK20

FBK26

FBK34

FBK40

FBK50

FBK60

FBK64

No. of Poles

Module Length (L) in mm(in.)

46 (1.81)

68 (2.68)

80 (3.15)

93 (3.66)

114 (4.49)

139 (5.47)

180 (7.09)

Std. Pk.

SPRING CLAMP

Part Number

5720.2/S

5721.2/S

5722.2/S

5723.2/S

5724.2/S

5725.2/S

5726.2/S

5727.2/S

5728.2/S

5729.2/S

Type

FBK10

FBK14

FBK16

FBK20

FBK26

FBK34

FBK40

FBK50

FBK60

FBK64

No. of Poles

Module Length (L) in mm(in.)

46 (1.81)

68 (2.68)

80 (3.15)

93 (3.66)

114 (4.49)

139 (5.47)

180 (7.09)

Std. Pk.

PTH holes for convenient component

insertion and easy soldering.

Female Connector SD-F37

37 Pin Socket Female Connector

Shown with component counting holes

Other models available; please contact Altech.

Suffix ...................Description

none ....................Screw Terminal; DIN Rail Mount

/S ......................Spring Terminal; DIN Rail Mount

/P ......................Screw Terminal; Panel Mount

Suffix ...................Description

/L ......................Screw Terminal; Long Latch Connector; DIN Rail Mount

/SL .....................Spring Terminal; Long Latch Connector; DIN Rail Mount

/SP .....................Spring Terminal; Panel Mount

Example: Part Number 5727.2/L for Long Latch model.

Altech Corp.

• 35 Royal Road • Flemington, NJ 08822-6000 • Phone (908)806-9400 • FAX (908)806-9490 • www.altechcorp.com

DATA SUBJECT TO CHANGE WITHOUT NOTICE
