Power Entry Modules
IEC Connectors

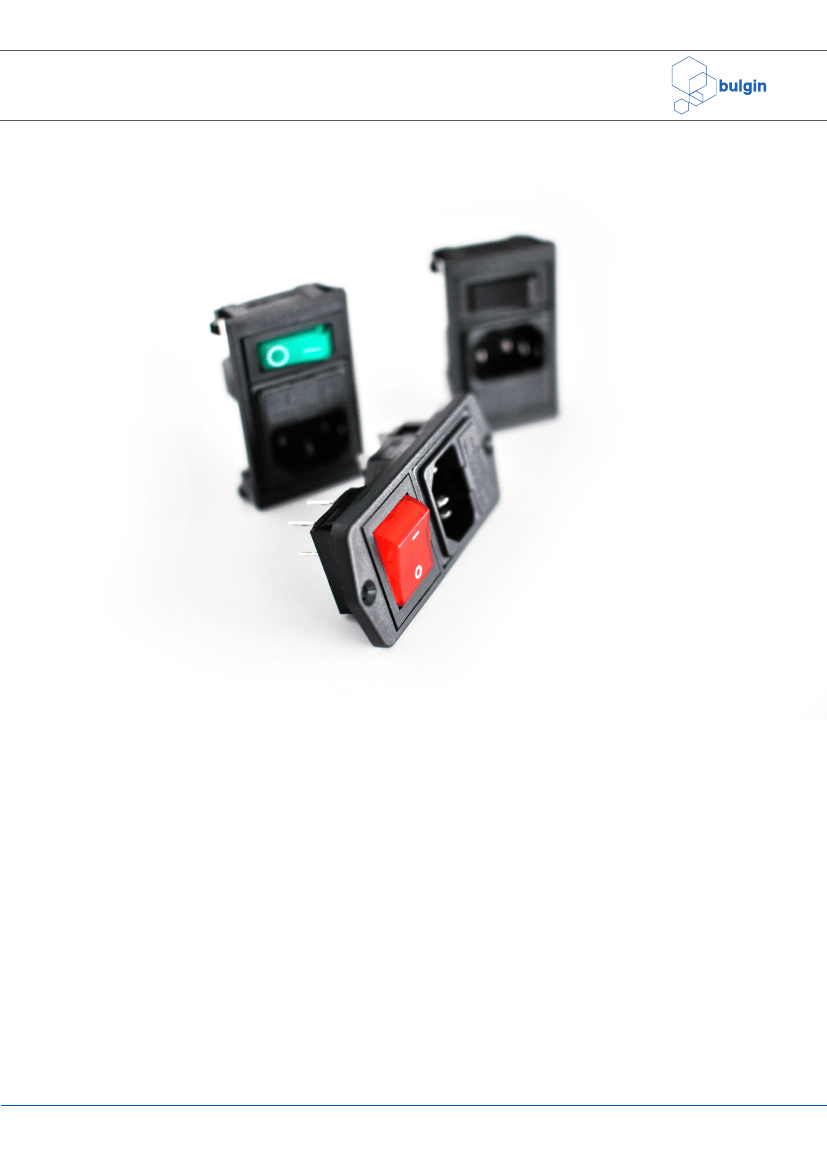

With over 26,000 combinations Bulgin’s mains power entry modules
offer a very adaptable and flexible solution to panel design.
Power entry modules allow combinations of mains inlets and outlets,
filtered inlets, switches, fuseholders, voltage selectors and indicators
mounted in either horizontal or vertical format bezels ready for quick
snap-fit assembly. The compact design occupies the minimum of panel
area and a single rectangular mounting hole, offering easy installation for
this mains power entry module.
Our range offers a flange fixing alternative for designers who prefer the
security of screw fixing. All types and variations are available through
Bulgin’s extensive distribution network.
290 IEC Connectors
Power Entry Modules
Components used in Power Entry Modules.
Note: Components are Approved Individually (where applicable). Please see individual
component pages for full specifications.
IEC Connectors Fuseholders and Voltage Selectors
Type
DX0928
FX0359
PF0011
PF0033
PX0575
PX0595
PX0695
PX0783
PX0598
VS0001
IEC Connectors
Description
Neon Indicator
5 x 20mm Fuseholder
C14 Power Inlet with Integral 5 x 20mm
Fuseholder
C14 Power Inlet with Integral twin 5 x 20mm
Fuseholder
C14 Power Inlet, Cold condition
C16 Power Inlet, Hot Condition
Sheet F Power Outlet
Sheet F Shuttered Power Outlet
C20 Power Inlet
Voltage Selector marked 120/240V
Rating
110V or 250V a.c./d.c. working
Max. rating 10A. 250V
See Page 192
Max. rating 10A. 250V a.c.
See Page 136
Max. rating 10A. 250V a.c.
See Page 137
Max. rating 10A. 250V a.c.
See Page 132
Max. rating 10A. 250V a.c.
See Page 138
Max. rating 10A. 250V a.c.
See Page 145
Max. rating 10A. 250V a.c.
See Page 146
Max. rating 16A, 250V a.c.
See Page 148
Max. rating 6.3A. 120/240V a.c.
See Page 114
Approvals
*Filtered options for 6.3mm tag versions only

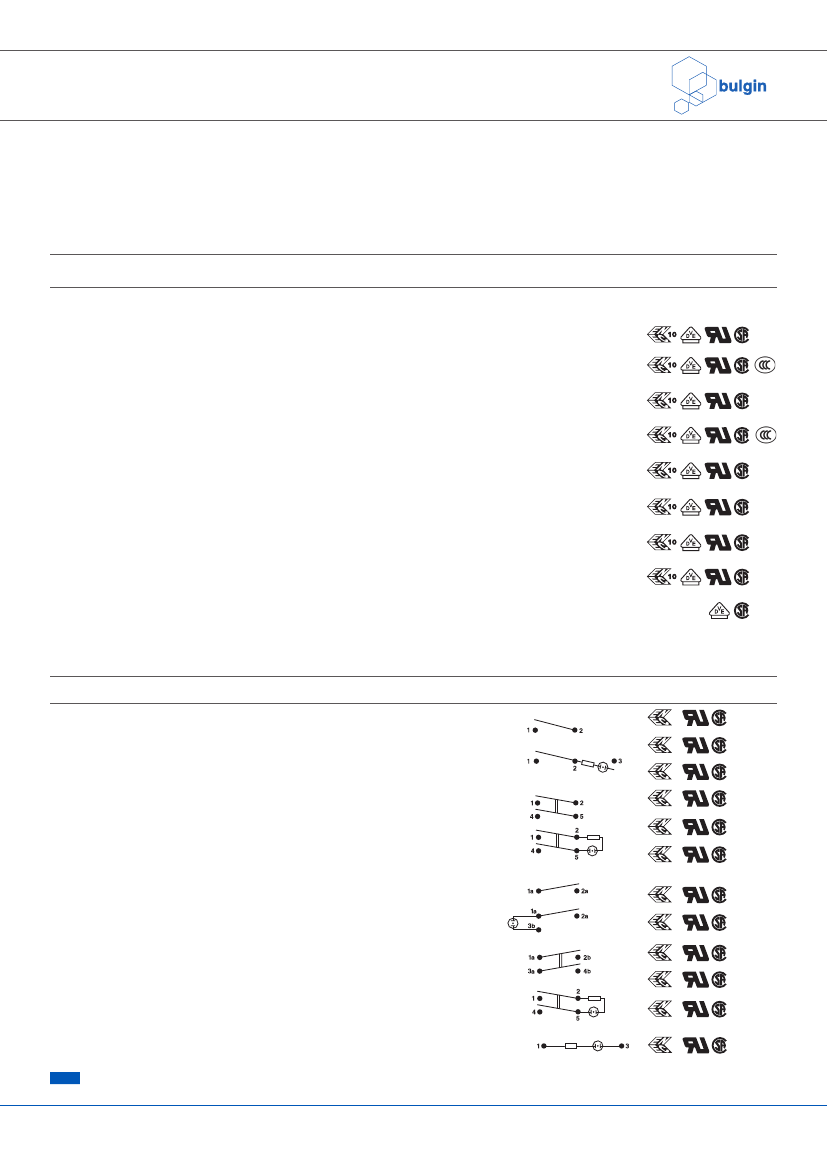

Switches and Indicators
No Poles
Single Pole
Illumination
Non-illuminated
High Inrush
Illuminated
Current Ratings
Max. rating 16A Resistive, 4A Inductive, 250Vac.
Max. rating 16A Resistive, 4A Inductive, 250Vac.
Inrush current, 150A to IEC65.
Max. rating 16A Resistive, 4A Inductive, 250Vac.
Max. rating 16A Resistive, 4A Inductive, 250Vac.
Max. rating 16A Resistive, 4A Inductive, 250Vac.
Inrush current, 150A to IEC65.
Max. rating 16A Resistive, 4A Inductive, 250Vac.
250Vac Neon.
Max. rating 10A Resistive, 4A Inductive, 250Vac.
Max. rating 10A Resistive, 4A Inductive, 250Vac.
250Vac Neon.
Max. rating 10A Resistive, 4A Inductive, 250Vac.
Max. rating 10A Resistive, 4A Inductive, 250Vac.
Inrush current, 85A to EN61058-1.
Max. rating 10A Resistive, 4A Inductive, 250Vac.
250Vac Neon.
250Vac neon lamp connected internally to
terminals.
Circuit
Approvals
15
15
15
15
15
15
Double Pole
Non-illuminated
High Inrush
Illuminated
For Mini Bezel:
Single Pole
Non-illuminated
Illuminated
15
15
Double Pole
Non-illuminated
High Inrush
Illuminated
15
15
15
Indicator
15
RoHS
Power Entry Module range and all components are compliant
IEC Connectors 291
Power Entry Modules
Overview of Power Entry Modules
IEC Connectors
Style
Snap to Panel
Vertical
C14
With Single Pole
switch
Page 163
With other
components
Pages 164,
165, 166
C14 Fused
Inlets
C16
With Single
Pole switch
Page 163
With other
components
Pages 164,
165, 166
C20
With Single Pole
switch
Page 167
Outlets
Sheet F
With Single Pole
switch
Page 169
Inlet/ Outet Combinations
C14 Fused
C14
With other
components
Page 168
With Single Pole
switch
Page 161
With Double Pole
Switch
Page 162
Snap to Panel
Horizontal
Mini Bezel
With Single Pole
Switch Page 175
Mini Bezel
With Double Pole
Switch Page 175
With Single Pole
switch Page 170
With Double Pole
Switch Page 171
With Single Pole
switch Page 177
With Double
Pole switch
Page 173
No additional
components
Page 174
Flange Mount -
Vertical
With Single Pole
switch Page 176
With Double Pole
switch Page 177
292 IEC Connectors

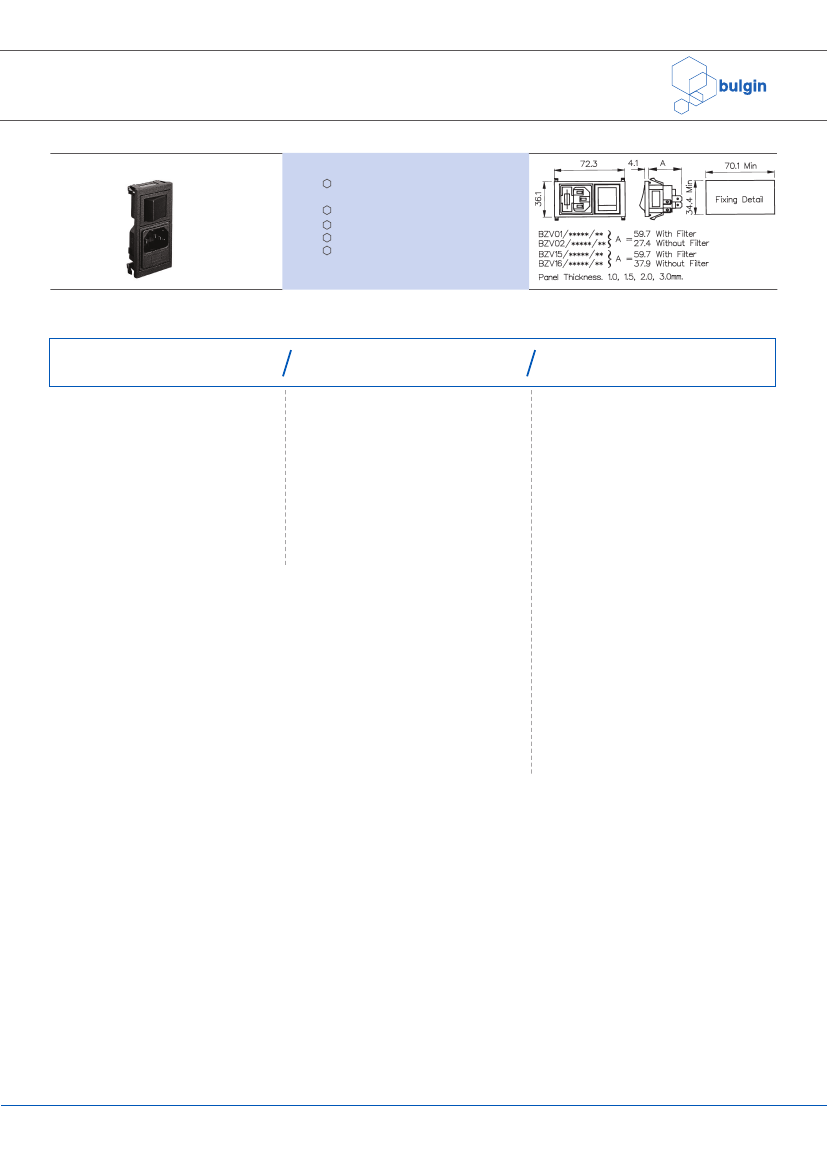

C14 IEC Fused Inlet - Vertical
IEC Connectors
Vertical Module Arrangement
Fused Inlet with 2.8mm or
6.3mm tags
Single Pole Switch Variations
Filtered Inlet Option
Options of I/O marked
switches
BZV01/Z0000/01
How to order -
BZV XX
Type of Inlet / Outlet
Single Fused C14 Power Inlet (cold condition),
6.3 or 2.8mm tabs:
01 = PF0011/63
02 = PF0011/28
Twin Fused C14 Power Inlet (cold condition),
6.3 or 2.8mm tabs:
15 = PF0033/63
16 = PF0033/28
XXXXX
Filtered or Non Filtered Inlet
Z0000 = Non Filtered
Axxxx = Standard
For Filtered inlet use 6th to 9th characters from filter
ordering code see pages 179 -180
E.g. BZV01/A0620/01
Single Pole Switch:
01 = S.P. Switch
XX
Filtered or Non Filtered Inlet
Single Pole Neon Switch:
02 = S.P. Red Neon Switch
08 = S.P. Green Neon Switch
Neon Indicator:
03 = Red Neon Indicator
Single Pole High Inrush Switch:
46 = S.P. High Inrush Switch
Single Pole Switch Marked I/O:
69 = S.P. Switch (I/O)
Single Pole Neon Switch Marked (I/O):
71 = S.P. Red Neon Switch (I/O)
74 = S.P. Green Neon Switch (I/O)
Single Pole High Inrush Switch Marked (I/O):
98 = S.P. High Inrush Switch (I/O)
IEC Connectors 293

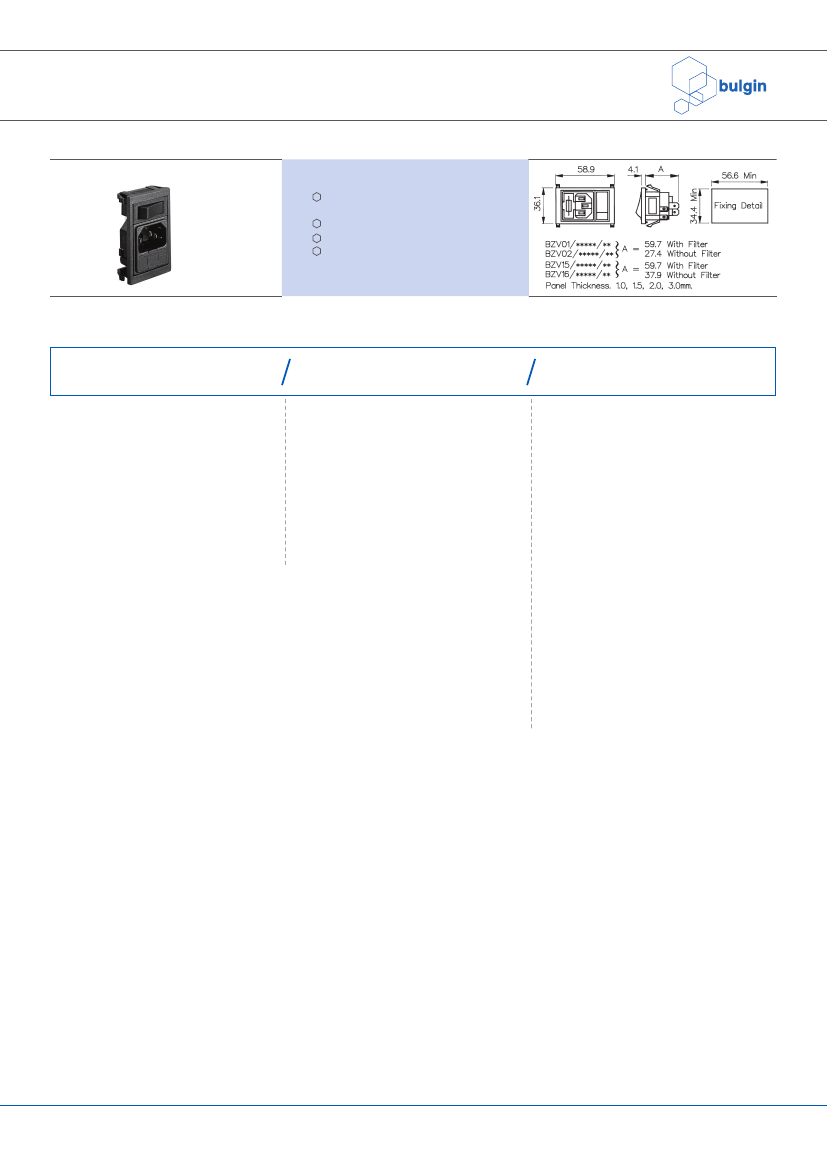

C14 IEC Fused Inlet - Vertical
Vertical Module Arrangement
Fused Inlet with 2.8mm or
6.3mm tags
Double Pole Switch or
Indicator Variations
Filtered Inlet Option
Options of I/O marked
switches
IEC Connectors
BZV01/Z0000/10
How to order -
BZV XX
Type of Inlet / Outlet
Single Fused C14 Power Inlet (cold condition),
6.3 or 2.8mm tabs:
01 = PF0011/63
02 = PF0011/28
Twin Fused C14 Power Inlet (cold condition),
6.3 or 2.8mm tabs:
15 = PF0033/63
16 = PF0033/28
XXXXX
Filtered or Non Filtered Inlet
Z0000 = Non Filtered
Axxxx = Standard
For Filtered inlet use 6th to 9th characters from filter
ordering code see pages 179-180
E.g. BZV01/A0620/10
XX
Combination of Other Components
Neon Indicator:
D3 = Red Neon Indicator
Double Pole Switch:
10 = D.P. Switch
Double Pole Neon Switch:
11 = D.P. Red Neon Switch
12 = D.P. Green Neon Switch
Double Pole High Inrush Switch:
13 = D.P. High Inrush Switch
Double Pole Switch Marked I/O:
70 = D.P. Switch (I/O)
Double Pole Neon Switch Marked (I/O):
76 = D.P. Red Neon Switch (I/O)
77 = D.P. Green Neon Switch (I/O)
Double Pole High Inrush Switch Marked
(I/O):
78 = D.P. High Inrush Switch (I/O)
B1 = D.P. High Inrush Green Neon Switch
(I/O)
294 IEC Connectors
