FAP3WAQDSC datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> FAP3WAQDSC

FAP3WAQDSC: DescriptionFiber Optic Connectors FAP w/3 SC 10 GbE Dupl mm Adapters (AQ); CategoryThe connector; File Size134KB，2 Pages; ManufacturerPanduit; Websitehttp://www.panduit.com

Download Datasheet Parametric View All

FAP3WAQDSC Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	FAP3WAQDSC	-	-	View	Buy Now

FAP3WAQDSC Overview

Fiber Optic Connectors FAP w/3 SC 10 GbE Dupl mm Adapters (AQ)

FAP3WAQDSC Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	Panduit
Product Category	Fiber Optic Connectors
Product	Accessories
Mode	Multimode
Color	Electric Ivory
Unit Weight	3.136000 oz

Preview

Download Datasheet

View All

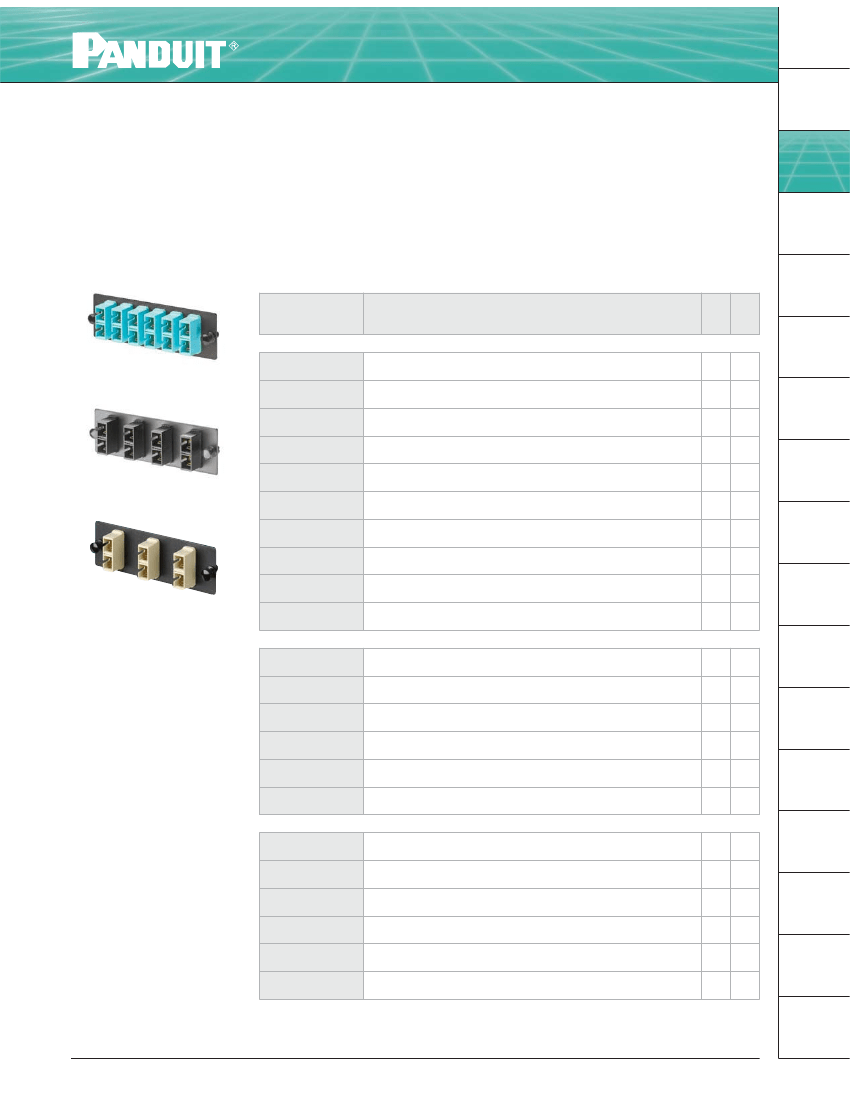

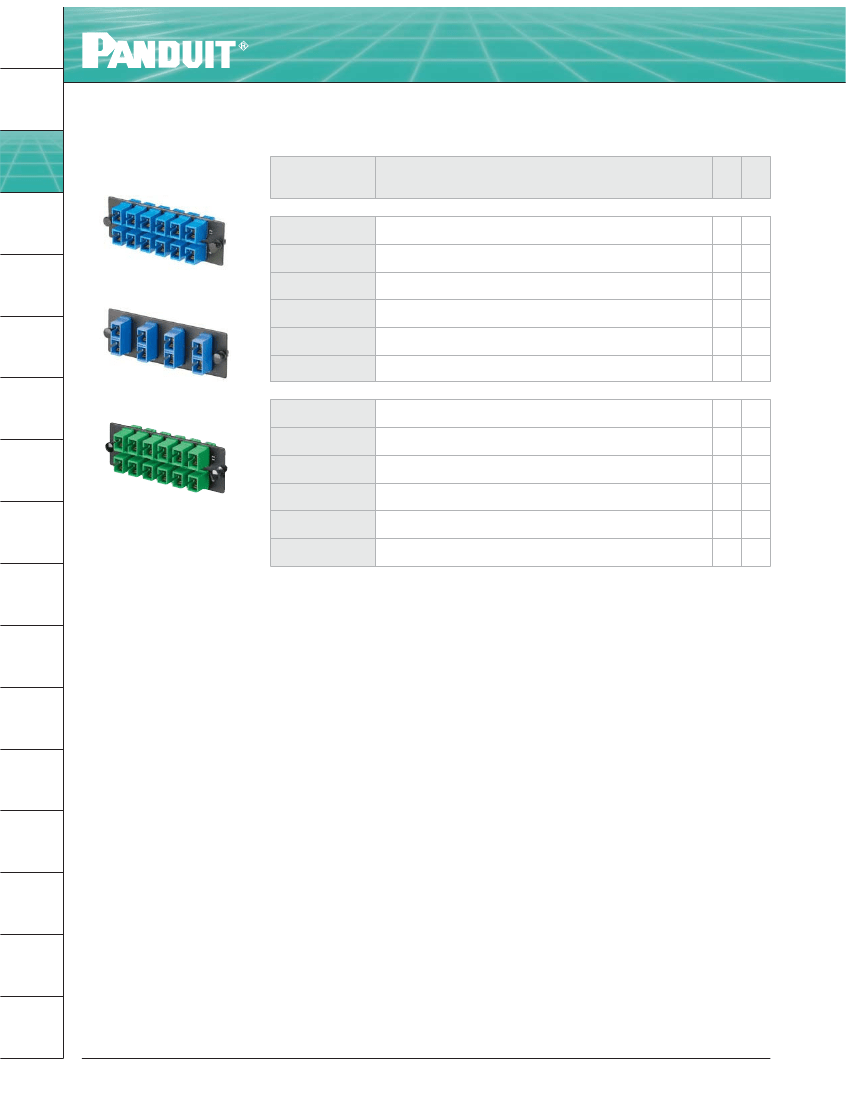

PHYSICAL INFRASTRUCTURE SYSTEMS

SC Opticom

Fiber Adapter Panels (FAPs)

• Loaded with TIA/EIA-604 FOCIS-3 compliant adapters

• Exceed TIA/EIA-568-C.3 requirements

• Adapter housing colors follow TIA/EIA-568-C.3 suggested

color identification scheme

• Snap quickly into the front of all Opticom

components

• Choice of phosphor bronze or zirconia ceramic split

sleeves to fit specific network requirements; zirconia

ceramic split sleeves are recommended for OM3/OM4

multimode and OS1/OS2 singlemode applications

• Q.C. number and split sleeve material laser marked on

every adapter assures 100% traceability and quick and

easy identification of split sleeve material

• SC adapters are also available in QuickNet

™

Fiber Optic

Cassettes on pages C.46 – C.53, Mini-Com

Modules on

page C.35, or separately on page C.30 to provide a

complete SC system solution

System

Overview

Copper

Systems

Fiber

Optic

Systems

Power

over

Ethernet

Zone

Cabling

Part Number

Part Description

™

Std. Std.

Pkg. Ctn.

Qty. Qty.

SC Fiber Adapter Panels

–

10Gig

FAP6WAQSCZ

FAP6WAQDSCZ

FAP6WAQSC

FAP2WAQDSCZ

FAP3WAQDSCZ

FAP4WAQDSCZ

FAP4WBLDSC

FAP6WAQDSCZ

FAP2WAQDSC

FAP3WAQDSC

FAP4WAQDSC

FAP3WEIDSC

FAP6WAQDSC

OM3/OM4 50/125µm (Aqua Adapters)

six SC 10Gig

™

Simplex Multimode

with zirconia ceramic split sleeves.

six SC 10Gig

™

Simplex Multimode

with phosphor bronze split sleeves.

two SC 10Gig

™

Duplex Multimode

with zirconia ceramic split sleeves.

three SC 10Gig

™

Duplex Multimode

with zirconia ceramic split sleeves.

four SC 10Gig

™

Duplex Multimode

with zirconia ceramic split sleeves.

six SC 10Gig

™

Duplex Multimode

with zirconia ceramic split sleeves.

two SC 10Gig

™

Duplex Multimode

with phosphor bronze split sleeves.

three SC 10Gig

™

Duplex Multimode

with phosphor bronze split sleeves.

four SC 10Gig

™

Duplex Multimode

with phosphor bronze split sleeves.

six SC 10Gig

™

Duplex Multimode

with phosphor bronze split sleeves.

SC 10Gig

™

FAP loaded with

Fiber Optic Adapters (Aqua)

SC 10Gig

™

FAP loaded with

Fiber Optic Adapters (Aqua)

SC 10Gig

™

FAP loaded with

Fiber Optic Adapters (Aqua)

SC 10Gig

™

FAP loaded with

Fiber Optic Adapters (Aqua)

SC 10Gig

™

FAP loaded with

Fiber Optic Adapters (Aqua)

SC 10Gig

™

FAP loaded with

Fiber Optic Adapters (Aqua)

SC 10Gig

™

FAP loaded with

Fiber Optic Adapters (Aqua)

SC 10Gig

™

FAP loaded with

Fiber Optic Adapters (Aqua)

SC 10Gig

™

FAP loaded with

Fiber Optic Adapters (Aqua)

SC 10Gig

™

FAP loaded with

Fiber Optic Adapters (Aqua)

Wireless

Outlets

Media

Distribution

Physical

Infrastructure

Management

Overhead &

Underfloor

Routing

Surface

Raceway

Cabinets,

Racks &

Cable

Management

Grounding &

Bonding

SC Fiber Adapter Panels

–

OM2 50/125µm (Black Adapters)

FAP6WBLSC

FAP12WBLSC

FAP2WBLDSC

FAP3WBLDSC

FAP4WBLDSC

FAP6WBLDSC

SC FAP loaded with six SC simplex multimode fiber optic

adapters (Black) with phosphor bronze split sleeves.

SC FAP loaded with twelve SC simplex multimode fiber optic

adapters (Black) with phosphor bronze split sleeves.

SC FAP loaded with two SC duplex multimode fiber optic adapters

(Black) with phosphor bronze split sleeves.

SC FAP loaded with three SC duplex multimode fiber optic

adapters (Black) with phosphor bronze split sleeves.

SC FAP loaded with four SC duplex multimode fiber optic

adapters (Black) with phosphor bronze split sleeves.

SC FAP loaded with six SC duplex multimode fiber optic adapters

(Black) with phosphor bronze split sleeves.

SC FAP loaded with six SC simplex multimode fiber optic

adapters (Electric Ivory) with phosphor bronze split sleeves.

SC FAP loaded with twelve SC simplex multimode fiber optic

adapters (Electric Ivory) with phosphor bronze split sleeves.

SC FAP loaded with two SC duplex multimode fiber optic adapters

(Electric Ivory) with phosphor bronze split sleeves.

SC FAP loaded with three SC duplex multimode fiber optic

adapters (Electric Ivory) with phosphor bronze split sleeves.

SC FAP loaded with four SC duplex multimode fiber optic

adapters (Electric Ivory) with phosphor bronze split sleeves.

SC FAP loaded with six SC duplex multimode fiber optic adapters

(Electric Ivory) with phosphor bronze split sleeves.

SC Fiber Adapter Panels

–

OM1 62.5/125µm (Electric Ivory Adapters)

FAP6WEISC

FAP12WEISC

FAP2WEIDSC

FAP3WEIDSC

FAP4WEIDSC

FAP6WEIDSC

Labeling &

Identification

Cable

Management

Accessories

Industrial

Table continues on page C.42

Index

www.panduit.com

For service and technical support, call 866-405-6654 (outside the U.S. and Canada, see

catalog

back cover).

C.41
