540-44-044-17-400004 datasheet, PDF

Datasheet> All Categories > The connector> socket> 540-44-044-17-400004

540-44-044-17-400004: DescriptionIC & Component Sockets 44 PIN SMT COMPACT PLCC SKT; CategoryThe connector socket; File Size453KB，1 Pages; ManufacturerMill-Max; Websitehttps://www.mill-max.com; Environmental Compliance

Download Datasheet Parametric Compare View All

540-44-044-17-400004 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	540-44-044-17-400004	-	-	View	Buy Now

540-44-044-17-400004 Overview

IC & Component Sockets 44 PIN SMT COMPACT PLCC SKT

540-44-044-17-400004 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Mill-Max
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	END STACKABLE
Contact to complete cooperation	MATTE TIN (100) OVER NICKEL (50)
Contact completed and terminated	Matte Tin (Sn) - with Nickel (Ni) barrier
Contact material	NOT SPECIFIED
Device slot type	IC SOCKET
Type of equipment used	PLCC44
Shell material	POLYPHENYLENE SULFIDE
JESD-609 code	e3
Number of contacts	44
Base Number Matches	1

Preview

Download Datasheet

View All

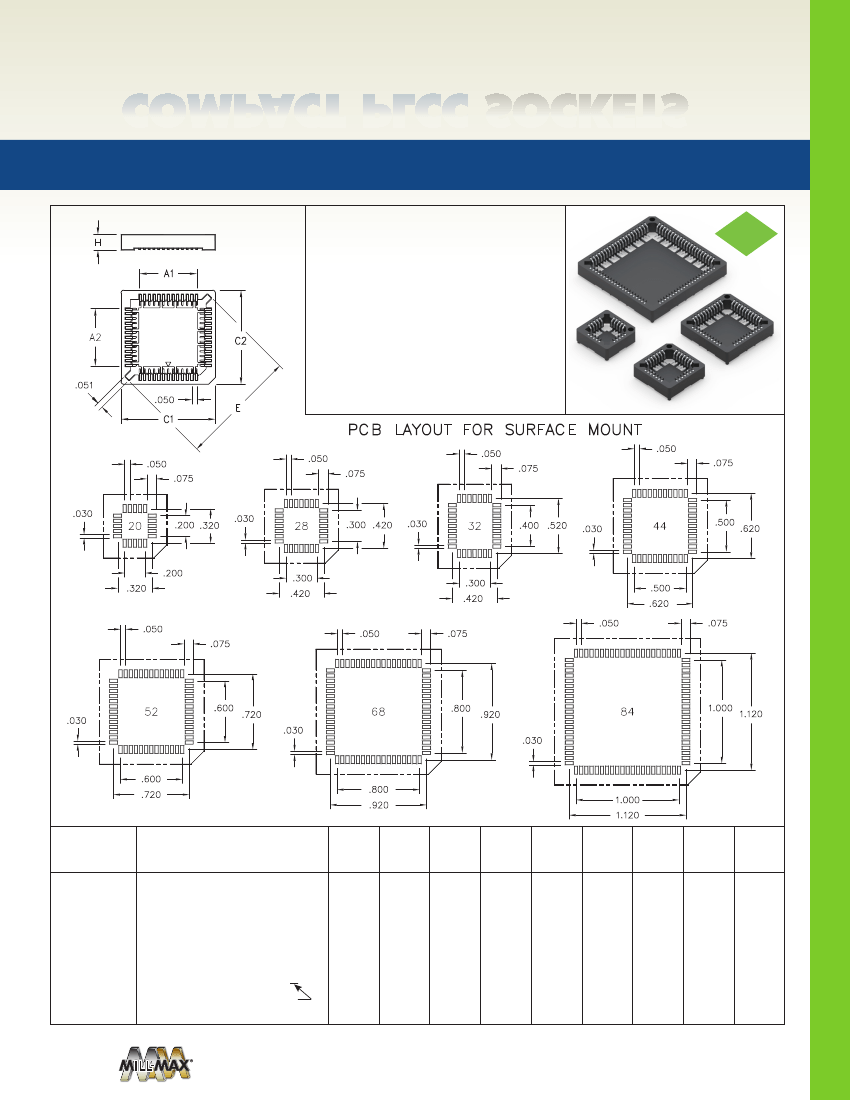

COMPACT PLCC

SOCKETS

SERIES 540 • SURFACE MOUNT

•

Note: Not end stackable

•

Designed for JEDEC type devices

•

Open frame design in solder area improves

results of IR soldering and facilitates visual

inspection of solder pads

2011/65/EU

RoHS - 2

•

Contacts are plated with 150

μ”

tin

•

The insulator is molded PPS (Ryton R-4)

.051

.050

•

For Electrical, Mechanical and Environmental

Data, see page 141 for details

PCB LAYOUT FOR SURFACE MOUNT

.075

.030

.200 .320

.030

.050

.075

.050

.075

.050

.075

.300 .420

.030

.400 .520

.030

.500

.620

.200

.320

.300

.420

.300

.420

.050

.500

.620

.075

.050

.075

.050

.075

.600

.030

.720

.030

.800

.920

.030

1.000

1.120

.600

.720

.800

.920

1.120

RECTANGULAR

Number of

Contacts

Ordering Information

- A1 - - A2 - - C1 - - C2 -

-E-

-H-

Qty.

per

Tube

Tape

Width

Qty.

per

Reel

540-44-020-17-40000X

0.200 0.200 0.585 0.585 0.657 0.180

490

540-44-028-17-40000X

0.300

CONTINU

400

D IS CON TI NU ED DI SCONTINUED DIS

0.300 0.685

0.685 0.799

T IN U ED D IS C ON T I N UED

D ISC ON

0.180

540-44-032-17-40000X

0.300 0.400 0.670 0.770 0.885 0.148

400

540-44-044-17-40000X

0.500 0.500 0.885 0.885 1.082 0.180

250

540-44-052-17-40000X

0.600 0.600 1.000 1.000 1.224 0.180

250

540-44-068-17-40000X

0.800 0.800 1.202 1.202 1.507 0.180

220

540-44-084-17-40000X

1.000 1.000 1.400 1.400 1.791 0.180

200

Packaging Codes:

X = 0 (Tubes)

X = 4 (Tape & Reel)

Mill-Max Mfg. Corp. • 190 Pine Hollow Road, P.O. Box 300, Oyster Bay, NY 11771 • 516-922-6000 • Fax: 516-922-9253 • www.mill-max.com

PAGE 145 | IC SOCKETS / TO SOCKETS

1.000

540-44-044-17-400004 Related Products

	540-44-044-17-400004	540-91-132-14-071011	540-99-020-24-000000	540-44-084-17-400004	540-44-028-17-400004	540-44-044-24-000000	540-99-028-24-000000	540-44-028-17-400000	540-44-052-17-400004	540-44-032-17-400004
Description	IC & Component Sockets 44 PIN SMT COMPACT PLCC SKT	IC & Component Sockets 132 PIN	IC & Component Sockets 20 POS. TIN PLATED	IC & Component Sockets 84 PIN SMT COMPACT PLCC SKT	IC & Component Sockets 28 PIN SMT COMPACT PLCC SKT	IC & Component Sockets 44 POS. TIN PLATED through-hole	IC & Component Sockets 28 POS. TIN PLATED	IC & Component Sockets 28 POS. TIN PLATED SMT	IC & Component Sockets 52 PIN SMT COMPACT PLCC SKT	IC & Component Sockets 32 PIN SMT COMPACT PLCC SKT
Is it lead-free?	Lead free	-	-	Lead free	Lead free	-	-	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	-	incompatible	conform to	conform to	conform to	incompatible	conform to	conform to	conform to
Maker	Mill-Max	-	Mill-Max	Mill-Max	Mill-Max	Mill-Max	Mill-Max	Mill-Max	Mill-Max	-
package instruction	ROHS COMPLIANT	-	-	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	-	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT
Reach Compliance Code	compliant	-	unknown	compliant	compliant	compliant	unknown	compliant	compliant	compliant
ECCN code	EAR99	-	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Other features	END STACKABLE	-	POLARIZED	END STACKABLE	END STACKABLE	ROHS COMPLIANT	POLARIZED	END STACKABLE	END STACKABLE	END STACKABLE
Contact to complete cooperation	MATTE TIN (100) OVER NICKEL (50)	-	TIN LEAD (150)	TIN (150)	TIN (150)	MATTE TIN (100) OVER NICKEL (50)	TIN LEAD (150) OVER NICKEL (100)	TIN (150)	TIN (150)	TIN (150)
Contact completed and terminated	Matte Tin (Sn) - with Nickel (Ni) barrier	-	Tin/Lead (Sn/Pb) - with Nickel (Ni) barrier	Tin (Sn)	Tin (Sn)	Matte Tin (Sn) - with Nickel (Ni) barrier	Tin/Lead (Sn/Pb) - with Nickel (Ni) barrier	Matte Tin (Sn) - with Nickel (Ni) barrier	Tin (Sn)	Tin (Sn)
Contact material	NOT SPECIFIED	-	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Device slot type	IC SOCKET	-	IC SOCKET	IC SOCKET	IC SOCKET	IC SOCKET	IC SOCKET	IC SOCKET	IC SOCKET	IC SOCKET
Type of equipment used	PLCC44	-	PLCC20	PLCC84	PLCC28	PLCC44	PLCC28	PLCC28	PLCC52	PLCC32
Shell material	POLYPHENYLENE SULFIDE	-	-	POLYPHENYLENE SULFIDE	POLYPHENYLENE SULFIDE	POLYPHENYLENE SULFIDE	-	POLYPHENYLENE SULFIDE	POLYPHENYLENE SULFIDE	POLYPHENYLENE SULFIDE
JESD-609 code	e3	-	e0	e3	e3	e3	e0	e3	e3	e3
Number of contacts	44	-	20	84	28	44	28	28	52	32
Base Number Matches	1	-	-	1	1	1	1	1	1	1
