DMB-4770-CC datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> DMB-4770-CC

DMB-4770-CC: DescriptionTerminal Block Tools & Accessories Optional Clear Front Cover for DMB-4770; CategoryThe connector; File Size159KB，2 Pages; ManufacturerBud Industries; Environmental Compliance

Download Datasheet Parametric Compare View All

DMB-4770-CC Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	DMB-4770-CC	-	-	View	Buy Now

DMB-4770-CC Overview

Terminal Block Tools & Accessories Optional Clear Front Cover for DMB-4770

DMB-4770-CC Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	Bud Industries
Product Category	Terminal Block Tools & Accessories
RoHS	Details
Type	Mounting Panel
Color	Transparent
Material	Plastic (ABS)
Factory Pack Quantity	1
Unit Weight	1.500000 oz

Preview

Download Datasheet

View All

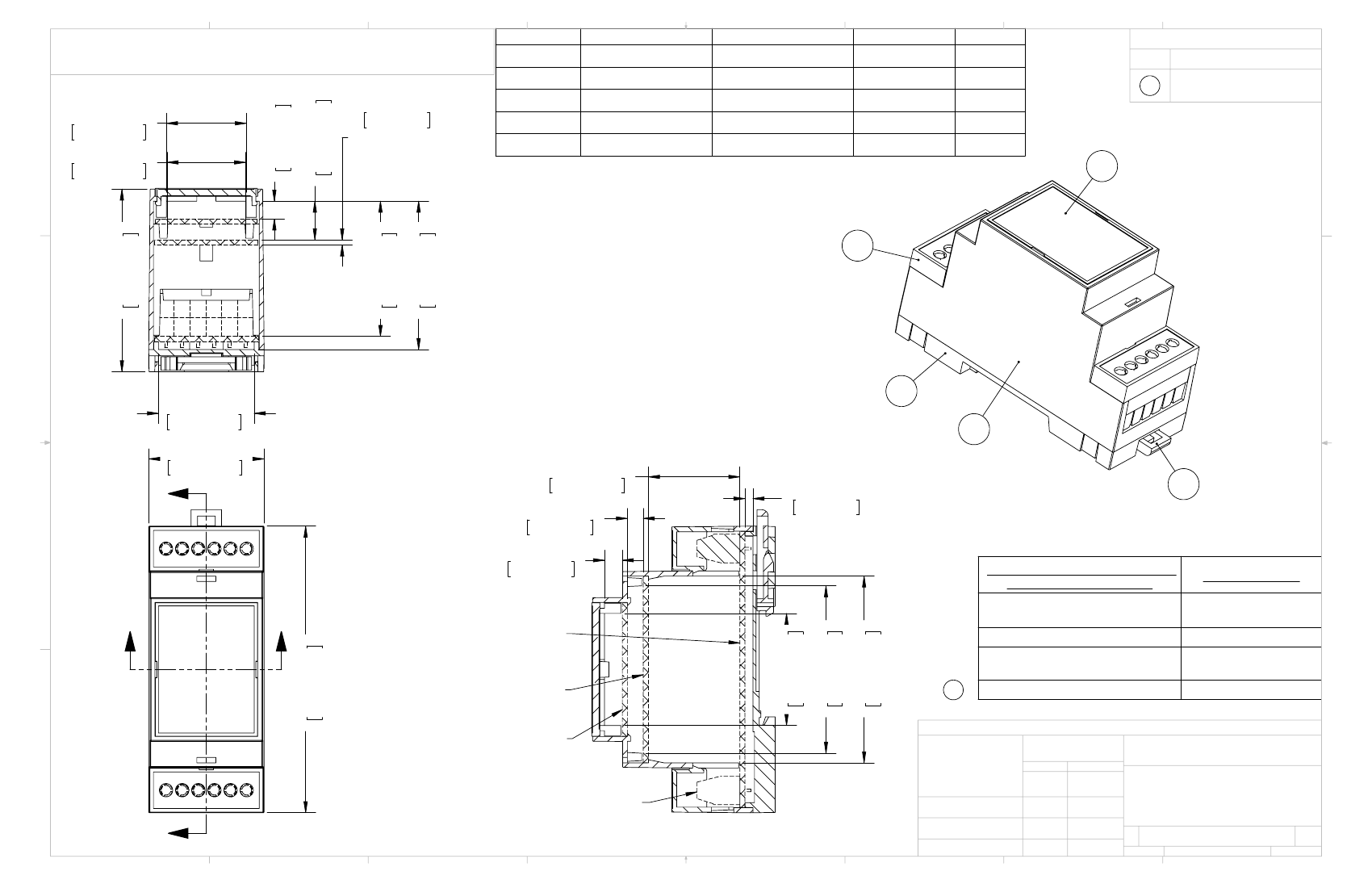

THE INFORMATION CONTAINED IN THIS DRAWING IS THE SOLE PROPERTY OF

BUD INDUSTRIES INC. ANY REPRODUCTION IN PART OR WHOLE WITHOUT

THE WRITTEN PERMISSION OF BUD INDUSTRIES INC. IS PROHIBITED.

.988in

25.10mm

.973in

24.72mm

.063in

1.60mm

BOARD

THICKNESS

TYP.

.480in

12.20mm

.220in

5.60mm

ITEM NO.

DESCRIPTION

BODY

BASE

COVER

GUARD

MOUNTING CLIP

MATERIAL

PC/ABS UL94V-0

NYLON 66

COLOR

GRAY

DARK GRAY

QTY.

DWG. NO.

DMB-4770

REVISIONS

ISSUE

REVISIONS

12-6-10 DAB

2.264in

57.50mm

1.677in

42.60mm

1.839in

46.70mm

SECTION A-A

1.185in

30.10mm

1.429in

36.30mm

1.134in

28.80mm

.197in

5.00mm

.220in

5.60mm

.098in

2.50mm

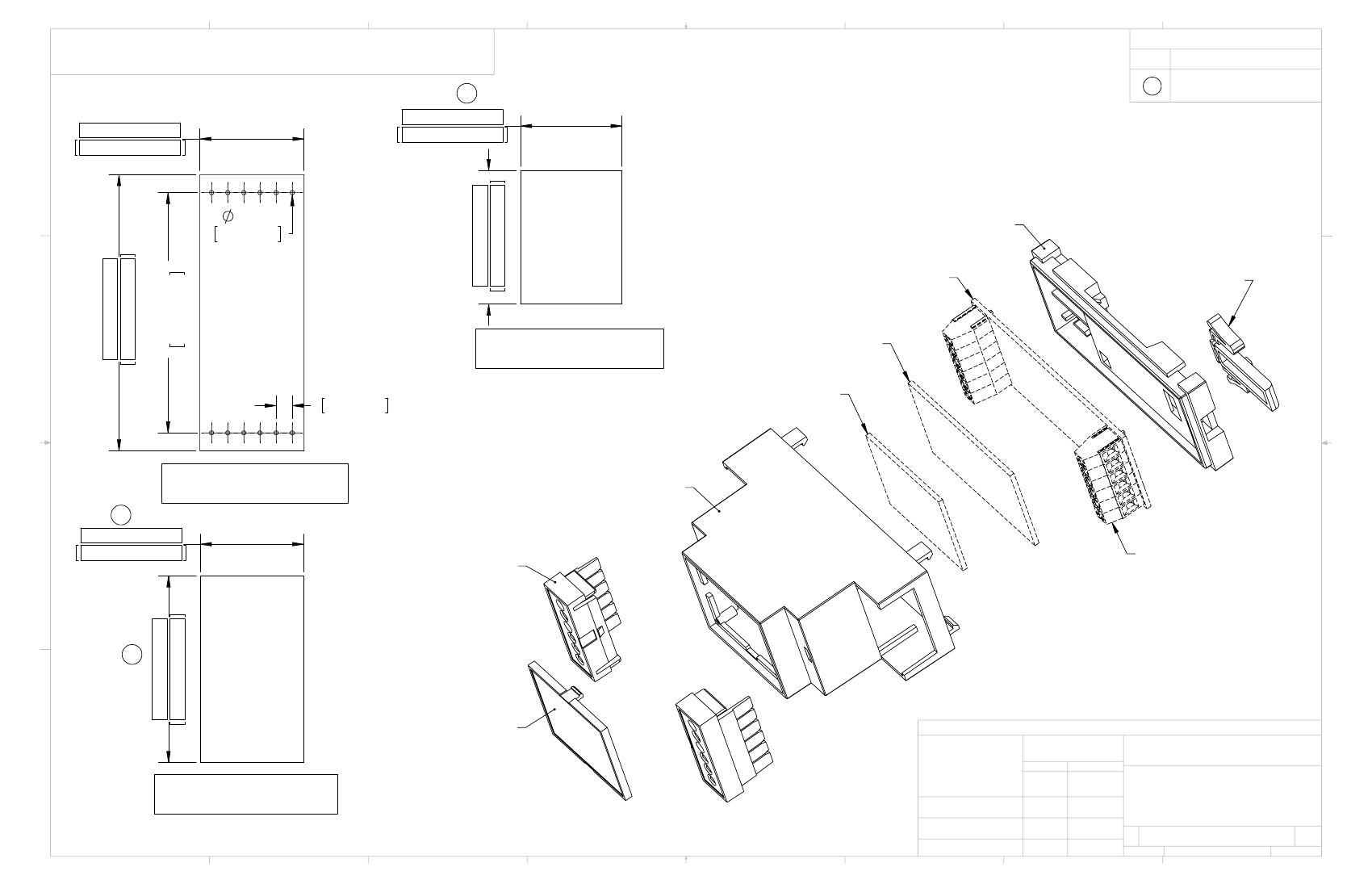

OPTIONAL ACCESSORIES /

REPLACEMENT PARTS

CLEAR POLYCARBONATE

COVER

INFRA-RED COVER

TERMINAL GUARD

(PACK OF 2)

MOUNTING CLIP

PARTS LIST

TOLERANCES:

CAD GENERATED DRAWING,

+/- .005 BETWEEN HOLE CENTERS

DO NOT MANUALLY UPDATE

+/-.015 FROM SHEARED EDGE

+/-.032 FROM A BENT SURFACE

APPROVALS

DATE

DRAWN

+/-.062 BETWEEN ASSEMBLED

SURFACES

UNLESS OTHERWISE SPECIFIED

MATERIAL

FINISH

PART NUMBER

DMB-4770-CC

DMB-4770-IRC

DMB-4760-TG

DMB-4764-MC

3.551in

90.20mm

CIRCUIT BOARD "B" POSITION

(NOT SUPPLIED)

CIRCUIT BOARD "C" POSITION

(NOT SUPPLIED)

.200in. (5.08mm) SPACING

TERMINAL BLOCKS

(NOT SUPPLIED)

1.390in

35.30mm

2.074in

52.67mm

2.315in

58.80mm

CIRCUIT BOARD "A" POSITION

(NOT SUPPLIED)

BUD INDUSTRIES INC.

DIN RAIL MOUNT

MULTI-BOARD BOX

SIZE DWG. NO.

SCALE

DH 7/27/10

SECTION B-B

AS NOTED

CHECKED

APPROVED

DO NOT SCALE DRAWING

DMB-4770

SHEET

REV.

CAD FILE:

DMB-4770-CC Related Products

	DMB-4770-CC	DMB-4770	DMB-4770-IRC
Description	Terminal Block Tools & Accessories Optional Clear Front Cover for DMB-4770	Terminal Block Tools & Accessories 1.43 x 3.55 x 2.25" DIN Mount, 12 Term.	Terminal Block Tools & Accessories Infrared Front Cover for DMB-4770
Product Attribute	Attribute Value	Attribute Value	Attribute Value
Manufacturer	Bud Industries	Bud Industries	Bud Industries
Product Category	Terminal Block Tools & Accessories	Terminal Block Tools & Accessories	Terminal Block Tools & Accessories
RoHS	Details	Details	Details
Type	Mounting Panel	DIN Rail	Mounting Panel
Color	Transparent	Gray	Gray
Material	Plastic (ABS)	Acrylonitrile Butadiene Styrene (ABS)	Plastic (ABS)
Factory Pack Quantity	1	1	1
Unit Weight	1.500000 oz	1.500000 oz	1.500000 oz
