690367282076 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> 690367282076

Preview

690367282076: DescriptionHeaders & Wire Housings WR-MM 1.27mmFeml SMT 20Pin W/OLtchW/Plztn; CategoryThe connector The connector; File Size491KB，2 Pages; ManufacturerWurth Elektronik; Environmental Compliance

Download Datasheet Parametric Compare View All

690367282076 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	690367282076	-	-	View	Buy Now

690367282076 Overview

Headers & Wire Housings WR-MM 1.27mmFeml SMT 20Pin W/OLtchW/Plztn

690367282076 Parametric

Parameter Name	Attribute value
Brand Name	Wurth Electronik
Is it Rohs certified?	conform to
Maker	Wurth Elektronik
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
Samacsys Description	Wurth Elektronik 6903 Series 2.54, 1.27mm 20 Way 2 Row Right Angle PCB Socket Surface Mount Board to Board
Other features	STAGGERED CONFIGARATION, POLARIZATION
body width	0.197 inch
subject depth	0.207 inch
body length	1.079 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	MATTE TIN OVER NICKEL
Contact completed and terminated	Matte Tin (Sn) - with Nickel (Ni) barrier
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	10 mΩ
DIN compliance	NO
Dielectric withstand voltage	500VAC V
Filter function	NO
IEC compliance	NO
Insulation resistance	1000000000 Ω
Insulator color	RED
insulator material	POLYAMIDE
JESD-609 code	e3
MIL compliance	NO
Plug contact pitch	0.1 inch
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Options	GENERAL PURPOSE
PCB contact pattern	STAGGERED
PCB contact row spacing	4.4958 mm
polarization key	POLARIZED HOUSING
Rated current (signal)	1.5 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	2.54 mm
Termination type	SURFACE MOUNT
Total number of contacts	20
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

1

2

3

4

5

MATERIAL:

HOUSING MATERIAL: PA6T

FLAMABILITY RATING: UL94-V0

COLOR: RED

CONTACT MATERIAL: PHOSPHOR BRONZE

CONTACT TYPE: STAMPED

CONTACT PLATING: MATT TIN OVER NICKEL

QUALITY CLASS: 25 MATING CYCLES

PITCH: 2.54 MM PER ROW

ENVIRONNEMENTAL:

OPERATING TEMPERATURE: -40°C UP TO 105°C

COMPLIANCE: LEAD FREE AND ROHS

ELECTRICAL:

CURRENT RATING: 1.5A PER PIN (PCB PIN)

WORKING VOLTAGE: 100VAC

INSULATION RESISTANCE: >1000MOHM

DIELECTRIC WITHSTANDING VOLT.: 500VAC/MN

CONTACT RESISTANCE: 10mOHM MAX

STANDARD

CERTFIED: E323964 / MOD. NUMBER 69036728xx7x

SOLDERING:

REFLOW PROCESS ONLY

DIMENSION:

DIM.A= 1.27 x (Nb PIN -1)

DIM.B= DIM.A + 3.27

DIM.C= DIM.A + 1.80

AVAILABLE

xx : 4 TO 26 CIRCUITS

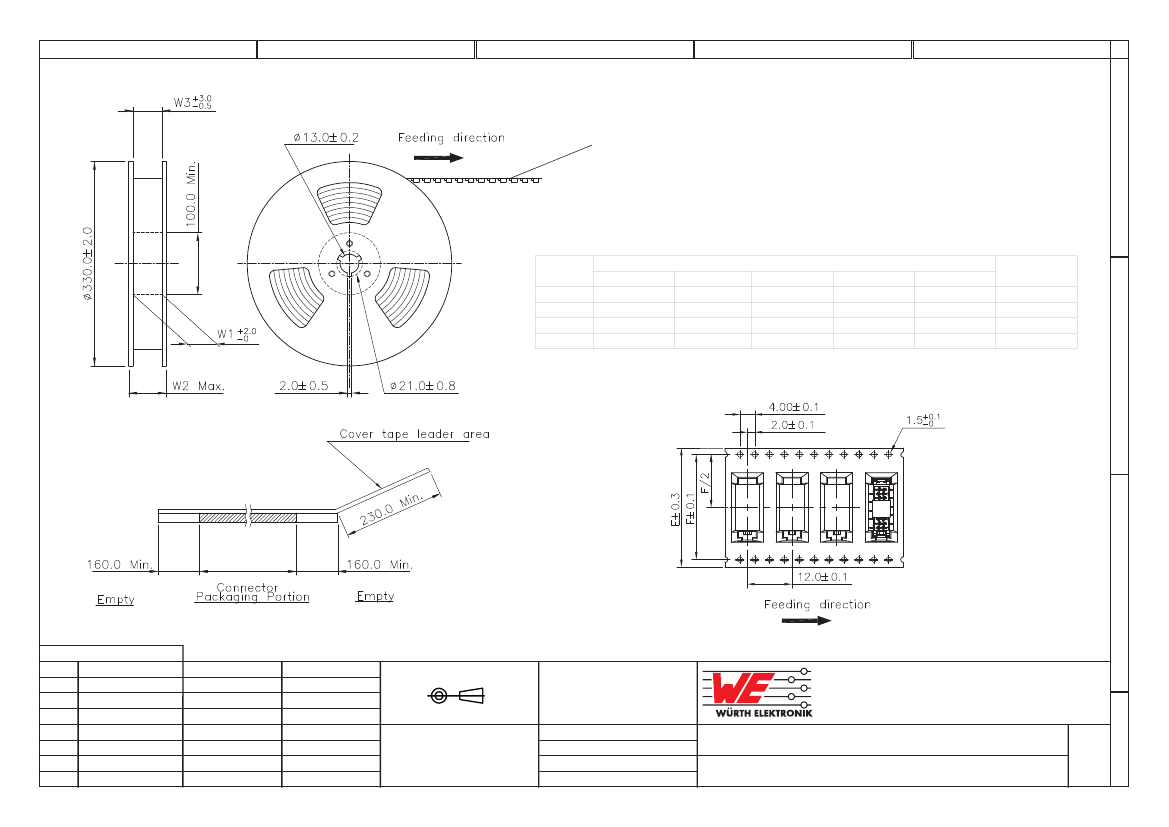

PACKAGING:

TAPE & REEL

A

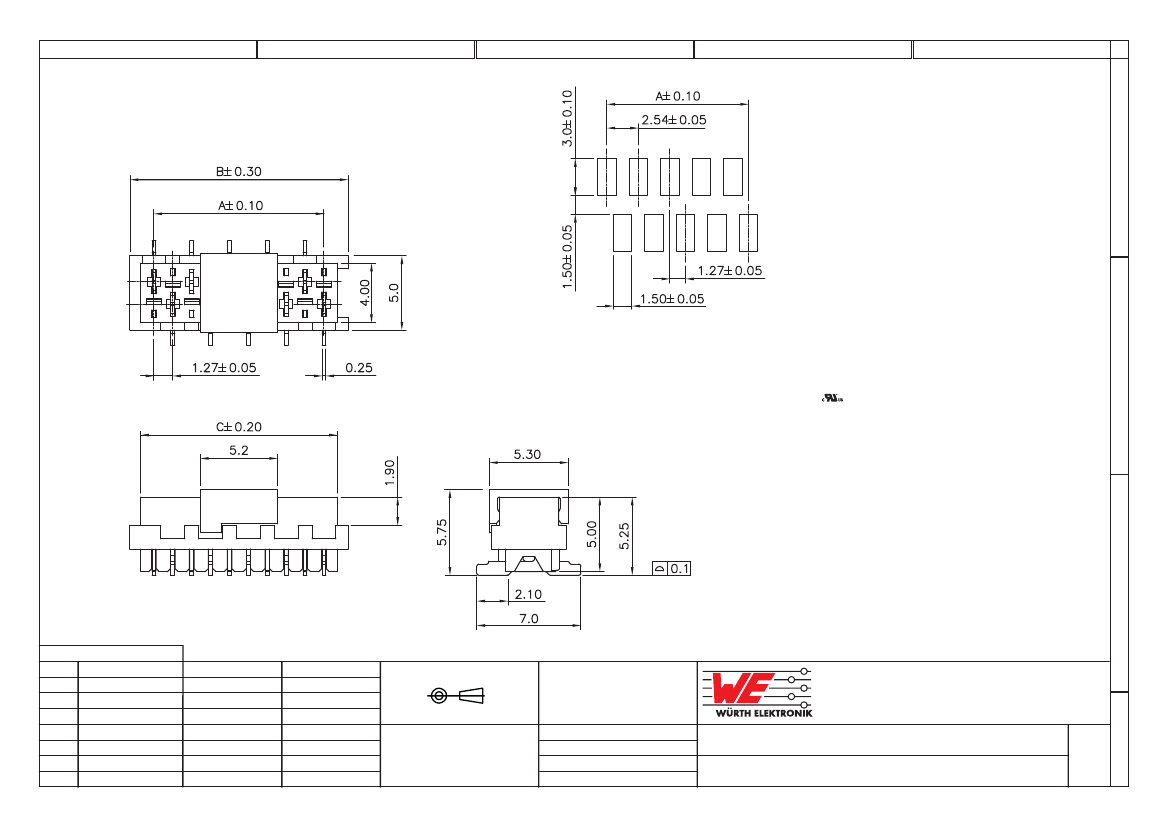

PCB LAYOUT - COMPONENT VIEW

B

C

RoHS Compliant

PROJECTION:

GENERAL TOLERANCE

.X = +/- 0.2

.XX = +/- 0.15

J

I

H

REV

30-MAY-14

13-NOV-13

23-MAY-13

DATE

DWG UPDATE

TPK DWG UPDATE

NB PCS/REEL

FILE

QL

BY

APPROVAL: RJ

UNIT: MM

SCALE:

SHEET: 1/2

DRAW: EAGER

WERI PART NO: 690 367 28 xx 76

DESCRIPTION: MM FEMALE SMT CONNECTOR WITH POLARIZATION

SIZE

A4

D

690367282076 Related Products

	690367282076	690367280876	690367281076	690367281276
Description	Headers & Wire Housings WR-MM 1.27mmFeml SMT 20Pin W/OLtchW/Plztn	Headers & Wire Housings WR-MM 1.27mm Female 8Pin SMT w/Plztn	Headers & Wire Housings WR-MM 1.27mmFeml SMT 10Pin W/OLtchW/Plztn	Headers & Wire Housings WR-MM 1.27mm Female 12Pin SMT w/Plztn
Brand Name	Wurth Electronik	Wurth Electronik	Wurth Electronik	Wurth Electronik
Is it Rohs certified?	conform to	conform to	conform to	conform to
package instruction	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT
Reach Compliance Code	compliant	compliant	compliant	compliant
Other features	STAGGERED CONFIGARATION, POLARIZATION	STAGGERED CONFIGARATION, POLARIZATION	STAGGERED CONFIGARATION, POLARIZATION	STAGGERED CONFIGARATION, POLARIZATION
body width	0.197 inch	0.197 inch	0.197 inch	0.197 inch
subject depth	0.207 inch	0.207 inch	0.207 inch	0.207 inch
body length	1.079 inch	0.479 inch	0.579 inch	0.679 inch
Body/casing type	PLUG	PLUG	PLUG	PLUG
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	MATTE TIN OVER NICKEL	MATTE TIN OVER NICKEL	MATTE TIN OVER NICKEL	MATTE TIN OVER NICKEL
Contact completed and terminated	Matte Tin (Sn) - with Nickel (Ni) barrier	Matte Tin (Sn) - with Nickel (Ni) barrier	Matte Tin (Sn) - with Nickel (Ni) barrier	Matte Tin (Sn) - with Nickel (Ni) barrier
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE
Contact material	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact resistance	10 mΩ	10 mΩ	10 mΩ	10 mΩ
DIN compliance	NO	NO	NO	NO
Dielectric withstand voltage	500VAC V	500VAC V	500VAC V	500VAC V
Filter function	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO
Insulation resistance	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω
Insulator color	RED	RED	RED	RED
insulator material	POLYAMIDE	POLYAMIDE	POLYAMIDE	POLYAMIDE
JESD-609 code	e3	e3	e3	e3
MIL compliance	NO	NO	NO	NO
Plug contact pitch	0.1 inch	0.1 inch	0.1 inch	0.1 inch
Mixed contacts	NO	NO	NO	NO
Installation option 1	LOCKING	LOCKING	LOCKING	LOCKING
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD
Number of connectors	ONE	ONE	ONE	ONE
PCB row number	2	2	2	2
Number of rows loaded	2	2	2	2
Maximum operating temperature	105 °C	105 °C	105 °C	105 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
PCB contact pattern	STAGGERED	STAGGERED	STAGGERED	STAGGERED
PCB contact row spacing	4.4958 mm	4.4958 mm	4.4958 mm	4.4958 mm
polarization key	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING
Rated current (signal)	1.5 A	1.5 A	1.5 A	1.5 A
Guideline	UL	UL	UL	UL
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Termination type	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Total number of contacts	20	8	10	12
UL Flammability Code	94V-0	94V-0	94V-0	94V-0
Base Number Matches	1	1	1	1
