Part Number:
Status:
Overview:
Description:
0460152206
Active
Mini-Fit Plus Connector System
Mini-Fit Plus Header, Dual Row, Vertical, 22 Circuits, without Snap-in Plastic Peg PCB
Lock, without Drain Holes, PA Polyamide Nylon 6/6, UL 94V-2, Tin (Sn) 1.27µm Over
Nickel (Ni) Plating
Documents:
3D Model
Drawing (PDF)
Product Specification PS-45750-001-001 (PDF)
Agency Certification
CSA
UL
General
Product Family
Series
Application
Comments
Product Specification TS-5566-002-001 (PDF)
Packaging Specification PK-5566-001-001 (PDF)
RoHS Certificate of Compliance (PDF)

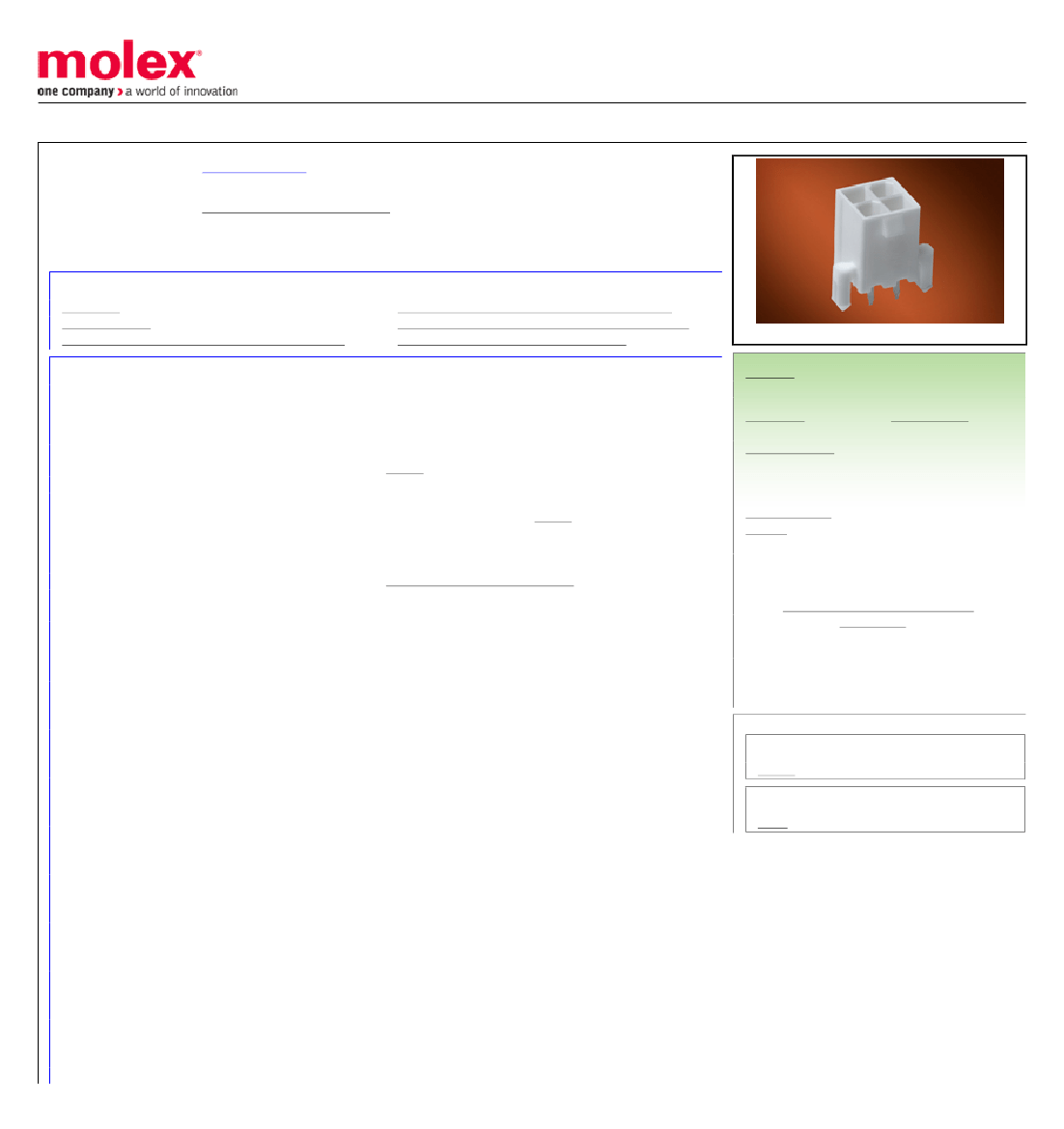

Series image - Reference only
EU ELV
Not Relevant
EU RoHS
China RoHS
Compliant
REACH SVHC
Not Contained Per
-ED/01/2018 (15
January 2018)
Halogen-Free
Status
Low-Halogen
Need more information on product
environmental compliance?
Email productcompliance@molex.com
Please visit the Contact Us section for any
non-product compliance questions.
China ROHS
ELV
RoHS Phthalates
Green Image
Not Relevant
Not Contained
LR19980
E29179
PCB Headers
46015
Power, Wire-to-Board
Current = 13A max. per circuit when header is mated to
a receptacle loaded with 45750 Mini-Fit Plus HCS Crimp
Terminal Crimped to 16 AWG wire., See Molex product
specification PS-45750-001 for additional current de-
rating information.
Mini-Fit Plus Connector System
Mini-Fit Plus
822350737890
No
22
22
Natural
75
No
94V-2
No
No
None
Yes
Copper Alloy
Tin
Tin
Nylon
6.063/g
2
Vertical
1.80mm
Yes
None
1.78mm
Tray
4.20mm
2.540µm
1.270µm
Yes
Overview
Product Name
UPC
Physical
Breakaway
Circuits (Loaded)
Circuits (maximum)
Color - Resin
Durability (mating cycles max)
First Mate / Last Break
Flammability
Glow-Wire Capable
Guide to Mating Part
Keying to Mating Part
Lock to Mating Part
Material - Metal
Material - Plating Mating
Material - Plating Termination
Material - Resin
Net Weight
Number of Rows
Orientation
PC Tail Length
PCB Locator
PCB Retention
PCB Thickness - Recommended
Packaging Type
Pitch - Mating Interface
Plating min - Mating
Plating min - Termination
Polarized to Mating Part
Search Parts in this Series
46015 Series
Mates With
5557 Mini-Fit Jr. Receptacle Housing
Polarized to PCB
Shrouded
Stackable
Surface Mount Compatible (SMC)
Temperature Range - Operating
Termination Interface: Style
Electrical
Current - Maximum per Contact
Voltage - Maximum
Solder Process Data
Duration at Max. Process Temperature (seconds)
Lead-freeProcess Capability
Max. Cycles at Max. Process Temperature
Process Temperature max. C
Material Info
Reference - Drawing Numbers
Packaging Specification
Product Specification
Sales Drawing
Yes
Fully
No
No
-40°C to +105°C
Through Hole
13.0A
600V
005
WAVE
001
260
PK-5566-001-001
PS-45750-001-001, TS-5566-002-001
SD-46015-001-000
