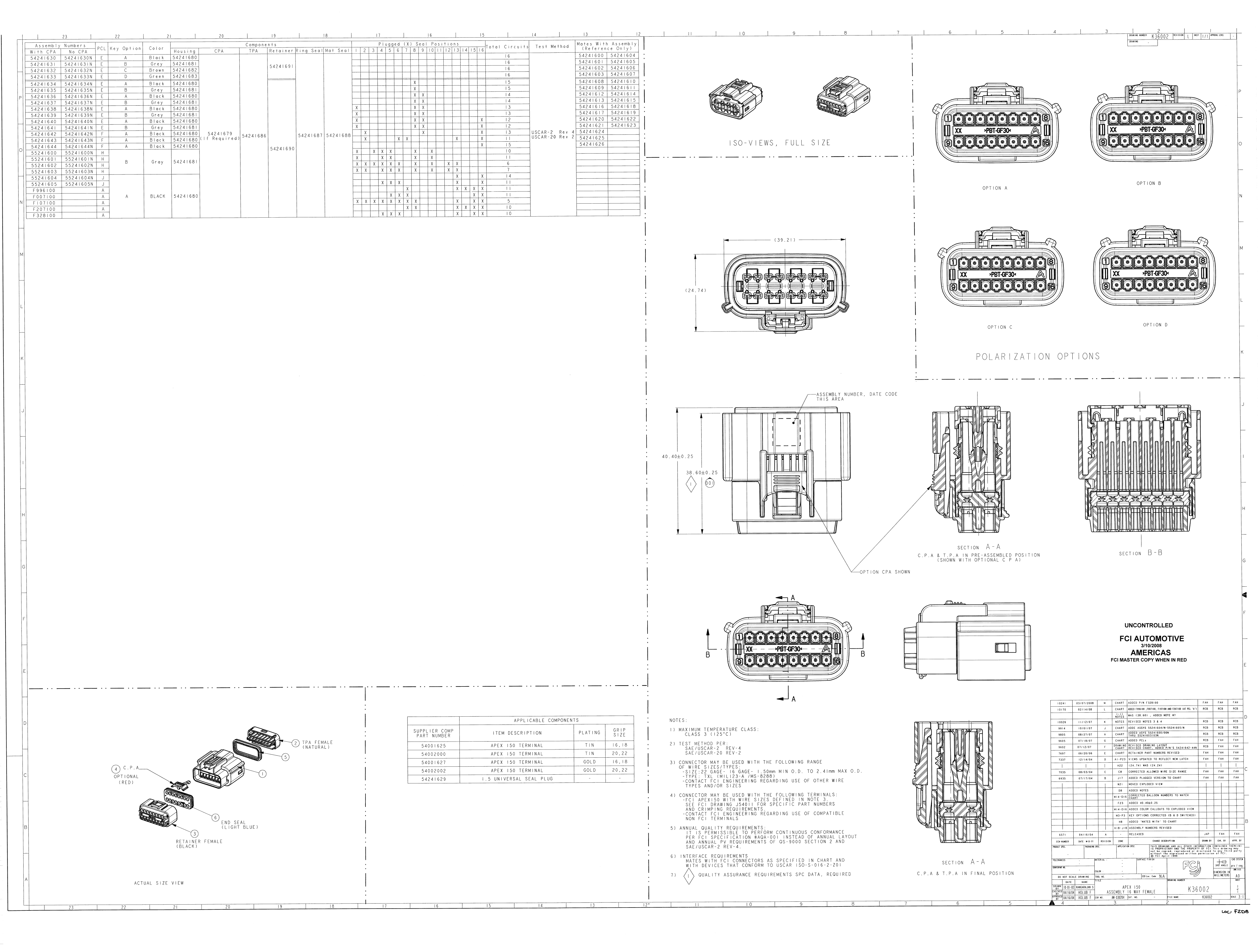

Preview

54241631

Description
Automotive Connectors 16W FM HSING GRY GRAY 1.5MM TERM SZ
CategoryThe connector
File Size743KB，1 Pages
ManufacturerAptiv
Environmental Compliance
Download Datasheet Parametric Compare View All

54241631 Online Shopping

Suppliers Part Number Price MOQ In stock
54241631 - - View Buy Now

54241631 Overview

Automotive Connectors 16W FM HSING GRY GRAY 1.5MM TERM SZ

54241631 Parametric

Parameter NameAttribute value
Product AttributeAttribute Value
ManufacturerAptiv
Product CategoryAutomotive Connectors
RoHSDetails
ProductConnectors
Number of Positions16 Position
GenderFemale
Mounting StyleWire
Termination StyleCrimp
Wire Gauge Range22 AWG
PackagingBulk
ApplicationWire to Wire
ColorGray
Current Rating25 A
Description/Function16 Female, Connector, APEX 1.5 mm, Grey, Sealed
FamilyAPEX
Housing MaterialPolyamide (PA)
MaterialUltramid A3EG7 Nylon 6/6 GF35
Mounting MethodWire
Number of Rows2 Row
TypeConnector
Locking MechanismCPA
Pitch3.5 mm
Maximum Operating Temperature+ 125 C
Minimum Operating Temperature- 40 C
Factory Pack Quantity280

Preview

Download Datasheet

54241631 Related Products

54241631 54241632N-B 54241630-B 54241630N-B 54241633-B
Description Automotive Connectors 16W FM HSING GRY GRAY 1.5MM TERM SZ Automotive Connectors APEX 150 10W FEMALE KEY C Automotive Connectors 16W FM HSING BLK BLACK 1.5MM TERM SZ Automotive Connectors 16WF APEX 150 ASSY W/O CPA Automotive Connectors APEX 150,16W FEMALE KEY D
Product Attribute Attribute Value Attribute Value Attribute Value Attribute Value Attribute Value
Manufacturer Aptiv Aptiv Aptiv Aptiv Aptiv
Product Category Automotive Connectors Automotive Connectors Automotive Connectors Automotive Connectors Automotive Connectors
RoHS Details Details Details Details Details
Product Connectors Connectors Connectors Connectors Connectors
Number of Positions 16 Position 16 Position 16 Position 16 Position 16 Position
Gender Female Female Female Female Female
Mounting Style Wire Wire Wire Wire Wire
Wire Gauge Range 22 AWG 22 AWG 22 AWG 22 AWG 22 AWG
Packaging Bulk Bulk Bulk Bulk Bulk
Color Gray Brown Black Black Green
Family APEX APEX APEX APEX APEX
Material Ultramid A3EG7 Nylon 6/6 GF35 Polyamide (PA) Ultramid A3EG7 Nylon 6/6 GF35 Ultramid A3EG7 Nylon 6/6 GF35 Polyamide (PA)
Mounting Method Wire Wire Wire Wire Wire
Number of Rows 2 Row 2 Row 2 Row 2 Row 2 Row
Locking Mechanism CPA CPA CPA CPA CPA
Pitch 3.5 mm 3.5 mm 3.5 mm 3.5 mm 3.5 mm
Maximum Operating Temperature + 125 C + 125 C + 125 C + 125 C + 125 C
Minimum Operating Temperature - 40 C - 40 C - 40 C - 40 C - 40 C
Factory Pack Quantity 280 1 1 1 1
Termination Style Crimp Crimp - Crimp Crimp
Application Wire to Wire - Wire to Wire Wire to Wire -
Current Rating 25 A - 25 A 25 A -
Description/Function 16 Female, Connector, APEX 1.5 mm, Grey, Sealed - 16 Female, Connector, APEX 1.5 mm, Black, Sealed 16 Female, Connector, APEX 1.5 mm, Black, Sealed -
Housing Material Polyamide (PA) - Polyamide (PA) Polyamide (PA) -
Type Connector - Connector Connector -
