KUSBEX-SMT2-AS1N-W30TR datasheet, PDF

Datasheet> All Categories > The connector> The connector> KUSBEX-SMT2-AS1N-W30TR

KUSBEX-SMT2-AS1N-W30TR: DescriptionUSB Connectors USB SMT L-PROF A-TYPE RWI 30U; CategoryThe connector The connector; File Size326KB，1 Pages; ManufacturerKycon

Download Datasheet Parametric Compare View All

KUSBEX-SMT2-AS1N-W30TR Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	KUSBEX-SMT2-AS1N-W30TR	-	-	View	Buy Now

KUSBEX-SMT2-AS1N-W30TR Overview

USB Connectors USB SMT L-PROF A-TYPE RWI 30U

KUSBEX-SMT2-AS1N-W30TR Parametric

Parameter Name	Attribute value
Maker	Kycon
package instruction	ROHS COMPLIANT
Reach Compliance Code	unknown
Is Samacsys	N
Other features	SHIELDED
Board mount options	PEG
body width	0.265 inch
subject depth	0.547 inch
body length	0.555 inch
Body/casing type	RECEPTACLE
Connector type	TELECOM AND DATACOM CONNECTOR
Contact to complete cooperation	GOLD (30) OVER NICKEL
Contact completed and terminated	TIN OVER NICKEL
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
Contact resistance	20 mΩ
Contact style	USB, SER A FLAT
DIN compliance	NO
Dielectric withstand voltage	750VAC V
empty shell	NO
Filter function	NO
IEC compliance	NO
Insulation resistance	1000000000 Ω
insulator material	THERMOPLASTIC
MIL compliance	NO
Manufacturer's serial number	KUSBEX-SMT
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
Plating thickness	30u inch
polarization key	POLARIZED HOUSING
Rated current (signal)	1 A
Guideline	UL, CSA
reliability	COMMERCIAL
Shell material	POLYETHYLENE
Termination type	SURFACE MOUNT
Total number of contacts	4
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

2D Drawing

Solder Profile

Certificate of Origin

IGES

CofC RoHS Compliant

Check Stock

STEP

CofC REACH Compliant

Request a Sample

3D PDF

UL Plastic File

Send Us An Email

Generated Part Number

KUSBEX-SMT2-AS1N-BTR

Part Number Builder

LR78160

KUSBEX

SMT2

Shield

Option

AS1N

Type

Color

Option

Plating

Option

Packaging

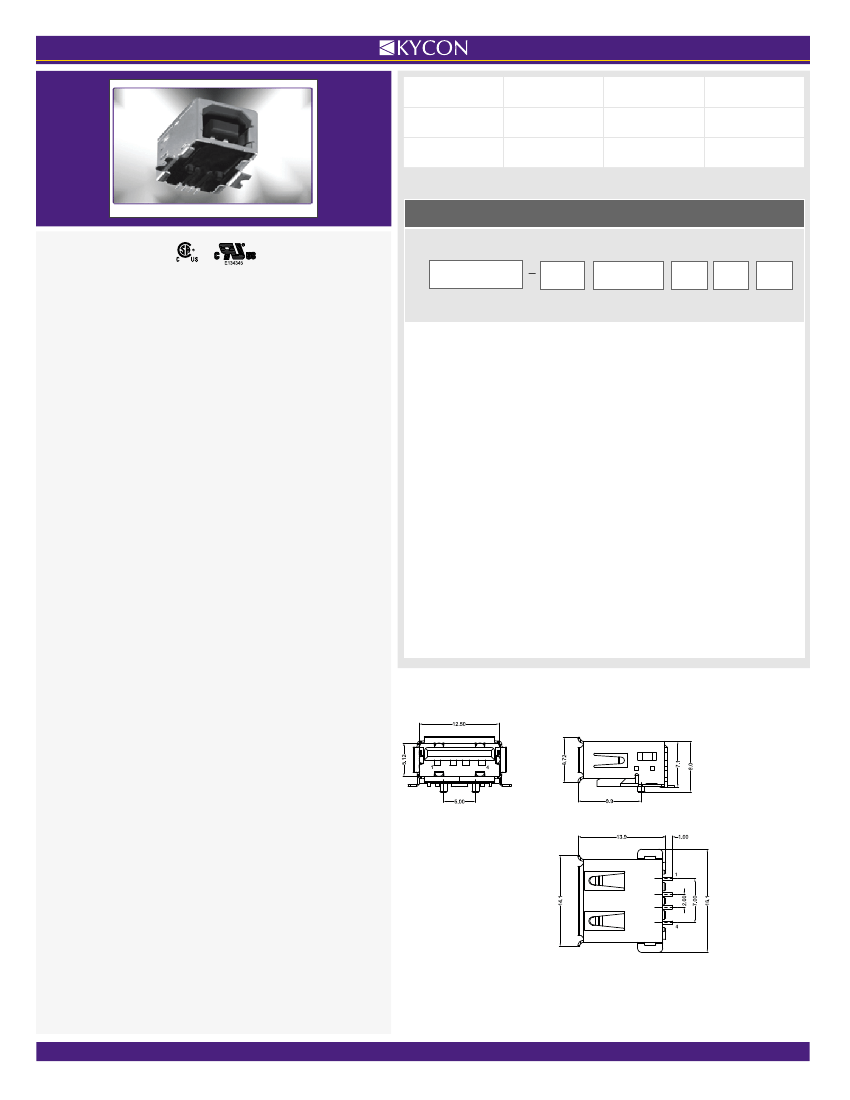

UNIVERSAL SERIAL BUS:

KUSBEX-SMT2 Series

Surface Mount Right Angle USB

Product Features

Surface Mount Contacts with Surface Mount Shield Tabs

Meets USB 2.0 Specifications

A Type Available

Supports Hot Plugging

Contact Area with Gold Plating

CSA/NRTL Certified File No. LR78160

UL File No. E134345

Series

KUSBEX

- Right Angle Universal Serial Bus

Shield Option

SMT2 -

Fully Shielded Surface Mount Receptacle

Type

AS1N -

A Type Fully Shielded Receptacle

Insulator Color Option

B -

Black

Materials and Finish

Insulator

High Temperature, UL 94V-0 Rated,

Black Color

Contacts

Phosphor Bronze

Contact Plating

Standard: Gold Flash on Contact Area, Tin on Soldertails,

All over Nickel Underplate

30 option: 30µ" Gold on Contact Area, Tin on Soldertails,

All over Nickel Underplate

Shell

Brass, Nickel Plated

Performance Specifications

Plating Option

Blank

- Gold Flash

30 -

30µ" Gold Plating

Packaging

- Tape and Reel

Contact Kycon for other options

KUSBEX-SMT2 Series

Dimensions in mm

Electrical Characteristics

Contact

Current Rating:

1A AC/DC

Voltage Rating:

30V AC/DC

Contact Resistance:

20 milliohms Max

Insulation Resistance:

1000 Megohms Min.

Dielectric Withstanding Voltage:

750V AC For 1 Minute

Operating

Temperature:

See Drawing

Phone: +1.408.494.0330

Fax: +1.408.494.0325

WWW.KYCON.COM

0615

KUSBEX-SMT2-AS1N-W30TR Related Products

	KUSBEX-SMT2-AS1N-W30TR	KUSBEX-SMT2-AS1N-B30TR	KUSBEX-SMT2-AS1N-BTR
Description	USB Connectors USB SMT L-PROF A-TYPE RWI 30U	USB Connectors TYPE A USB SMT SOCKET	USB Connectors USB SMT L-PROF A-TYPE RWI
Maker	Kycon	Kycon	Kycon
package instruction	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT
Reach Compliance Code	unknown	unknown	unknown
Is Samacsys	N	N	N
Other features	SHIELDED	SHIELDED	SHIELDED
Board mount options	PEG	PEG	PEG
body width	0.265 inch	0.265 inch	0.265 inch
subject depth	0.547 inch	0.587 inch	0.547 inch
body length	0.555 inch	0.555 inch	0.555 inch
Body/casing type	RECEPTACLE	RECEPTACLE	RECEPTACLE
Connector type	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR
Contact to complete cooperation	GOLD (30) OVER NICKEL	GOLD (30) OVER NICKEL	GOLD FLASH OVER NICKEL
Contact completed and terminated	TIN OVER NICKEL	TIN OVER NICKEL	TIN OVER NICKEL
Contact point gender	FEMALE	FEMALE	FEMALE
Contact material	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE
Contact resistance	20 mΩ	20 mΩ	20 mΩ
Contact style	USB, SER A FLAT	USB, SER A FLAT	USB, SER A FLAT
DIN compliance	NO	NO	NO
Dielectric withstand voltage	750VAC V	750VAC V	750VAC V
empty shell	NO	NO	NO
Filter function	NO	NO	NO
IEC compliance	NO	NO	NO
Insulation resistance	1000000000 Ω	1000000000 Ω	1000000000 Ω
insulator material	THERMOPLASTIC	THERMOPLASTIC	THERMOPLASTIC
MIL compliance	NO	NO	NO
Manufacturer's serial number	KUSBEX-SMT	KUSBEX-SMT	KUSBEX-SMT
Mixed contacts	NO	NO	NO
Installation option 1	LOCKING	LOCKING	LOCKING
Installation method	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD	BOARD
Number of connectors	ONE	ONE	ONE
PCB row number	1	1	1
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR	RECTANGULAR	RECTANGULAR
Plating thickness	30u inch	30u inch	FLASH inch
polarization key	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING
Rated current (signal)	1 A	1 A	1 A
Guideline	UL, CSA	UL, CSA	UL, CSA
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL
Shell material	POLYETHYLENE	POLYETHYLENE	POLYETHYLENE
Termination type	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Total number of contacts	4	4	4
UL Flammability Code	94V-0	94V-0	94V-0
Base Number Matches	1	1	1
