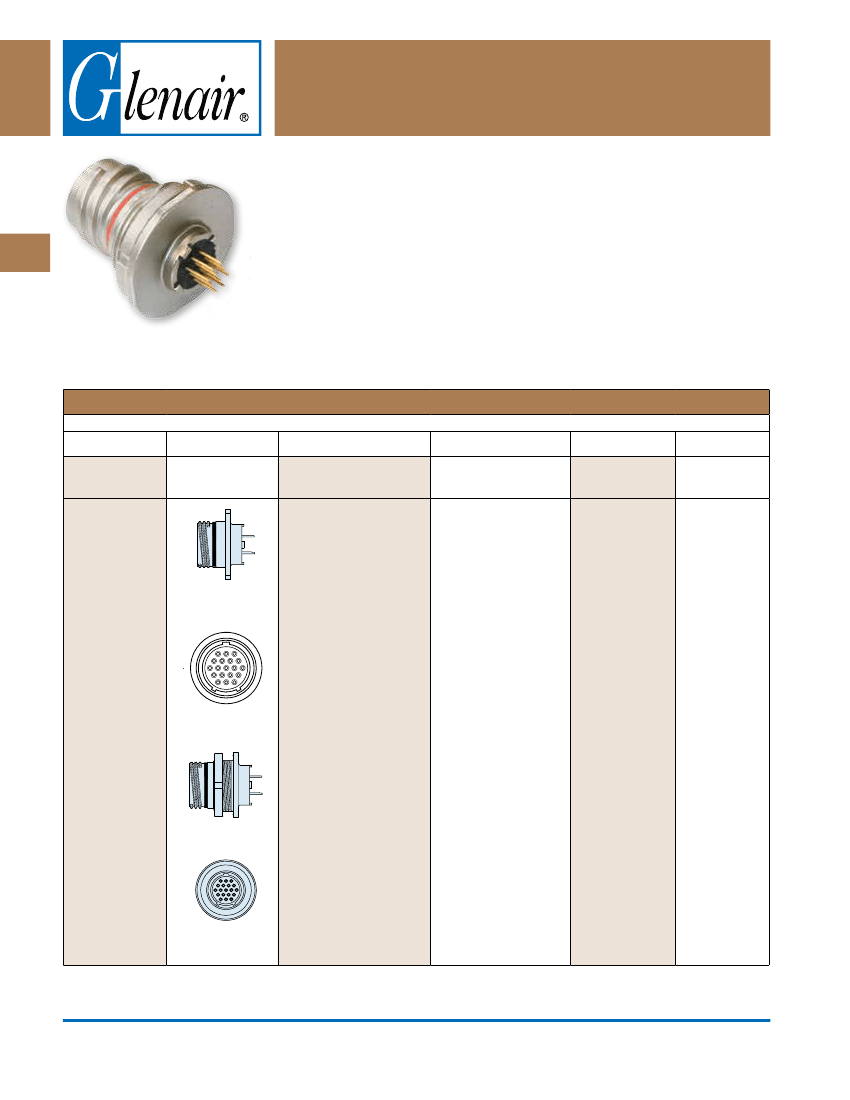

Series 805 Mighty Mouse Hermetic Receptacles
Triple-Start Threaded Ordering Information
Series 80
Mighty Mouse
C
Series 805 Hermetic
Jam Nut Connector
Series 805 Hermetic Receptacles
feature 304L stainless steel shells,
fused vitreous glass insulators and
Alloy 52 iron alloy contacts. Triple-
start ACME thread provides fast
mating and cross-threading protection.
Mating plug connectors feature EMI
springs and ratcheting anti-decoupling
mechanism for resistance to vibration.
1000 PSI open face pressure.
Fluorosilicone seals for water ingress
protection. Contacts are gold-plated
50 microinches minimum.
1 X 10
-7
cc/second
maximum helium
leak rate.
Four Shell Styles:
jam nut, square
flange, solder mount or weld mount.
Solder Cup Contacts
for #22
AWG wire, or
PC Tail Contacts
for
attachment to flexible or rigid circuits.
HOW TO ORDER SERIES 800 HERMETIC RECEPTACLES
805-006
Series
805-006
-07
Shell Style
Z1
Z1
Sample Part Number
12-26
C
Contact Type
P
A
Shell Key
Position
A
B
C
D
E
F
Shell Material / Finish
Shell Size- Insert
Arrangement
Hermetic
Receptacle
Stainless Steel /
Passivated
See Page C-4 for Contact
Arrangements
Pin, Solder Cup
Position A
(Normal)
Position B
Position C
Position D
Position E
Position F
Square Flange
-02
Stainless Steel / Nickel
Plated
ZL
C
Pin, PC Tail
S
Socket, Solder Cup
-03
Solder Mount
*Titanium and Inconel
shell materials are
available. Consult factory
for ordering information.
®
D
Socket, PC Tail
-07
Jam Nut
-13
Weld Mount
Dimensions in Inches (millimeters) are subject to change without notice.
© 2013 Glenair, Inc.
U.S. CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
C-72
E-Mail: sales@glenair.com

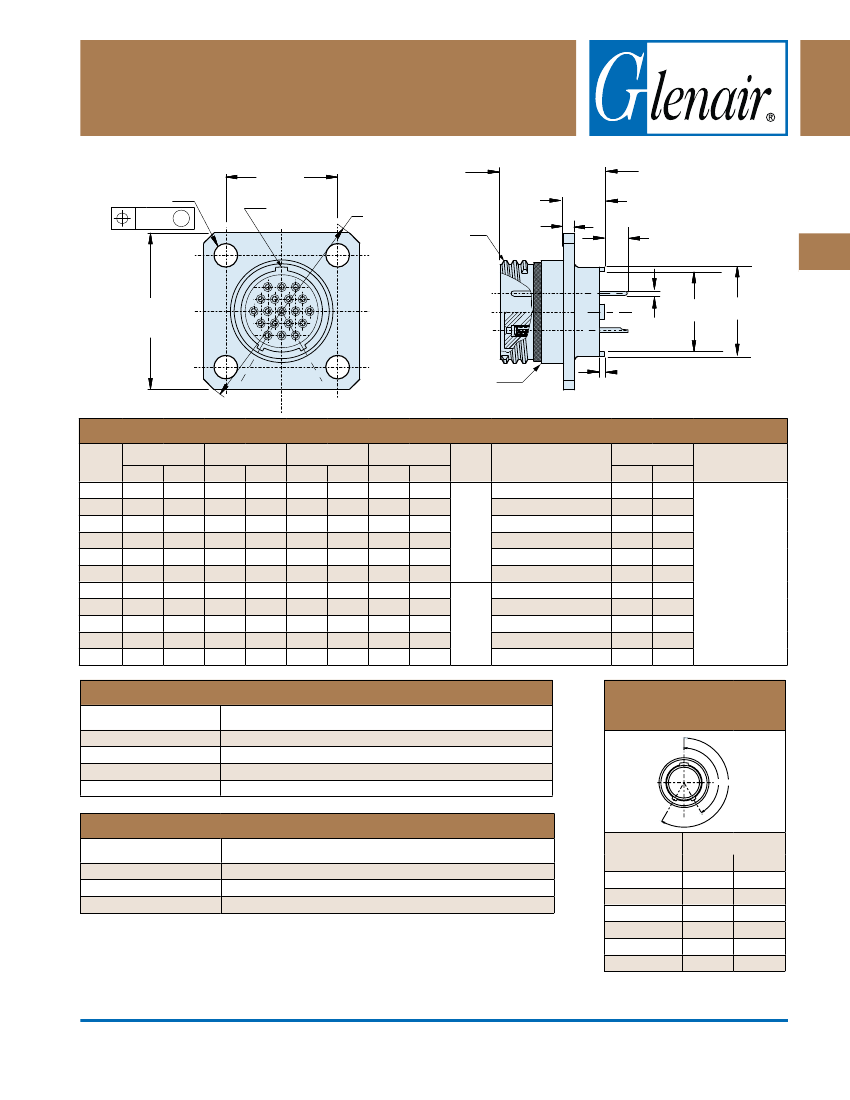

Flange Mount Hermetic Receptacles
B BSC
TYP
MASTER
KEYWAY
ØC
4X ØJ
Ø.005 M
E
THREAD
.890 (22.61) MAX
.222
(5.64)
MAX
.060
(1.52)
.125 (3.18) MIN.
A SQ
TYP
ØR
ØBB
ØM
RED FULL MATE
INDICATOR BAND
4 X .025 (0.64) HEIGHT
4 X .080 (2.03) WIDTH
DIMENSIONS
Shell
Size
8
9
10
11
12
13
15
18
19
21
23
A SQ
In.
.850
.913
.975
1.039
1.099
1.163
1.288
1.475
1.537
1.663
1.787
B BSC
In.
.660
.723
.785
.848
.909
.973
1.058
1.255
1.327
1.452
1.576
BB
In.
.236
.322
.386
.442
.513
.554
.594
.755
.805
.910
1.055
ØC
In.
1.150
1.230
1.330
1.410
1.500
1.590
1.750
2.000
2.094
2.270
2.440
5.99
8.18
9.80
mm.
21.59
23.19
24.77
26.39
27.91
29.54
32.74
37.47
71.06
42.24
44.68
mm.
16.76
18.36
19.94
21.54
23.09
24.71
26.87
31.88
33.71
36.88
40.03
mm.
ØJ
Holes
mm.
.096
.091
(2.44)
(2.31)
K Threads
.5000-.1P-.3L-TS-2A
.5625-.1P-.3L-TS-2A
.6250-.1P-.3L-TS-2A
.6875-.1P-.3L-TS-2A
.7500-.1P-.3L-TS-2A
.8125-.1P-.3L-TS-2A
.9375-.1P-.3L-TS-2A
ØM
In.
.330
.432
.493
.553
.620
.661
.703
.863
.912
1.017
1.162
mm.
8.38
10.97
12.52
14.05
15.75
16.79
17.86
21.92
23.16
25.83
29.51
Tail Dia.
#23
.018/.022
(0.46/0.56)
#20
.024/.028
(0.61/0.71)
#16
.060/.064
(1.52/1.63)
#12
.092/.096
(2.34/2.44)
ØR
29.21
31.24
33.78
35.81
38.10
40.39
44.45
50.80
53.19
57.66
61.98
11.23
13.03
14.07
15.09
19.18
20.45
23.11
26.80
.130 1.1250-.1P-.3L-TS-2A
.126
1.1875-.1P-.3L-TS-2A
(3.30)
(3.20) 1.3125-.1P-.3L-TS-2A
1.4375-.1P-.3L-TS-2A
PERFORMANCE SPECIFICATIONS
DWV (VAC Sea Level)
Insulation Resistance
Operating Temperature
Immersion, Mated
Hermeticity
#23 500 V., #20HD 750 V., #12 AND #16 1800 V.
5000 Megohms Minimum
-55° C. to +150° C.
MIL-STD-810 Method 512. One Meter for One Hour.
1 x 10-7 cc/sec Helium Leak Rate @ 1 Atmosphere Diff.
SERIES 805 KEY
POSITIONS
A° B°
MATERIALS AND FINISHES
Shell
Insulator
Seals
Contacts
304L Stainless Steel
Fused Vitreous Glass
Fluorosilicone Rubber, Blue
Iron Alloy (Alloy 52)
Key
Position
Normal (A)
B
C
D
E
F
Key Rotation
A°
B°
150°
75°
95°
140°
75°
95°
210°
210°
230°
275°
275°
210°
Dimensions in Inches (millimeters) are subject to change without notice.
© 2013 Glenair, Inc.
U.S. CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
C-73
E-Mail: sales@glenair.com
Series 80
Mighty Mouse
805-006-02
Series 805 Mighty Mouse Triple-Start
C
805-006-03
Series 805 Mighty Mouse Triple-Start

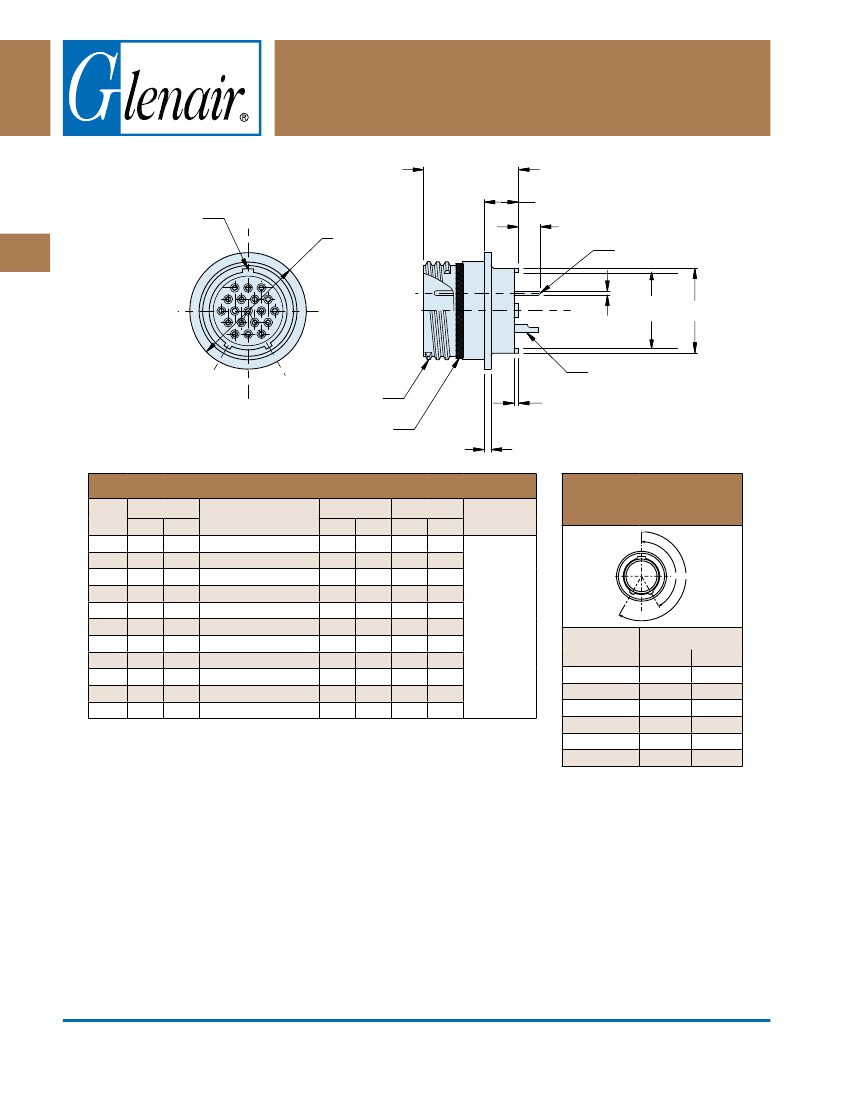

Solder Mount Hermetic Receptacles
.890 (22.61)
MAX
.223 (5.66) MAX
MASTER KEYWAY
.125 (3.18) MIN
PC TAIL
Series 80
Mighty Mouse
C
ØP
ØN
ØR
ØM
SOLDER CUP
K THREAD
RED FULL MATE
INDICATOR BAND
.039 (0.99)
4 X .025 (0.64) HEIGHT
4 X .080 (2.03) WIDTH
DIMENSIONS
Shell
Size
8
9
10
11
12
13
15
18
19
21
23
ØP
In. mm.
.625 15.88
.688 17.48
.750 19.75
.812 20.62
.875 22.23
.938 23.83
1.062 26.97
B Threads
.5000-.1P-.3L-TS-2A
.5625-.1P-.3L-TS-2A
.6250-.1P-.3L-TS-2A
.6875-.1P-.3L-TS-2A
.7500-.1P-.3L-TS-2A
.7500-.1P-.3L-TS-2A
.9375-.1P-.3L-TS-2A
MØ
In.
.330
mm.
8.38
NØ
In.
.236
mm.
5.99
Tail Dia.
#23
.018/.022
(0.46/0.56)
#20
.024/.028
(0.61/0.71)
#16
.060/.064
(1.52/1.63)
#12
.092/.096
(2.34/2.44)
ØR
SERIES 805 KEY
POSITIONS
.432 10.97
.493 12.52
.553 14.05
.620 15.75
.661 16.79
.703 17.86
.322 8.18
.386 9.80
.442 11.23
.513 13.03
.554 14.07
.594 15.09
.755 19.18
.805 20.45
.910 23.11
A° B°
1.250 31.75 1.1250-.1P-.3L-TS-2A
.863 21.92
1.312 33.32 1.1875-.1P-.3L-TS-2A
.912 23.16
1.438 36.53 1.3725-.1P-.3L-TS-2A 1.017 25.83
Key
Position
Normal (A)
B
C
D
E
F
Key Rotation
A°
B°
150°
75°
95°
140°
75°
95°
210°
210°
230°
275°
275°
210°
1.562 39.67 1.4375-.1P-.3L-TS-2A 1.162 29.51 1.055 26.80
Dimensions in Inches (millimeters) are subject to change without notice.
© 2013 Glenair, Inc.
U.S. CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
C-74
E-Mail: sales@glenair.com

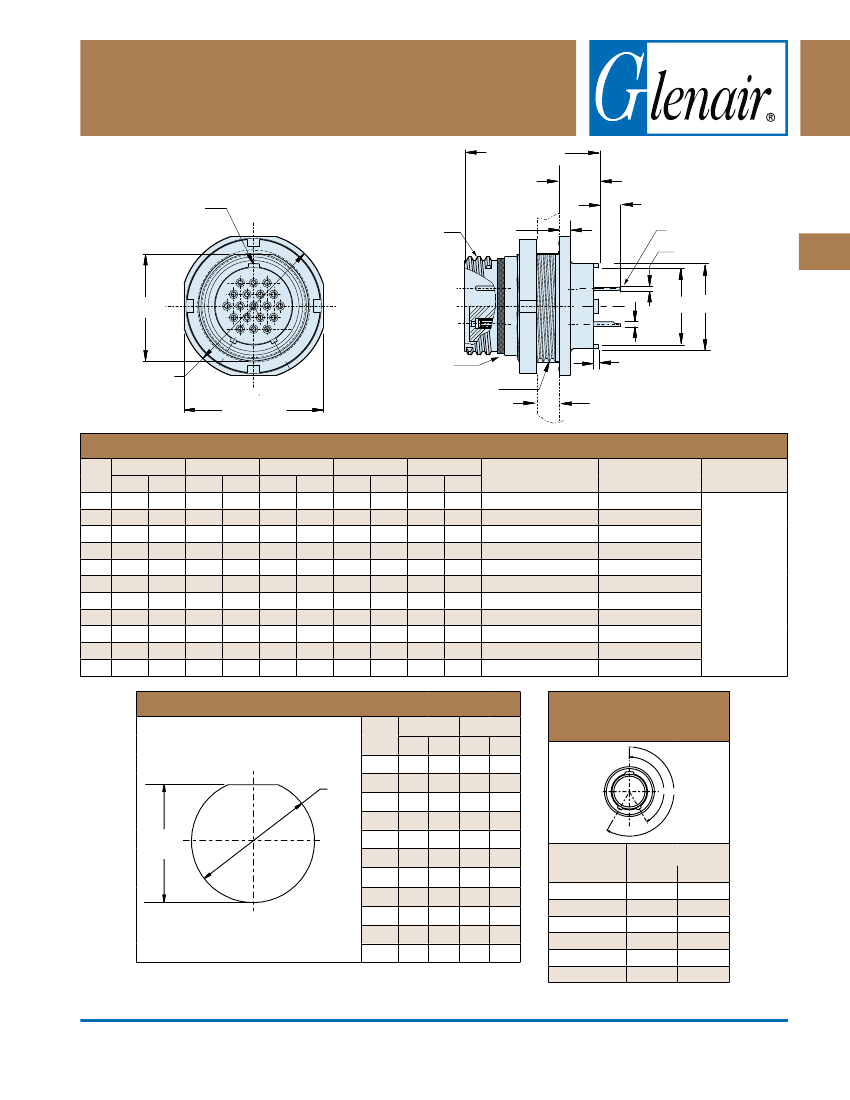

Jam Nut Mount Hermetic Receptacles
1.050 (26.67)
MAX
.171 (4.34)
MASTER
KEYWAY
.125 (3.18) MIN.
K THREAD
.060
(1.52)
PC TAIL
ø .022/.018
F FLAT
øN øM
øR
RED FULL MATE
INDICATOR BAND
L THREAD
4X .025 (0.64) HEIGHT
4X .080 (2.03) WIDTH
.100 (2.54) MAX
PANEL THICKNESS
ØD
E FLAT
2 PL
DIMENSIONS
Shell
Size
8
9
10
11
12
13
15
18
19
21
23
ØD
In.
mm.
.760 19.30
.880 22.35
.880 22.35
E Flat
In.
mm.
.730 18.54
.850 21.59
.850 21.59
F Flat
In.
mm.
In.
.535 13.59
.661 16.79
.661 16.79
.721 18.31
.784 19.91
.843 21.41
ØM
mm.
In.
.236
.322
.386
.330 8.38
.432 10.97
.493 12.52
.553 14.05
.620 15.75
.661 16.79
.703 17.86
.863 21.92
.912 23.16
ØN
mm.
5.99
8.18
9.80
K Thread
L Thread
ØR
Tail Dia.
#23
.018/.022
(0.46/0.56)
#20
.024/.028
(0.61/0.71)
#16
.060/.064
(1.52/1.63)
#12
.092/.096
(2.34/2.44)
.5000-.1P-.3L-TS-2A .5625-28 UNEF-2A
.5625-.1P-.3L-TS-2A
.6875-28 UN-2A
.6250-.1P-.3L-TS-2A
.6875-28 UN-2A
.6875-.1P-.3L-TS-2A
.7500-.1P-.3L-TS-2A
.8125-.1P-.3L-TS-2A
.7500-28 UN-2A
.8125-28 UN-2A
.8750-28 UN-2A
1.0000-28 UN-2A
1.1875-28 UN-2A
1.2500-28 UN-2A
1.3750-28 UN-2A
1.5000-25 UN-2A
.955 24.26 .925 23.50
1.060 26.92 1.035 26.29
1.120 28.45 1.090 27.69
.442 11.23
.513 13.03
.554 14.07
1.203 30.56 1.173 29.79 .970 24.64
1.389 35.28 1.359 34.52 1.147 29.13
1.450 36.83 1.420 36.07 1.221 31.01
.594 15.09 .9375-.1P-.3L-TS-2A
.755 19.18 1.1250-.1P-.3L-TS-2A
.805 20.45 1.1875-.1P-.3L-TS-2A
.910 23.11 1.3125-.1P-.3L-TS-2A
1.580 40.13 1.550 39.37 1.350 34.29 1.017 25.83
1.705 43.31 1.675 42.55 1.470 37.34 1.162 29.51 1.055 26.80 1.4375-.1P-.3L-TS-2A
PANEL CUTOUT FOR JAM NUT RECEPTACLE
ØH
Shell G Flat
Size
In. mm. In. mm.
8
ØH
SERIES 805 KEY
POSITIONS
G
FLAT
9
10
11
12
13
15
18
19
21
23
.547
.543
.673
.669
.673
.669
.733
.729
.796
.792
.853
.849
.982
.978
1.159
1.155
1.233
1.229
1.360
1.356
1.482
1.478
13.89
13.79
17.09
16.99
17.09
16.99
18.62
18.52
20.22
20.12
21.67
21.56
24.94
24.84
29.44
29.34
31.32
31.22
34.54
34.44
37.64
37.54
.575 14.61
.571 14.50
.700 17.78
.696 17.68
.700 17.78
.696 17.68
.762 .19.35
.758 19.25
.825 20.96
.821 20.85
.887 22.53
.883 22.43
1.012
1.008
1.200
1.196
1.262
1.258
1.387
1.383
1.512
1.508
25.70
25.60
30.48
30.38
32.05
31.95
35.23
35.13
38.40
38.30
A° B°
Key
Position
Normal (A)
B
C
D
E
F
Key Rotation
A°
B°
150°
75°
95°
140°
75°
95°
210°
210°
230°
275°
275°
210°
Printed in U.S.A.
Dimensions in Inches (millimeters) are subject to change without notice.
© 2013 Glenair, Inc.
U.S. CAGE Code 06324
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
C-75
E-Mail: sales@glenair.com
Series 80
Mighty Mouse
805-006-07
Series 805 Mighty Mouse Triple-Start
C

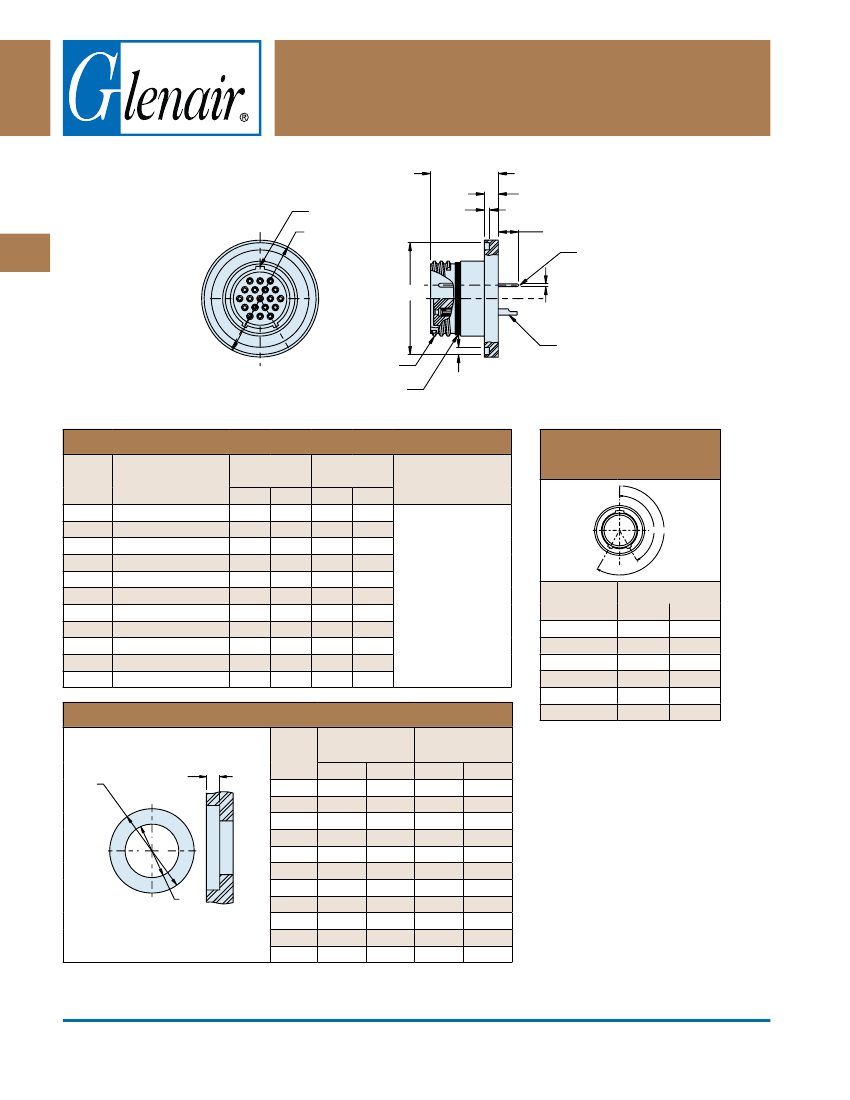

Front Panel Weld Mount Hermetic Receptacles
.850 (21.59)
MAX
MASTER KEYWAY
ØS
.045
(1.14)
805-006-13
Series 805 Mighty Mouse Triple-Start
Series 80
Mighty Mouse
.130 (3.30)
.122 (3.10)
.125 (3.18)
MIN
PC TAIL
C
ØT
ØR
SOLDER CUP
K THREAD
RED FULL MATE
INDICATOR BAND
.071 (1.80)
.059 (1.50)
DIMENSIONS
Shell
Size
8
9
10
11
12
13
15
18
19
21
23
K Thread
.5000-.1p-.3L-TS
.5625-.1p-.3L-TS
.6250-.1p-.3L-TS
.6875-.1p-.3L-TS
.7500-.1p-.3L-TS
.8125-.1p-.3L-TS
.9375-.1p-.3L-TS
1.1250-.1p-.3L-TS
1.1875-.1p-.3L-TS
1.3125-.1p-.3L-TS
1.4375-.1p-.3L-TS
ØS
± .002
In.
mm.
.788
.912
.975
1.038
1.100
1.162
1.288
1.475
1.540
1.665
1.795
20.02
23.16
24.77
26.37
27.94
29.51
32.72
37.47
39.12
42.29
45.59
ØT
± .006
In.
mm.
.745
.869
.933
.995
1.057
1.119
1.245
1.430
1.495
1.620
1.750
18.92
22.07
23.70
25.27
26.85
28.42
31.63
36.32
37.97
41.15
44.45
Tail Dia.
ØR
SERIES 805 KEY
POSITIONS
#23
.018/.022 (0.46/0.56)
#20
.024/.028 (0.61/0.71)
#16
.060/.064 (1.52/1.63)
#12
.092/.096 (2.34/2.44)
A° B°
Key
Position
Normal (A)
B
C
D
E
F
Key Rotation
A°
B°
150°
75°
95°
140°
75°
95°
210°
210°
230°
275°
275°
210°
PANEL CUTOUT FOR WELD MOUNT RECEPTACLE
Shell
Size
8
9
10
11
12
13
15
18
19
21
23
ØU
± .003
In.
.794
.918
.981
1.044
1.106
1.168
1.294
1.481
1.546
1.671
1.801
ØV
Min
In.
.350
.455
.520
.575
.650
.685
.730
.890
.940
1.040
1.190
ØU
.130 (3.30)
.115 (2.92)
mm.
20.16
23.32
24.92
26.52
28.09
29.67
32.87
37.62
39.27
42.44
45.75
mm.
8.89
11.56
13.21
14.61
16.51
17.40
18.54
22.61
23.88
26.42
30.23
ØV
Dimensions in Inches (millimeters) are subject to change without notice.
© 2013 Glenair, Inc.
U.S. CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
C-76
E-Mail: sales@glenair.com
京公网安备 11010802033920号
EEWORLD
