39756-0010: DescriptionPluggable Terminal Blocks PIN HDR BRKBLE VERT 5.0MM 1.3D 10C GRN; CategoryThe connector; File Size148KB，1 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet Parametric Compare View All

39756-0010 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	39756-0010	-	-	View	Buy Now

39756-0010 Overview

Pluggable Terminal Blocks PIN HDR BRKBLE VERT 5.0MM 1.3D 10C GRN

39756-0010 Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	Molex
Product Category	Pluggable Terminal Blocks
RoHS	Not Applicable
Product	Headers
Number of Positions	10 Position
Pitch	5 mm
Factory Pack Quantity	320

Preview

Download Datasheet

View All

10

9

8

7

6

5

4

3

2

1

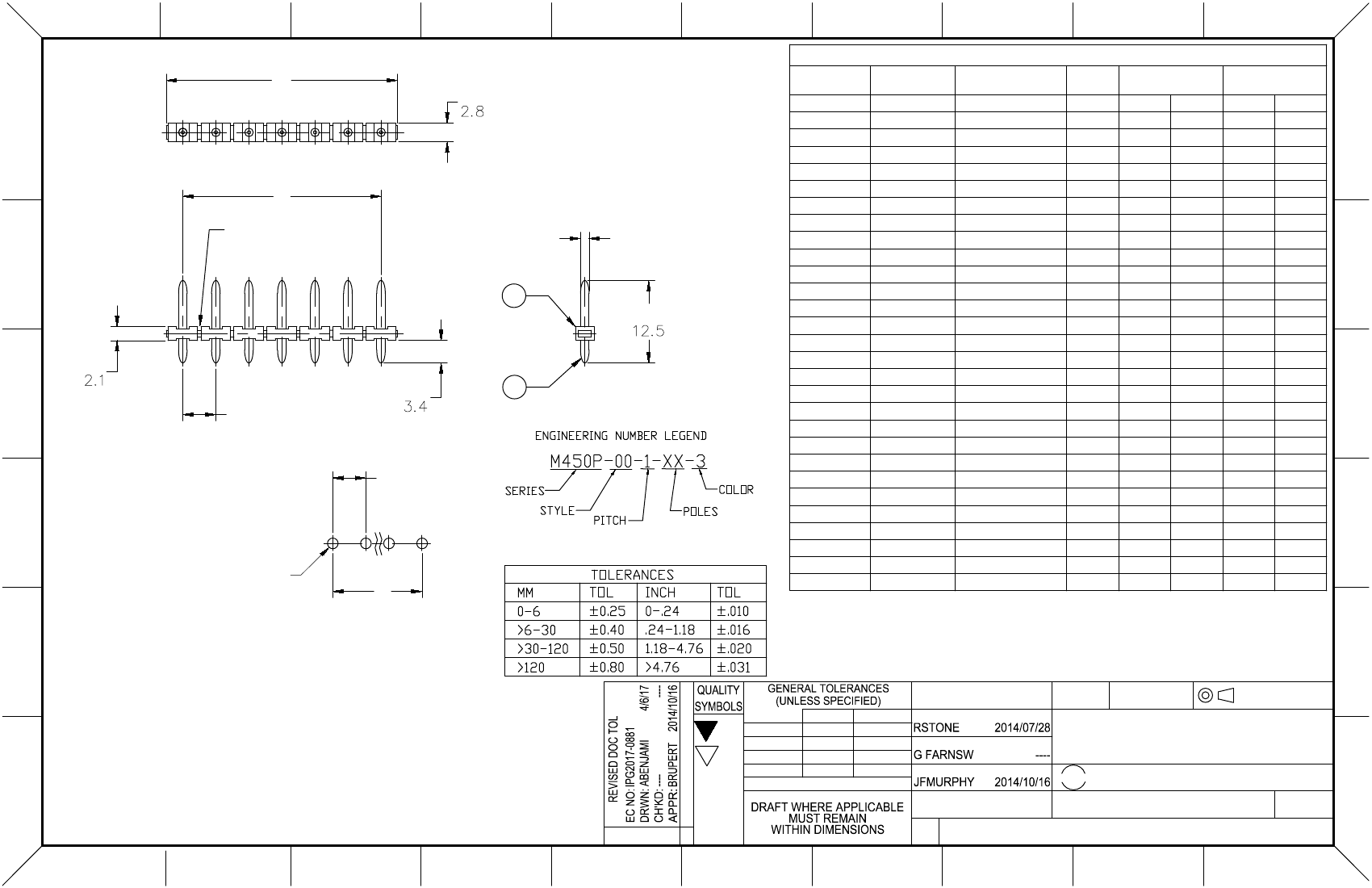

PART NUMBER DATA

A

F

CIRCUITS

.11

B

BREAK FEATURE

1.30

E

A

.49

.08

D

.13

.197

5.00

.197

5.00

B

C

CONTACT FACTORY FOR OPTIONAL COLORS

1.60

B

PCB LAYOUT

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

PART

NUMBER

397560002

397560003

397560004

397560005

397560006

397560007

397560008

397560009

397560010

397560011

397560012

ENGINEERING

NUMBER

M450P-00-1-02-3

M450P-00-1-03-3

M450P-00-1-04-3

M450P-00-1-05-3

M450P-00-1-06-3

M450P-00-1-07-3

M450P-00-1-08-3

M450P-00-1-09-3

M450P-00-1-10-3

M450P-00-1-11-3

M450P-00-1-12-3

M450P-00-1-13-3

M450P-00-1-14-3

M450P-00-1-15-3

M450P-00-1-16-3

M450P-00-1-17-3

M450P-00-1-18-3

M450P-00-1-19-3

M450P-00-1-20-3

M450P-00-1-21-3

M450P-00-1-22-3

M450P-00-1-23-3

M450P-00-1-24-3

M450P-00-1-25-3

M450P-00-1-26-3

M450P-00-1-27-3

M450P-00-1-28-3

M450P-00-1-29-3

M450P-00-1-30-3

COLOR

GREEN

A IN mm

.39

.59

.79

.98

1.18

1.38

1.57

1.77

1.97

2.17

2.36

2.56

2.76

2.95

3.15

3.35

3.54

3.74

3.94

4.13

4.33

4.53

4.72

4.92

5.12

5.31

5.51

5.71

5.91

10.0

15.0

20.0

25.0

30.0

35.0

40.0

45.0

50.0

55.0

60.0

65.0

70.0

75.0

80.0

85.0

90.0

95.0

100.0

105.0

110.0

115.0

120.0

125.0

130.0

135.0

140.0

145.0

150.0

B IN mm

.197

.394

.591

.787

.984

1.181

1.378

1.575

1.772

1.969

2.165

2.362

2.559

2.756

2.953

3.150

3.346

3.543

3.740

3.937

4.134

4.331

4.528

4.724

4.921

5.118

5.315

5.512

5.709

5.00

10.00

15.00

20.00

25.00

30.00

35.00

40.00

45.00

50.00

55.00

60.00

65.00

70.00

75.00

80.00

85.00

90.00

95.00

100.00

105.00

110.00

115.00

120.00

125.00

130.00

135.00

140.00

145.00

F

E

D

C

REF. THE LAST 2 DIGITS OF THE PART NUMBER EQUAL CIRCUIT COUNT

B

DESCRIPTION

SPECIFICATIONS

1.MATERIAL:

A. BODY: PA66, UL94V-0

B. TERMINAL: BRASS.TIN PLATED

2.RATING: 300V, 10A

B

DIMENSION STYLE

SCALE

DESIGN UNITS

IN/MM

---

TITLE

METRIC

THIRD ANGLE

PROJECTION

=

0

C

=

0

A

4 PLACES

3 PLACES

2 PLACES

1 PLACE

mm

---

INCH

---

DRAWN BY

DATE

PIN HEADER BREAKABLE

CHECKED BY

DATE

APPROVED BY

DATE

molex

5.00MM, VERTICAL

1.30MM PIN DIA

MOLEX INCORPORATED

SHEET NO.

A

MATERIAL NO.

DOCUMENT NO.

A1

10

9

8

7

6

REV

5.DIMS SHOWN ARE FOR REFERENCE ONLY

SEE CHART

SIZE

SD-39756-001

2

1

1 OF 1

B

5

4

THIS DRAWING CONTAINS INFORMATION THAT IS PROPRIETARY TO MOLEX

INCORPORATED AND SHOULD NOT BE USED WITHOUT WRITTEN PERMISSION

3
