316-43-108-41-001000 datasheet, PDF

Datasheet> All Categories > The connector> socket> 316-43-108-41-001000

316-43-108-41-001000: DescriptionIC & Component Sockets Interconnect Socket; CategoryThe connector socket; File Size431KB，1 Pages; ManufacturerMill-Max; Websitehttps://www.mill-max.com; Environmental Compliance

Download Datasheet Parametric View All

316-43-108-41-001000 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	316-43-108-41-001000	-	-	View	Buy Now

316-43-108-41-001000 Overview

IC & Component Sockets Interconnect Socket

316-43-108-41-001000 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	SIP
Contact to complete cooperation	GOLD (30) OVER NICKEL (100)
Contact completed and terminated	Tin (Sn)
Contact material	NOT SPECIFIED
Device slot type	IC SOCKET
Type of equipment used	SIP8
Shell material	PLASTIC
JESD-609 code	e3
Number of contacts	8
Base Number Matches	1

Preview

Download Datasheet

View All

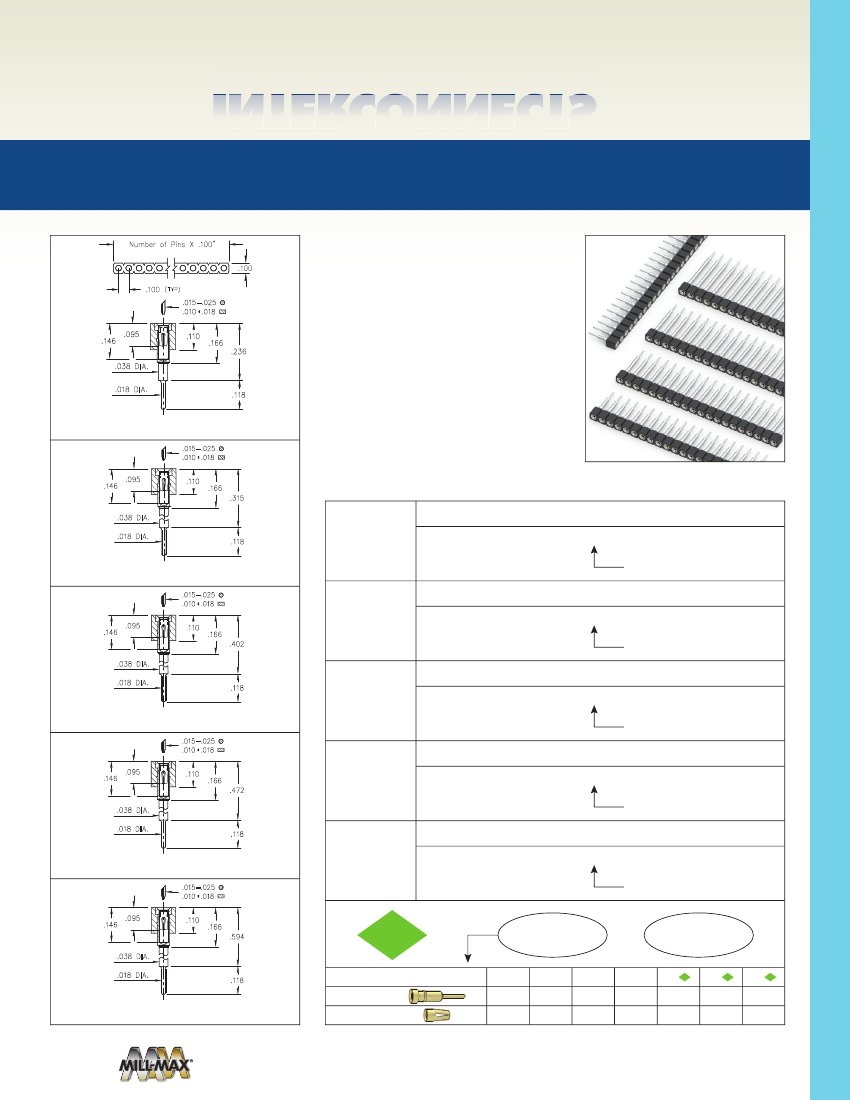

INTERCONNECTS

SERIES 316 • .100” GRID ELEVATED •

SINGLE ROW STRIPS

•

Elevated socket strips are available in 5

di erent heights:

316...006 uses pin # 0153-1

316...003 uses pin # 0153-2

316...007 uses pin # 0153-3

316...008 uses pin # 0153-4

316...001 uses pin # 0153-5

See page 167 for details

.015-.025

.010 .018

.146

.095

.110

.166

.236

.038 DIA.

.018 DIA.

.118

•

Hi-Rel, 4- nger BeCu #30 contact is rated at

3 amps. See page 253 for details

FIG. 1

.015-.025

.010 .018

•

Insulators are high temperature thermoplastic,

suitable for all soldering operations

.146

.095

.110

.166

.315

ORDERING INFORMATION

Series 316...006

Stando Height = .236

316 XX 1_ _ 41 006000

Specify number of pins

01-64

.038 DIA.

.018 DIA.

.118

FIG. 1

Series 316...003

FIG. 2

.015-.025

.010 .018

Stando Height = .315

316 XX 1_ _ 41 003000

.146

.095

.110

.166

.402

FIG. 2

Series 316...007

.118

Specify number of pins

01-64

.038 DIA.

.018 DIA.

Stando Height = .402

316 XX 1_ _ 41 007000

FIG. 3

.015-.025

.010 .018

FIG. 3

Series 316...008

Specify number of pins

01-64

Stando Height = .472

316 XX 1_ _ 41 008000

.146

.095

.110

.166

.472

FIG. 4

Series 316...001

.038 DIA.

.018 DIA.

.118

Specify number of pins

01-64

Stando Height = .594

PAGE 67 | INTERCONNECTS

316 XX 1_ _ 41 001000

FIG. 4

.015-.025

.010 .018

FIG. 5

Specify number of pins

RoHS - 2

01-64

For

Electrical, Mechanical

& Enviromental Data,

See page 264

.146

.095

.110

.166

.594

2011/65/EU

XX=Plating Code

See Below

µ”

.038 DIA.

.018 DIA.

.118

SPECIFY PLATING CODE XX=

Sleeve (Pin)

Contact (Clip)

µ”

200

µ”

200

µ”

200

µ”

Au Flash

200

µ”

Sn/Pb 200

µ”

Sn/Pb

FIG. 5

Mill-Max Mfg. Corp. • 190 Pine Hollow Road, P.O. Box 300, Oyster Bay, NY 11771 • 516-922-6000 • Fax: 516-922-9253 • www.mill-max.com
