154-FWR80-E: DescriptionIEEE 1394 Connectors 6 PIN UPRIGHT; CategoryThe connector; File Size118KB，1 Pages; ManufacturerKobiconn; Environmental Compliance

Download Datasheet Parametric View All

154-FWR80-E Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	154-FWR80-E	-	-	View	Buy Now

154-FWR80-E Overview

IEEE 1394 Connectors 6 PIN UPRIGHT

154-FWR80-E Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	Kobiconn
Product Category	IEEE 1394 Connectors
RoHS	Details
Product	IEEE 1394 Connectors
Connector Type	IEEE 1394 Receptacle
Number of Positions	6 Position
Pitch	0.8 mm
Contact Plating	Gold
Contact Material	Copper Alloy
Gender	Female
Mounting Style	Through Hole
Termination Style	Quick Connect
Mounting Angle	Right
Number of Ports	1
Insulation Resistance	100 MOhms
Maximum Operating Temperature	+ 85 C
Minimum Operating Temperature	+ 15 C
Standard	IEEE 1394
Factory Pack Quantity	100

Preview

Download Datasheet

View All

IEEE 1394 Firewire,

6 Pin Receptacle

154-FWR80-E

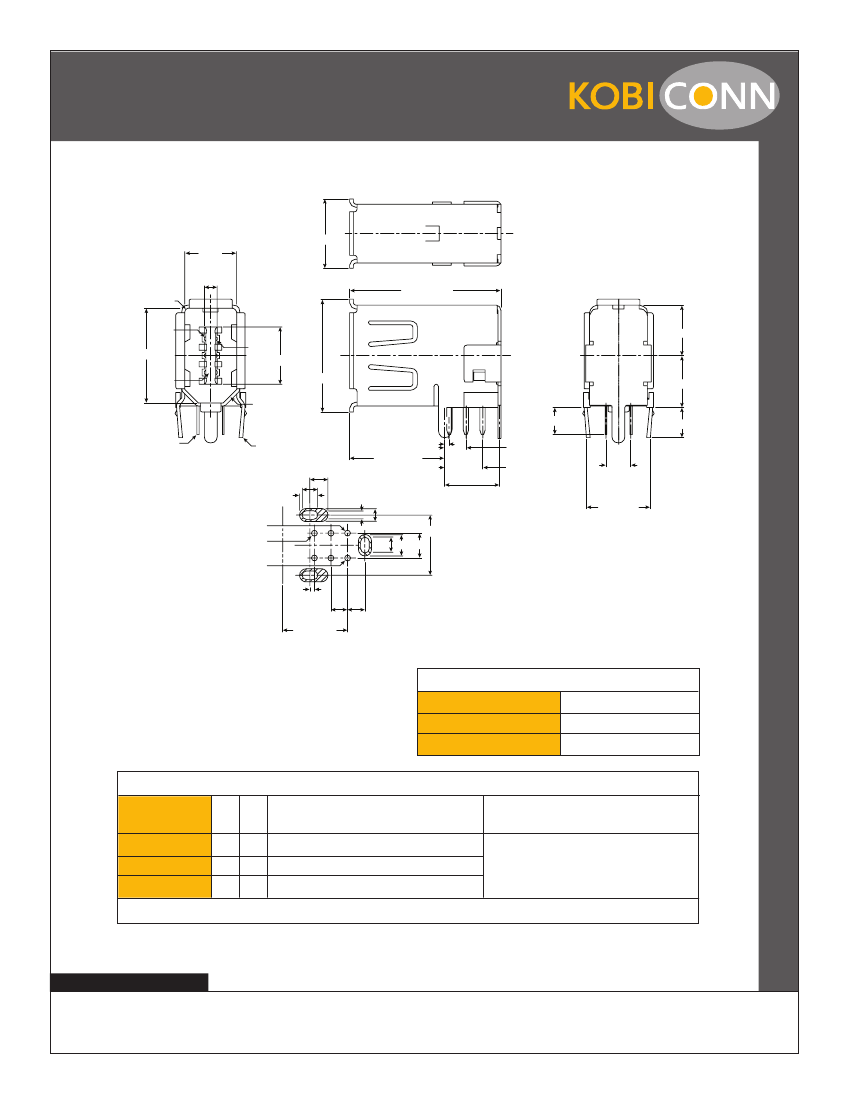

IEEE 1394 Firewire, 6 Pin Receptacle

Dimensions: mm (In.)

6.20

(.24)

1.48 (.05)

R 0.4 (.085)

Pin 1

11.30 (.44)

2

Pin 2

6.9 (.27)

8.3 (.32)

18.1 (.71)

6.0 (.23)

13.5 (.53)

C1.6 (.06)

3.2 (.125)

6.25 (.24)

3.59 (.14)

3

1

2.0 Typ.

0.55 (.02)

11.35 ±0.10

(.44 ±.003)

6.55 (.25) Ref.

1.6 Typ.

7.2

2.0 2.6 3.0

2.55 (.10) Ref.

4.55 (.17) Ref.

3.00 ±0.15

(.11 ±.005)

7.62 ±0.2

(.3 ±.007)

1.4

Pin 1

ø0.80 ±0.05(6X)

Pin 2

2.0

1.0 Typ.

0.55

2.0 Typ.

7.8 Min.

2.0

Notes

Withstanding Voltage:

Insulation Resistance:

Contact Resistance:

DC 500 ±50V

100 Megohms min.

30 Milliohms max.

SPECIFICATIONS

Part Name

Contacts:

Housing:

Shell:

Item Qty.

3

2

1

6

1

Material

Copper Alloy/ Selective Gold Plated

Thermoplastic

Copper Alloy/ Tin-Lead Plated over Nickel

RoHS Compliant

Note

30μ” Gold Plating

154-FWR80-E

30μ” Terminal for Phoshor Bronze

Date Last Revised: 7-12-06

Available from Mouser Electronics

1-800-346-6873

www.mouser.com

KC-300998

Specifications are subject to change without notice. No liability or warranty implied by this information. Environmental compliance based on producer documentation.
