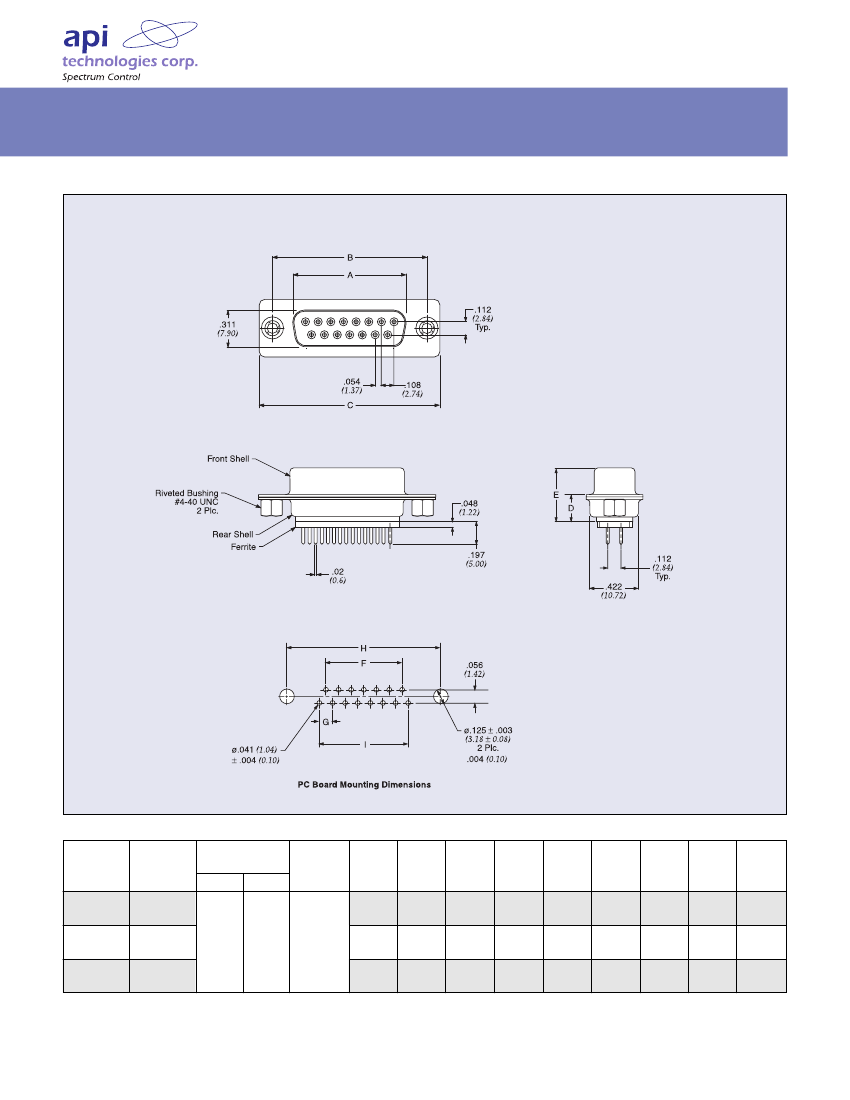

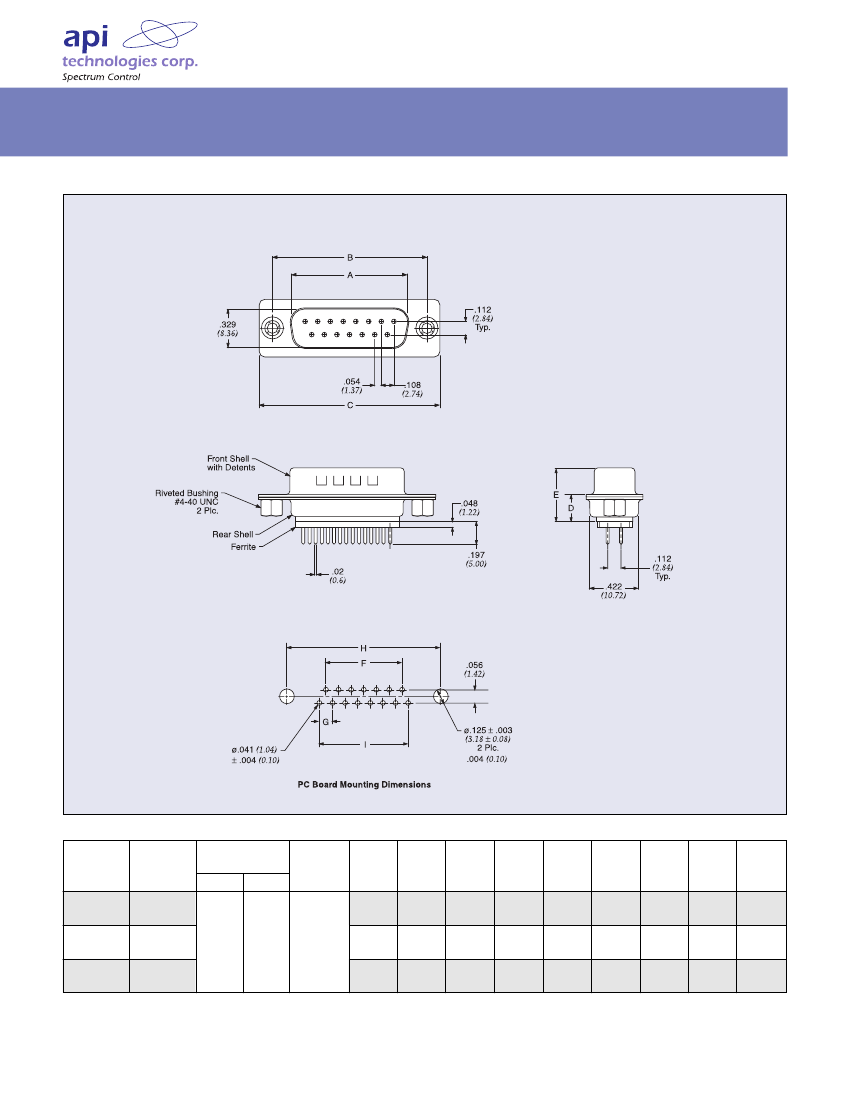

Series F Ferrite Filtered
Connectors

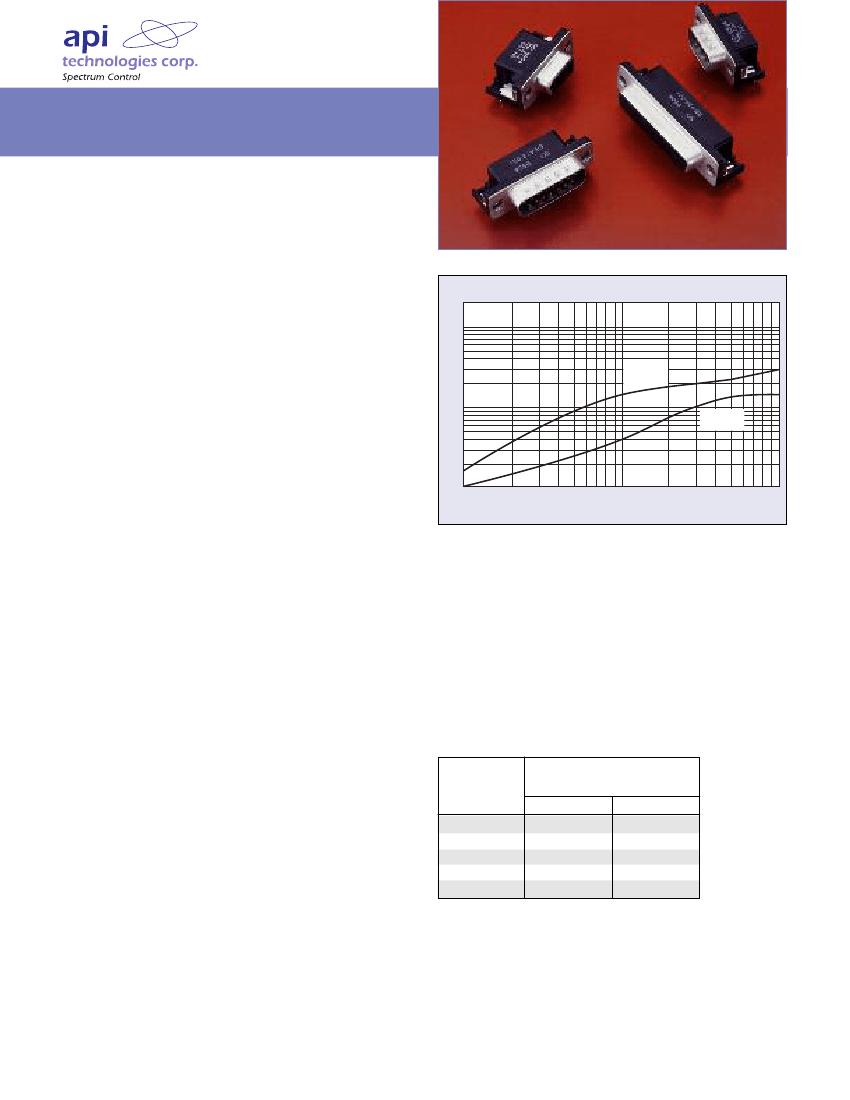

The Series F filtered D-subminiature connectors
incorporate a solid slab of ferrite material as the filtering
element. This rugged one-piece design provides a
com-pact connector that is a drop-in replacement for
standard connectors. The ferrite material has been
chosen for optimum filtering performance in the 10
to 300 MHz range.
Impedance (ohms)
100
50
25
10
5
1
5
10
25
Series F Applications
I
I
Personal computers, microcomputer-applied products
and peripheral/terminal equipment
Eliminates common-mode noise along data lines in
data communication terminals and digital equipment
Right
Angle
Features
I
I
I
I
I
I
I
I
I
I
I
I
Vertical
Angle
Low cost, high performance ferrite filter
No distortion of wave forms
Replaces individual ferrite bead filters, saving cost
and space
Provides both pin to ground and pin to pin filtering
Effective in helping meet requirements of FCC, VDE,
EN55022 and Japan’s VCCI
Short, space saving .318" footprint
Interchangeable with standard
D-subminiature connectors
Can be installed directly over PCB trace pattern
with no shorting
4–40 UNC locking insert eliminates loose hardware
Metal shielding front shell
Gold plated contacts
RoHS compliant versions available
(replace 56- with 56F)
Frequency (MHz)
50
100
Mechanical Specifications
Front Shell.
. . . . . . . Steel (Tin plated)
Housing
. . . . . . . . . UL 94V-0 Rated thermoplastic, black
Contacts
. . . . . . . . . Phosphor bronze (sockets)
. . . . . . . . . . . . . . . .
or brass (pins)
Contact
Plating
. . . . . . . . . . Gold Flash (<10µ in.) over nickel
Operating
Temperature.
. . . . . . –40°C to +105°C
Electrical Specifications
Frequency
(MHz)
1
10
30
50
100
Right Angle
2
15
20
23
27
Impedance
(Ohms)
Vertical
1
6
10
12
15
Frequency
Range
. . . . . . . . . . . 10 – 300 MHz
Current
Rating
. . . . . . . . . . . 5 Amps
Dielectric
Withstand Voltage
. . 1000 VAC for one minute
Insulation
Resistance
. . . . . . . . 1000 megohms Min. @ 500VDC
API TECHNOLOGIES
• 8061 Avonia Rd. • Fairview, PA 16415 • Ph: 814-474-1571 • Fax: 814-474-3110 • eis.apitech.com
API TECHNOLOGIES’ SPECTRUM CONTROL GmbH
• Hansastrasse 6 • 91126 Schwabach, Germany • Phone: (49)-9122-795-0 • Fax: (49)-9122-795-58
FC3
Series F Ferrite Filtered
Connectors

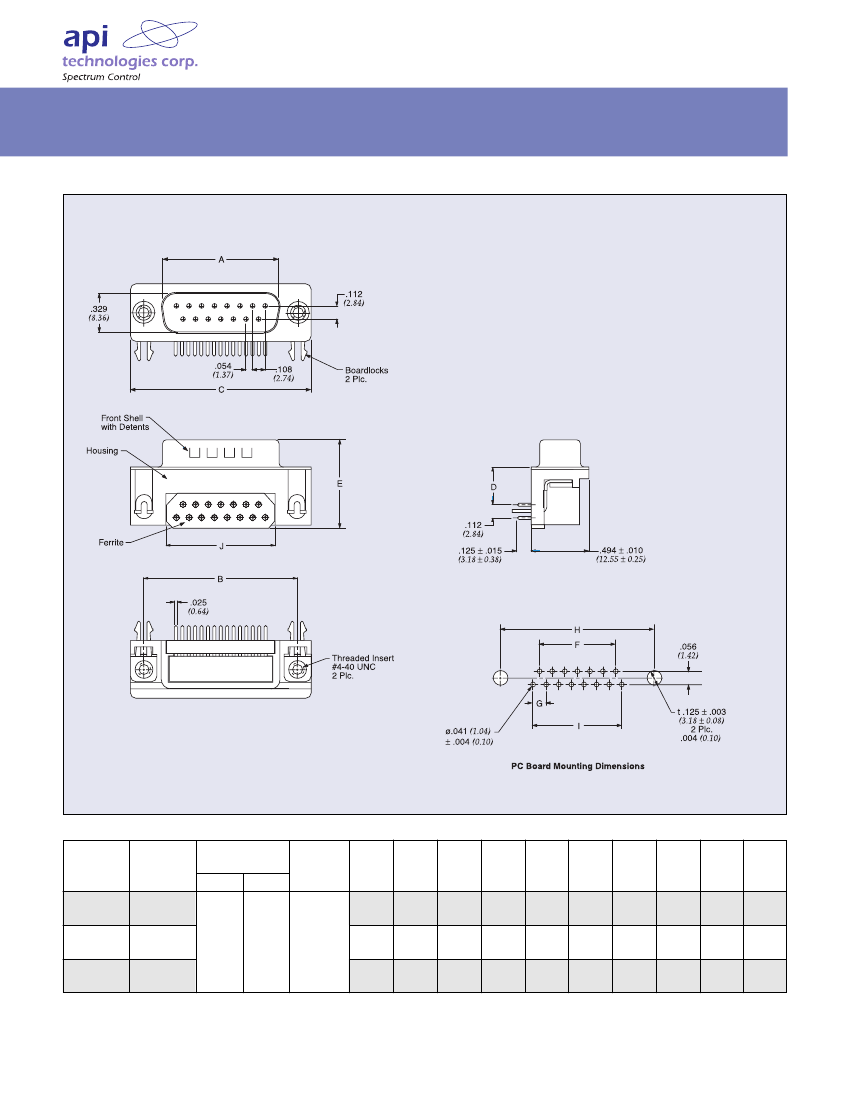

Pin Contact – Right Angle Mount
Part
Number
€
56-402-001
€
56-412-001
€
56-422-001
€
Description 30 MHz 100 MHz
D-Sub
9 pin
D-Sub
15 pin
D-Sub
25 pin
Typ. Impedance
(Ohms)
Frequency
Range
10
MHz
A+/-
0.010
(0.25)
0.666
(16.92)
0.994
(25.25)
1.534
(38.96)
B +/-
0.005
(0.13)
0.984
(25.00)
1.312
(33.32)
1.852
(47.04)
C +/-
0.015
(0.38)
1.213
(30.81)
1.541
(39.14)
2.088
(53.04)
D +/-
0.010
(0.25)
0.318
(8.08)
0.318
(8.08)
0.318
(8.08)
E +/-
0.015
(0.38)
0.751
(19.10)
0.751
(19.10)
0.751
(19.10)
F +/-
0.005
(0.13)
0.324
(8.22)
0.648
(16.46)
1.196
(30.36)
G +/-
0.004
(0.10)
0.108
(2.74)
0.108
(2.74)
0.110
(2.76)
H +/-
0.005
(0.13)
0.984
(25.00)
1.312
(33.32)
1.852
(47.04)
I +/-
0.005
(0.13)
0.432
(10.98)
0.756
(19.20)
1.304
(31.12)
J +/-
0.005
(0.13)
0.606
(15.40)
0.929
(23.60)
1.476
(37.50)
20
27
to
300
MHz
Also available through API’s authorized European distributors/agents.
Dimensions in inches
(mm)
API TECHNOLOGIES
• 8061 Avonia Rd. • Fairview, PA 16415 • Ph: 814-474-1571 • Fax: 814-474-3110 • eis.apitech.com
API TECHNOLOGIES’ SPECTRUM CONTROL GmbH
• Hansastrasse 6 • 91126 Schwabach, Germany • Phone: (49)-9122-795-0 • Fax: (49)-9122-795-58
FC4
*
High-Density
Series F Ferrite Filtered
Connectors
Socket Contact – Right Angle Mount
.350
(8.89)
SCI Part Number
and Date Code
.100
(2.54)
Typ.
.138
±
.010
(3.50
±
0.25)
.984
(24.99)
.045
(1.14)
Typ.
.125
±
.003 Dia.
(3.18
±
0.08)
.004
(0.10)
2 Holes
.277
(7.04)
Posn. No. Ref.
Typ.
.100
(2.54)
.494
±
.010
(12.55
±
0.25)
15
6
5
1 2
.090
(2.29)
Typ.
PC Board Mounting Dimensions
.047
±
.002 Dia.
(1.19
±
0.05)
.006
(0.15)
15 Holes
.100
(2.54)
Part
Number
€
56-404-001
€
56-414-001
€
56-424-001
€
56-414-001-HD
Description
D-Sub
9 socket
D-Sub
15 socket
D-Sub
25 socket
Hi-Density
15 socket
Frequency
30 MHz 100 MHz
Range
10
MHz
to
300
MHz
16
26
Typ. Impedance
(Ohms)
A+/-
0.010
(0.25)
0.643
(16.33)
0.971
(24.66)
1.511
(38.38)
0.643
(16.33)
B +/-
0.005
(0.13)
0.984
(25.00)
1.312
(33.32)
1.852
(47.04)
0.984
(25.00)
C +/-
0.015
(0.38)
1.213
(30.81)
1.541
(39.14)
2.088
(53.04)
1.213
(30.81)
D +/-
0.010
(0.25)
0.318
(8.08)
0.318
(8.08)
0.318
(8.08)
E +/-
0.015
(0.38)
0.755
(19.20)
0.755
(19.20)
0.755
(19.20)
F +/-
0.005
(0.13)
0.324
(8.22)
0.648
(16.46)
1.196
(30.36)
G +/-
0.004
(0.10)
0.108
(2.74)
0.108
(2.74)
0.110
(2.76)
H +/-
0.005
(0.13)
0.984
(25.00)
1.312
(33.32)
1.852
(47.04)
I +/-
0.005
(0.13)
0.432
(10.98)
0.756
(19.20)
1.304
(31.12)
J +/-
0.005
(0.13)
0.606
(15.40)
0.929
(23.60)
1.476
(37.50)
20
27
*
See inset drawing
Dimensions in inches
(mm)
€
Also available through API’s authorized European distributors/agents.
API TECHNOLOGIES
• 8061 Avonia Rd. • Fairview, PA 16415 • Ph: 814-474-1571 • Fax: 814-474-3110 • eis.apitech.com
API TECHNOLOGIES’ SPECTRUM CONTROL GmbH
• Hansastrasse 6 • 91126 Schwabach, Germany • Phone: (49)-9122-795-0 • Fax: (49)-9122-795-58
FC5
Series F Ferrite Filtered
Connectors
Pin Contact – Vertical Mount
Part
Number
56-407-001
56-417-001
56-427-001
Description 30 MHz 100 MHz
D-Sub
9 pin
D-Sub
15 pin
D-Sub
25 pin
Typ. Impedance
(Ohms)
Frequency
Range
10
MHz
A+/-
0.010
(0.25)
0.666
(16.92)
.994
(25.25)
1.534
(38.96)
B +/-
0.005
(0.13)
0.984
(25.00)
1.312
(33.32)
1.852
(47.04)
C +/-
0.015
(0.38)
1.213
(30.81)
1.541
(39.14)
2.088
(53.04)
D +/-
0.010
(0.25)
0.236
(5.99)
0.236
(5.99)
0.236
(5.99)
E +/-
0.015
(0.38)
0.468
(11.88)
0.468
(11.88)
0.468
(11.88)
F +/-
0.005
(0.13)
0.324
(8.22)
0.648
(16.46)
1.196
(30.36)
G +/-
0.004
(0.10)
0.108
(2.74)
0.108
(2.74)
0.110
(2.76)
H +/-
0.005
(0.13)
0.984
(25.00)
1.312
(33.32)
1.852
(47.04)
I +/-
0.005
(0.13)
0.432
(10.98)
0.756
(19.20)
1.304
(31.12)
10
15
to
300
MHz
Dimensions in inches
(mm)
API TECHNOLOGIES
• 8061 Avonia Rd. • Fairview, PA 16415 • Ph: 814-474-1571 • Fax: 814-474-3110 • eis.apitech.com
API TECHNOLOGIES’ SPECTRUM CONTROL GmbH
• Hansastrasse 6 • 91126 Schwabach, Germany • Phone: (49)-9122-795-0 • Fax: (49)-9122-795-58
FC6
Series F Ferrite Filtered
Connectors
Socket Contact – Vertical Mount
Part
Number
56-403-001
56-413-001
56-423-001
Description 30 MHz 100 MHz
D-Sub
9 socket
Typ. Impedance
(Ohms)
Frequency
Range
10
MHz
A+/-
0.010
(0.25)
0.643
(16.33)
.971
(24.66)
1.511
(38.38)
B +/-
0.005
(0.13)
0.984
(25.00)
1.312
(33.32)
1.852
(47.04)
C +/-
0.015
(0.38)
1.213
(30.81)
1.541
(39.14)
2.088
(53.04)
D +/-
0.010
(0.25)
0.236
(5.99)
0.236
(5.99)
0.236
(5.99)
E +/-
0.015
(0.38)
0.472
(11.98)
0.472
(11.98)
0.472
(11.98)
F +/-
0.005
(0.13)
0.324
(8.22)
0.648
(16.46)
1.196
(30.36)
G +/-
0.004
(0.10)
0.108
(2.74)
0.108
(2.74)
0.110
(2.76)
H +/-
0.005
(0.13)
0.984
(25.00)
1.312
(33.32)
1.852
(47.04)
I +/-
0.005
(0.13)
0.432
(10.98)
0.756
(19.20)
1.304
(31.12)
D-Sub
15 socket
D-Sub
25 socket
10
15
to
300
MHz
Dimensions in inches
(mm)
API TECHNOLOGIES
• 8061 Avonia Rd. • Fairview, PA 16415 • Ph: 814-474-1571 • Fax: 814-474-3110 • eis.apitech.com
API TECHNOLOGIES’ SPECTRUM CONTROL GmbH
• Hansastrasse 6 • 91126 Schwabach, Germany • Phone: (49)-9122-795-0 • Fax: (49)-9122-795-58
