F10-2802746R datasheet, PDF - EEWORLD Datasheet

F10-2802746R: DescriptionFFC & FPC Connectors 27 WAY SMT HRZ BOTTOM CONT 1500/RL; CategoryThe connector The connector; File Size632KB，2 Pages; ManufacturerHarwin; Websitehttp://www.harwin.com/; Environmental Compliance

Download Datasheet Parametric View All

F10-2802746R Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	F10-2802746R	-	-	View	Buy Now

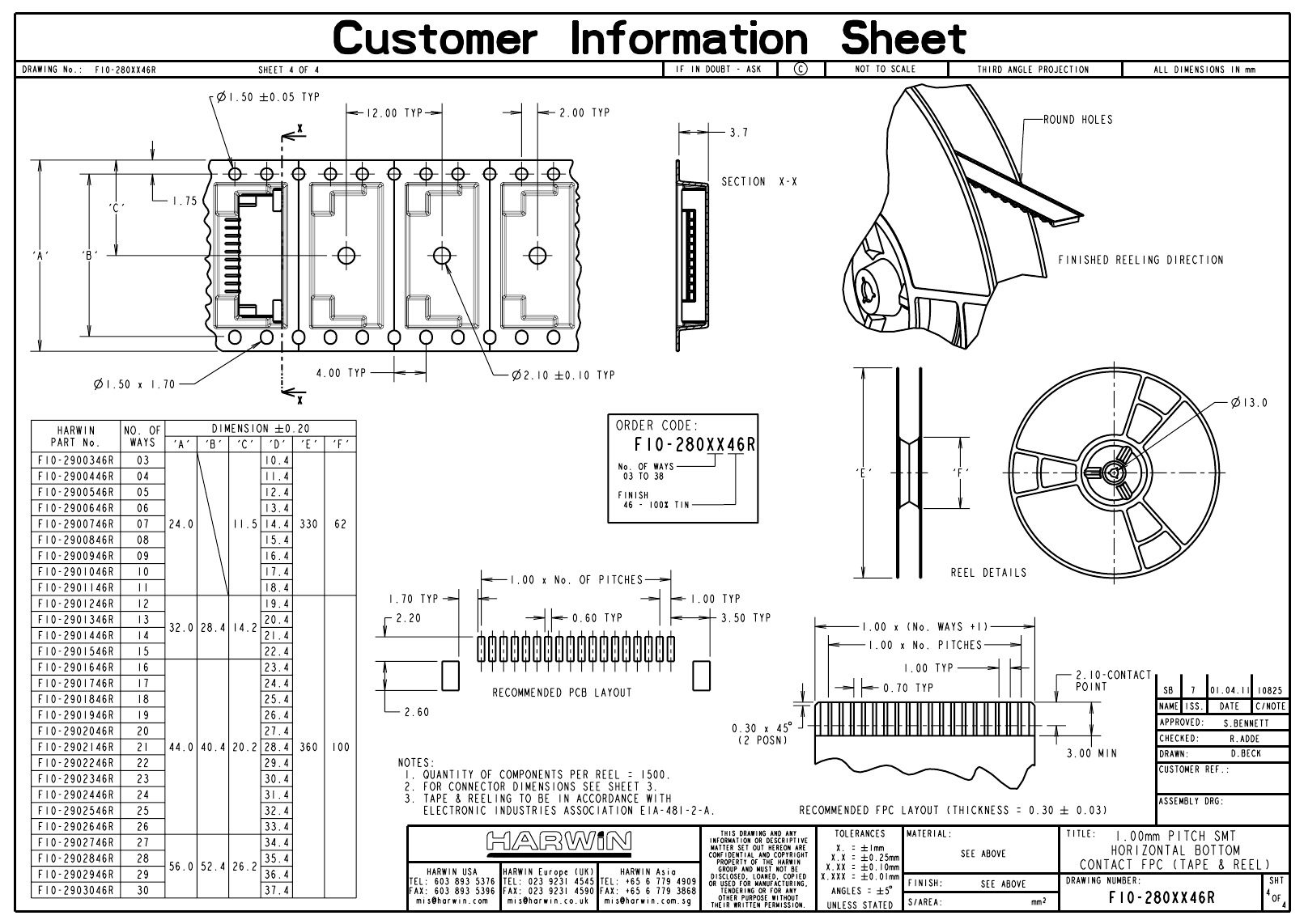

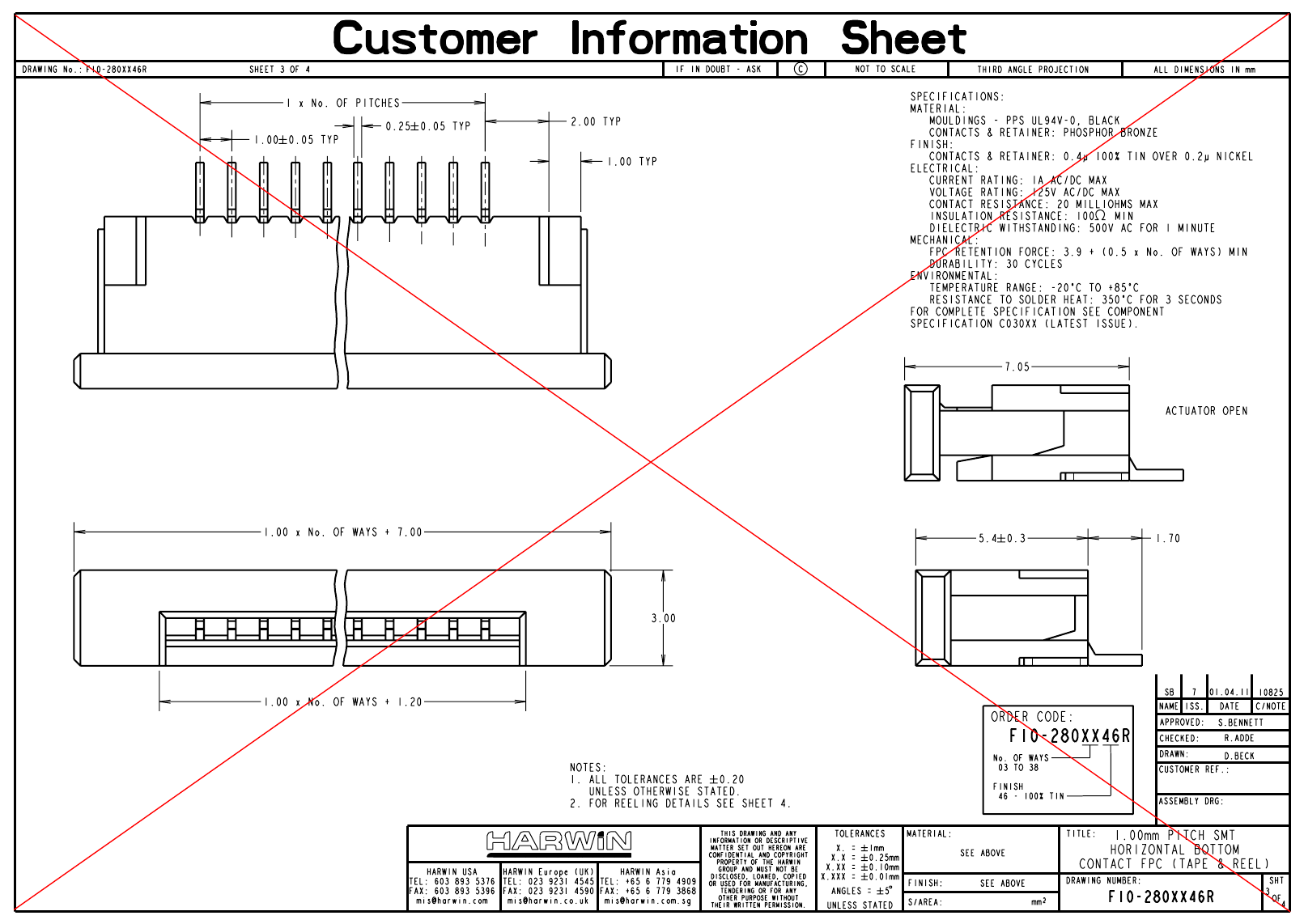

FFC & FPC Connectors 27 WAY SMT HRZ BOTTOM CONT 1500/RL

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	LEAD FREE
Reach Compliance Code	not_compliant
ECCN code	EAR99
Other features	BOTTOM CONTACT, ZIF
body width	0.118 inch
subject depth	0.213 inch
body length	1.339 inch
Connector type	FFC/FPC CONNECTOR
Contact to complete cooperation	TIN (16) OVER NICKEL (8)
Contact completed and terminated	Matte Tin (Sn)
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	BELLOWED TYPE
DIN compliance	NO
Dielectric withstand voltage	500VAC V
Durability	30 Cycles
Filter function	NO
IEC compliance	NO
Insulation resistance	100000000 Ω
Insulator color	BLACK
insulator material	POLYPHENYLENE SULPHIDE
JESD-609 code	e3
MIL compliance	NO
Plug contact pitch	0.039 inch
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	85 °C
Minimum operating temperature	-20 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
Plating thickness	16u inch
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	1 mm
Termination type	SURFACE MOUNT
Total number of contacts	27
UL Flammability Code	94V-0
Base Number Matches	1

OBSOLETE
