54020-32030PT: DescriptionIC & Component Sockets PLCC THRU-HOLE 32P; CategoryThe connector; File Size157KB，2 Pages; ManufacturerFCI / Amphenol; Environmental Compliance

Download Datasheet Parametric Compare View All

54020-32030PT Overview

IC & Component Sockets PLCC THRU-HOLE 32P

54020-32030PT Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	FCI / Amphenol
Product Category	IC & Component Sockets
RoHS	Details
Product	PLCC Sockets
Number of Positions	32 Position
Pitch	2.54 mm
Termination Style	Solder Pin
Contact Plating	Tin
Packaging	Tube
Current Rating	1 A
Housing Material	Polyphenylene Sulfide (PPS)
Voltage Rating	250 VAC
Case Style	PLCC
Contact Material	Copper Alloy
Flammability Rating	UL 94 V-0
Mounting Style	Through Hole
Maximum Operating Temperature	+ 105 C
Minimum Operating Temperature	- 40 C

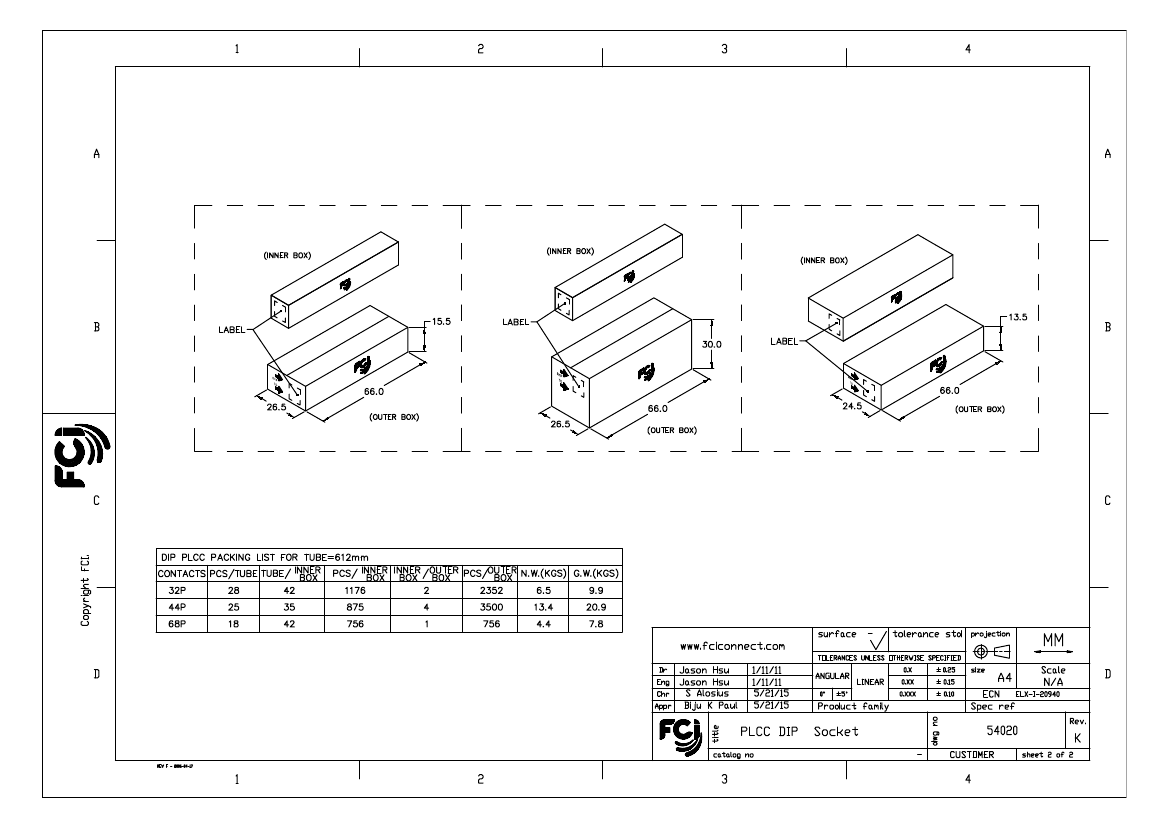

Factory Pack Quantity	28

Preview

Download Datasheet

View All

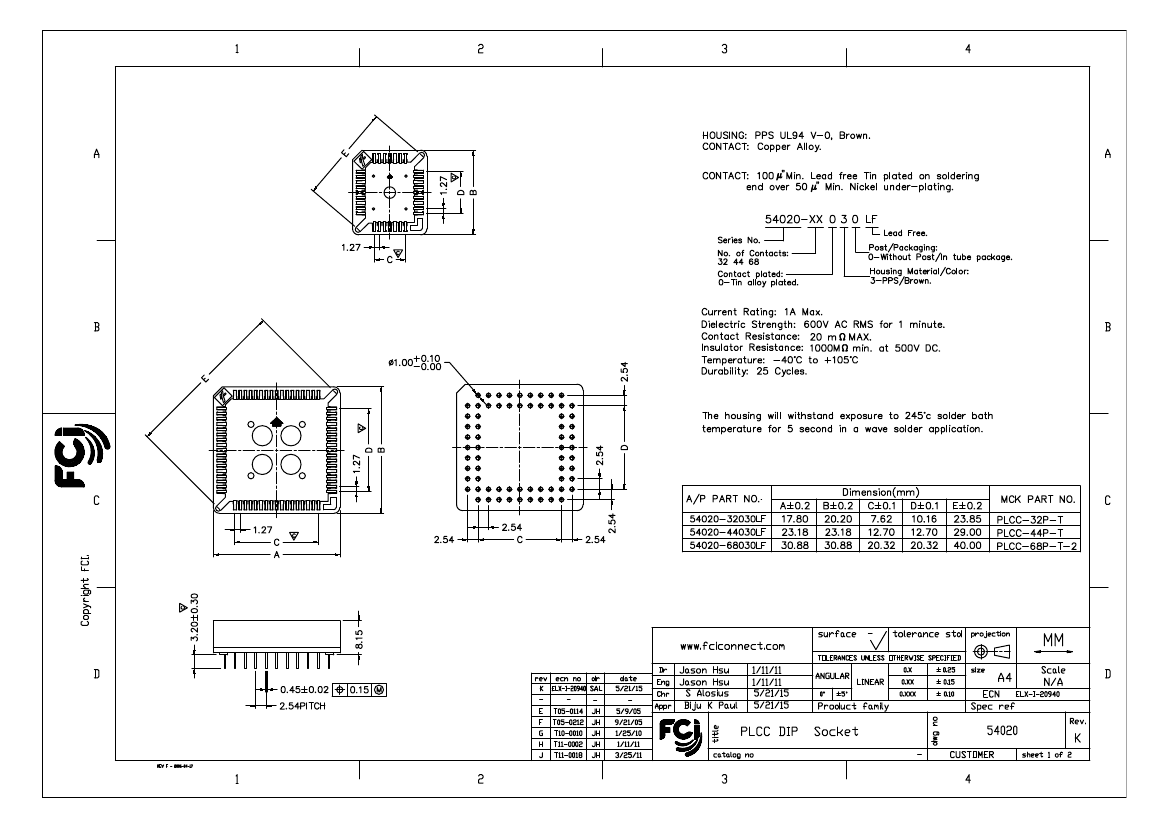

NOTES:

1 MATERIAL:

2 FINISH:

3 ORDER INFORMATION:

ABOVE FOR 32 COUNTS ONLY

4 SPECIFICATION:

5 PRODUCT SPECIFICATION: GES-12-054.

6 MANUFACTURING PROCESS COMPATIBILITY

(RECOMMENDED PCB LAYOUT)

ABOVE FOR 44 AND 68 COUNTS

PDS: Rev :K

STATUS:Released

Printed: May 29, 2015

54020-32030PT Related Products

	54020-32030PT	54020-68030PT	54020-32030LF	54020-44030PT	54020-44030LF
Description	IC & Component Sockets PLCC THRU-HOLE 32P	IC & Component Sockets PLCC THRU-HOLE 52P	IC & Component Sockets PLCC THRU-HOLE 32P	IC & Component Sockets PLCC THRU-HOLE 44P	IC & Component Sockets PLCC THRU-HOLE 44P
Product Attribute	Attribute Value	Attribute Value	Attribute Value	Attribute Value	Attribute Value
Manufacturer	FCI / Amphenol	FCI / Amphenol	FCI / Amphenol	FCI / Amphenol	FCI / Amphenol
Product Category	IC & Component Sockets	IC & Component Sockets	IC & Component Sockets	IC & Component Sockets	IC & Component Sockets
RoHS	Details	Details	Details	Details	Details
Product	PLCC Sockets	PLCC Sockets	PLCC Sockets	PLCC Sockets	PLCC Sockets
Number of Positions	32 Position	68 Position	32 Position	44 Position	44 Position
Pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Termination Style	Solder Pin	Solder Pin	Solder Pin	Solder Pin	Solder Pin
Contact Plating	Tin	Tin	Tin	Tin	Tin
Packaging	Tube	Tube	Tube	Tube	Tube
Current Rating	1 A	1 A	1 A	1 A	1 A
Housing Material	Polyphenylene Sulfide (PPS)	Polyphenylene Sulfide (PPS)	Polyphenylene Sulfide (PPS)	Polyphenylene Sulfide (PPS)	Polyphenylene Sulfide (PPS)
Voltage Rating	250 VAC	250 VAC	250 VAC	250 VAC	250 VAC
Case Style	PLCC	PLCC	PLCC	PLCC	PLCC
Contact Material	Copper Alloy	Copper Alloy	Copper Alloy	Copper Alloy	Copper Alloy
Flammability Rating	UL 94 V-0	UL 94 V-0	UL 94 V-0	UL 94 V-0	UL 94 V-0
Mounting Style	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole
Maximum Operating Temperature	+ 105 C	+ 105 C	+ 105 C	+ 105 C	+ 105 C
Minimum Operating Temperature	- 40 C	- 40 C	- 40 C	- 40 C	- 40 C
Factory Pack Quantity	28	18	28	25	25
