D15P24A6PA00LF datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> D15P24A6PA00LF

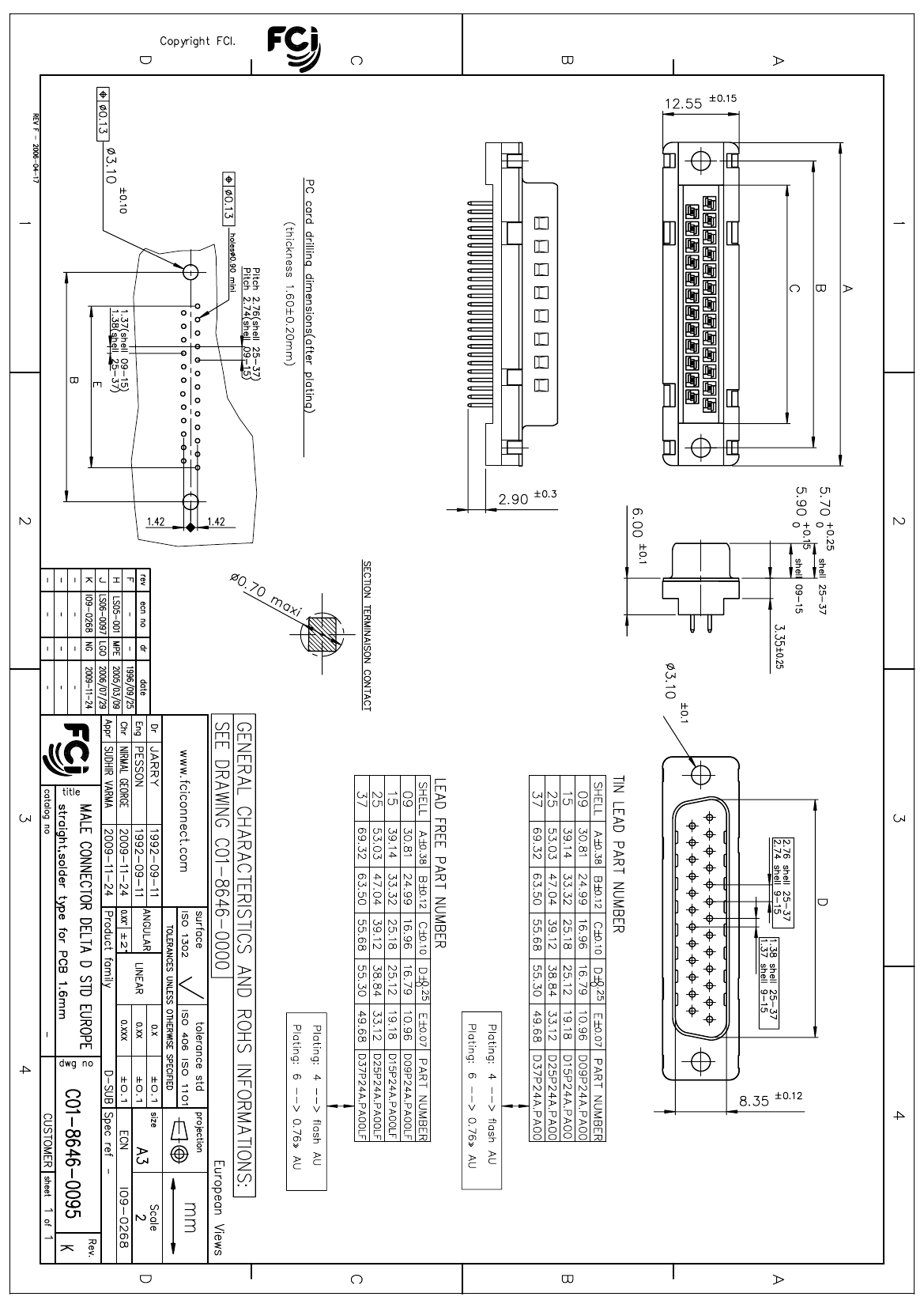

Preview

D15P24A6PA00LF: DescriptionD-Sub Standard Connectors 15P STRT PIN SOLDER SHELL SIZE A; CategoryThe connector; File Size104KB，1 Pages; ManufacturerFCI / Amphenol; Environmental Compliance

Download Datasheet Parametric Compare View All

D15P24A6PA00LF Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	D15P24A6PA00LF	-	-	View	Buy Now

D15P24A6PA00LF Overview

D-Sub Standard Connectors 15P STRT PIN SOLDER SHELL SIZE A

D15P24A6PA00LF Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	FCI / Amphenol
Product Category	D-Sub Standard Connectors
RoHS	Details
Number of Positions	15 Position
Contact Gender	Pin (Male)
Termination Style	Through Hole
Mounting Angle	Straight
Number of Rows	2 Row
Shell Size	2 (A)
Contact Plating	Gold
Current Rating	5 A
Gender	Male
Type	Plug
Voltage Rating	300 V
Pitch	2.84 mm
Shell Plating	Bright Pure Tin over Nickel
Insert Arrangement	A15
Maximum Operating Temperature	+ 125 C
Minimum Operating Temperature	- 55 C
Factory Pack Quantity	150

Preview

Download Datasheet

View All

PDM: Rev:K

STATUS:

Released

Printed: Jan 18, 2011

.

D15P24A6PA00LF Related Products

	D15P24A6PA00LF	D25P24A6PA00LF	D37P24A6PA00LF	D15P24A4PA00LF	D09P24A6PA00LF	D25P24A4PA00LF	D37P24A4PA00LF	D09P24A4PA00LF
Description	D-Sub Standard Connectors 15P STRT PIN SOLDER SHELL SIZE A	D-Sub Standard Connectors 25P PIN STRT SOLDER SHELL SIZE B	D-Sub Standard Connectors 37P SKT STRT SOLDER SHELL SIZE C	D-Sub Standard Connectors 15P STRT PIN SOLDER SHELL SIZE A	D-Sub Standard Connectors 9P STRT PIN SOLDER SHELL SIZE E	D-Sub Standard Connectors 25P PIN STRT SOLDER SHELL SIZE B	D-Sub Standard Connectors 37P SKT STRT SOLDER SHELL SIZE C	D-Sub Standard Connectors 9P STRT PIN SOLDER SHELL SIZE E
Product Attribute	Attribute Value	Attribute Value	Attribute Value	Attribute Value	Attribute Value	Attribute Value	Attribute Value	Attribute Value
Manufacturer	FCI / Amphenol	FCI / Amphenol	FCI / Amphenol	FCI / Amphenol	FCI / Amphenol	FCI / Amphenol	FCI / Amphenol	FCI / Amphenol
Product Category	D-Sub Standard Connectors	D-Sub Standard Connectors	D-Sub Standard Connectors	D-Sub Standard Connectors	D-Sub Standard Connectors	D-Sub Standard Connectors	D-Sub Standard Connectors	D-Sub Standard Connectors
RoHS	Details	Details	Details	Details	Details	Details	Details	Details
Number of Positions	15 Position	25 Position	37 Position	15 Position	9 Position	25 Position	37 Position	9 Position
Contact Gender	Pin (Male)	Pin (Male)	Pin (Male)	Pin (Male)	Pin (Male)	Pin (Male)	Pin (Male)	Pin (Male)
Termination Style	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole
Mounting Angle	Straight	Straight	Straight	Straight	Straight	Straight	Straight	Straight
Number of Rows	2 Row	2 Row	2 Row	2 Row	2 Row	2 Row	2 Row	2 Row
Shell Size	2 (A)	3 (B)	4 (C)	2 (A)	1 (E)	3 (B)	4 (C)	1 (E)
Contact Plating	Gold	Gold	Gold	Gold	Gold	Gold	Gold	Gold
Current Rating	5 A	5 A	5 A	5 A	5 A	5 A	5 A	5 A
Gender	Male	Male	Male	Male	Male	Male	Male	Male
Type	Plug	Plug	Plug	Plug	Plug	Plug	Plug	Plug
Voltage Rating	300 V	300 V	300 V	300 V	300 V	300 V	300 V	300 V
Pitch	2.84 mm	2.84 mm	2.84 mm	2.84 mm	2.84 mm	2.84 mm	2.84 mm	2.84 mm
Shell Plating	Bright Pure Tin over Nickel	Bright Pure Tin over Nickel	Bright Pure Tin over Nickel	Bright Pure Tin over Nickel	Bright Pure Tin over Nickel	Bright Pure Tin over Nickel	Bright Pure Tin over Nickel	Bright Pure Tin over Nickel
Insert Arrangement	A15	B25	C37	A15	E09	B25	C37	E09
Maximum Operating Temperature	+ 125 C	+ 125 C	+ 125 C	+ 125 C	+ 125 C	+ 125 C	+ 125 C	+ 125 C
Minimum Operating Temperature	- 55 C	- 55 C	- 55 C	- 55 C	- 55 C	- 55 C	- 55 C	- 55 C
Factory Pack Quantity	150	20	15	25	30	20	15	30
Packaging	-	Tray	Tray	Tray	Tray	Tray	Tray	Tray
