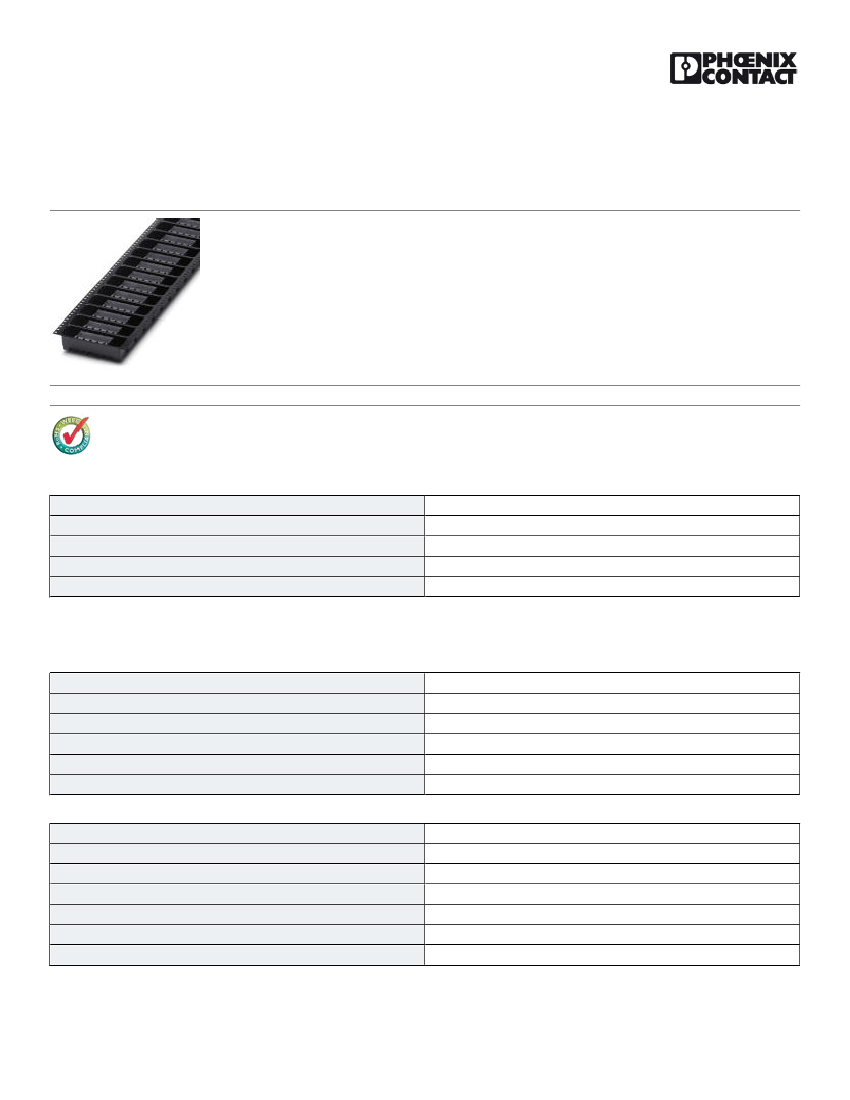

Printed-circuit board connector - CC 2,5/10-G-5,08 P26THRR88 - 1954663
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
Header, Nominal current: 12 A, Rated voltage (III/2): 320 V, Number of positions: 10, Pitch: 5.08 mm, Color:
black, Contact surface: Tin, Assembly: SMD/THT/THR, User information and design recommendations for
through hole reflow technology can be found under “Downloads”
Key commercial data
Packing unit
Minimum order quantity
Weight per Piece (excluding packing)
Custom tariff number
Country of origin
1 pc
240 pc
6.0 GRM
85366990
Germany
Technical data
Dimensions
Length
Height
Pitch
Dimension a
Pin dimensions
Hole diameter
12 mm
8.6 mm
5.08 mm
45.72 mm
1 x 1 mm
1.6 mm
General
Range of articles
Insulating material group
Rated surge voltage (III/3)
Rated surge voltage (III/2)
Rated surge voltage (II/2)
Rated voltage (III/3)
Rated voltage (III/2)
CC 2,5/..-G
IIIa
4 kV
4 kV
4 kV
250 V
320 V
10/23/2014 Page 1 / 3
https://www.phoenixcontact.com/us/products/1954663
Printed-circuit board connector - CC 2,5/10-G-5,08 P26THRR88 - 1954663
Technical data
General
Rated voltage (II/2)
Connection in acc. with standard
Nominal current I
N
Maximum load current
Insulating material
Inflammability class according to UL 94
Color
Number of positions
400 V
EN-VDE
12 A
12 A (per position)
LCP
V0
black
10
Classifications
eCl@ss
eCl@ss 4.0
eCl@ss 4.1
eCl@ss 5.0
eCl@ss 5.1
eCl@ss 6.0
eCl@ss 7.0
eCl@ss 8.0
272607xx
27260701
27260701
27260701
27260704
27440402
27440402
ETIM
ETIM 3.0
ETIM 4.0
ETIM 5.0
EC001121
EC002637
EC002637
UNSPSC
UNSPSC 6.01
UNSPSC 7.0901
UNSPSC 11
UNSPSC 12.01
UNSPSC 13.2
30211810
39121409
39121409
39121409
39121409
Drawings
10/23/2014 Page 2 / 3
https://www.phoenixcontact.com/us/products/1954663
Printed-circuit board connector - CC 2,5/10-G-5,08 P26THRR88 - 1954663

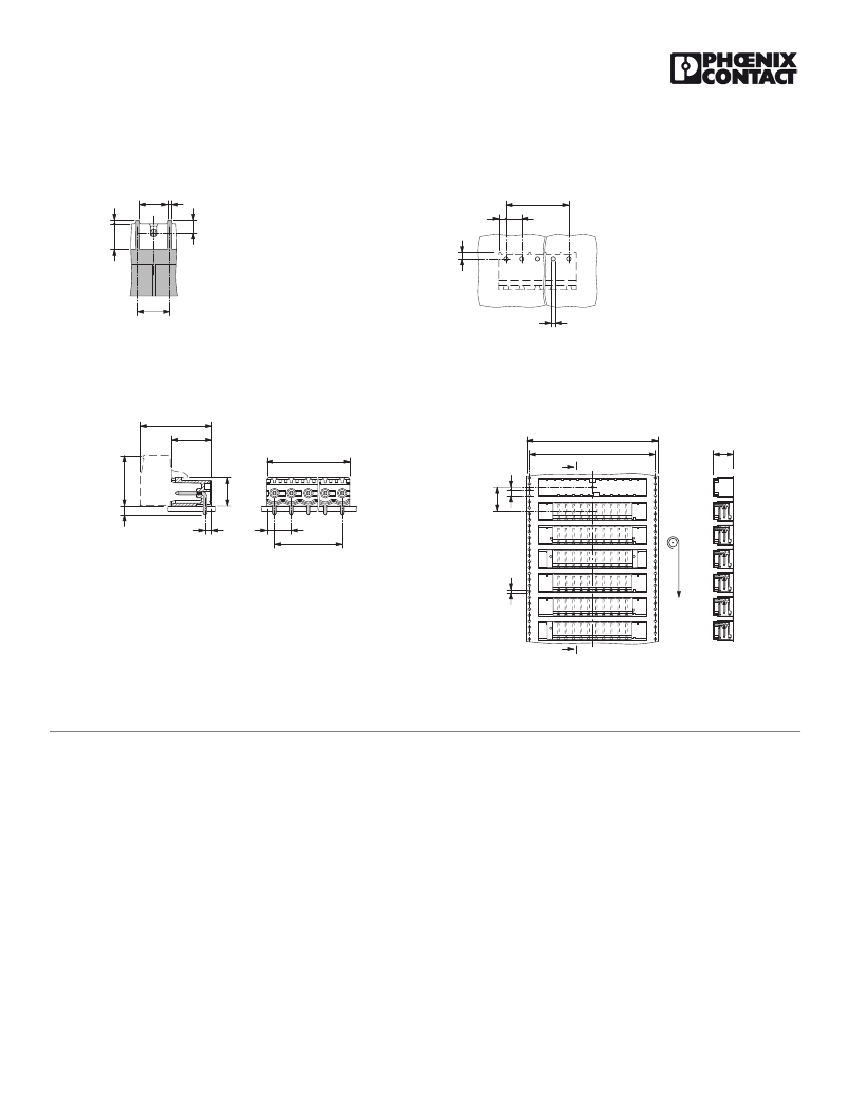

Dimensioned drawing
0,55
Drilling diagram
a
2,34
5,08
4,42
0,66
2
4,05
5,08
1,6
Bottom view, free space for solder paste,
0.5 mm deep
Dimensioned drawing
22
12
a+4,68
15
2
Dimensioned drawing
88
84,4
2
11,4
8,6
2,6
2
2,34
5,08
a
16
Direction of the arrow = feeding direction
Phoenix Contact 2014 © - all rights reserved
http://www.phoenixcontact.com
1,5
4
10/23/2014 Page 3 / 3
