68800511622: Description2.50mm “J” Type Vertical Male Shrouded Header WR-WTB; CategoryThe connector; File Size535KB，4 Pages; ManufacturerWurth Elektronik

Download Datasheet Parametric Compare View All

68800511622 Overview

2.50mm “J” Type Vertical Male Shrouded Header WR-WTB

68800511622 Parametric

Parameter Name	Attribute value
Brand Name	Wurth Electronik
Maker	Wurth Elektronik
Reach Compliance Code	compliant
ECCN code	EAR99
Is Samacsys	N
Other features	ROHS COMPLIANT
body width	0.152 inch
subject depth	0.236 inch
body length	0.591 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	SN
Contact completed and terminated	TIN
Contact point gender	MALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	800VAC V
Durability	25 Cycles
Insulation resistance	1000000000 Ω
Insulator color	WHITE
insulator material	NYLON
JESD-609 code	e3
Plug contact pitch	0.098 inch
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	85 °C
Minimum operating temperature	-25 °C
PCB contact pattern	RECTANGULAR
polarization key	POLARIZED HOUSING
Rated current (signal)	3 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.126 inch
Terminal pitch	2.4892 mm
Termination type	SOLDER
Total number of contacts	5
Base Number Matches	1

Preview

Download Datasheet

View All

TECHNICAL CHARACTERISTICS

MATERIAL

INSULATOR: NYLON 66

FLAMMABILITY RATING: UL94-V0

COLOR: WHITE

CONTACT MATERIAL: BRASS

CONTACT TYPE: STAMPED

CONTACT PLATING: TIN

QUALITY CLASS: 25 MATING CYCLES

PITCH: 2.50 MM

ENVIRONMENTAL

OPERATING TEMPERATURE: -25 UP TO 85°C

COMPLIANCE: LEAD FREE AND ROHS

ELECTRICAL

CURRENT RATING: 3 A

WORKING VOLTAGE: 250 VAC

INSULATOR RESISTANCE: >1000 MOHM

DIELECTRIC WITHSTANDING VOLTAGE: 800 VAC/MN

CONTACT RESISTANCE: 20 mOHM MAX

STANDARD

CERTIFIED: E323964

SOLDERING

JEDEC LEAD FREE WAVE SOLDERING PROCESS

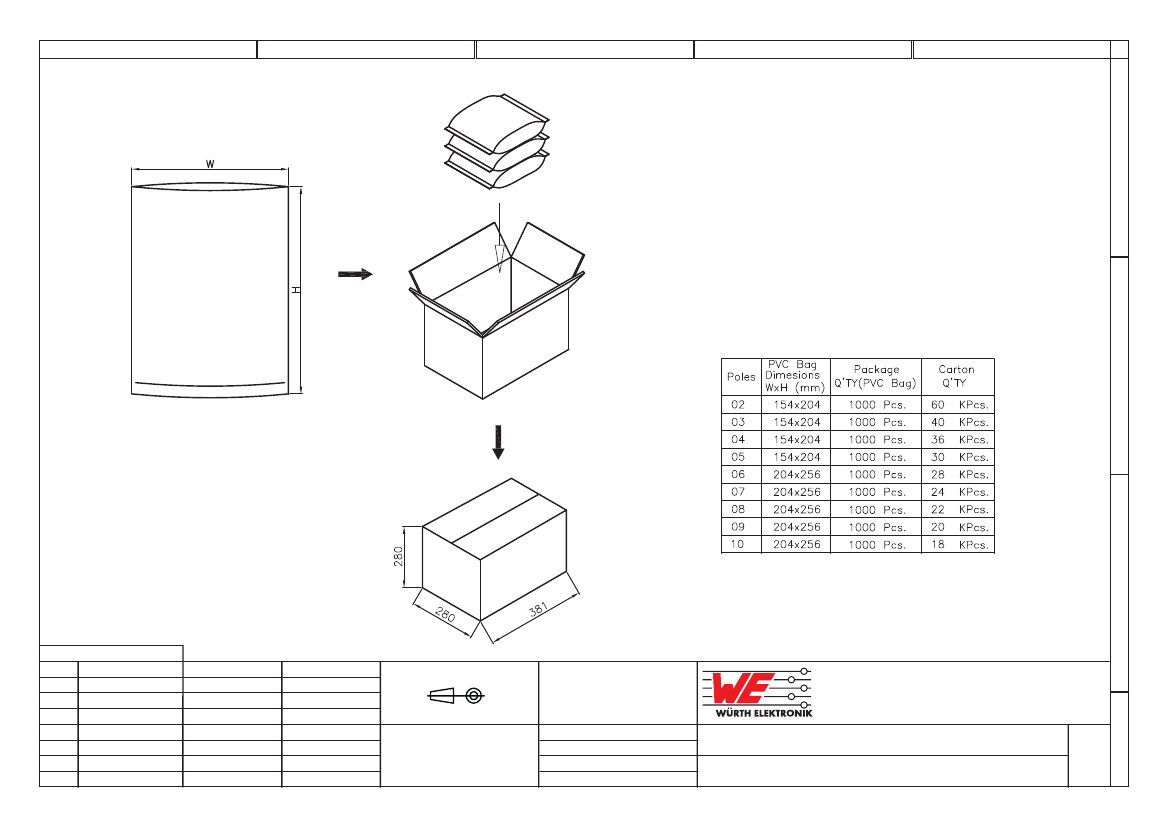

PACKAGING

BAG

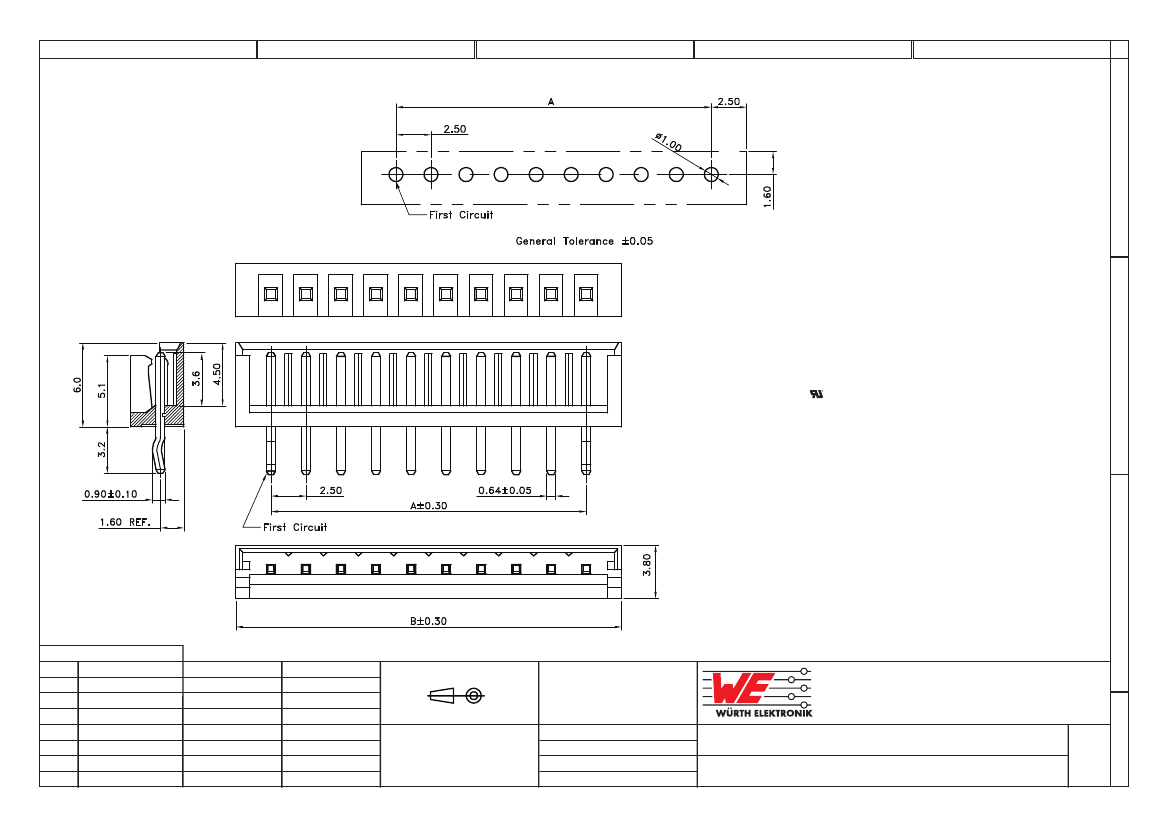

DIMENSION

A = 2.50 x (NB PIN - 1)

B= 2.50 x (NB PIN +1)

PCB LAYOUT - COMPONENT VIEW

RoHS Compliant

REV

PROJECTION:

15-MAR-18

31-AUG-16

10-SEP-13

06-AUG-13

03-DEC-09

10-AUG-09

DATE

PCN

CERTIFIED

TOL REVIEW

CHARACTERISTIC

LAYOUT HOLE DIAM.

PDF

FILE

APPROVAL: BBu

SCALE:

SHEET: 1/2

DRAW: MIKE

WERI PART NO: 688 0xx 116 22

GENERAL TOLERANCE

.X = +/- 0.3

.XX = +/- 0.2

UNIT: MM

DESCRIPTION: 2.50 MM "J" TYPE MALE VERTICAL SHROUDED HEADER

SIZE

Cleaning and Washing:

Cautions and Warnings:

The following conditions apply to all goods within the product services of the

Connectors of Würth Elektronik eiSos GmbH & Co. KG:

General:

• This electronic component is designed and developed with the intention for use in general electronics equipment.

• Before incorporating the components into any equipment in the ﬁeld such as military, aerospace, aviation, nuclear control,

submarine, transportation, (automotive control, train control, ship control), transportation signal, disaster

prevention, medical, public information

network etc. where higher safety and reliability are especially required or if there is possibility of direct damage or injury

to human body, Würth Elektronik must be asked for a written approval.

• In addition, even electronic component in general electronic equipment, when used in electrical circuits that require

high safety, reliability functions or performance, the sufﬁcient reliability evaluation-check for the safety must be

performed by the user before usage.

• The connector is designed and manufactured to be used within the datasheet speciﬁed values.

• Do not use the connector outside the datasheet speciﬁcations.

• Prevent any damage or scratches on the connector, especially on the actuator.

• Direct mechanical impact to the product shall be prevented (e.g overlapping of the PCB´s).

• The responsibility for the applicability of the customer speciﬁc products and use in a particular customer design is

always within the authority of the customer. All technical speciﬁcation for standard products do also apply to customer

speciﬁc products.

• Würth Elektronik products are qualiﬁed according to international standards which are listed into each product

reliability report.

All products characteristics are therefore given according to results obtained throughout these detailed tests protocols.

May any product characteristic be qualiﬁed by the customer, out of given Würth Elektronik speciﬁcations, Würth Elektronik

cannot insure its validity and sustainability over time.

• The Connectors are designed to be used along with Würth Elektronik counterparts and tools. Würth Elektronik cannot

insure the reliability of these components while being used with other products.

• Parts are not constructed for washing, so washing can cause malfunction afterwards.

• Cleaning agent that are used to clean the customer applications might damage or change the characteristics of

the component, body, pins and termination.

• Please do not submerse our washable products into water or cleaning agents or put them in locations exposed to

water completely.

• When cleaning by hand (brushing), please do not use excessive force on our connectors to avoid malfunction

afterwards, because customer could deform function relevant areas.

• We recommended a solution without organic acid (preserve the plating against corrosion) volatile, without residues

and compatible with the plastic.

• We recommend to perform tests and to let a part in immersion in the solution 8 to 12 hours and see if there is

a degradation.

Storage Conditions:

• The Connectors are considered MSL1 into closed original packaging and are not subject to storage time limits

regarding the moisture sensivity but all products shall be used before the end of the period of 12 months based

on the products date code, if not 100% solderability can’t be warranted.

Handling:

• Do not repeatedly operate the connector with excessive force. It may damage or deforms the contact dome which

results in malfunction.

• In the case a product requires particular handling precautions, in addition to the general recommendations

mentioned here before, these will appear on the product datasheet.

Product Speciﬁc:

Soldering:

• The solder proﬁle must comply with the Würth Elektronik technical soldering speciﬁcation, otherwise this will void the warranty.

• Other soldering methods are not veriﬁed and have to be validated by the customer at his own risk.
