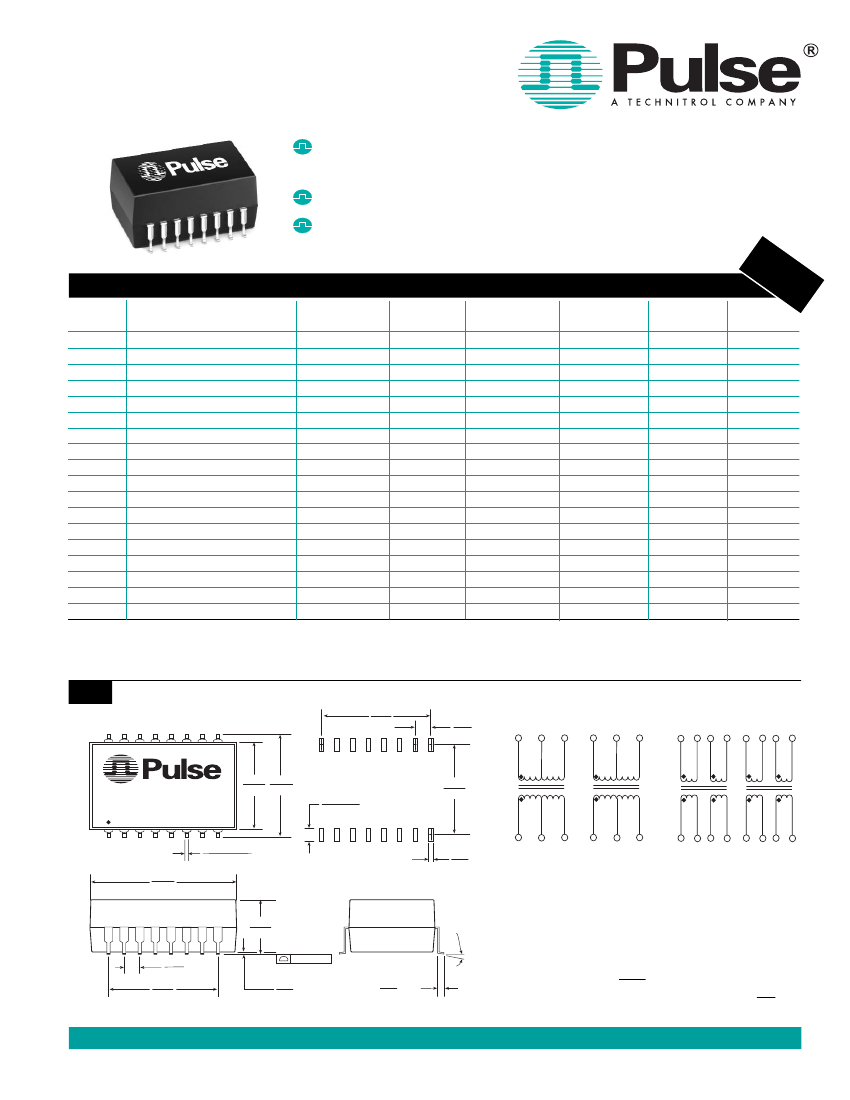

T1/E1/CEPT/ISDN-PRI TRANSFORMERS
Reinforced Insulation, 3KVrms, SMT
Dual surface mount package contains both
transmit and receive transformers
Models matched to leading transceiver ICs
3KV reinforced insulation barrier approved to UL
Electrical Specifications @ 25°C — Operating Temperature 0°C to 70°C
Part
Number
T1030
T1031
T1081*
T1032
T1033
T1034
T1035
T1038
T1036
T1037
T1080*
T1039
T1043
T1044
T1045
T1047
T1049
D
T1082*
Turns Ratio
A,B
(Pri:Sec ±2%)
1CT:1CT & 1CT:1CT
1CT:1CT & 1CT:2CT
1CT:1CT & 1CT:1.5CT
1CT:1.15CT & 1CT:1CT
1CT:1.15CT & 1CT:1.15CT
1CT:1.15CT & 1CT:2CT
1CS:1CS & 1CS:1.36CS
1CT:1CT & 1CT:1.36CT
1CT:1.36CT & 1CT:1.36CT
1CT:1.41CT & 1CT:1.41CT
1CT:1.41CT & 1CT:1.41CT
1CT:2CT & 1CT:1.08CT
1CT:2CT & 1CT:1.14CT
1CT:2CT & 1CT:1.36CT
1CT:2CT & 1CT:2CT
1CT:2.3CT & 1CT:2CT
1CT:1/1.26 & 1CT:2CT
1CT:2.42CT & 1CT:2.42CT
OCL @ 25°C
(mH MIN)
1.20 & 1.20
1.20 & 1.20
1.20 & 1.20
1.60 & 1.60
1.20 & 1.20
1.50 & 1.20
1.20 & 1.20
1.20 & 1.20
1.20 & 1.20
1.20 & 1.20
1.20 & 1.20
1.20 & 1.20
1.20 & 1.20
1.20 & 1.20
1.20 & 1.20
1.20 & 1.20
1.50 & 1.20
1.30 & 1.30
C
W/W
(pF MAX)
15 & 15
15 & 15
15 & 15
15 & 15
15 & 15
15 & 15
15 & 15
15 & 15
15 & 15
15 & 15
15 & 15
15 & 15
15 & 15
15 & 15
15 & 15
15 & 15
15 & 15
17 & 17
DCR Pri
(Ω MAX)
1.00 & 1.00
1.00 & 1.00
1.00 & 1.10
1.10 & 1.00
1.00 & 1.00
1.10 & 1.00
1.00 & 1.00
1.00 & 1.00
1.00 & 1.00
1.10 & 1.10
1.10 & 1.10
1.00 & 1.10
1.00 & 1.25
1.00 & 1.00
1.00 & 1.00
1.00 & 1.10
1.00 & 1.00
1.20 & 1.20
DCR Sec
(Ω MAX)
1.00 & 1.00
1.00 & 1.70
1.10 & 1.55
1.10 & 0.90
1.15 & 1.15
1.20 & 1.70
1.00 & 1.20
0.90 & 1.20
1.20 & 1.20
1.35 & 1.35
1.35 & 1.35
1.70 & 1.25
1.70 & 1.35
1.65 & 1.15
1.70 & 1.70
2.00 & 1.80
1.30 & 1.65
2.30 & 2.30
Package/
Schematic
ZIN / 1
ZIN / 1
ZIN / 1
ZIN / 1
ZIN / 1
ZIN / 1
ZIN / 2
ZIN /1
ZIN / 1
ZIN / 1
ZIN / 1
ZIN / 1
ZIN / 1
ZIN / 1
ZIN / 1
ZIN / 1
ZIN / 1
ZIN / 1
Primary
Pins
Rei 3KV
nfo
rce
d!
1-3, 6-8
1-3, 6-8
1-3, 6-8
16-14, 6-8
1-3, 6-8
16-14, 6-8
1-4, 5-8
1-3, 6-8
1-3, 6-8
16-14, 11-9
1-3, 11-9
16-14, 6-8
16-14, 6-8
16-14, 6-8
16-14, 6-8
16-14, 6-8
16-14, 6-8
1-3, 6-8
NOTE:
*Agency approvals pending for T1080, T1081 and T1082.
Mechanical
ZIN
.700
17,78
.100
2,54
Schematics
16 15 14
11 10 9
16 14 15 13 12 10 11 9
T10XX
Date Code Country of Origin
Patent Pending
.589 .745
14,96 18,92
+.005
.075
–.000
1,91
+0,13
–0,00
.715
18,16
.018 ± .002 TYP
0,46 ± 0,05
.950
24,13
.029
0,74
SUGGESTED PAD LAYOUT
1
2
3
6
7
8
1 3 2 4 5 7 6 8
1
Weight
. . . . . . . . . . . . . .8.1 grams
Tube
. . . . . . . . . . . . . . . . . .20/tube
Tray
. . . . . . . . . . . . . . . . . .250/tray
2
.395
10,03
.100 TYP
2,54
.700
17,78
.004/0,10
16 SURFACES
0°-8°
.015
0,38
.040 TYP
1,02
Dimensions:
Inches
mm
Unless otherwise specified, all tolerances are ± .010
0,26
USA 858 674 8100
•
UK 44 1483 401 700
•
France 33 3 84 35 04 04
•
Singapore 65 6287 8998
•
Shanghai
86 21 32181071
•
China 86 769 5538070
•
Taiwan 886 2 26980228
www.pulseeng.com
T617.A (1/06)
T1/E1/CEPT/ISDN-PRI TRANSFORMERS
Reinforced Insulation, 3KVrms, SMT
Transformer Selection Guide
Company
Rockwell/
Brooktree
Crystal
IC Part Number
BT8370
UGA 510-1
R8069, R8069A, R8069B
61534, 61544, 61574, 6158, 61535
61535A, 61574A, 61575, 6158A
61535A, 61574A, 61575, 6158A
6152
61584
61584
61581
DS2186, DS2187
DS2151, DS2152, DS2153, DS2154
DS21352/DS21354
T5650, T5620, T5675, T5681, T5683
56L22, 56L85, C240, C260, C262, C277
T5791, T5793, T5794
T5684
T7288
LXT 300, LXT 301, LXT 305
LXT 304A, LXT 305A
LXT 304A, LXT 305A
LXT 310, LXT 311
LXT 318, LXT 319
LXT 332
LXT 332
LXT 360, LXT 361, LXT 370
T1
PCM-30, 75, 120
D
T1 & PCM-30
T1
PCM-30, 75, 120
D
IQ3
IQ5
HOST MODE
T1, E1
T1, E1
Comments
Pulse Part
Number
T1035
T1031
T1031
T1045
T1034
T1049
T1044
T1045
T1033
T1081
T1044
T1032
T1031
T1045
T1045
T1049
C
T1044
T1044
T1045
T1034
T1049
T1031
T1031
T1045
T1047
T1031
T1044
T1034
T1044
T1033
T1036
(Note E)
T1044
(Note E)
T1044
T1037
T1031
T1
E1
T1
E1 75
T1034
T1049
T1034
T1049
Notes From Tables
A.
OCL (primary inductance) is measured at the primary winding. Turns ratio is specified
primary: secondary. (CT = Center Tap; CS = Split Center Tap).
B.
To make 1CT:1 ratio from 1CT:2CT ratio, use one-half of the secondary (2CT) winding.
C.
It is possible to use the same transformer model for the three impedance levels of T1
(100Ω) and CEPT (75Ω & 120Ω).
D.
Dual Ratio Transformers — These transformers have tapped secondary windings to pro-
vide two turns ratios (T/R). Use the entire primary winding and connect the secondary
pins listed below to obtain the desired turns ratio:
Part
Number
T1049
Turns
Ratio 1
1:1
Secondary
Pins
2-3
Turns
Ratio 2
1:1.26
Secondary
Pins
1-3
Dallas
E.
Contact Applications Engineering for this product.
F.
Standard packaging for the surface mount “ZIN” package is anti-static tubes. Optional
tray packaging can be ordered by adding an
“R”
suffix to the part number, (i.e. T1030R).
Exar
Application Notes
1. Safety Standards Recognition
– All transformers (excluding T1080 and T1081) list-
ed in this data sheet are: UL1459, UL1950, and CS950 approved per Underwriters
Laboratories – file E133523, Reinforced Insulation.
2. Crosstalk Attenuation
— The dual packages contain transmit and receive trans-
formers side by side, sufficient crosstalk attenuation is achieved by the inherent char-
acteristics of the toroid cores as well as by their proper positioning. The crosstalk
attenuation is typically 55dB or better from 100kHz to 10MHz. This result was estab-
lished with the test circuit shown below.
Level One
T1
CEPT
DS1
T1 & CEPT
DS1
CEPT
HP-8751A
P1 P2
Lucent
T7288
Technologies
T7289
T7290
T7690
T7690
T7693
PMC-Sierra
PM4341, PM6341
PM4351
PM4314QDSX
PEB 2254, PEB2255
PEB 22554
VPI4Q574
VPI4Q574
VP14Q575
VP14Q575
50:100
BALUN
100
100
T10XX
100:50
BALUN
Siemens
VLSI
3. Common Mode Chokes
— The “high-frequency” 4-line common mode chokes shown
below provide an effective means of compliance with national and international regula-
tions on EMI. They are designed to be used in conjunction with Pulse’s T1/CEPT
transformers. Crosstalk is typically – 70db at 1MHz and – 55dB at 10MHz.
High Frequency Common Mode Chokes for Telecom Applications (4-Lines)
Electrical Specifications @ 25°C — Operating Temperature 0°C to 70°C
Pulse
Part Number
PE-65554
PE-65555
PE-65854
PE-65857
Turns Ratio
(±5%)
1:1:1:1
1:1:1:1
1:1:1:1
1:1:1:1
OCL
(µH MIN)
24.0
8.0
47.0
24.0
C
W
/
W
(pF MAX)
15
10
16
15
LL
(µH
MAX)
.20
.20
.20
.23
DCR
(Ω MAX)
0.30
0.25
0.30
0.30
Isolation
(Vrms MIN)
500
500
500
500
Package
Through Hole
Through Hole
Surface Mount
Surface Mount
Note:
Additional common mode chokes to improve EMI performance are available. See data sheet
G002
for mechanicals and schematics of common mode chokes.
