ASPI-0612FS-150M-T datasheet, PDF

Datasheet> All Categories > Passive components> inductor> ASPI-0612FS-150M-T

ASPI-0612FS-150M-T: DescriptionFixed Inductors 15.0uH, Isat=1.00A, Irms=0.90A, Drum Core, 20% tolerance, Shielded, 300m , 6.0 x 6.0 x 1.2mm, Surface Mount; CategoryPassive components inductor; File Size2MB，3 Pages; ManufacturerAbracon; Websitehttp://www.abracon.com/index.htm; Environmental Compliance

Download Datasheet Parametric Compare View All

ASPI-0612FS-150M-T Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	ASPI-0612FS-150M-T	-	-	View	Buy Now

ASPI-0612FS-150M-T Overview

Fixed Inductors 15.0uH, Isat=1.00A, Irms=0.90A, Drum Core, 20% tolerance, Shielded, 300m , 6.0 x 6.0 x 1.2mm, Surface Mount

ASPI-0612FS-150M-T Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
package instruction	CHIP, 6060-12M, ROHS COMPLIANT
Reach Compliance Code	compliant
uppercase and lowercase codes	6060-12M
core material	NICKEL-ZINC FERRITE
DC Resistance	0.3 Ω
Nominal inductance(L)	15 µH
Inductor Applications	POWER INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
JESD-609 code	e3
Number of functions	1
Number of terminals	2
Maximum operating temperature	100 °C
Minimum operating temperature	-30 °C
Maximum rated current	0.9 A
Shape/Size Description	RECTANGULAR PACKAGE
shield	YES
surface mount	YES
Terminal surface	Tin (Sn)
Terminal location	DUAL ENDED
Terminal shape	WRAPAROUND
Test frequency	0.1 MHz
Tolerance	20%
Base Number Matches	1

Preview

Download Datasheet

View All

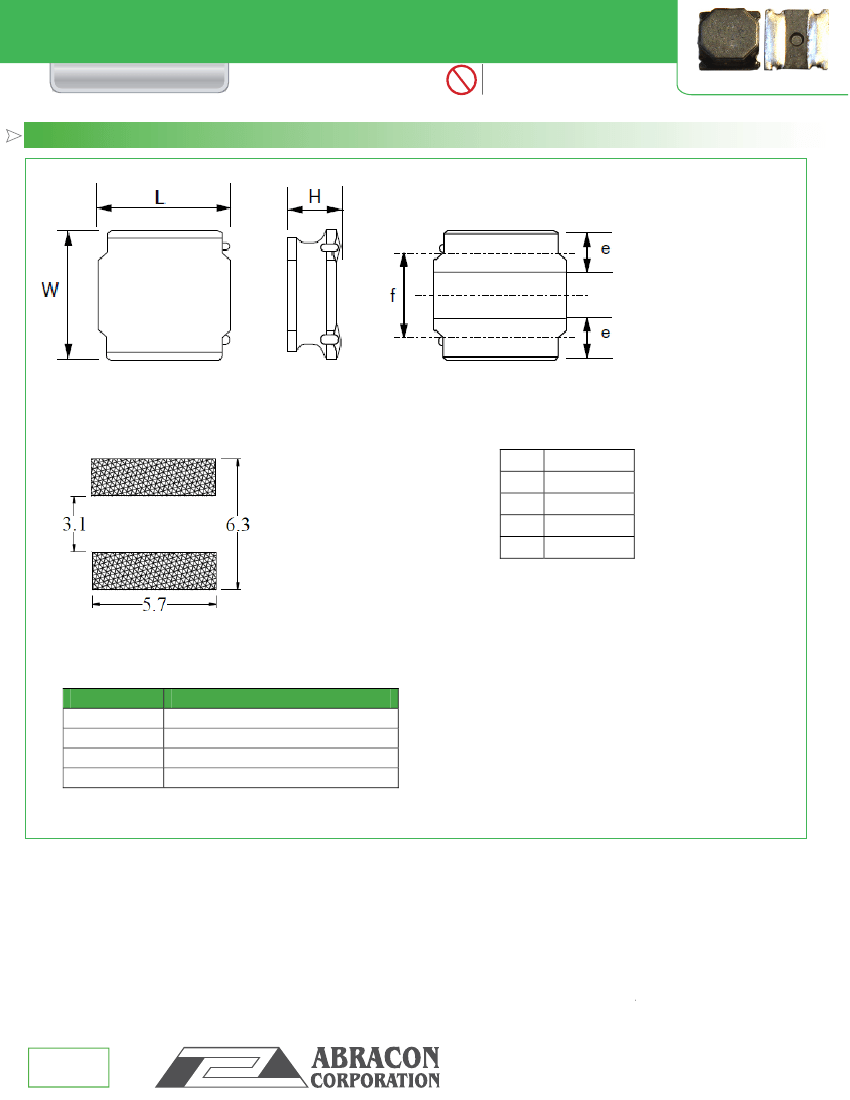

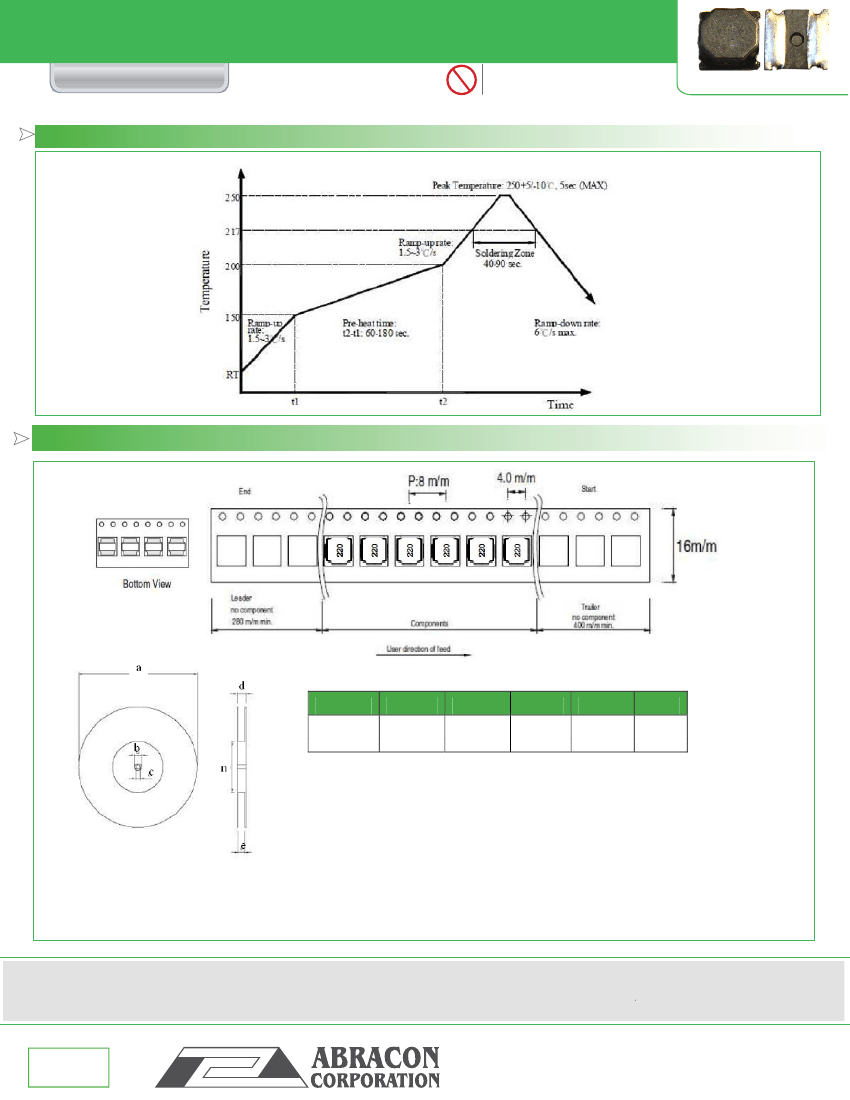

LOW PROFILE SHIELDED SMD CHIP POWER INDUCTOR

ASPI-0612FS

FEATURES:

•

Small size and low profile: 1.2mm

Small DCR and high rated current

High reliability to mechanical strength

Magnetically shielded by magnetic powder molding

Suitable for RoHS reflow profile

RoHS/RoHS II Compliant

APPLICATIONS:

6.0 x 6.0 x 1.2mm

• DC/DC converter for LCD display of notebook PC

• Portable communication equipment

• Digital cameras

ELECTRICAL SPECIFICATIONS:

Abracon P/N:

Operating Temperature & Humidity

Storage Temperature & Humidity:

ASPI-0612FS Series

-40

C to +105

(Including

self

temperature

rise)

-5

C to +40

C and RH 70% (Max.) in Tape & Reel

DCR Typ

mΩ

DCR Typ

105

125

165

200

295

775

580

965

1160

1670

DCR Max

mΩ

DCR Max

117

137

163

215

260

384

930

754

1255

1508

2171

Saturation

Current

Isat

2.40

2.10

1.80

1.60

1.50

1.30

1.00

0.80

0.76

0.59

0.52

0.44

0.35

Temperature

Rise Current

Irms

1.80

1.70

1.55

1.35

1.20

0.80

0.65

0.55

0.46

0.41

0.32

Part Number

ASPI-0612FS-

Inductance Code

Units

Symbol

ASPI-0612FS-2R2

ASPI-0612FS-2R5

ASPI-0612FS-3R3

ASPI-0612FS-4R7

ASPI-0612FS-5R3

ASPI-0612FS-6R8

ASPI-0612FS-100

ASPI-0612FS-150

ASPI-0612FS-220

ASPI-0612FS-330

ASPI-0612FS-470

ASPI-0612FS-680

ASPI-0612FS-101

Inductance

μH

2.2

2.5

3.3

4.7

5.3

6.8

100

Inductance

Tolerance

Test Conditions

1. Isat : Based on inductance change ( ∆L/Lo:

-30%)

2. Irms : Based on temperature

rise (∆

T : 40

3. Test Freq: 100KHz, 1Vrms

OPTIONS AND PART IDENTIFICATION

ASPI-0612FS-

Inductance Code

Please refer to the

Electrical Spec Table

Tolerance

M: ±20%

T: Tape and Reel

(1kpcs /

reel)

Packaging

ABRACON IS

ISO9001:2008

CE RTIFIED

、

Revised: 04.10.13

30332 E speranza, Rancho Santa Margarita, California 92688

tel 949-546-8000| fax 949-546-8001|

www.abracon.com

Visit www.abracon.com for Terms & Conditions of Sale

ASPI-0612FS-150M-T Related Products

	ASPI-0612FS-150M-T	ASPI-0612FS-2R2M-T	ASPI-0612FS-3R3M-T	ASPI-0612FS-3R3M-T2	ASPI-0612FS-330M-T	ASPI-0612FS-220M-T2	ASPI-0612FS-100M-T	ASPI-0612FS-4R7M-T	ASPI-0612FS-330M-T2	ASPI-0612FS-6R8M-T2
Description	Fixed Inductors 15.0uH, Isat=1.00A, Irms=0.90A, Drum Core, 20% tolerance, Shielded, 300m , 6.0 x 6.0 x 1.2mm, Surface Mount	Fixed Inductors 2.2uH, Isat=2.40A, Irms=1.80A, Drum Core, 20% tolerance, Shielded, 65m , 6.0 x 6.0 x 1.2mm, Surface Mount	Fixed Inductors 3.3uH, Isat=2.00A, Irms=1.65A, Drum Core, 20% tolerance, Shielded, 75m , 6.0 x 6.0 x 1.2mm, Surface Mount	Fixed Inductors 3.3uH -30C +100C	Fixed Inductors 33.0uH, Isat=0.67A, Irms=0.62A, Drum Core, 20% tolerance, Shielded, 640m , 6.0 x 6.0 x 1.2mm, Surface Mount	Fixed Inductors 22uH -30C +100C	Fixed Inductors 10.0uH, Isat=1.20A, Irms=1.05A, Drum Core, 20% tolerance, Shielded, 220m , 6.0 x 6.0 x 1.2mm, Surface Mount	Fixed Inductors 4.7uH, Isat=1.70A, Irms=1.40A, Drum Core, 20% tolerance, Shielded, 110m , 6.0 x 6.0 x 1.2mm, Surface Mount	Fixed Inductors 33uH -30C +100C	Fixed Inductors 6.8uH -30C +100C
Tolerance	20%	20%	20%	20 %	20%	20 %	20%	20%	20 %	20 %
Is it Rohs certified?	conform to	conform to	conform to	-	conform to	-	conform to	conform to	-	-
package instruction	CHIP, 6060-12M, ROHS COMPLIANT	CHIP, 6060-12M, ROHS COMPLIANT	CHIP, 6060-12M, ROHS COMPLIANT	-	CHIP, 6060-12M, ROHS COMPLIANT	-	CHIP, 6060-12M, ROHS COMPLIANT	CHIP, 6060-12M, ROHS COMPLIANT	-	-
Reach Compliance Code	compliant	compliant	compliant	-	compliant	-	compliant	compliant	-	-
uppercase and lowercase codes	6060-12M	6060-12M	6060-12M	-	6060-12M	-	6060-12M	6060-12M	-	-
core material	NICKEL-ZINC FERRITE	NICKEL-ZINC FERRITE	NICKEL-ZINC FERRITE	-	NICKEL-ZINC FERRITE	-	NICKEL-ZINC FERRITE	NICKEL-ZINC FERRITE	-	-
DC Resistance	0.3 Ω	0.065 Ω	0.075 Ω	-	0.64 Ω	-	0.22 Ω	0.11 Ω	-	-
Nominal inductance(L)	15 µH	2.2 µH	3.3 µH	-	33 µH	-	10 µH	4.7 µH	-	-
Inductor Applications	POWER INDUCTOR	POWER INDUCTOR	POWER INDUCTOR	-	POWER INDUCTOR	-	POWER INDUCTOR	POWER INDUCTOR	-	-
Inductor type	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	-	GENERAL PURPOSE INDUCTOR	-	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	-	-
JESD-609 code	e3	e3	e3	-	e3	-	e3	e3	-	-
Number of functions	1	1	1	-	1	-	1	1	-	-
Number of terminals	2	2	2	-	2	-	2	2	-	-
Maximum operating temperature	100 °C	100 °C	100 °C	-	100 °C	-	100 °C	100 °C	-	-
Minimum operating temperature	-30 °C	-30 °C	-30 °C	-	-30 °C	-	-30 °C	-30 °C	-	-
Maximum rated current	0.9 A	1.8 A	1.65 A	-	0.62 A	-	1.05 A	1.4 A	-	-
Shape/Size Description	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	-	RECTANGULAR PACKAGE	-	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	-	-
shield	YES	YES	YES	-	YES	-	YES	YES	-	-
surface mount	YES	YES	YES	-	YES	-	YES	YES	-	-
Terminal surface	Tin (Sn)	Tin (Sn)	Tin (Sn)	-	Tin (Sn)	-	Tin (Sn)	Tin (Sn)	-	-
Terminal location	DUAL ENDED	DUAL ENDED	DUAL ENDED	-	DUAL ENDED	-	DUAL ENDED	DUAL ENDED	-	-
Terminal shape	WRAPAROUND	WRAPAROUND	WRAPAROUND	-	WRAPAROUND	-	WRAPAROUND	WRAPAROUND	-	-
Test frequency	0.1 MHz	0.1 MHz	0.1 MHz	-	0.1 MHz	-	0.1 MHz	0.1 MHz	-	-
