High Performance Schottky
Diode for Transient Suppression
Technical Data
HBAT-5400/-5402
HBAT-540B/-540C
HBAT-540E/-540F
Features
• Ultra-low Series Resistance
for Higher Current Handling
• Low Capacitance
• Low Series Resistance
• Lead-free Option Available
Package Lead Code
Identification
(Top View)
SINGLE
3
SERIES
3
Description
The HBAT-5400 series of Schottky
diodes, commonly referred to as
clipping /clamping diodes, are
optimal for circuit and waveshape
preservation applications with
high speed switching. Low series
resistance, R
S
, makes them ideal
for protecting sensitive circuit
elements against high current
transients carried on data lines.
With picosecond switching, the
HBAT-540x can respond to noise
spikes with rise times as fast as
1 ns. Low capacitance minimizes
waveshape loss that causes signal
degradation.
Applications
RF and computer designs that
require circuit protection, high-
speed switching, and voltage
clamping.
1
0, B
2
1
2, C
2
COMMON
ANODE
3
COMMON
CATHODE
3
1
E
2
1
F
2
2
Absolute Maximum Ratings, T
A
= 25ºC
Symbol
I
F
I
F- peak
P
T
P
INV
T
J
T
STG
θ
JC
Parameter
DC Forward Current
Peak Surge Current (1µs pulse)
Total Power Dissipation
Peak Inverse Voltage
Junction Temperature
Storage Temperature
Thermal Resistance, junction to lead
Unit
mA
A
mW
V
°C
°C
°C/W
Absolute Maximum
[1]
HBAT-5400/-5402
220
1.0
250
30
150
-65 to 150
500
HBAT-540B/-540C
430
1.0
825
30
150
-65 to 150
150
Note:
1. Operation in excess of any one of these conditions may result in permanent damage to the device.
Linear and Non-linear SPICE Model
[2]
0.08 pF
SPICE Parameters
Parameter
BV
CJO
EG
IBV
IS
N
RS
PB
PT
M
Unit
V
pF
eV
A
A
Ω
V
Value
40
3.0
0.55
10E-4
1.0E-7
1.0
2.4
0.6
2
0.5
2 nH
R
S
SPICE model
Note:
2. To effectively model the packaged HBAT-540x
product, please refer to Application Note AN1124.
HBAT-540x DC Electrical Specifications, T
A
= +25°C
[1]
Part
Package
Number Marking Lead
HBAT- Code
[2]
Code Configuration
-5400
V0
-540B
-5402
V2
-540C
-540E
-540F
V3
V4
C
E
F
Common
Anode
Common
Cathode
B
2
Series
0
Single
Maximum Minimum
Typical
Maximum
Forward Breakdown
Typical
Series
Eff. Carrier
Voltage
Voltage Capacitance Resistance Lifetime
V
F
(mV)
V
BR
(V)
C
T
(pF)
R
S
(Ω)
τ
(ps)
Package
SOT-23
SOT-323
(3-lead SC-70)
SOT-23
SOT-323
(3-lead SC-70)
SOT-323
(3-lead SC-70)
SOT-323
(3-lead SC-70)
800
[3]
30
[4]
3.0
[5]
2.4
100
[6]
Notes:
1. T
A
= +25°C, where T
A
is defined to be the temperature at the package pins where contact is made to the circuit board.
2. Package marking code is laser marked.
3. I
F
= 100 mA; 100% tested
4. I
F
= 100
µA;
100% tested
5. V
F
= 0; f =1 MHz
6. Measured with Karkauer method at 20 mA guaranteed by design.
3
Typical Performance
I
F
– FORWARD CURRENT (mA)
I
F
– FORWARD CURRENT (mA)
100
T
J
– JUNCTION TEMPERATURE (°C)
300
500
100
160
Max. safe junction temp.
140
120
100
80
60
40
20
0
0
50
100
T
A
= +75°C
T
A
= +25°C
T
A
= –25°C
150
200
250
I
F
– FORWARD CURRENT (mA)
10
10
1
1
0.1
0.01
0
0.1
0.2
0.3
T
A
= +75°C
T
A
= +25°C
T
A
= –25°C
0.4
0.5
0.6
V
F
– FORWARD VOLTAGE (V)
0.1
0.01
0
0.2
0.4
0.6
T
A
= +75°C
T
A
= +25°C
T
A
= –25°C
0.8
1.0
1.2
1.4
I
F
– FORWARD CURRENT (mA)
Figure 1. Forward Current vs.
Forward Voltage at Temperature for
HBAT-5400 and HBAT-5402.
Figure 2. Forward Current vs.
Forward Voltage at Temperature for
HBAT-540B, -540C, -540E, and -540F.
Figure 3. Junction Temperature vs.
Current as a Function of Heat Sink
Temperature for HBAT-5400 and
HBAT-5402.
Note: Data is calculated
from SPICE parameters.
T
j
– JUNCTION TEMPERATURE (°C)
160
Max. safe junction temp.
140
120
100
80
60
40
20
0
0
100
200
300
T
A
= +75°C
T
A
= +25°C
T
A
= –25°C
400
500
600
I
F
– FORWARD CURRENT (mA)
3.0
C
T
– TOTAL CAPACITANCE (pF)
2.5
2.0
1.5
1.0
0
5
10
15
20
V
R
– REVERSE VOLTAGE (V)
Figure 4. Junction Temperature vs.
Current as a Function of Heat Sink
Temperature for HBAT-540B, -540C,
-540E, and -540F.
Note: Data is calculated from SPICE
parameters.
Figure 5. Total Capacitance vs.
Reverse Voltage.
4

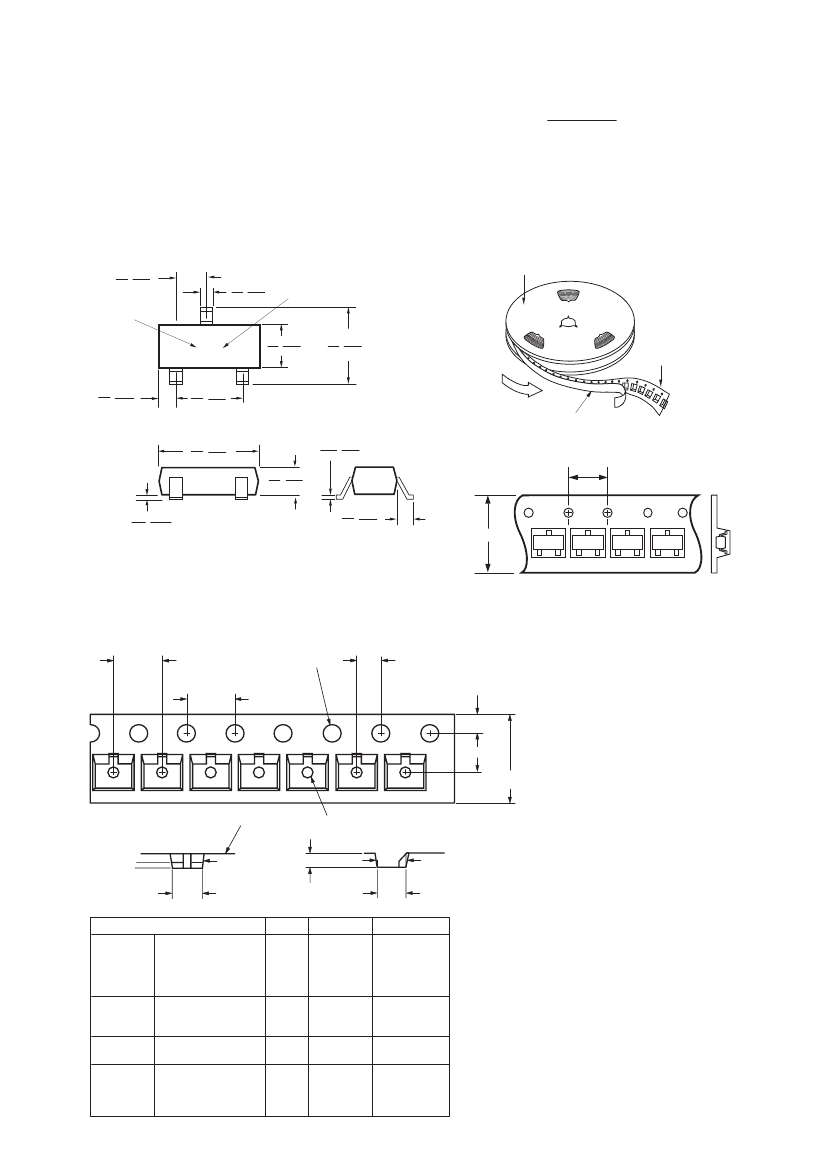

Package Dimensions
Outline SOT-23
1.02 (0.040)
0.89 (0.035)
0.54 (0.021)
0.37 (0.015)
3
1.40 (0.055)
1.20 (0.047)
2
2.04 (0.080)
1.78 (0.070)
TOP VIEW
3.06 (0.120)
2.80 (0.110)
1.02 (0.041)
0.85 (0.033)
0.152 (0.006)
0.066 (0.003)
2.65 (0.104)
2.10 (0.083)
Device Orientation
For Outlines SOT-23/323
REEL
DATE CODE (X)
PACKAGE
MARKING
CODE (XX)
XXX
1
0.60 (0.024)
0.45 (0.018)
CARRIER
TAPE
USER
FEED
DIRECTION
COVER TAPE
TOP VIEW
4 mm
END VIEW
0.10 (0.004)
0.013 (0.0005)
SIDE VIEW
DIMENSIONS ARE IN MILLIMETERS (INCHES)
0.69 (0.027)
0.45 (0.018)
END VIEW
8 mm
ABC
ABC
ABC
ABC
Note: "AB" represents package marking code.
"C" represents date code.
Tape Dimensions and Product Orientation
For Outline SOT-23
P
D
P
2
E
P
0
F
W
t1
D
1
9° MAX
Ko
8° MAX
13.5° MAX
A
0
B
0
DESCRIPTION
CAVITY
LENGTH
WIDTH
DEPTH
PITCH
BOTTOM HOLE DIAMETER
DIAMETER
PITCH
POSITION
WIDTH
THICKNESS
CAVITY TO PERFORATION
(WIDTH DIRECTION)
CAVITY TO PERFORATION
(LENGTH DIRECTION)
SYMBOL
A
0
B
0
K
0
P
D
1
D
P
0
E
W
t1
F
P
2
SIZE (mm)
3.15
±
0.10
2.77
±
0.10
1.22
±
0.10
4.00
±
0.10
1.00 + 0.05
1.50 + 0.10
4.00
±
0.10
1.75
±
0.10
8.00 +0.30 –0.10
0.229
±
0.013
3.50
±
0.05
2.00
±
0.05
SIZE (INCHES)
0.124
±
0.004
0.109
±
0.004
0.048
±
0.004
0.157
±
0.004
0.039
±
0.002
0.059 + 0.004
0.157
±
0.004
0.069
±
0.004
0.315 +0.012 –0.004
0.009
±
0.0005
0.138
±
0.002
0.079
±
0.002
PERFORATION
CARRIER TAPE
DISTANCE
BETWEEN
CENTERLINE
5
Package Dimensions
Outline SOT-323 (SC-70 3 Lead)
PACKAGE
MARKING
CODE (XX)
1.30 (0.051)
REF.
DATE CODE (X)
2.20 (0.087)
2.00 (0.079)
XXX
1.35 (0.053)
1.15 (0.045)
0.650 BSC (0.025)
2.20 (0.087)
1.80 (0.071)
0.10 (0.004)
0.00 (0.00)
0.425 (0.017)
TYP.
0.30 REF.
0.25 (0.010)
0.15 (0.006)
1.00 (0.039)
0.80 (0.031)
10°
0.30 (0.012)
0.10 (0.004)
0.20 (0.008)
0.10 (0.004)
DIMENSIONS ARE IN MILLIMETERS (INCHES)
Tape Dimensions and Product Orientation
For Outline SOT-323 (SC-70 3 Lead)
P
P
0
D
P
2
E
F
W
C
t
1
(CARRIER TAPE THICKNESS)
D
1
T
t
(COVER TAPE THICKNESS)
8° MAX.
K
0
8° MAX.
A
0
B
0
DESCRIPTION
CAVITY
LENGTH
WIDTH
DEPTH
PITCH
BOTTOM HOLE DIAMETER
DIAMETER
PITCH
POSITION
WIDTH
THICKNESS
WIDTH
TAPE THICKNESS
CAVITY TO PERFORATION
(WIDTH DIRECTION)
CAVITY TO PERFORATION
(LENGTH DIRECTION)
SYMBOL
A
0
B
0
K
0
P
D
1
D
P
0
E
W
t
1
C
T
t
F
P
2
SIZE (mm)
2.40
±
0.10
2.40
±
0.10
1.20
±
0.10
4.00
±
0.10
1.00 + 0.25
1.55
±
0.05
4.00
±
0.10
1.75
±
0.10
8.00
±
0.30
0.254
±
0.02
5.4
±
0.10
0.062
±
0.001
3.50
±
0.05
2.00
±
0.05
SIZE (INCHES)
0.094
±
0.004
0.094
±
0.004
0.047
±
0.004
0.157
±
0.004
0.039 + 0.010
0.061
±
0.002
0.157
±
0.004
0.069
±
0.004
0.315
±
0.012
0.0100
±
0.0008
0.205
±
0.004
0.0025
±
0.00004
0.138
±
0.002
0.079
±
0.002
PERFORATION
CARRIER TAPE
COVER TAPE
DISTANCE
