3362R-1-502LF datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> The resistor> 3362R-1-502LF

3362R-1-502LF: DescriptionTrimmer Resistors - Through Hole 1/4"SQ 5KOHMS 10% 0.5WATTS; CategoryPassive components The resistor; File Size304KB，2 Pages; ManufacturerBourns; Websitehttp://www.bourns.com; Environmental Compliance

Download Datasheet Parametric View All

3362R-1-502LF Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	3362R-1-502LF	-	-	View	Buy Now

3362R-1-502LF Overview

Trimmer Resistors - Through Hole 1/4"SQ 5KOHMS 10% 0.5WATTS

3362R-1-502LF Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	PCB Mount, 2628
Reach Compliance Code	compliant
ECCN code	EAR99
Factory Lead Time	6 weeks
Actuator direction	VERTICAL
Actuator type	SCREW
structure	Trimmer Pot
JESD-609 code	e3
Lead diameter	0.46 mm
Lead length	5.46 mm
Installation features	THROUGH HOLE MOUNT
Number of terminals	3
number of turns	1
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package height	4.7 mm
Package length	6.6 mm
Package shape	RECTANGULAR PACKAGE
Package form	PCB Mount
Package width	6.99 mm
method of packing	TUBE
Rated power dissipation(P)	0.5 W
Rated temperature	70 °C
resistance	5000 Ω
resistance law	LINEAR
Resistor type	TRIMMER
rotation angle	240 deg
size code	2628
surface mount	NO
technology	CERMET
Temperature Coefficient	-100,100 ppm/°C
Terminal surface	Matte Tin (Sn)
Terminal shape	WIRE
Tolerance	10%
Base Number Matches	1

Preview

Download Datasheet

View All

VE S CO

AV R M

AI SIO PL

LA N IA

BL S NT

Features

Single-Turn / Cermet / Industrial / Sealed

Miniature package

Rotor designed for automatic machine

guidelines, click here

RoHS compliant* version available

For trimmer applications/processing

adjust interface

Withstands harsh environments and

immersion cleaning processes

Tape and reel packaging available

Electrical Characteristics

Standard Resistance Range

......................10 ohms to 2 megohms

(see standard resistance table)

Resistance Tolerance ........... ±10 % std.

Absolute Minimum Resistance

.................................... 1 % or 2 ohms

(whichever is greater)

Contact Resistance Variation

........................... 1 % or 3 ohms max.

(whichever is greater)

Adjustability

Voltage Divider ...................... ±0.05 %

Rheostat ................................ ±0.15 %

Resolution ................................... Infinite

Insulation Resistance ............... 500 vdc.

1,000 megohms min.

Dielectric Strength

Sea Level................................ 900 vac

80,000 Feet ............................ 350 vac

Adjustment Angle ................. 240 ° nom.

Environmental Characteristics

Power Rating (300 volts max.)

70 °C .................................... 0.50 watt

125 °C ....................................... 0 watt

Temperature Range ... -55 °C to +125 °C

Temperature Coefficient ... ±100 ppm/°C

Seal Test ......................85 °C Fluorinert†

Humidity .......MIL-STD-202 Method 103

96 hours

(2 %

ΔTR;

10 Megohms IR)

Vibration ....... 30 G (1 %

ΔTR;

1 %

ΔVR)

Shock ......... 100 G (1 %

ΔTR;

1 %

ΔVR)

Load Life.. 1,000 hours 0.5 watt @ 70 °C

(3 %

ΔTR;

3 % or 3 ohms,

whichever is greater, CRV)

Rotational Life .......................200 cycles

(4 %

ΔTR;

3 % or 3 ohms,

whichever is greater, CRV)

Physical Characteristics

Mechanical Angle ................. 270 ° nom.

Torque............................. 3.0 oz-in. max.

Stop Strength ................. 7.0 oz -in. min.

Terminals .......................Solderable pins

Weight ....................................... 0.02 oz.

Marking....................... Resistance code,

terminal numbers, manufacturer’s

model number, style

and date code

Wiper ............... 50 % (Actual TR) ±10 %

Flammability ..........................U.L. 94V-0

Standard Packaging .....50 pcs. per tube

Adjustment Tool..............................H-90

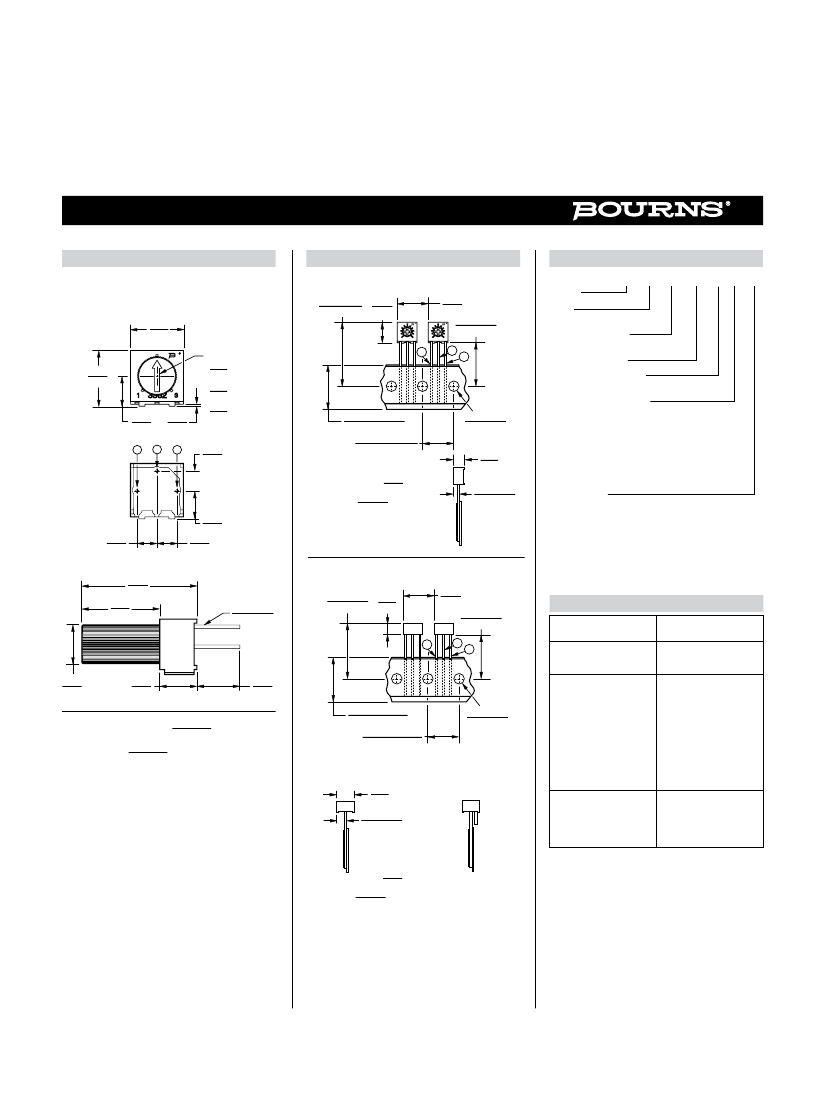

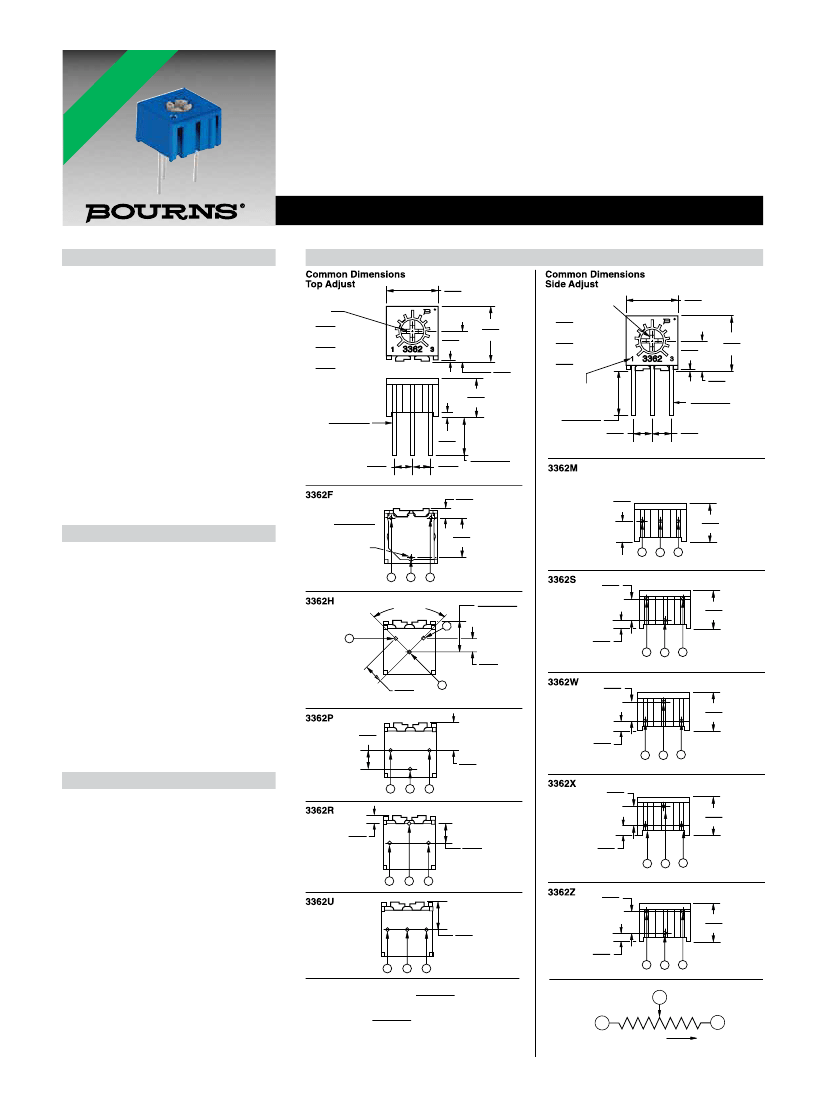

3362 - 1/4 ” Square Trimpot

Trimming Potentiometer

Product Dimensions

ADJ. CROSS

SLOT

2.77

LONG X

(.109)

.64 WIDE X

(.025)

.89 DEEP X

(.035)

6.60

(.260)

6.99

.25

TYP. (.275)

(010)

3.84

(.151)

6.60

(.260)

ADJ. CROSS SLOT

2.77

LONG X

(.109)

.64 WIDE X

(.025)

.89 DEEP X

(.035)

PIN MARKING

REVERSED FOR

STYLE W

5.46 ± .38

(.215 ± .015) 2.54

6.99

.25

TYP. (.275)

(010)

3.84

(.151)

DIA.

.46 ± .03

(.018 ± .001) 3 PLCS.

2.54

(.100)

.46 ± .03

(.018 ± .001)

Ro VE LEA

HS RS D

C ION FRE

OM S E

PL AR

IA E

.330

(.013)

4.70

(.185)

(.100)

2.54

(.100)

2.54

(.100)

5.46 ± .38

(.215 ± .015)

2.29

(.090)

4.70

(.185)

2.54

(.100)

4.06 ± .38

(.160 ± .015)

4.70

(.185)

1.02

(.040)

1.80

(.071)

1.22

(.048)

.46 ± .12

(.018 ± .005)

DIA.

3 PLCS.

90° ± 5°

5.08

(.200)

2.54

(.100) TYP.

2.54

(.100)

4.70

(.185)

2.54

(.100)

3.53

(.139)

1.02

(.040)

2.54

(.100)

4.70

(.185)

2.54

(.100)

1.02

(.040)

1.02

(.040)

2.54

(.100)

3.53

(.139)

4.70

(.185)

1.02

(.040)

*RoHS Directive 2002/95/EC Jan. 27, 2003 including

DIMENSIONS:

(INCHES)

annex and RoHS Recast 2011/65/EU June 8, 2011.

0.25

†“Fluorinert” is a registered trademark of 3M Co.

TOLERANCES: ±

EXCEPT WHERE NOTED

(.010)

Specifications are subject to change without notice.

The device characteristics and parameters in this data

sheet can and do vary in different applications and actual device performance may vary over time.

Users should verify actual device performance in their specific applications.

CCW

WIPER

CLOCKWISE
