EDMANTP150A138045D2450BK

Description
Antennas ANTENNA KIT UFL SMA EDM1/2 EVAL BOARDS
CategoryPassive components
File Size212KB,2 Pages
ManufacturerTechnexion
Websitehttps://www.technexion.com/
Environmental Compliance
Download Datasheet Parametric View All

EDMANTP150A138045D2450BK Online Shopping

Suppliers Part Number Price MOQ In stock
EDMANTP150A138045D2450BK - - View Buy Now

EDMANTP150A138045D2450BK Overview

Antennas ANTENNA KIT UFL SMA EDM1/2 EVAL BOARDS

EDMANTP150A138045D2450BK Parametric

Parameter NameAttribute value
Product AttributeAttribute Value
ManufacturerTechnexion
Product CategoryAntennas
RoHSDetails
ProductPCB Antennas
TypePatch
Minimum Frequency2.4 GHz
Maximum Frequency5 GHz
Gain4.5 dB
Frequency2.4 GHz
Frequency Range2.4 GHz to 5 GHz
Factory Pack Quantity1
Unit Weight0.881849 oz

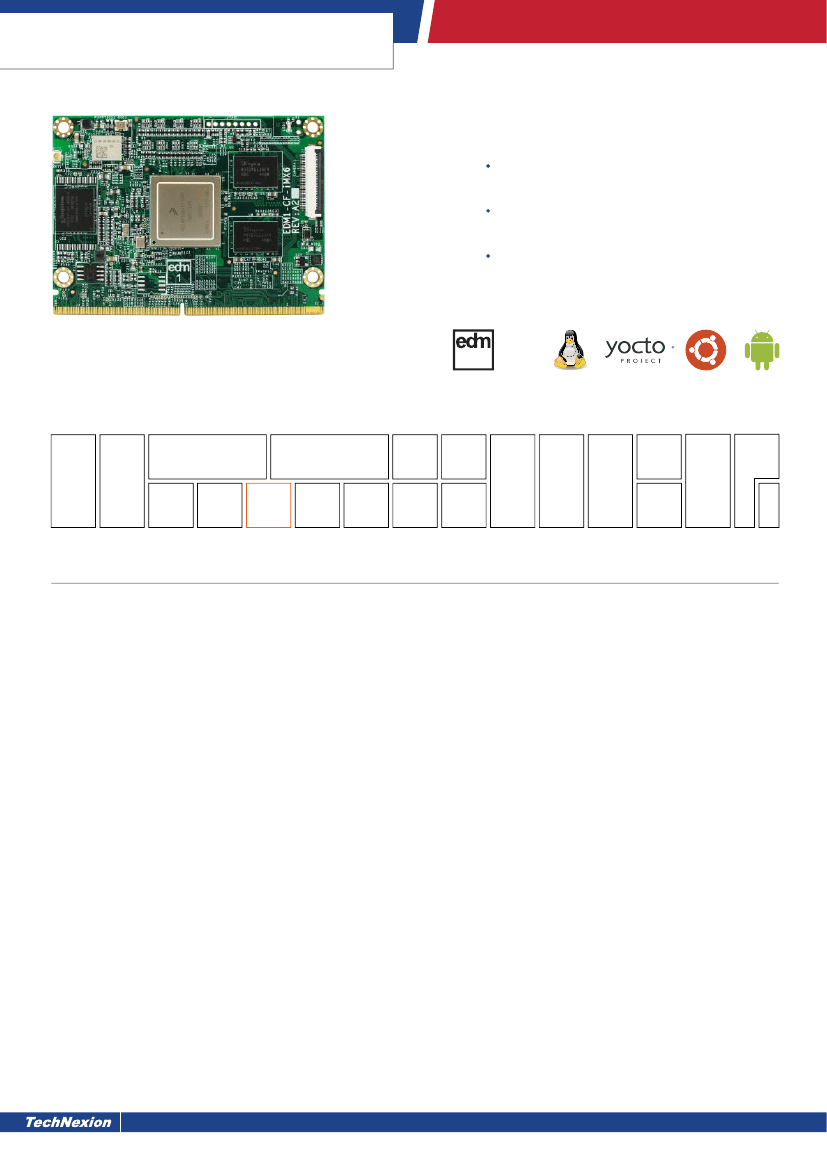

EDM1-CF-IMX6
Main Features
ARM Cortex-A9 NXP i.MX6 scalable single/dual/
quad core EDM Type 1 compact System on Module.
Gigabit LAN, WiFi 802.11 b/g/n and Bluetooth v. 4.0
communication interface.
Targeting multimedia applications with LVDS, TTL,
HDMI, S/PDIF, I
2
S, MIPI Camera and Display.
1
TTL
Power
LAN
LVDS
HDMI
GPMC
I
2
S
2
nd
USB
OTG
USB
Host
SPDIF
CANBus
PCIe
x1
SATA
1
st
I
2
S
1
st
x2
SD
SPI
x2
UART
x2
I
2
C
x2
RSVD
Buttons
+ GPIO
RTC

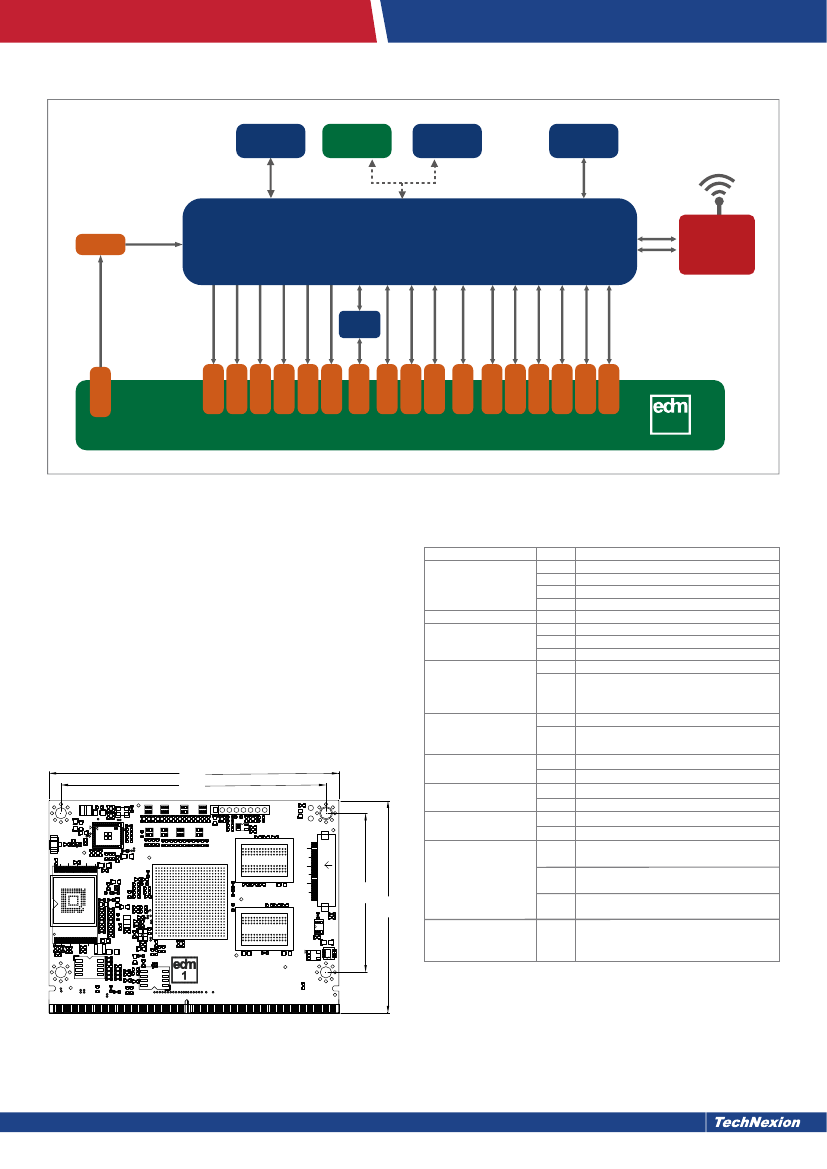

Specifications
Core System
Processor
Architecture
Memory
Storage
Board-to-Board Connector
System on Module
Debug Interface
NXP i.MX6 Solo
NXP i.MX6 DualLite
NXP i.MX6 Dual
NXP i.MX6 Quad
ARM Cortex-A9
up to 2GB DDR3
eMMC (4GB Default)
MicroSD Cardslot (optional)
EDM connector (314-pin MXM3)
EDM Type 1
JTAG Interface by Through-hole
1x Atheros AR8031 Gigabit LAN
Broadcom BCM4330 (optional)
802.11 b/g/n + 4.0 (BR+EDR+BLE)
Video
Graphic Engine
Video Decode
Video Encode
Camera
Vivante GC320 (2D Composition)
Vivante GC355 (Dual/Quad)
Vivante GC880 (Solo/DualLite)
Vivante GC2000 (Dual/Quad)
1080p30 + D1 (Solo/DualLite)
1080p60 H.264 (Dual/Quad)
1080p30 H.264
BP/Dual 720p
MIPI CSI (4 lanes)
Connectivity
Network LAN
WiFi/Bluetooth
Antenna
Audio
Audio Codec
Audio Interface
On carrier board
I²S (1 channel)
S/PDIF
u.FL connector (optional)
HDMI
LVDS (Single Channel)
RGB TTL
LAN
PCIe
USB
USB OTG
I²S
SPDIF
SATA
SDIO
CAN
UART
SPI
I²C
GPMC
PWM
GPIO
Power Speci cations
Power Input
Power Consumption
5V DC +/-5%
Depending on Con guration
Signaling
I/O
Operation Systems
Standard Support
Linux
Yocto
Ubuntu
Android
Commercial Linux
Extended Support
EDM Standard SOM’s and Carrier Boards
