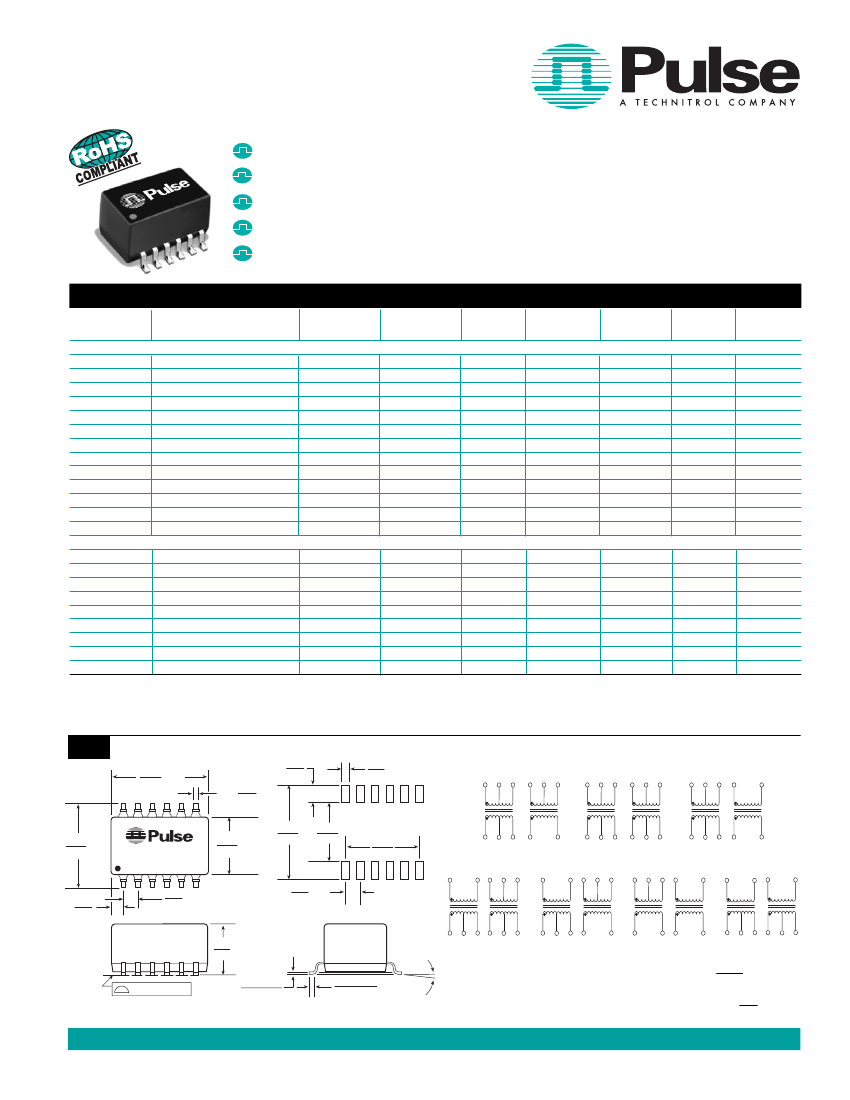

T1/CEPT/ISDN-PRI TRANSFORMERS
Dual Surface Mount, 1500Vrms, Extended
and Standard Temperature Range
Dual SMT package contains both transmit and receive transformers
Models matched to leading transceiver ICs
Isolation voltage: 1500Vrms
UL recognized
RoHS compliant versions available
Electrical Specifications @ 25°C
Part Number
Turns Ratio
B
(Pri:Sec ± 2%)
OCL @ 25°C
(mH MIN)
LL
(µH MAX)
C
W
/
W
(pF MAX)
DCR Pri
(Ω MAX)
DCR Sec
(Ω MAX)
Package/
Schematic
Primary
Pins
E
XTENDED
T
EMPERATURE
R
ANGE
M
ODELS
1
– O
PERATING
T
EMPERATURE
-40°C
TO
+85°C
PE-68841
1CT:2CT & 1CT:2CT
1.20 & 1.20
0.80 & 0.80
50 & 50
1.00 & 1.00 1.70 & 1.70
AN/2
12-10, 4-6
PE-68822
1CT:2CT & 1:1.36CT
1.60 & 1.60
1.00 & 0.80
60 & 55
1.70 & 1.70 2.00 & 1.70
AN/1
12-10, 4-6
PE-68825
1:1.15CT & 1CT:2CT
1.60 & 1.60
0.80 & 0.80
60 & 50
1.00 & 1.00 1.20 & 2.00
AN/4
12-10, 4-6
PE-68826
E
1:1/1.26 & 1:2CT
1.20 & 1.20
0.80 & 0.80
50 & 60
1.00 & 1.00 1.10 & 1.70
AN/5
12-10, 4-6
PE-68827
1:1CT & 2:1
1.60 & 1.60
1.30 & 1.30
55 & 40
1.10 & 1.10 1.10 & 0.70
AN/6
1-3, 4-6
PE-68828
1CT:1CT & 1CT:1CT
1.20 & 1.20
0.80 & 0.80
50 & 50
1.00 & 1.00 1.00 & 1.00
AN/2
1-3, 4-6
PE-68874
1CT:1.15CT & 1CT:1.15CT
1.20 & 1.20
0.80 & 0.80
50 & 50
1.20 & 1.20 1.40 & 1.40
AN/2
1-3, 4-6
PE-68877
1CT:1CT & 1CT:2CT
1.20 & 1.20
0.80 & 0.80
50 & 50
1.00 & 1.00 1.00 & 1.80
AN/2
1-3, 4-6
PE-68882
1CT:1.15CT & 1CT:1CT
1.60 & 1.60
0.80 & 0.80
60 & 60
1.20 & 1.20 1.40 & 1.20
AN/2
12-10, 4-6
PE-68884
1CT:1.36CT & 1CT:1.36CT
1.20 & 1.20
0.80 & 0.80
50 & 50
1.20 & 1.20 1.40 & 1.40
AN/2
1-3, 4-6
PE-68887
1CT:1.41CT & 1CT:1.41CT
1.20 & 1.20
0.80 & 0.80
50 & 50
1.40 & 1.40 1.20 & 1.20
AN/2
12-10, 9-7
PE-68881
1CT:2.3CT & 1CT:2CT
1.20 & 1.20
0.80 & 0.80
60 & 50
1.20 & 1.20 2.10 & 2.10
AN/2
10-12, 4-6
TX1277
1CT:1CT & 1CT:2CT
1.20 & 1.20
0.80 & 0.80
50 & 50
1.00 & 1.00 1.00 & 1.80
AN/2
1-3, 4-6
S
TANDARD
T
EMPERATURE
R
ANGE
M
ODELS
– O
PERATING
T
EMPERATURE
0°C
TO
+70°C
T1131
I
1CT:1 & 1:1.36CT
0.70 & 0.70
0.70 & 0.70
20 & 20
0.25 & 0.50 0.80 & 0.40
AN/7
1-3, 9-7
PE-68861
1CT:2CT & 1CT:2CT
1.20 & 1.20
0.60 & 0.60
35 & 35
0.70 & 0.70 1.20 & 1.20
AN/2
12-10, 4-6
PE-68862
1CT:2CT & 1:1.36CT
1.20 & 1.20
0.60 & 0.80
35 & 37
0.70 & 0.70 1.20 & 0.90
AN/1
12-10, 4-6
PE-68863
1:2CT & 1:1.14CT
1.20 & 1.20
0.55 & 0.80
40 & 35
0.70 & 0.70 1.20 & 0.90
AN/5
12-10, 4-6
A
PE-68864
1CT:2CT & 1:1
1.20 & 1.20 0.30-0.55 & 0.80 30 & 30
0.70 & 0.70 1.20 & 0.70
AN/3
1-3, 5-6
PE-68865
1:1.15CT & 1CT:2CT
1.50 & 1.20
0.80 & 0.60
35 & 35
0.70 & 0.70 0.90 & 1.20
AN/4
12-10, 4-6
PE-68866
E
1:1/1.26 & 1:2CT
1.50 & 1.20
0.40 & 0.50
40 & 40
0.70 & 0.70 0.90 & 1.20
AN/5
12-10, 4-6
PE-68869
1CT:2CT & 1:1.08CT
1.20 & 1.20
0.60 & 0.60
40 & 30
0.70 & 0.70 1.10 & 0.90
AN/1
12-10, 4-6
PE-68836
E
1:1/1.26 & 1:1/1.26
1.50 & 1.50
0.40 & 0 .40
45 & 45
0.80 & 0.80 1.00 & 1.00
AN/7
12-10, 9-7
Note: RoHS-6
compliant parts can be ordered by adding an “NL” suffix to the part number (i.e. PE-68841 becomes PE-68841NL).
(See Pages 6 and 7 for Table Notes)
Mechanical
AN
.675
MAX
17,15
12X
.120
3,05
.030
0,76
.640
16,26
.400
10,16
.050
TYP
1,27
Schematics
1
12 11 10
9
8
7
12 11 10
2
9
8
7
3
12 11 10
8
7
12
.600
MAX
15,24
1
PE-XXXXX
DATE CODE
.100
2,54
7
.456
MAX
11,58
6
.500
12,70
12
1
2
3
7
4
12
6
1
2
3
7
4
5
6
1
2
7
3
12
5
6
4
10 9 8
10
5
9 8
6
12 11 10 9
7
10 9
7
.085
2,16
.100
TYP
2,54
SUGGESTED PAD LAYOUT
1
2
3 4
5
6
1
2
3 4
6
1
3 4
6
1
2
3 4
5
6
.340
MAX
8,64
.010 / .020
0,25 / 0,51
.040 / .050
1,02 / 1,27
0°-8°
.004/0,10 MAX
Weight
. . . . . . . . . . . . . .4.0 grams
Tape & Reel
. . . . . . . . . . . .250/reel
Tube
. . . . . . . . . . . . . . . . . .30/tube
Dimensions:
Inches
mm
Unless otherwise specified,
all tolerances are ± .010
0,25
USA 858 674 8100
•
Germany 49 7032 7806 0
•
Singapore 65 6287 8998
•
Shanghai
86 21 32181071
•
China 86 755 33966678
•
Taiwan 886 3 4643715
www.pulseeng.com
1
T608.S (4/08)

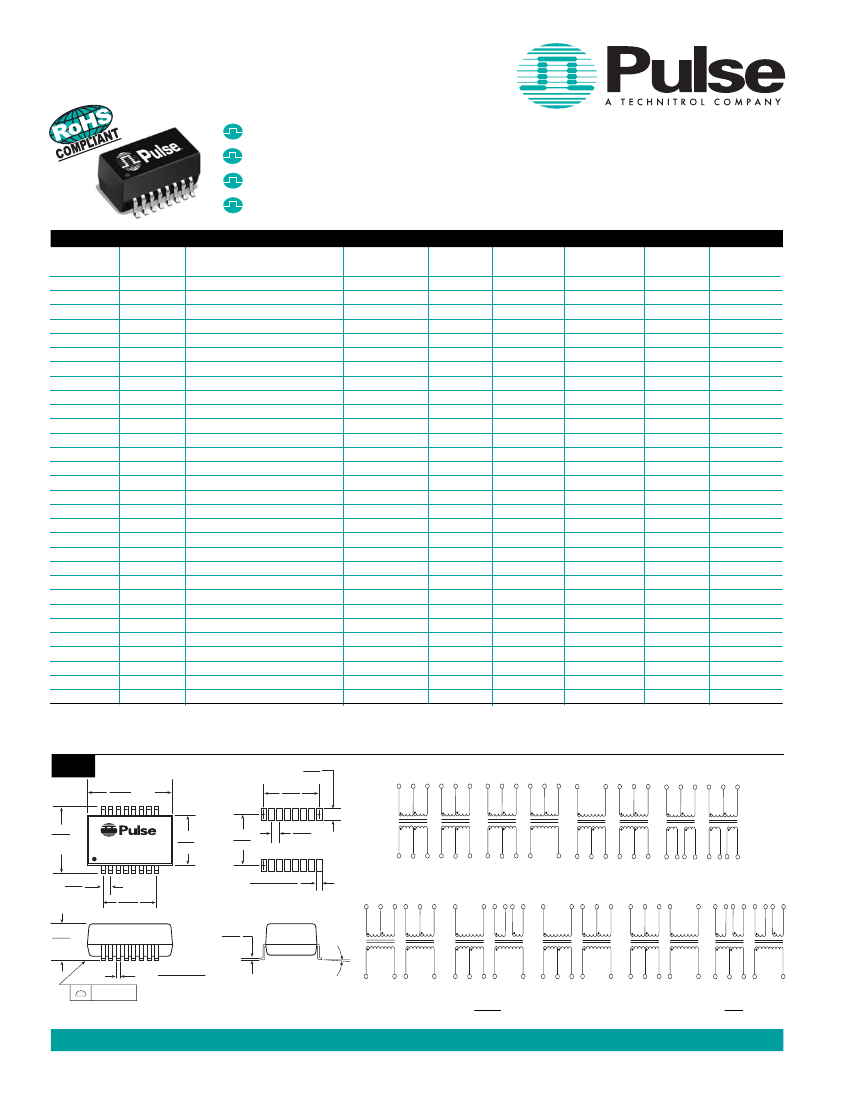

T1/CEPT/ISDN-PRI TRANSFORMERS
Dual Surface Mount, 1500Vrms, Small Package
Dual SMT package contains both transmit and receive transformers
Models matched to leading transceiver ICs
UL recognized (some parts pending approval)
RoHS compliant versions available upon request
Electrical Specifications @ 25°C
Part #
(STD temp.)
PE-65861
PE-65862
PE-65865
PE-65866
E
PE-65870
T1022
PE-68678
PE-68786
T1023
—
—
T1136
T1121
T1122
T1021
I
T1075
I
T1190
T1137
Part #
(EXT temp.)
Turns Ratio
B
(Pri:Sec ±5%)
OCL
(mH MIN)
C
W
/
W
(pF MAX)
LL
(µH MAX)
DCR Pri
(Ω MAX)
Package/
Schematic
Primary
Pins
T1090
1CT:2CT & 1CT:2CT
1.20 & 1.20
30 & 30
.60 & .60
0.70 & 0.70
BH/1
16-14, 6-8
T1091
1CT:2CT & 1:1.36CT
1.20 & 1.20
30 & 30
.60 & .60
0.70 & 0.70
BH/2
16-14, 6-8
T1076
1:1.15CT & 1CT:2CT
1.20 & 1.20
30 & 30
.60 & .60
0.70 & 0.70
BH/3
16-14, 6-8
E
T1092
1:1/1.26 & 1CT:2CT
1.20 & 1.20
30 & 30
.60 & .60
0.70 & 0.70
BH/3
16-14, 6-8
T1093
1CT:1.15CT & 1CT:1.15CT
1.20 & 1.20
30 & 30
.60 & .60
0.70 & 0.70
BH/1
1-3, 6-8
T1077
1CT:1CT & 1CT:1.5CT
1.20 & 1.20
30 & 30
.80 & .80
0.70 & 0.70
BH/1
16-14, 6-8
T1094
1CT:1CT & 1CT:2CT
1.20 & 1.20
30 & 30
.60 & .60
0.70 & 0.70
BH/1
16-14, 6-8
T1095
1CT:1.41CT & 1CT:1.41CT
1.00 & 1.00
30 & 30
.60 & .60
0.70 & 0.70
BH/1
16-14, 11-9
T1096
1CT:1.41CT & 1CT:1.41CT
1.00 & 1.00
30 & 30
.60 & .60
0.70 & 0.70
BH/1
1-3, 11-9
T1144
1CT:1CT & 1CT:2.4CT
1.00 & 1.00
30 & 30
.80 & .80
0.85 & 0.85
BH/1
9-11, 1-3
T1097
1CT:1CT & 1CT:1.67CT
1.00 & 1.00
25 & 25
.80 & .80
0.80 & 0.80
BH/1
6-8, 14-16
—
1CT:1CT & 1CT:1.36CT
1.20 & 1.20
30 & 30
.60 & .60
0.70 & 0.70
BH/1
6-8, 1-3
—
1CT:1.5CT & 1CT:1.5CT
1.50 & 1.50
40 & 40
.80 & .80
0.70 & 0.70
BH/1
1-3, 6-8
—
1CT:2CT & 1CT:2.3CT
1.20 & 1.20
30 & 30
.80 & .80
0.90 & 0.90
BH/1
6-8, 14-16
—
2CT:1/1.26 & 2CT:1/1.26
1.50 & 1.50
40 & 40
.50 & .50
0.70 & 0.70
BH/1
1-3, 11-9
—
2CS:1.57/2 & 2CS:1.57/2
1.50 & 1.50
40 & 40
.50 & .50
0.70 & 0.70
BH/4
1-2, 5-6
—
1CT:1CT & 1CT:1.36CT
1.20 & 1.20
30 & 30
.60 & 60
0.70 & 0.70
BH/1
16-14, 6-8
TX1287
1CT:2.42CT & 1CT:2.42CT
1.20 & 1.20
25 & 25
.60 & .60
0.70 & 0.70
BH/1
1-3, 6-8
T1146
1:2/2.4 & 1:0.79/1
1.00 & 1.00
35 & 35
1.00 & 1.00
0.80 & 0.80
BH/5
1-3, 6-8
—
T1286
—
1CT:2.4CT & 1CT:2.4CT
1.20 & 1.20
15 & 15
.30 & .30
0.30 & 0.30
BH/1
1-3, 6-8
TX1317
1:2CT & 1:2CS
1.20 & 1.20
35 & 35
.50 & 1.00
1.00 & 1.00
BH/6
1-3, 11-9
—
TX1189
1:1.36CT & 1:2CT
1.20 & 1.20
30 & 30
.60 & .60
1.00 & 1.00
BH/7
16-14, 6-8
—
TX1188
1CT:2CT & 1CT:2CT
1.20 & 1.20
30 & 30
.60 & .60
0.70 & 0.70
BH/1
1-3, 6-8
—
TX1187
1CT:2CT & 1:1
1.20 & 1.20
30 & 30
.60 & .60
0.70 & 0.70
BH/8
1-3, 6-8
—
TX1088
1CT:2CT & 1CT:2.42CT
1.20 & 1.20
35 & 35
.80 & .80
1.00 & 1.00
BH/1
1-3, 6-8
—
TX1089
1CT:1CT & 1CT:1CT
1.20 & 1.20
30 & 30
.80 & .80
0.70 & 0.70
BH/1
1-3, 6-8
—
TX1098
1CT:1:26CT & 1CT:1:26CT
1.20 & 1.20
30 & 30
.60 & .60
0.70 & 0.70
BH/1
1-3, 6-8
—
TX1099
1CT:1:0.8 & 1CT:1:0.8
1.20 & 1.20
30 & 30
.80 & .80
1.00 & 1.00
BH/4
16-14, 11-9
—
TX1186
1CT:1.58:2 & 1:1.65:2
1.20 & 1.20
30 & 30
.80 & .80
1.00 & 1.00
BH/9
2-4, 6-7
—
TX1467
1CT:1:1 & 1CT:1:1
1.20 & 1.20
30 & 30
.80 & .80
1.00 & 1.00
BH/4
16-14, 11-9
—
NOTE:
Standard (STD) operating temperature range is 0°C to 70°C. Extended (EXT) operating temperature range is -40°C to +85°C.
RoHS-6
compliant parts can be ordered by adding an
(See Pages 6 and 7 for Table Notes)
“NL” suffix to the part number (i.e. PE-65861 becomes PE-65861NL).
Mechanical
BH
.505 MAX
12,83
.375
9,53
MAX
.050
1,27
.350
8,89
.075
1,91
Schematics
1
16
15 14
11
10
9
16
2
15 14
11
10
9
16
3
14
11
10
9
16
4
15 14 11
10
9
PE-6XXXX
T1XXX/TX1XXX
(Date Code)
(Country of Origin)
.280 MAX
7,11
.328
8,33
.050
1,27
1
2
3
6
7
8
1
2
3
6
8
1
2
3
6
7
8
1
2 3
4
5
6 7
8
.350
8,89
16X .029 ± .001
0,74 ± 0,03
SUGGESTED PAD LAYOUT
5
16
15 14 11
10
9
1
6
3 5 6 7
8
16
7
14 11
10
9
16
8
15 14 11
9
9
16 15 14 13 12 11 10 9
.245
6,22
MAX
.002
16X .018 ± 0,05
0,46 ±
.010
0,25
0° 8°
.004/0,10
16 SURFACES
1
3
6
8
16
15
14 11
9
1
2
3 6
8
1
2
3 6
8
2
3
4 6
7
Weight
. . . . . . . . .1.0 grams
Tape & Reel
. . . . . . .600/reel
Tube
. . . . . . . . . . . . .40/tube
Dimensions:
Inches
mm
Unless otherwise specified, all tolerances are ± .010
0,25
USA 858 674 8100
•
Germany 49 7032 7806 0
•
Singapore 65 6287 8998
•
Shanghai
86 21 32181071
•
China 86 755 33966678
•
Taiwan 886 3 4643715
www.pulseeng.com
2
T608.S (4/08)

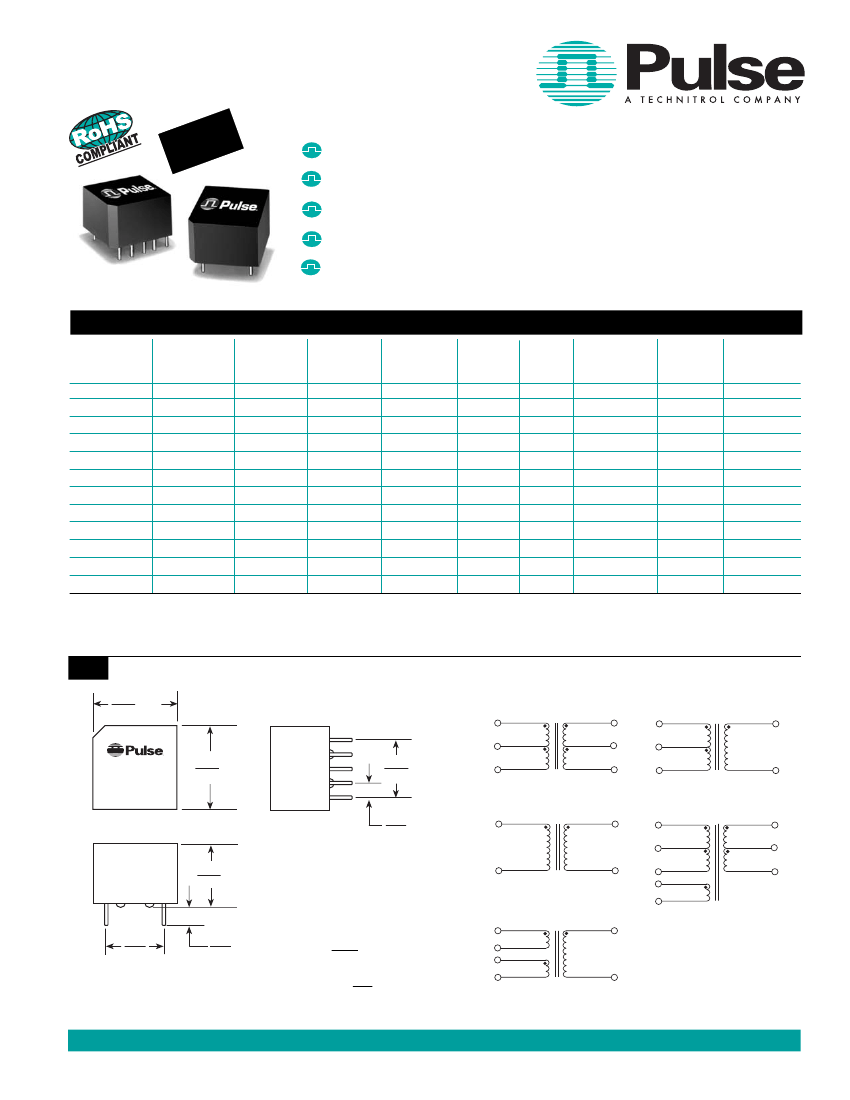

T1/CEPT/ISDN-PRI TRANSFORMERS
Single Reinforced Insulation, 3KVrms
RCED
EINFO TION!
R LA
INSU
Certified for reinforced insulation per UL
For T1/CEPT line interfaces
Matched to leading transceiver ICs
Designed to meet ITU-T G.703
RoHS compliant versions available upon request
Electrical Specifications @ 25°C — Operating Temperature 0°C to 70°C (Unless Otherwise Noted)
Part Number
PE-65830
PE-65831
PE-65832
PE-65833
A
PE-65834
PE-65835
PE-65836
PE-65837
E
PE-65838
PE-65839
E
PE-68646
PE-68788
E
Turns Ratio
B
(± 5%)
1.27CS:1
1CS:1
1:1.36CT
1CT:2CT
1:1
1CT:2CT
1CT:3CT:1
1:1.08/1.36
1:1.14CT
1:1/1.26
1:1.58/2
1CT:1.41CT
OCL
B
(mH MIN)
.800
.800
1.20
1.20
1.20
1.20
.600
1.50
1.50
1.50
1.50
1.20
C
W/W
(pF MAX)
15
15
35
20
20
15
30
20
30
35
20
20
L
L
(µH MAX)
0.70
0.70
0.60
0.30-0.55
0.50
0.80
0.80
0.60
1.00
0.60
0.70
0.80
DCR
Pri
(Ω MAX)
0.50
0.50
0.70
0.50
0.50
0.70
0.70
0.70
0.70
0.70
0.70
0.60
DCR
Sec
(Ω MAX)
0.35
0.45
0.90
0.90
0.50
1.10
1.70
0.90
0.90
1.10
1.20
0.80
Safety
Agency
Recognition
10
C,T,U,B
C,T,U,B
C,T,U,B
C,T,U,B
C,T,U,B
C,T,U,B
C,T,U,B
C,T,U,B
C,T,U,B
C,T,U,B
C,T,U,B
T,U,B
Package/
Schematic
IS/3
IS/3
IS/4
IS/1
IS/2
IS/1
IS/5
IS/4
IS/4
IS/4
IS/4
IS/1
Primary
Pins
1-5
1-5
10-6
1-5
1-5
1-5
1-3
10-6
10-6
10-6
10-6
10-6
NOTE: RoHS-6
compliant parts can be ordered by adding an “NL” suffix to the part number (i.e. PE-65830 becomes PE-65830NL).
(See Pages 6 and 7 for Table Notes)
Mechanical
IS
.560
MAX
14,22
1
Schematics
1
10
8
6
1
3
5
6
4
10
1
10
2
9
3
PE-XXXXX
8
4
7
5
DATE CODE
6
3
.560 MAX
14,22
.400
10,20
5
2
Notes:
Leads are 22 AWG solderable.
Unused pins not provided.
.100 TYP
2,54
1
10
1
2
5
6
3
4
5
10
5
10
8
6
.400 MAX
10,20
Weight
. . . . . . . . . . 4 grams
Tube
. . . . . . . . . . . . .35/tube
3
1
2
4
5
6
.400
10,20
.130
3,30
Dimensions:
Inches
mm
Unless otherwise specified,
all tolerances are ± .010
0,25
USA 858 674 8100
•
Germany 49 7032 7806 0
•
Singapore 65 6287 8998
•
Shanghai
86 21 32181071
•
China 86 755 33966678
•
Taiwan 886 3 4643715
www.pulseeng.com
3
T608.S (4/08)

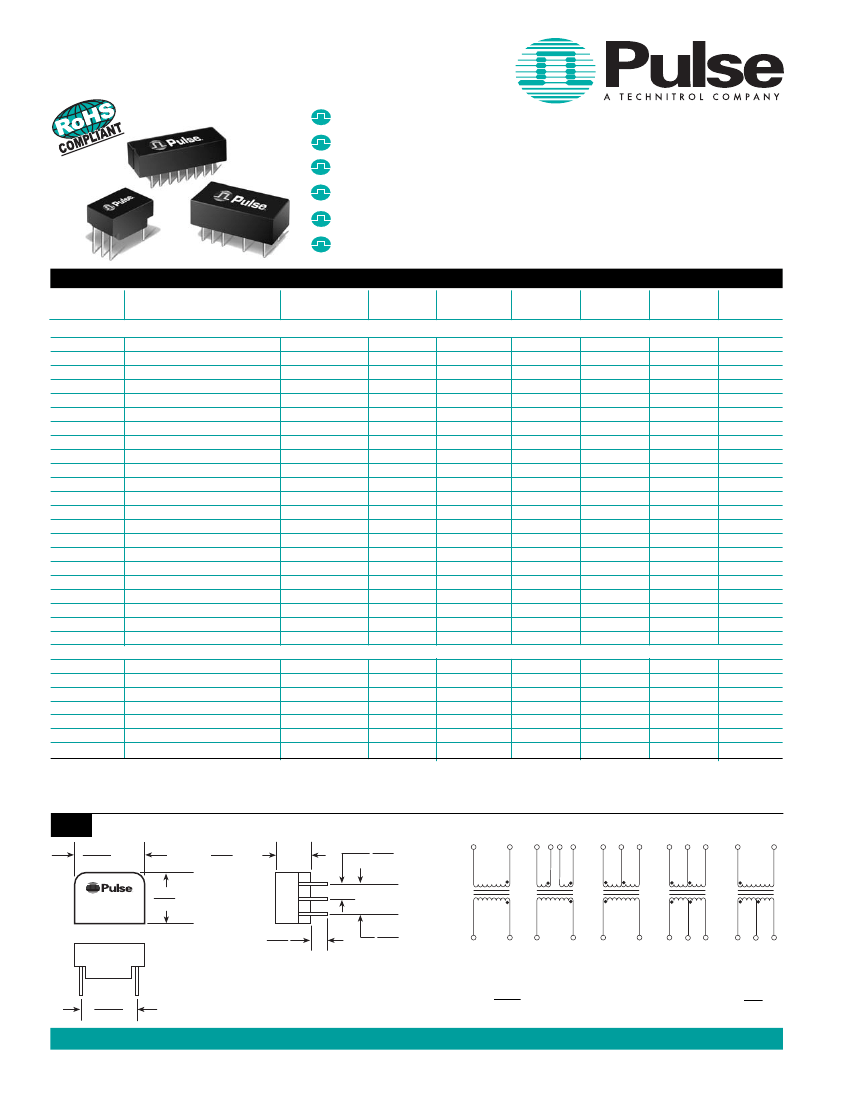

T1/CEPT/ISDN-PRI TRANSFORMERS
Single Through Hole, 1500Vrms
Extended and standard temperature range
Dual and single through hole models available
Models matched to leading transceiver ICs
UL recognized
Isolation Voltage: 1500Vrms MIN
RoHS compliant versions available upon request
Electrical Specifications @ 25°C
Turns Ratio
B
OCL @ 25°C
C
W
/
W
L
L
DCR Pri
(Pri:Sec ±5%)
(mH MIN)
(pF MAX)
(µH MAX)
(Ω MAX)
S
TANDARD
T
EMPERATURE
R
ANGE
S
INGLE
T
RANSFORMERS
– O
PERATING
T
EMPERATURE
0°C
TO
+70°C
PE-64931
1:1:1 (1:2CS)
1.20
25
0.50
0.70
PE-64933
1CT:3CT
1.20
30
0.50
0.70
PE-64934
1:1
1.20
25
0.50
0.70
PE-64936
1CT:1
1.20
25
0.80
0.70
PE-64937
1:1.36
1.20
35
0.80
0.70
PE-64940
1.26CS:1 (1:1:1.58)
0.30
30
0.60
0.80
D
PE-64941
1CS:1
0.80
30
0.60
0.80
PE-64942
1CS:1.31
0.80
30
0.40
0.80
A
PE-64943
1CT:2CT
1.20
30
0.30-0.55
0.70
PE-65351
1:2CT
1.20
40
0.50
0.70
PE-65363
1:4CT
0.50
40
1.00
0.50
PE-65379
1:1.14CT
1.20
35
0.80
0.70
PE-65388
1:1.15CT
1.50
35
0.60
0.70
PE-65389
E
1:1/1.26
1.50
40
0.40
0.70
PE-65415
1CT:2CT
1.20
30
0.50
0.70
PE-65558
1:2.3CT
1.20
35
0.80
0.70
PE-65586
1:1.36CT
1.20
35
0.80
0.70
PE-65755
1CT:1CT
1.20
25
0.80
0.80
PE-68644
1CT:1
0.70
20
0.70
0.20
PE-68645
1:1.36CT
0.70
20
0.70
0.50
T1054
1:1.5CT
1.20
30
0.60
0.70
T1249
1:1.26CT
1.20
60
0.80
0.90
E
XTENDED
T
EMPERATURE
R
ANGE
S
INGLE
T
RANSFORMERS 1
– O
PERATING
T
EMPERATURE
-40°C
TO
+85°C
PE-65340
1:1.36
1.20
35
0.80
0.90
PE-65770
1:1.15CT
1.50
40
0.80
0.90
PE-65771
1CT:2CT
1.20
50
0.60
1.00
PE-65778
1CT:1CT
1.20
40
1.00
1.00
PE-68600
1CT:3CT
1.20
60
0.80
0.90
E
PE-68664
1:1/1.26
1.50
50
0.80
0.90
TX1252
1CT:1
1.20
40
1.00
1.00
Part Number
NOTE: RoHS-6
compliant parts can be ordered by adding an “NL” suffix to the part number (i.e. PE-64931 becomes PE-64931NL).
DCR Sec
(Ω MAX)
0.70 & 0.70
1.60
0.70
0.70
0.80
0.60
0.60
0.60
1.20
1.30
1.50
0.80
0.90
0.90
1.20
1.40
0.90
0.80
0.80
0.40
1.00
1.00
1.20
1.00
2.00
1.00
2.70
1.10
1.00
Package/
Schematic
HC/2
HC/4
HC/1
HC/3
HC/1
HC/2
HC/2
HC/2
HC/4
HC/3
HC/5
HC/5
HC/3
HC/3
HC/4
HC/5
HC/5
HC/4
HC/3
HC/5
HC/3
HC/4
HC/1
HC/3
HC/4
HC/4
HC/4
HC/3
HC/3
Primary
Pins
1-2
1-5
1-2
1-5
5-6
1-4
1-4
1-4
1-5
2-6
1-5
1-5
2-6
2-6
1-5
1-5
1-5
1-5
1-5
1-5
2-6
2-6
5-6
2-6
2-6
1-5
1-5
2-6
1-5
(See Pages 6 and 7 for Table Notes)
Mechanical
HC
.500 MAX
12,70
5
6
3
PE-6XXXX
4
Date Code
1
2
.350 MAX
8,89
.130
3,30
Weight
. . . . . . . . . 1.2 grams
Tube
. . . . . . . . . . . . .60/tube
Schematics
.100
2,54
2
1
4 32 1
1
3
5
1
3
5
1
5
.250 MAX
6,35
.200
5,08
6
5
6
5
2
6
2
4
6
2
4
6
1
Dimensions:
Inches
mm
2
3
4
5
.400
10,16
Notes:
Leads are 24 AWG solderable.
Unused pins not provided.
Unless otherwise specified, all tolerances are ± .010
0,25
USA 858 674 8100
•
Germany 49 7032 7806 0
•
Singapore 65 6287 8998
•
Shanghai
86 21 32181071
•
China 86 755 33966678
•
Taiwan 886 3 4643715
www.pulseeng.com
4
T608.S (4/08)

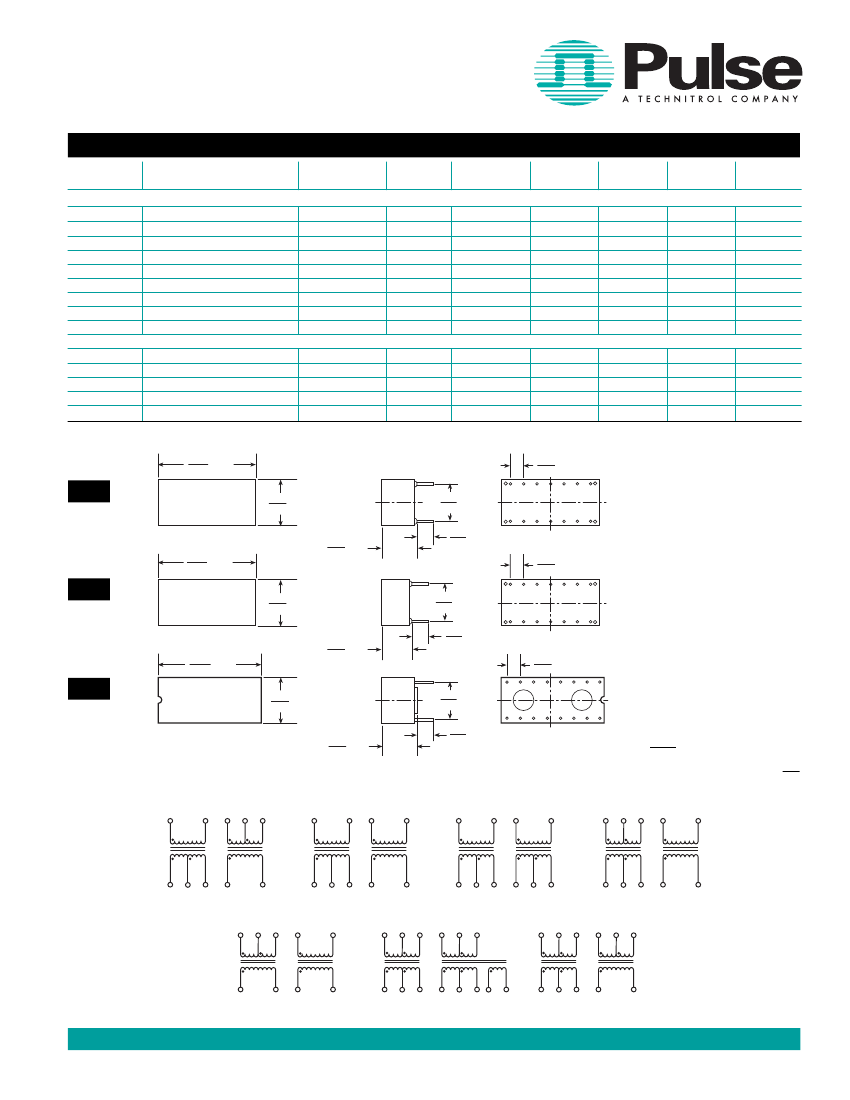

T1/CEPT/ISDN-PRI TRANSFORMERS
Dual Through Hole, 1500Vrms
Electrical Specifications @ 25°C
Part Number
Turns Ratio
B
(Pri:Sec ±5%)
OCL @ 25°C
(mH MIN)
C
W
/
W
(pF MAX)
L
L
(µH MAX)
DCR Pri
(Ω MAX)
DCR Sec
(Ω MAX)
1.20 & 1.20
1.20 & 1.00
2.00 & 2.00
1.20 & 0.70
0.70 & 0.30
0.50 & 0.20
0.50 & 0.30
1.10 & 1.30
0.90 & 1.30
1.00 & 1.70
1.00 & 1.70
1.70 & 1.20
1.00 & 1.20
1.00 & 2.00
Package/
Schematic
HD/1
HD/2
HD/3
HD/4
HD/5
HD/5
HD/5
TD/1
TD/1
TD/1
TD/1
TD/7
BD/6
BD/6
Primary
Pins
14-12, 5-7
14-12, 5-7
14-12, 10-8
1-3, 5-7
1-3, 5-7
1-3, 5-7
1-3, 5-7
14-12, 5-7
14-12, 5-7
14-12, 5-7
14-12, 5-7
14-12, 5-7
1-3, 11-9
1-3, 4-6
S
TANDARD
T
EMPERATURE
R
ANGE
D
UAL
T
RANSFORMERS
– O
PERATING
T
EMPERATURE
0°C
TO
+70°C
PE-64951
1:2CT & 1:2CT
1.20 & 1.20
35 & 35
0.50 & 0.50
0.70 & 0.70
PE-64952
1:2CT & 1:1.36
1.20 & 1.20
35 & 35
0.50 & 0.80
0.80 & 0.80
PE-64953
1:2CT & 1:2CT
2.00 & 2.00
50 & 50
0.60 & 0.60
1.00 & 1.00
A
PE-64954
1CT:2CT & 1:1
1.20 & 1.20
30 & 30
0.30-0.55 & 0.50 0.70 & 0.70
PE-64955
1:1.26CT & 1.58:1
0.80 & 0.80
30 & 30
0.50 & 0.50
0.60 & 0.60
PE-64956
1:1CT & 2:1
0.80 & 0.80
30 & 30
0.60 & 0.60
0.50 & 0.50
PE-64957
1CT:1.31 & 2.62:1
1.20 & 1.20
30 & 30
0.80 & 0.80
0.60 & 0.60
PE-65565
1:1.15CT & 1:2CT
1.50 & 1.20
35 & 40
0.60 & 0.50
0.70 & 0.70
E
PE-65566
1:1/1.26 & 1:2CT
1.50 & 1.20
40 & 40
0.50 & 0.40
0.70 & 0.70
E
XTENDED
T
EMPERATURE
R
ANGE
D
UAL
T
RANSFORMERS 1
– O
PERATING
T
EMPERATURE
-40°C
TO
+85°C
PE-65567
1:1.15CT & 1:2CT
1.50 & 1.20
40 & 60
0.80 & 0.80
0.90 & 0.90
PE-65568
E
1:1/1.26 & 1:2CT
1.50 & 1.20
50 & 60
0.80 & 0.80
0.90 & 0.90
PE-65774
1CT:2CT & 1:1.36CT
1.20 & 1.20
50 & 50
0.96 & 0.80
1.00 & 1.00
PE-68618
G
1CT:1CT & 3CT:1CT:.25
1.20 & 32.0
40 & 65
0.80 & 0.80
1.00 & 3.00
G
PE-64950
1CT:1CT & 1CT:3CT:1
1.20 & 0.60
50 & 50
0.80 & 0.80
1.00 & 0.80
Mechanicals
.800 MAX
20,32
1.00
TYP
2,54
.385 MAX
9,80
.300
7,62
.130
3,30
1.00 TYP
2,54
.300
7,62
.130
3,30
1.00 TYP
2,54
.300
7,62
.130
3,30
(See Pages 6 and 7 for Table Notes)
TD
DUAL
14 13 12 11 10 9 8
PE-XXXXX
DATE CODE
1 2 3 4 5 6 7
Weight
. . . . . . . . . 2.6 grams
Tube
. . . . . . . . . . . . .25/tube
.800
20,32 MAX
.290 MAX
7,37
HD
DUAL
14 13 12 11 10 9 8
PE-XXXXX
DATE CODE
1 2 3 4 5 6 7
.385
MAX
9,80
Weight
. . . . . . . . . 2.3 grams
Tube
. . . . . . . . . . . . .25/tube
1.00 MAX
25,40
.250 MAX
6,35
9
BD
DUAL
16
PE-XXXXX
DATE CODE
1
.385
9,80 MAX
8
.290
MAX
7,37
Weight
. . . . . . . . . 3.1 grams
Tube
. . . . . . . . . . . . .25/tube
Note:
Leads are 24 AWG solderable.
Schematics
14
12
10
9
8
14
12
10
8
14
12
10
8
Dimensions:
Inches
mm
Unless otherwise specified all tolerances are ± .010
0,25
14 13 12
10
8
1
2
3
5
7
1
2
3
5
7
1
2
3
5
6
7
1
2
3
5
7
1
14 13 12
10
8
2
16 15 14
11 10
9
3
14 13 12
10
9
8
4
1
3
5
7
1
2
3
4
5
6 7
8
1
2
3
5
7
5
6
7
USA 858 674 8100
•
Germany 49 7032 7806 0
•
Singapore 65 6287 8998
•
Shanghai
86 21 32181071
•
China 86 755 33966678
•
Taiwan 886 3 4643715
www.pulseeng.com
5
T608.S (4/08)
MCU
京公网安备 11010802033920号
EEWORLD
