H5400: DescriptionDATACOM TRANSFORMER FOR 1000 BASE-T APPLICATION(S); CategoryPower/power management; File Size255KB，12 Pages; ManufacturerPulse A Technitrol Company; Websitehttp://www.pulseeng.com

Download Datasheet Parametric View All

H5400 Overview

DATACOM TRANSFORMER FOR 1000 BASE-T APPLICATION(S)

H5400 Parametric

Parameter Name	Attribute value
Maximum operating temperature	70 Cel
Minimum operating temperature	0.0 Cel
Number of functions	1
state	TRANSFERRED
terminal coating	NOT SPECIFIED
Installation features	SURFACE MOUNT
Dimensions	L17.53XB12.2XH5.51 (mm)/L0.69XB0.48XH0.217 (inch)
Manufacturer Series
application	1000 BASE-T
Isolation voltage	1500 kV
Transformer type	DATACOM TRANSFORMER
匝数比NP:NS	1:1

Preview

Download Datasheet

View All

LAN Discrete Transformer Modules

LAN DISCRETE TRANSFORMER MODULES

Pulse Discrete Transformer Modules

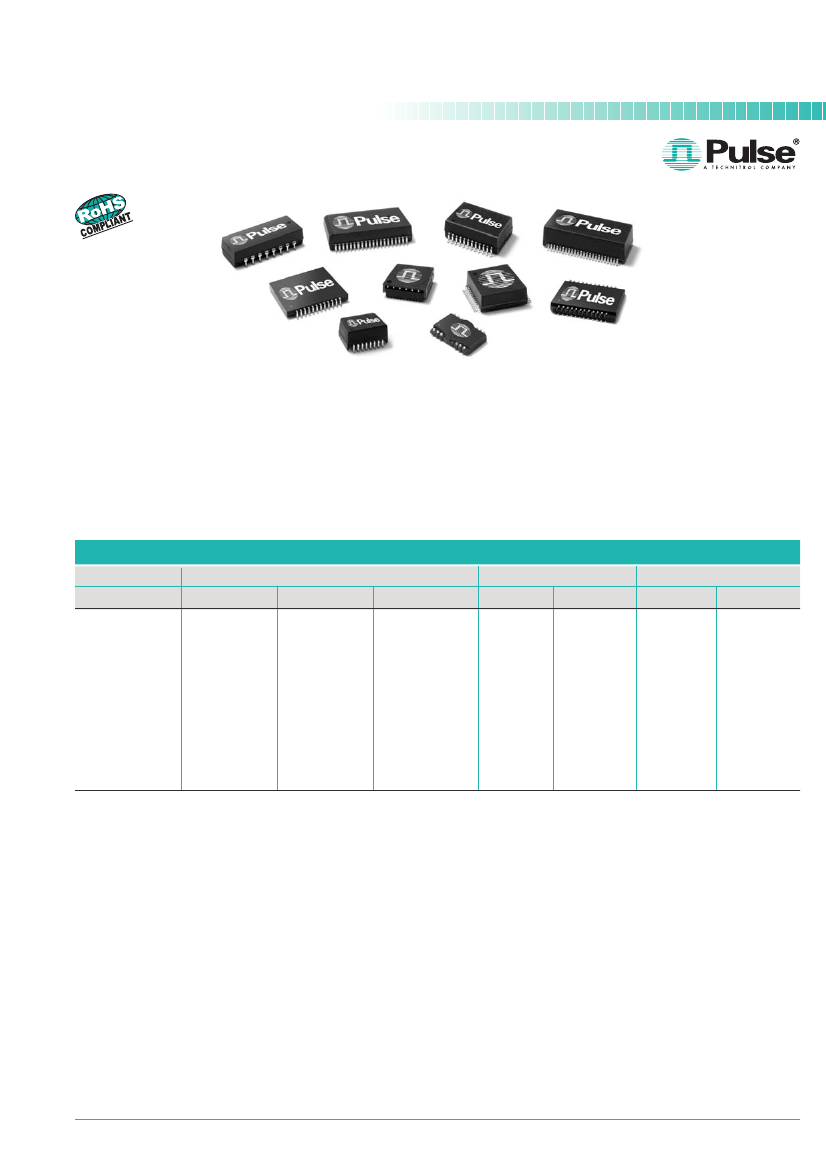

Pulse offers the most comprehensive line of discrete LAN transformer modules available to the OEM worldwide. Modules for

10/100/1000BASE-T are optimized for all major LAN transceivers. All modules provide electrical circuit isolation that meets IEEE 802.3,

while maintaining signal integrity needed for the most demanding applications.

Pulse manufactures the broadest selection of packaging options, from through hole (THT) SIL devices to the smallest available surface

mount (SMT) solution at .078" (1.98 mm). For RoHS compliant products, please refer to individual data sheets for details.

NOTE:

This catalog section serves as an overview to the LAN discrete modules. For detailed data sheets and a complete list of LAN

discrete modules, please go to the Pulse website home page and click the link on the left that says “DATA SHEETS.”

For the reader’s convenience and to locate multiple platforms easily, view the IC Cross References that start on page 29.

DISCRETE SMT TRANSFORMER MODULES

Number of Ports

Data Rate

10Base-T

E103

(low profile)

E112

(ext. temp.)

E115

(1:1 TR)

Data Sheet

Number

EC100

(SMT, THT)

Single

10/100TX

H303

(1:1 TR)

H304

(low profile)

H314

(var. TR)

H315

(2:1 TR)

H325

(var. TR)

H326

(var. TR)

H327

(PoE)

H328

(1:1 TR)

H342

(1:1 TR)

H600

(1:1 TR)

Gigabit

HC500

(1:1 TR)

H504

(low profile)

H544

(1:1 TR)

H546

(small footprint)

H601

(PoE)

H551

(quad / dual)

10/100TX

H322

(1:1 TR)

H327

(PoE)

H600

(1:1 TR)

Dual

Gigabit

HC500

(1:1 TR)

H601

(PoE)

H551

(quad / dual)

Quad

10Base-T

EC101

(var. TR)

10/100TX

H313

(1.41:1 TR)

H316

(1:1 TR)

H321

(2:1 TR)

H327

(PoE)

H328

(1:1 TR)

H600

(1:1 TR)

For

common mode chokes, see data sheet number G002 at

http://www.pulseeng.com/products/datasheets/G002.pdf.
