HI-SINCERITY
MICROELECTRONICS CORP.
Spec. No. : IC200404
Issued Date : 2004.03.01
Revised Date : 2005.03.25
Page No. : 1/7
H432 Series
ADJUSTABLE SHUNT REGULATOR
H432 Series Pin Assignment
3-Lead Plastic
SOT-23
Package Code: N
Pin 1: Reference
Pin 2: Cathode
Pin 3: Anode
3-Lead Plastic
SOT-89
Package Code: M
Pin 1: Reference
Pin 2: Anode
Pin 3: Cathode
3-Lead Plastic
TO-92
Package Code: A
Pin 1: Reference
Pin 2: Anode
Pin 3: Cathode
3
2
Description
The H432 series are three-terminal adjustable regulators with guaranteed
thermal stability over applicable temperature ranges. The output voltage
may be set to any value between V
REF
(approximately 1.24 or 1.25 volts)
and 30 volts with two external resistors. These devices have a typical
dynamic output impedance of 0.2Ω. Active output circuitry provides a very
sharp turn-on characteristic, making these devices excellent replacement
for zener diodes in many applications.
1
1
2
3
Features
•
Programmable output voltage
•
Temperature coefficient is 50ppm/
o
C typical
•
Temperature compensated for operation over full temperature range
•
Low output noise voltage
•
Fast turn on response
1
2
12
3
3
Ordering Information
Package
SOT-23
SOT-89
TO-92
V
REF
1.24V±2%
H432AN
H432AM
H432AA
V
REF
1.24V±1%
H432BN
H432BM
H432BA
V
REF
1.24V±0.5%
H432CN
H432CM
H432CA
V
REF
1.25V±2%
H432DN
H432DM
H432DA
V
REF
1.25V±1%
H432EN
H432EM
H432EA
V
REF
1.25V±0.5%
H432FN
H432FM
H432FA
Absolute Maximum Ratings
(Operating temperature range applies unless otherwise specified)
Characteristics
Cathode Voltage
Cathode Current Range (Continuous)
Reference Input Current Range
Power Dissipation
Operating Temperature Range
Junction Temperature
Storage Temperature Range
Symbol
V
KA
I
K
I
REF
P
D
T
opr
T
J
T
stg
Value
30
50
0.05~+10
SOT-23
280
SOT-89
770
TO-92
770
0~+70
150
-65~+150
Unit
V
mA
mA
mW
o
C
o
C
o
C
Operating Conditions
Characteristics
Cathode Voltage
Cathode Current Range (Continuous)
Symbol
V
KA
I
K
Min.
V
REF
1
Typ.
-
10
Max.
30
-
Unit
V
mA
H432 Series
HSMC Product Specification
HI-SINCERITY
MICROELECTRONICS CORP.
Functional Block Diagram & Symbol
Functional Block Diagram
Symbol
Spec. No. : IC200404
Issued Date : 2004.03.01
Revised Date : 2005.03.25
Page No. : 2/7
Cathode
+
Cathode
Reference
V
REF
-
Reference
Anode
Anode
Test Circuits
Fig 1. V
K
=V
REF
I
I
V
IN
I
REF
I
K
V
REF
R
2
V
REF
V
K
V
IN
R
1
Fig 2. V
K
>V
REF
I
I
V
K
V
IN
V
K
Fig 3. Off-State Current
I
REF
I
K
I
OFF
Note: V
K
=V
REF
(1+R
1
/R
2
)+I
REF
xR
1
Electrical Characteristics
(Ta=25
o
C unless otherwise specified)
Characteristics
H432AN/AM/AA
H432BN/BM/BA
H432CA/CM/CA
H432DN/DM/DA
H432EN/EM/EA
H432FN/FM/FA
Symbol
Test Conditions
Min
1.215
1.228
1.234
1.225
1.238
1.244
-
-
-
-
-
-
-
Typ
1.24
1.24
1.24
1.25
1.25
1.25
4
-1.4
-1
1
0.4
0.4
0.1
Max
1.265
1.252
1.246
1.275
1.262
1.256
17
-2.7
-2
4
1.2
1
1
Unit
Reference Input
Voltage
(Fig1)
V
REF
V
K
=V
REF
, I
K
=10mA
V
Deviation of Reference Input Voltage Over-
Temperature
(Fig1)
V
REF(dev)
Ratio of Change in Reference Input Voltage to
∆V
REF
/
the Change in Cathode Voltage
(Fig2)
∆V
K
Reference Input Current
(Fig2)
Deviation of Reference Input Current Over
Full Temperature Range
(Fig2)
Minimum Cathode Current for Regulation
(Fig1)
Off-State Cathode Current
(Fig3)
H432 Series
V
K
=V
REF
, I
K
=10mA
T
min
≤T
a
≤T
max
I
K
=10mA,
∆V
K
=10V to V
REF
I
K
=10mA,
∆V
K
=30V to 10V
I
K
=10mA, R
1
=10kΩ,
R
2
=∞
I
K
=10mA, R
1
=10kΩ,
R
2
=∞, T
a
=Full Range
V
K
=V
REF
V
K
=30V, V
REF
=0
mV
mV/V
mV/V
uA
uA
mA
uA
I
REF
I
REF(dev)
I
K(min)
I
K(off)
HSMC Product Specification
HI-SINCERITY
MICROELECTRONICS CORP.
Characteristics Curve
Cathode Current & Cathode Voltage
20
15
Spec. No. : IC200404
Issued Date : 2004.03.01
Revised Date : 2005.03.25
Page No. : 3/7
Change in Reference Input Voltage
& Cathode Voltage
0
Change in Reference Input Voltage (mV)
-2
-4
-6
-8
-10
-12
-14
-16
-18
-20
10
Cathode Current (mA)
5
0
-5
-10
-15
-20
-25
-1
-0.5
0
0.5
Cathode Voltage (V)
1
1.5
V
K
=V
REF
, Ta=25 C
Test Circuit (Fig1)
o
0
10
20
Cathode Voltage (V)
30
40
Reference Input Voltage & Temperature
1.248
1.246
Reference Input Voltage (V)
1.244
1.242
1.24
1.238
1.236
1.234
-20
0
20
40
60
o
Temperature ( C)
80
100
120
V
K
=V
REF
, I
K
=10mA
Test Circuit (Fig1)
300
200
100
0
-100
-200
-300
-400
-1
Cathode Current & Cathode Voltage
Cathode Current (uA)
V
K
=V
REF
, Ta=25 C
Test Circuit (Fig1)
o
-0.5
0
0.5
Cathode Voltage (V)
1
1.5
Small Signal Voltage Amplification &
Frequency
60
50
Voltage Amplification (dB)
40
30
Vout
20
+
6.8K
Ik
180
10
0
-10
100
10uF
4.3K
5V
GND
1000
10000
100000
Frequency (Hz)
1000000
10000000
H432 Series
HSMC Product Specification
HI-SINCERITY
MICROELECTRONICS CORP.

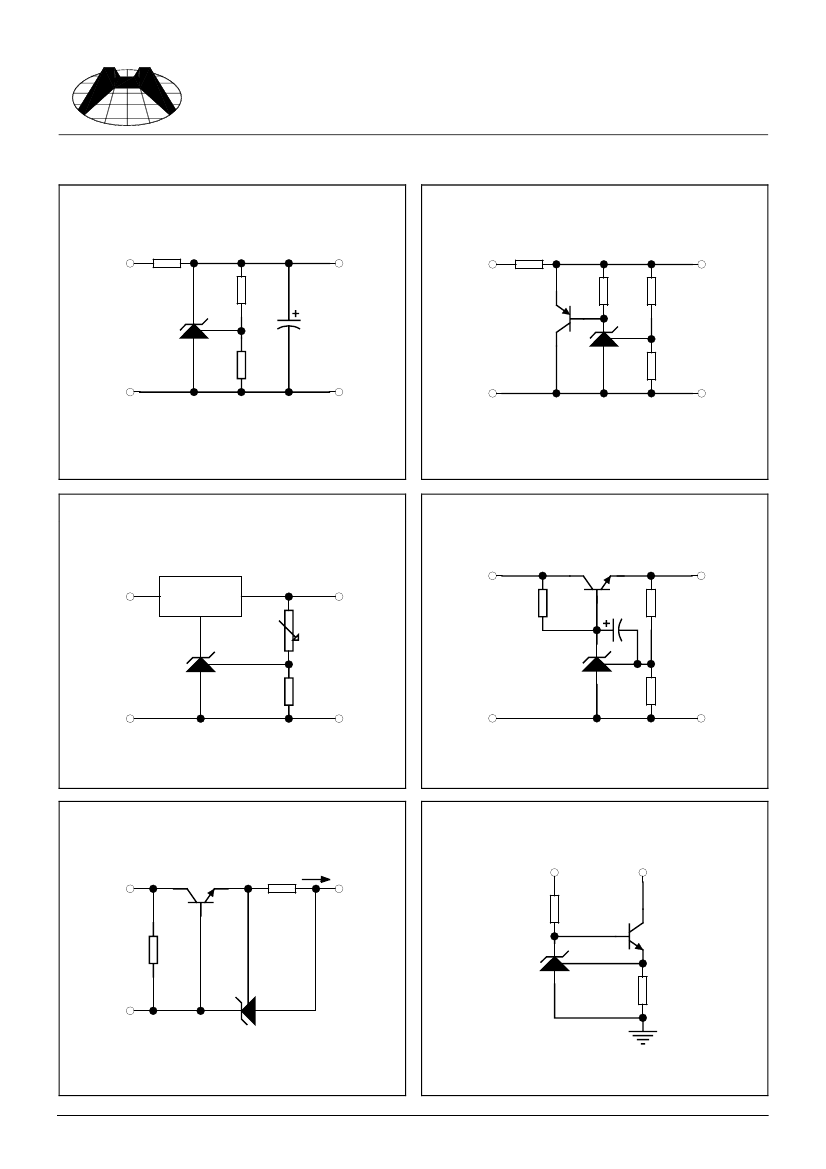

Typical Application
Fig 4. Shunt Regulator
Spec. No. : IC200404
Issued Date : 2004.03.01
Revised Date : 2005.03.25
Page No. : 4/7
Fig 5. High Current Shunt Regulator
Vcc
R1
Vout
Vcc
R1
Vout
R2
R2
Vout=(1+R
1
/R
2
)V
REF
Vout=(1+R
1
/R
2
)V
REF
Fig 6. Output Control of a Three-Terminal Fixed
Regulator
Fig 7. Series Pass Regulator
Vcc
H7805
IN
OUT
COMMON
Vcc
Vout
R1
Vout
R1
R2
R2
Vout=(1+R
1
/R
2
)V
REF
; V
out(min)
=V
REF
+5V
Vout=(1+R
1
/R
2
)V
REF
; V
out(min)
=V
REF
+V
BE
Fig 8. Current Limiter or Current Source
Fig 9. Constant Current Sink
Vcc
Vcc
RCL
Iout
Isink
Rs
Iout=V
REF
/R
CL
Isink=V
REF
/R
S
H432 Series
HSMC Product Specification
HI-SINCERITY
MICROELECTRONICS CORP.
SOT-89 Dimension
C
H
Spec. No. : IC200404
Issued Date : 2004.03.01
Revised Date : 2005.03.25
Page No. : 5/7
Marking:
Date Code
HSMC Logo
H 4 3 2
Control Code
Pb-Free: "
.
"
(Note)
Normal: None
Pb Free Mark
B
1
E
F
G
A
2
3
D
Note: Green label is used for pb-free packing
J
I
Pin Style: 1.Reference 2.Anode 3.Cathode
Material:
•
Lead solder plating: Sn60/Pb40 (Normal),
Sn/3.0Ag/0.5Cu or Pure-Tin (Pb-free)
•
Mold Compound: Epoxy resin family,
flammability solid burning class: UL94V-0
DIM
A
B
C
D
E
F
G
H
I
Min.
4.40
4.05
1.50
2.40
0.36
*1.50
*3.00
1.40
0.35
Max.
4.60
4.25
1.70
2.60
0.51
-
-
1.60
0.41
*: Typical, Unit: mm
3-Lead SOT-89 Plastic
Surface Mounted Package
HSMC Package Code: M
TO-92 Dimension
A
B
1
2
3
α
2
Marking:
Pb Free Mark
Pb-Free: "
.
"
(Note)
Normal: None
H
4 3 2
A
α
3
Date Code
Control Code
C
Note: Green label is used for pb-free packing
D
Pin Style: 1.Reference 2.Anode 3.Cathode
Material:
•
Lead solder plating: Sn60/Pb40 (Normal),
Sn/3.0Ag/0.5Cu or Pure-Tin (Pb-free)
•
Mold Compound: Epoxy resin family,
flammability solid burning class: UL94V-0
DIM
A
B
C
D
E
F
G
H
I
α1
α2
α3
Min.
4.33
4.33
12.70
0.36
-
3.36
0.36
-
-
-
-
-
Max.
4.83
4.83
-
0.56
*1.27
3.76
0.56
*2.54
*1.27
*5°
*2°
*2°
H
I
E
F
G
*: Typical, Unit: mm
α
1
3-Lead TO-92 Plastic Package
HSMC Package Code: A
H432 Series
HSMC Product Specification
